3164001 Fuel Injector League Test Check Kit CUMMINS ISX/Signature Engine
3164001 Fuel Injector League Test Check Kit CUMMINS ISX/Signature Engine
Regular price
$193.00 USD
Regular price
Sale price
$193.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

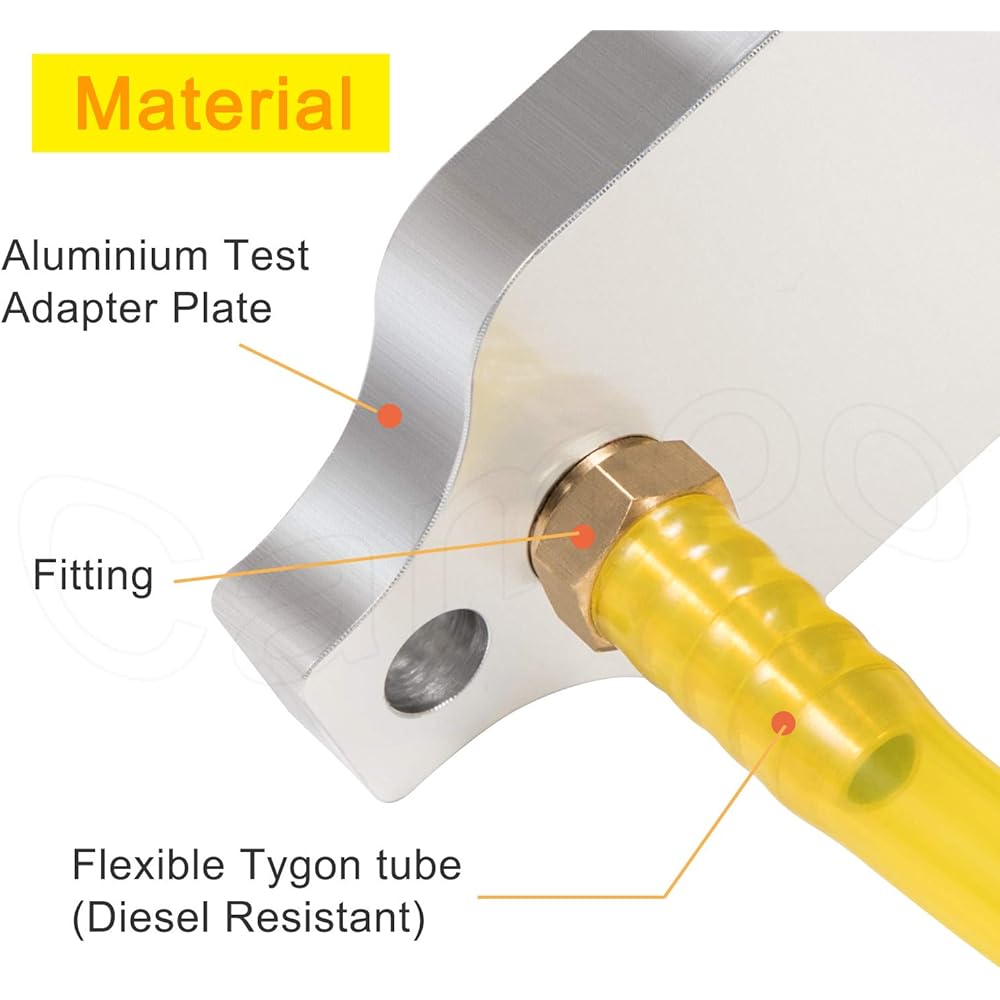

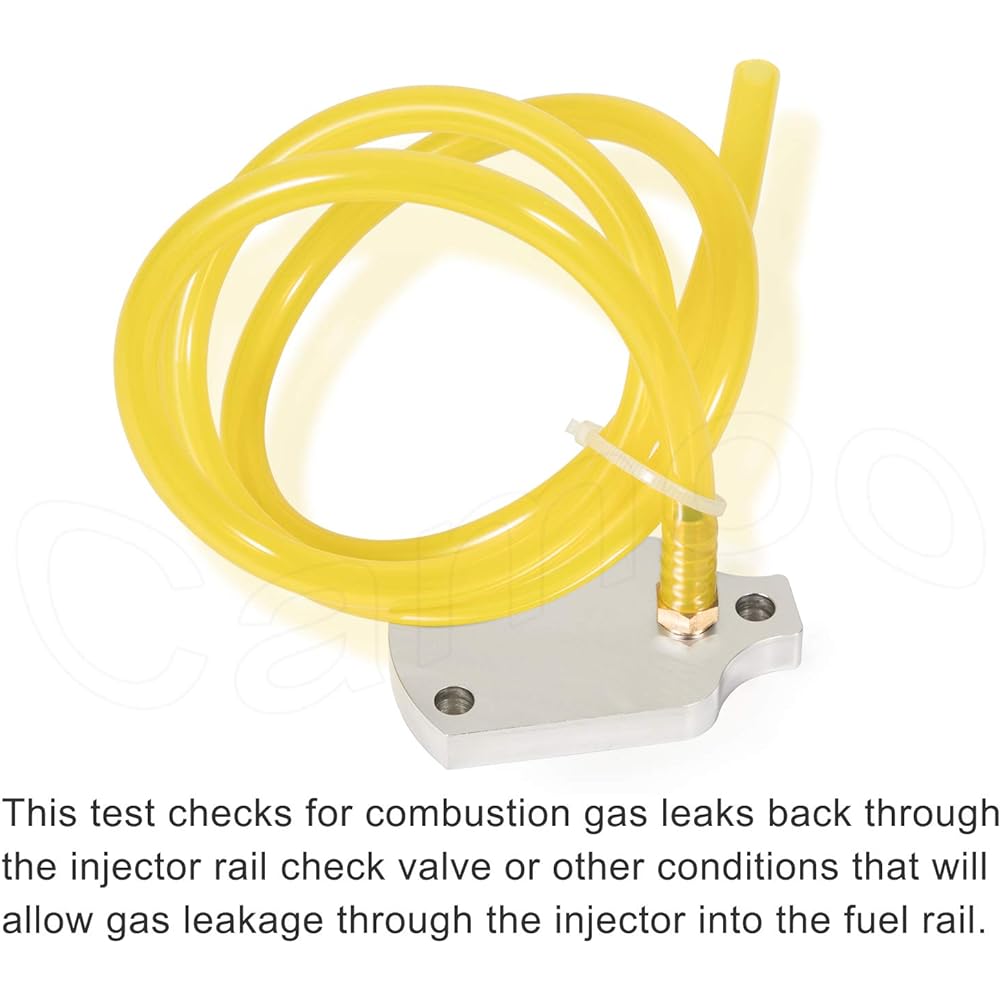

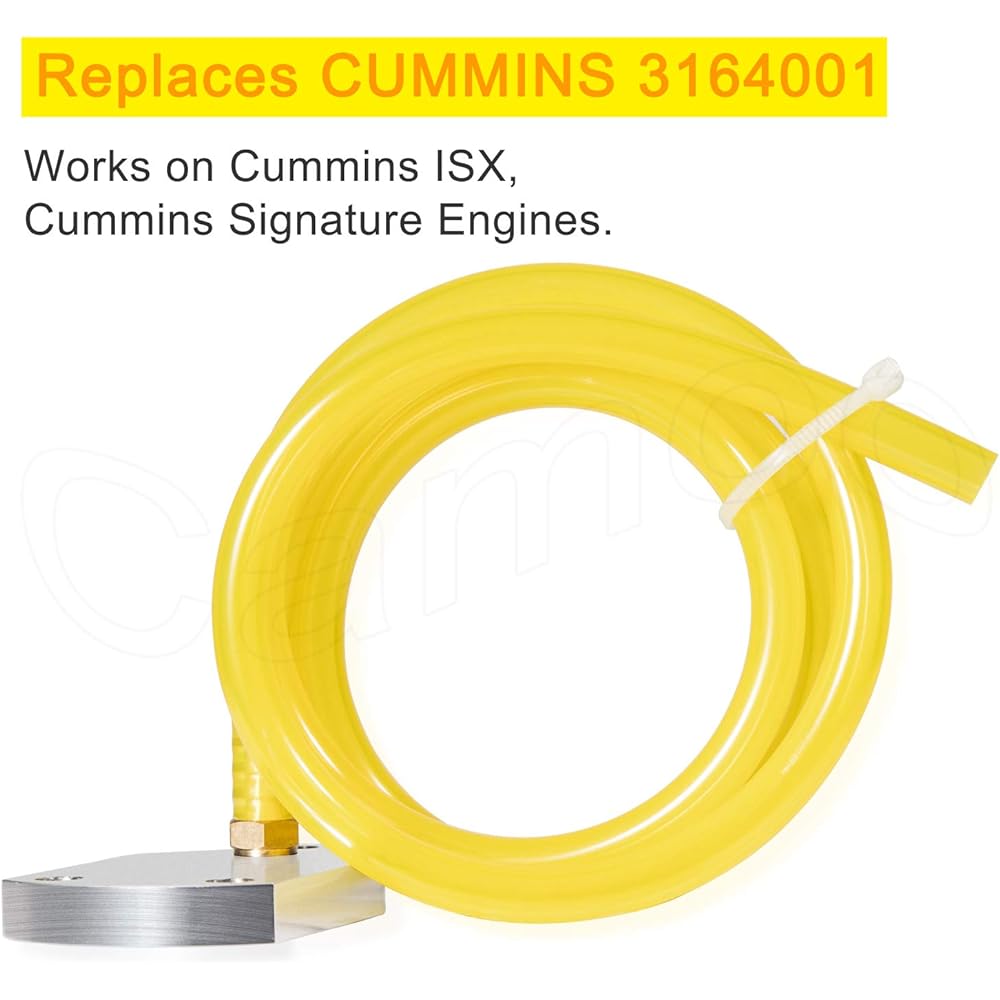

Application: Replacement for CUMMINS tool number 3164001. Works with Cummins ISX, Cummins signature engine. Material - High quality aluminum test adapter plate and flexible Tygon tubing (diesel resistant). Function - This test checks for combustion gas leakage through the injector rail check valve and other conditions that allow gas leakage through the injector to the fuel rail. SAVE MONEY - Use this tool to check your fuel injectors before replacing the injector or actuator. Benefits - Used to test injectors for leaks that may cause the engine to shut down slowly or run excessively after a key-off condition.

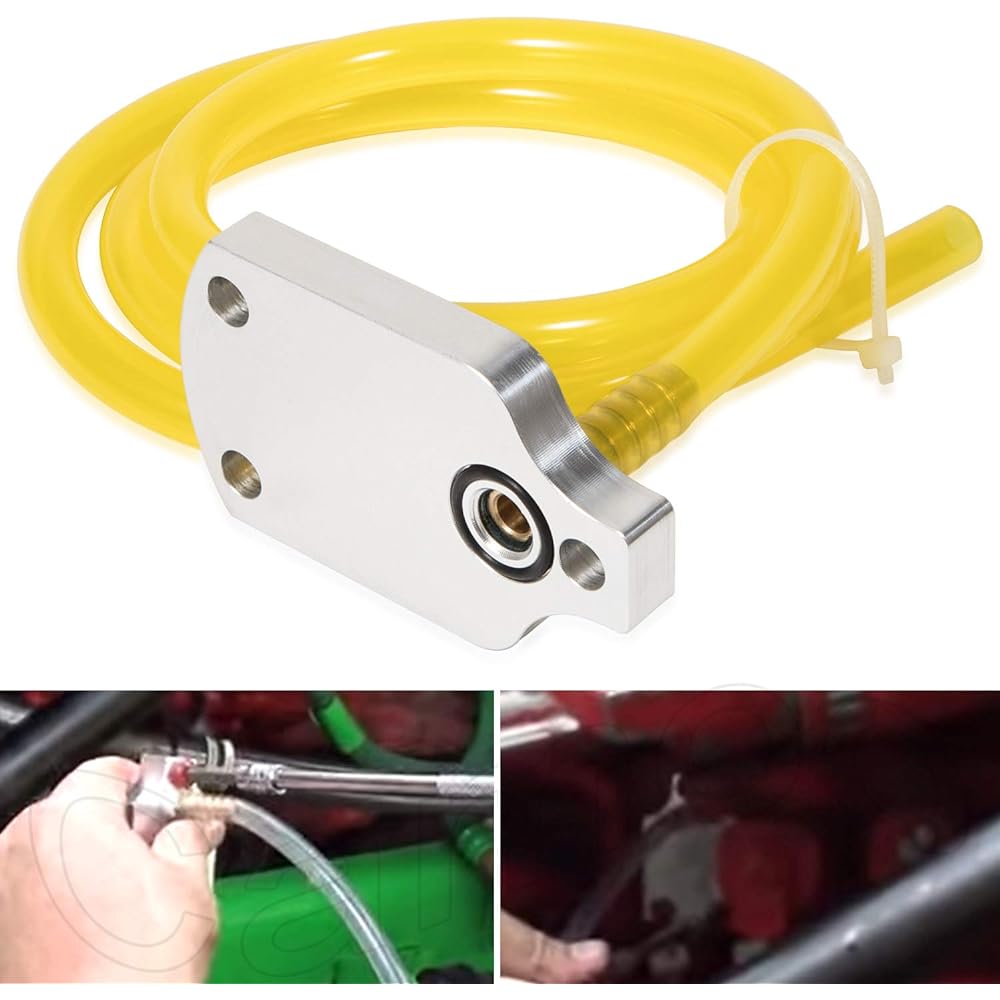

Features - Replaces CUMMINS tool number 3164001. - Complete kit: aluminum test plate, barbed hose fittings and flexible tubing (Tygon - diesel resistant). - Save Money - Use this tool before replacing your injector or meter actuator. Applicable to engines. - Cummins ISX. - Cummins Signature. Excerpt from Quick Service - When the engine is bound, back pressure is created against the injectors as the piston comes up on the compression stroke. - During testing, if the rail check valve is leaking, air will be forced into the rail check valve and fuel rail. The pressure is sent to the test fixture instead of the measuring actuator. - When the manometer is connected to the test fixture, pressure is measured as air escapes through the leaking rail check valve. - If you use a water container instead of a manometer, you will see bubbles as air escapes through the leaking rail check valve. - Overhead set marks on the damper are used to identify which of the cylinders on the compression stroke and therefore which injector has failed, if the pressure or air bubbles have changed. Package Contents: 1 x Test Plate 1 fitting 1 x flexible tube. We are committed to providing you with a better service concept. Thank you for clicking! Click the Buy Now button to get this amazing tool.
Manufacturer: Camoo
Brand: Camoo
Packing size: 11.43 x 8.13 x 1.02 cm; 113 g
Manufacturer reference: 3164001
Product weight : 113 g
Features - Replaces CUMMINS tool number 3164001. - Complete kit: aluminum test plate, barbed hose fittings and flexible tubing (Tygon - diesel resistant). - Save Money - Use this tool before replacing your injector or meter actuator. Applicable to engines. - Cummins ISX. - Cummins Signature. Excerpt from Quick Service - When the engine is bound, back pressure is created against the injectors as the piston comes up on the compression stroke. - During testing, if the rail check valve is leaking, air will be forced into the rail check valve and fuel rail. The pressure is sent to the test fixture instead of the measuring actuator. - When the manometer is connected to the test fixture, pressure is measured as air escapes through the leaking rail check valve. - If you use a water container instead of a manometer, you will see bubbles as air escapes through the leaking rail check valve. - Overhead set marks on the damper are used to identify which of the cylinders on the compression stroke and therefore which injector has failed, if the pressure or air bubbles have changed. Package Contents: 1 x Test Plate 1 fitting 1 x flexible tube. We are committed to providing you with a better service concept. Thank you for clicking! Click the Buy Now button to get this amazing tool.
Manufacturer: Camoo
Brand: Camoo
Packing size: 11.43 x 8.13 x 1.02 cm; 113 g
Manufacturer reference: 3164001
Product weight : 113 g
