Auto Parts Tokyo
3/4 inch air compressor regulator & filter combo gauge & auto drain
3/4 inch air compressor regulator & filter combo gauge & auto drain
Regular price
$282.00 USD
Regular price
Sale price
$282.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

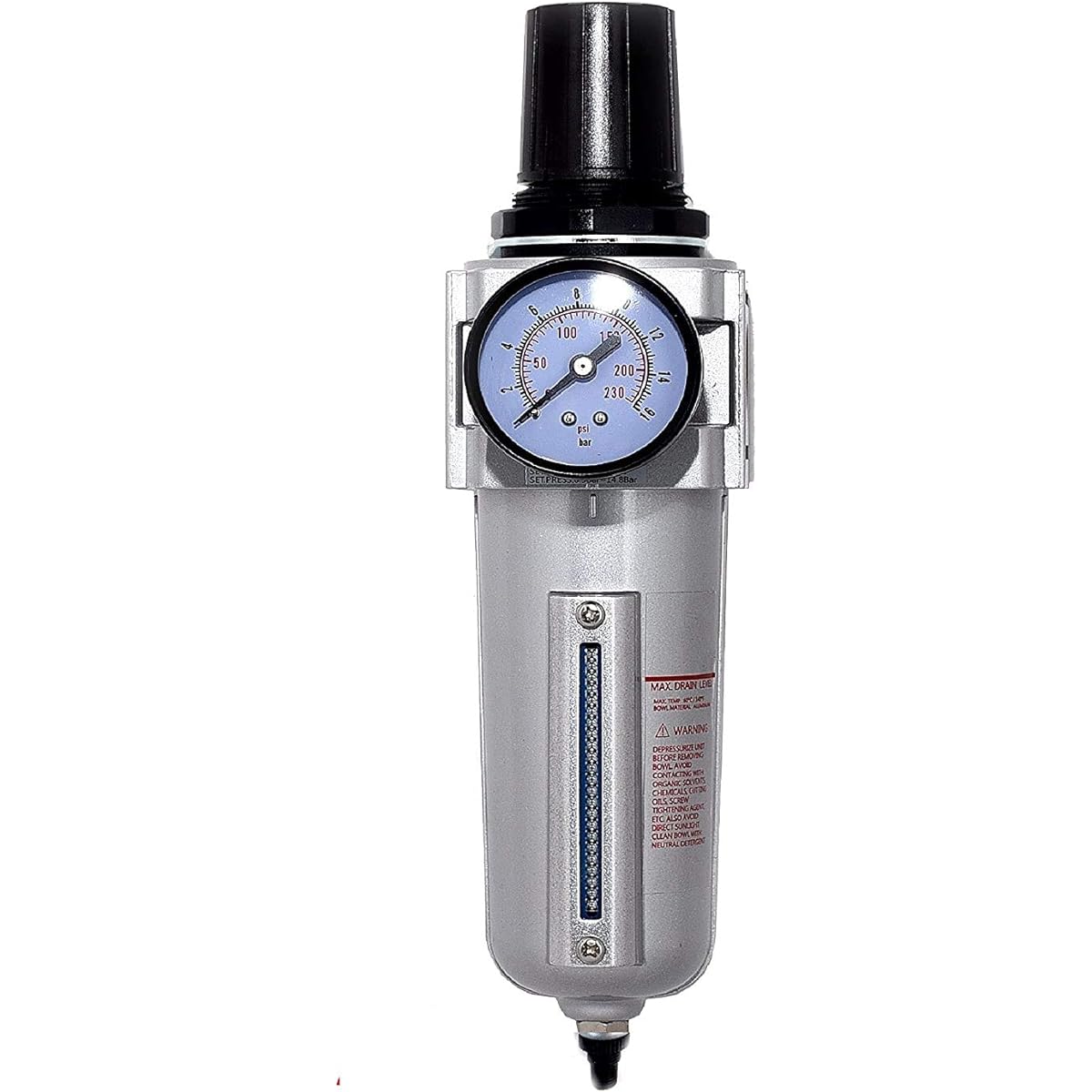

3/4" Air Compressor Regulator & Filter Combo with Gauge & Auto Drain
3/4" Air Compressor Regulator & Filter Combo with Gauge & Auto Drain 3/4" Air Compressor Regulator & Filter Combination with Gauge and Free Wall Mounting Bracket. This regulator and filter combo regulates air pressure from 7 psi to 225 psi with a maximum pressure of 250 psi. The adjustable turn knob can be pulled out to unlock and adjust the pressure, and once set, push the knob to lock it in place. This is a directional flow regulator & filter, marked IN on the inlet side and OUT on the outlet side to indicate how the air should flow. The included filter is a 5 micron filter that removes water droplets from the airline. The filter element is surrounded by a metal bowl with a commercial automatic float drain at the bottom. It must be installed vertically, with the drain pipe facing downwards. There is a 3/4" female NPT thread on each side for entry and exit of the main compressor line, and a 1/4" female thread on the outside shown in the gauge (see image). Specifications: Inlet and outlet size: 3/4" female NPT with approximately 1" diameter. Regulator and filter width: 3" x 3" square. Gauge adds approximately 1 1/2 inches to each side. Replacement filters are available with a total height of approximately 11 inches. Replace every 6 months for optimal performance in daily use.
Package size: 33.7 x 8.3 x 7.9 cm; 1.16 kg
Name on nameplate: Others
Material: Aluminum
Laser class: Auto shut-off
>Accessories: Filter, mounting bracket.
Batteries included: No
Product weight: 1.16 Kilograms
3/4" Air Compressor Regulator & Filter Combo with Gauge & Auto Drain 3/4" Air Compressor Regulator & Filter Combination with Gauge and Free Wall Mounting Bracket. This regulator and filter combo regulates air pressure from 7 psi to 225 psi with a maximum pressure of 250 psi. The adjustable turn knob can be pulled out to unlock and adjust the pressure, and once set, push the knob to lock it in place. This is a directional flow regulator & filter, marked IN on the inlet side and OUT on the outlet side to indicate how the air should flow. The included filter is a 5 micron filter that removes water droplets from the airline. The filter element is surrounded by a metal bowl with a commercial automatic float drain at the bottom. It must be installed vertically, with the drain pipe facing downwards. There is a 3/4" female NPT thread on each side for entry and exit of the main compressor line, and a 1/4" female thread on the outside shown in the gauge (see image). Specifications: Inlet and outlet size: 3/4" female NPT with approximately 1" diameter. Regulator and filter width: 3" x 3" square. Gauge adds approximately 1 1/2 inches to each side. Replacement filters are available with a total height of approximately 11 inches. Replace every 6 months for optimal performance in daily use.
Package size: 33.7 x 8.3 x 7.9 cm; 1.16 kg
Name on nameplate: Others
Material: Aluminum
Laser class: Auto shut-off
>Accessories: Filter, mounting bracket.
Batteries included: No
Product weight: 1.16 Kilograms
