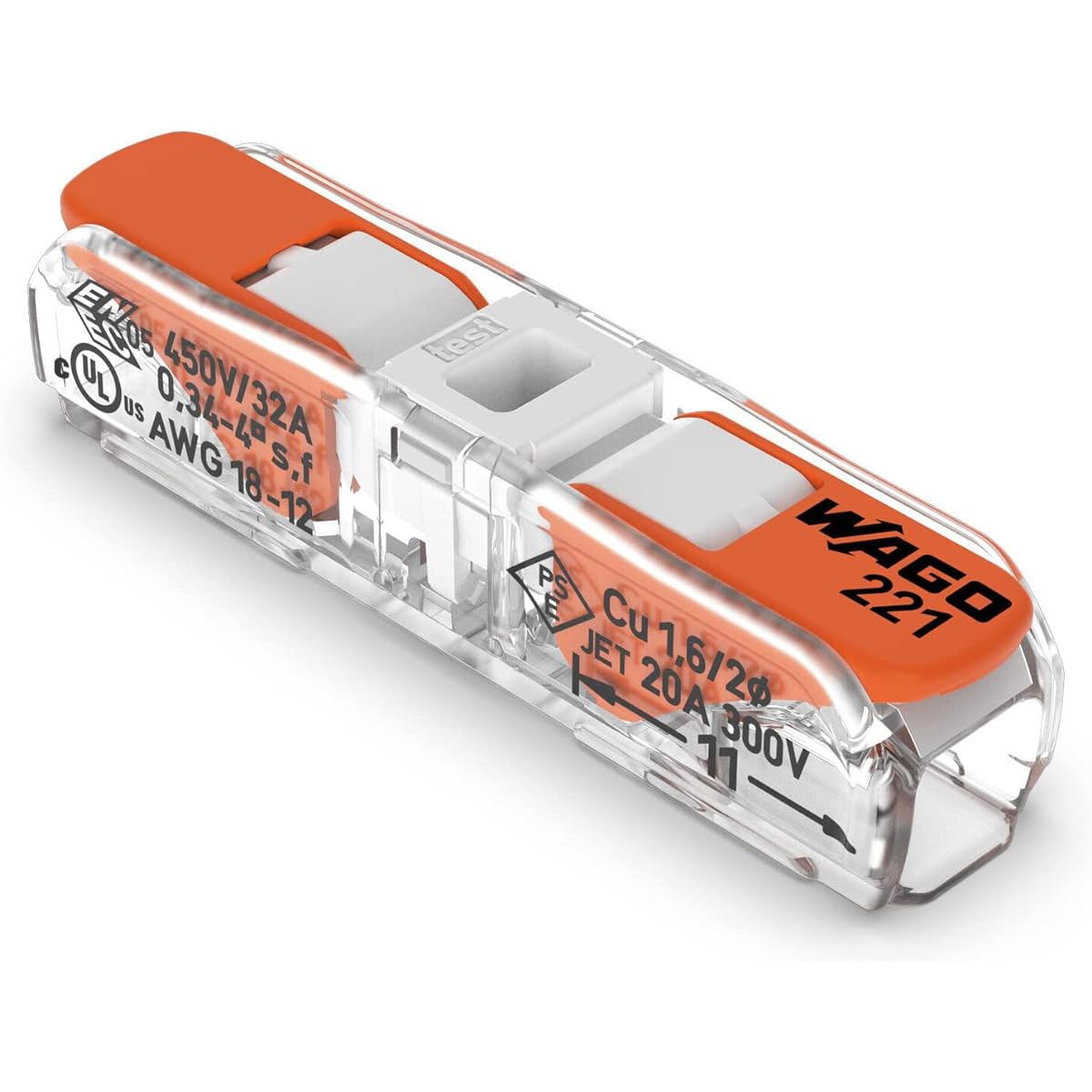

221-2401 | WAGO Lever-Nuts® Inline Splicing Connector | For solid and stranded conductors | 2 conductors with operating lever | 20-12AWG | Transparent housing | White cover | [Box of 60]

[Protect your wrists!] WAGO LEVER-NUTS is lever-operated, so no twisting or taping is required. [Reusable] Due to the innovative design of WAGO LEVER-NUTS, they can be opened and closed repeatedly without compromising the integrity of the connection. [UL486C Compliant] These durable connectors meet or exceed rigorous standards for pullout, temperature cycling, vibration, and corrosion. [USE ANYWHERE!] Although designed to meet stringent specifications for use in factories, lighting, HVAC, appliances, recreational vehicles, and more, LEVER-NUTS is conveniently priced for everyday use in DIY projects . [Billions of Connections Services!] As the originator of spring pressure technology, WAGO has been the market leader in reliable connections since 1951. 20-12 AWG solid, 18-12 AWG stranded wire.

Pull up the lever, insert the conductor and push the lever back – done. Tool-free and lever-actuated, WAGO's 221 series wire splicing connectors easily, quickly and safely connect solid, stranded, and fine stranded conductors of different cross-sections using two-, three-, and five-wire connectors. can. These connectors come in two variations that accommodate 24-12 AWG and 20-10 AWG wire. Opening the 221 series lever is effortless. This means you can quickly connect conductors without tools. When connecting conductors, the recessed handle on the side allows you to easily and firmly grip the connector. For peace of mind, you can test the voltage from both sides of the connector even during installation – one test point in the direction of the conductor input and another on the opposite side. This accessibility provides very useful testing conditions for a wide range of applications. Additionally, mounting carriers are available for each 221 series splicing connector. Each variant can be mounted vertically or horizontally. Simply clip onto a DIN rail or secure the carrier with screws to any smooth surface. Flexible mounting clamps make it easy to insert and remove connectors. Conductors can be conveniently connected and disconnected before or after inserting the connector into the carrier. One test slot is always accessible to ensure compliance with VDE standards.


Manufacturer: ‎WAGO
Part number: ‎221-2401
Item weight: ‎159 g
Product size: ‎46 x 31 x 31 cm; 159 g
br>Color: Transparent
Voltage: 400 VoltsMeasurement System: Imperial
Plug outline: DIN rail mount
Accessories: Wire connector
Battery included: No
br>Battery usage: ‎No
Product dimensions (Length x Width x Height): ‎46 x 31 x 31 cm
