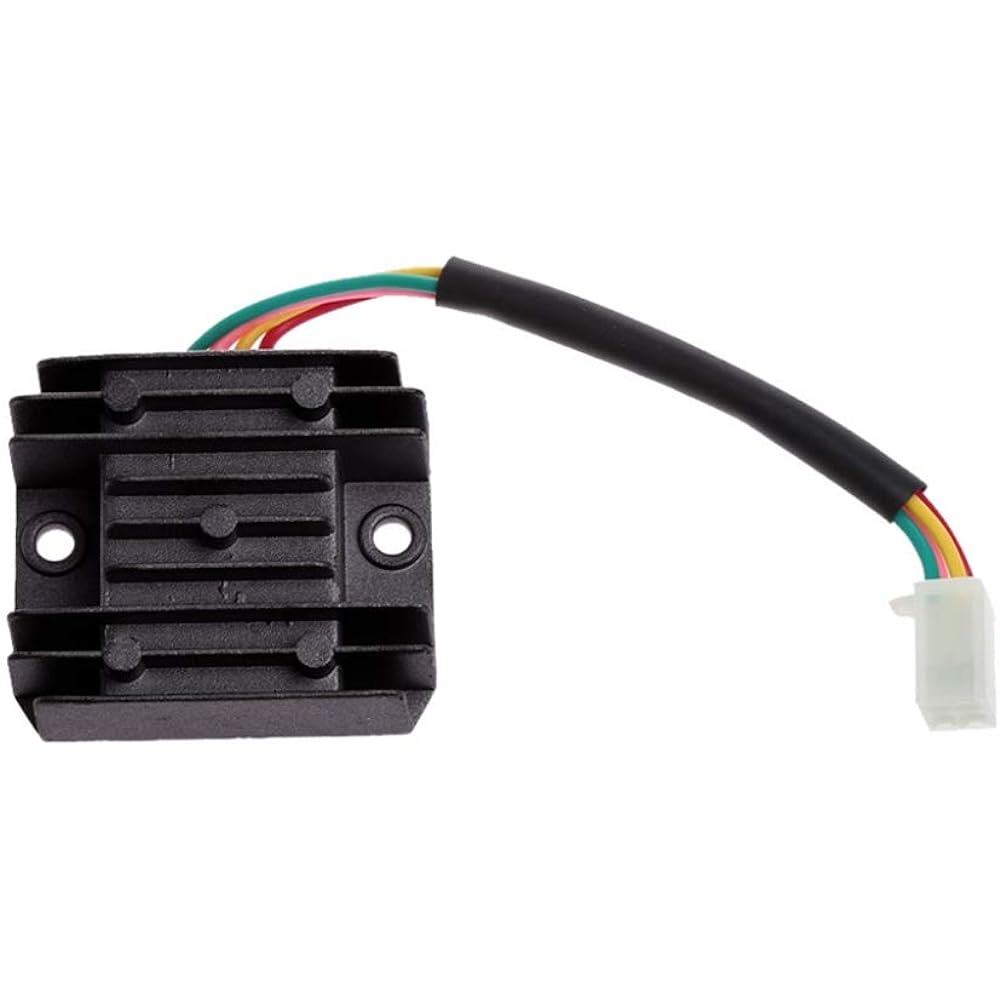

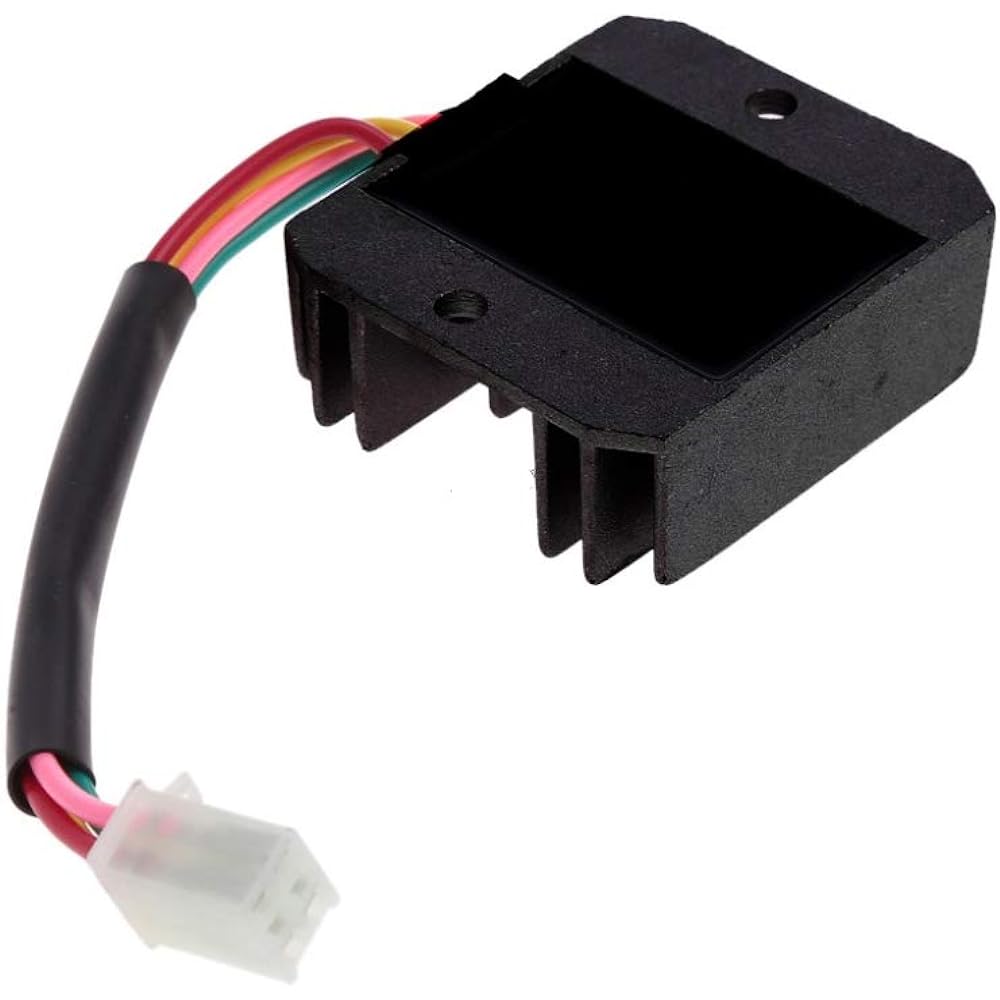

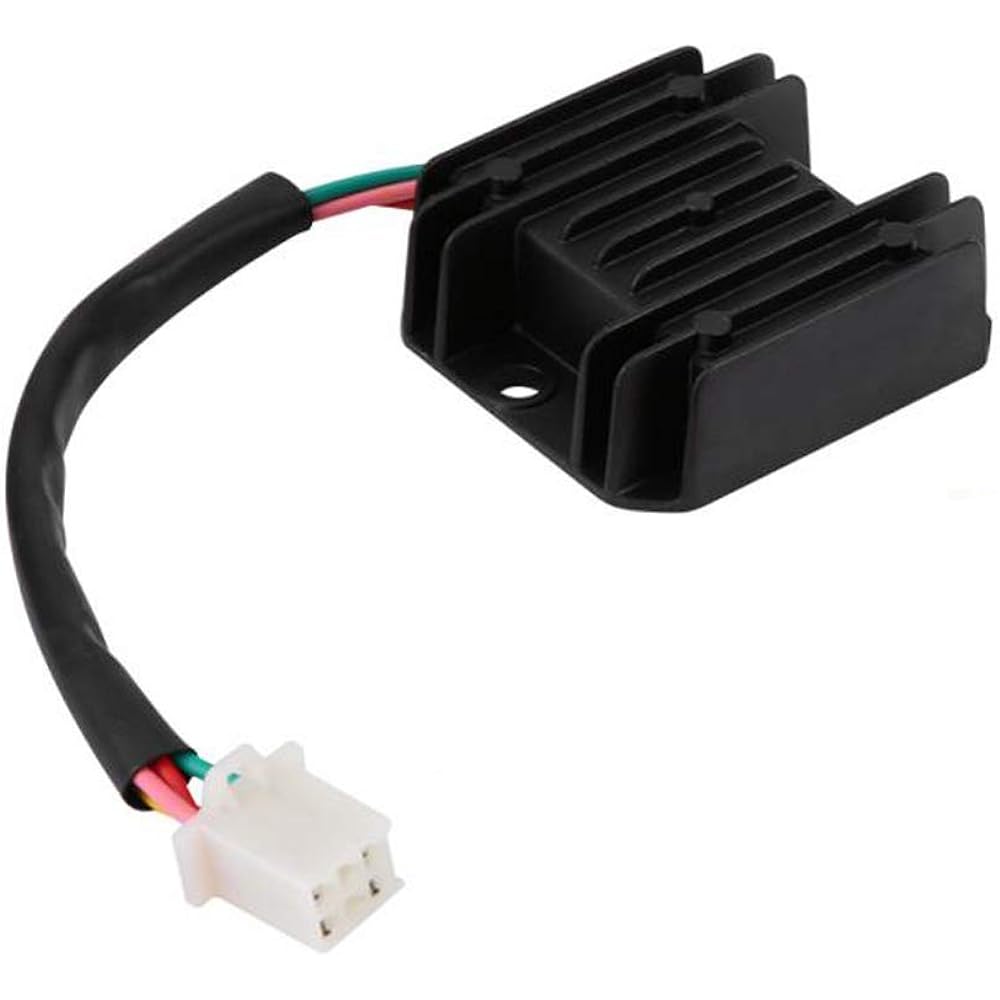

12V Voltage Regulator Rectifier 4 Wires for GY6 125cc 150cc ATV Dirt Bike Go Kart Moped and Scooter

Compatible with 12V batteries, bulbs, lights, etc. Fits GY6 125cc 150cc engine. 4-wire, 4-pin cable wires: Red to Battery+, Green to Battery - Yellow and Pink AC inputs, connected to magnetic coil. Note: This regulator rectifier needs to work with a 12V battery. If there is no 12 V battery, the output voltage will be much higher.

Wiring method: Red → + output (battery +) Green to ground - (negative) Connect to the other two wires, yellow and pink, AC input, magnet coil. Specifications: Voltage: Compatible with 12V battery. AC input voltage: 20-60V. Unload output voltage (idling): 12.5~13V±0.5V. Charging output current: 0~4A Battery charging voltage: 14~14.5±0.5V. Operating temperature: -20°~60°.


Manufacturer: ‎Fuerdi
Brand: ‎Fuerdi
Packing size: ‎12.8 x 7.59 x 3.4 cm; 109 g
Manufacturer reference: ‎4 Wires
By manufacturer Discontinued: ‎No
Number of bolts: ‎12 bolts
Product weight: ‎109 g
