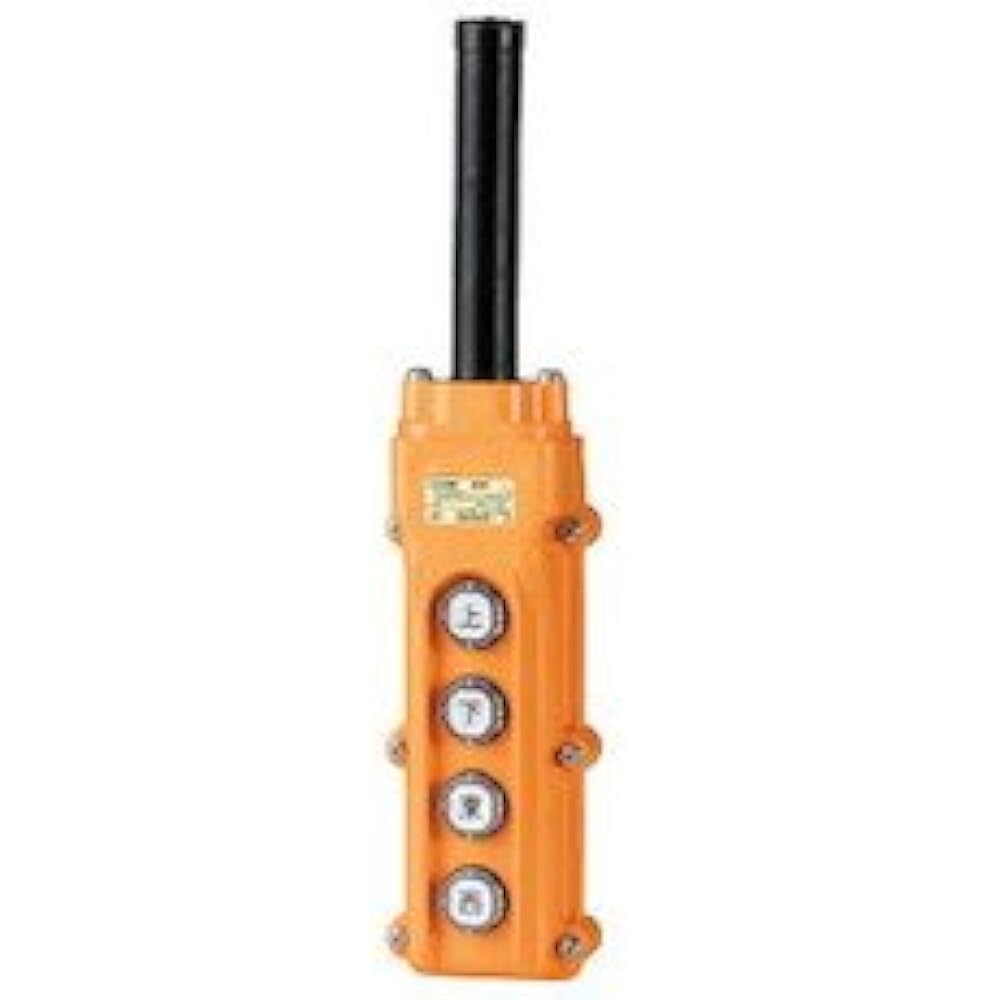

Kasuga Electric hoist switch COB62 for indirect motor operation

Length x width x height (mm): 60 x 193 x 46 Number of buttons: 4 Attached dials: top, bottom, east, west, south, north Rating: AC220V-2A, AC440V: 1A Contact configuration 1a-1a-1a-1a ABS resin (equivalent to 7.5YR7/13)

[Protective structure (compliant standard)] IP65 (JIS C 0920) [Material/color] Case: High impact ABS resin/orange (Munsell 7.5YR7/13 equivalent) Case tightening screw: Stainless steel (± thread) Cable bushing: Synthetic Rubber/black [Vibration resistance] Malfunction 10-55Hz Double amplitude 1.0mm [Shock resistance] ・Durability…500m/s2 ・Malfunction…100m/s2 [Connection terminal] M4 screw (crimped terminal type) [Ambient temperature] -15 ～+40℃ [Relative humidity] 45 to 85% [Specification voltage/working current (AC15 inductive load)] AC 220V 2A AC 440V 1A [Rated insulation voltage] AC 500V [Rated current] 5A [Insulation resistance] 100MΩ or more ( CD500V megger) [Withstand voltage] AC2500V for 1 minute


Manufacturer: ‎Kasuga Denki
Part number: ‎COB62
Product weight: ‎340 g
Package size: ‎20.3 x 9.3 x 5.5 cm; 340 g
Discontinued by manufacturer: ‎No
Pattern: ‎COB62
Batteries included: ‎No
Uses batteries: ‎No
