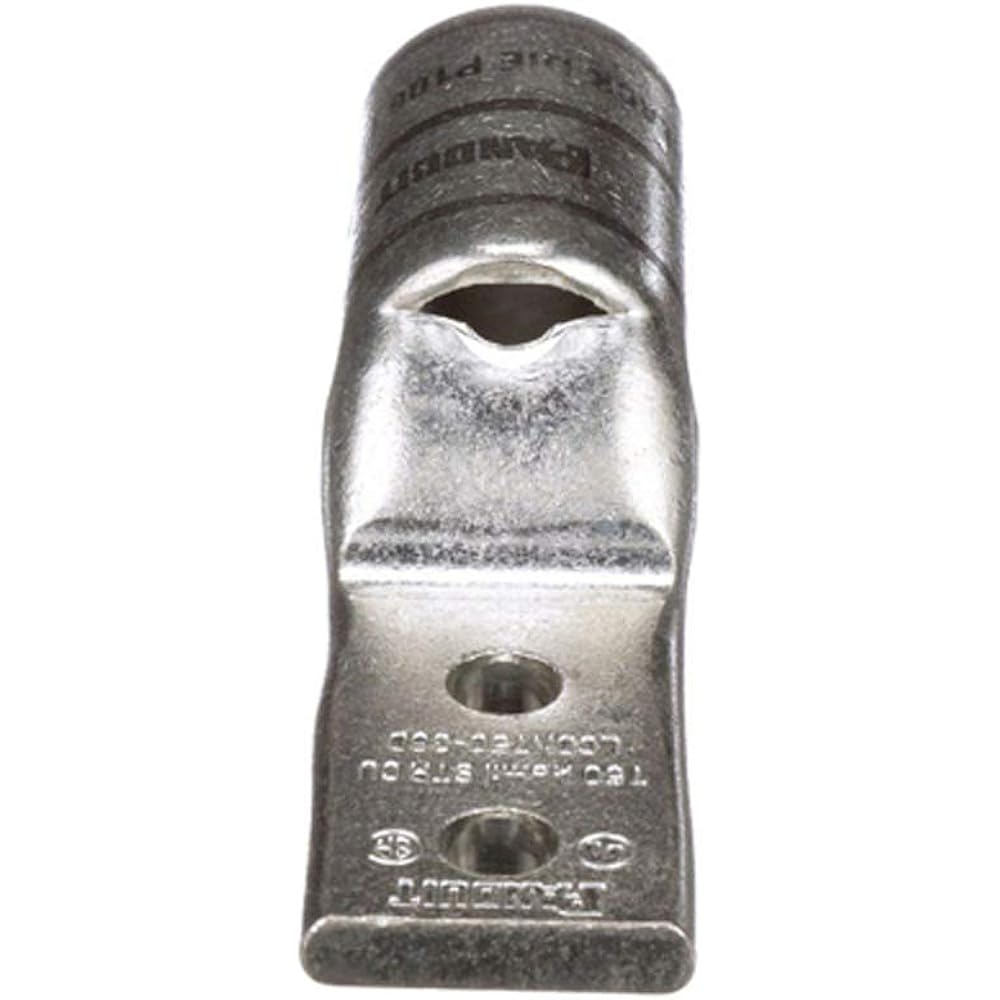

Panduit Domestic Genuine Copper Compression Terminal 2 Holes Standard Barrel with Hole for Confirming Wire Insertion Narrow Mounting Plate 750kcmil Mounting Hole 10.4mm Mounting Hole Spacing 25.4mm Pack of 6 LCDN750-38D-6
Panduit Domestic Genuine Copper Compression Terminal 2 Holes Standard Barrel with Hole for Confirming Wire Insertion Narrow Mounting Plate 750kcmil Mounting Hole 10.4mm Mounting Hole Spacing 25.4mm Pack of 6 LCDN750-38D-6
Regular price
$42.00 USD
Regular price
Sale price
$42.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
The barrel is color coded according to the applicable wire size, and the compression die number used is engraved. You can check whether the wire is completely inserted through the wire confirmation hole in the barrel. Tin plated to prevent corrosion. UL Listed and CSA certified product. However, this applies only when compressed using a Panduit compression tool and compression die in an environment of 90°C or lower and 35KV or lower. NEBS level 3 compliant (tested by Telcordia) ABS certified product
Material: Tin-plated copper Barrel Angle: Straight Barrel: Standard barrel with hole for confirming wire insertion Mounting plate: Width thin wire Size: 750 kcmil Mounting hole size In. (mm): 3/8 (9.5) Mounting hole spacing In. (mm) ):1 (25.4)Barrel length In. (mm):1.88 (47.8)Length In (mm):4.72 (119.9)Mounting plate thickness In. (mm):0.29 (6.6)Mounting plate width In. (mm) ): 1.3 (33) Identification color: Black Die number: P106 Wire strip length In. (mm): 1.8125 (46) Burndy Die number: 24T&B Die number: 106 CSA certification: C22.2 No. 65-13 Tin plating: ASTM Compatible with B545-97, Class C: 320µ in (8µ m) UL Listed: 486A-486BUL, CSA certified Operating temperature: 90°C or less UL, CSA certified Rated voltage: 35kV or less Product features: For use in applications exceeding 2000V Please check with the cable manufacturer. Technical information: Check with cable manufacturer when using in applications exceeding 2000V. RoHS compliant product
Manufacturer: PANDUIT Corporation
Part number: LCDN750-38D-6
Product weight: 1.77 Kilograms
Product size: 20 x 9 x 8 cm; 1.77 kg
Discontinued by manufacturer: No
Size: 3/8-Inch Stud Hole, 1-Inch Hole Spacing
Color: Black
br>Style: 750kcmil cable
Material: Tin plated copper
Thickness: 0.26 inches
Accessories: No
Battery usage: No
Product dimensions (Length x Width) x height): 20 x 9 x 8 cm
Material: Tin-plated copper Barrel Angle: Straight Barrel: Standard barrel with hole for confirming wire insertion Mounting plate: Width thin wire Size: 750 kcmil Mounting hole size In. (mm): 3/8 (9.5) Mounting hole spacing In. (mm) ):1 (25.4)Barrel length In. (mm):1.88 (47.8)Length In (mm):4.72 (119.9)Mounting plate thickness In. (mm):0.29 (6.6)Mounting plate width In. (mm) ): 1.3 (33) Identification color: Black Die number: P106 Wire strip length In. (mm): 1.8125 (46) Burndy Die number: 24T&B Die number: 106 CSA certification: C22.2 No. 65-13 Tin plating: ASTM Compatible with B545-97, Class C: 320µ in (8µ m) UL Listed: 486A-486BUL, CSA certified Operating temperature: 90°C or less UL, CSA certified Rated voltage: 35kV or less Product features: For use in applications exceeding 2000V Please check with the cable manufacturer. Technical information: Check with cable manufacturer when using in applications exceeding 2000V. RoHS compliant product
Manufacturer: PANDUIT Corporation
Part number: LCDN750-38D-6
Product weight: 1.77 Kilograms
Product size: 20 x 9 x 8 cm; 1.77 kg
Discontinued by manufacturer: No
Size: 3/8-Inch Stud Hole, 1-Inch Hole Spacing
Color: Black
br>Style: 750kcmil cable
Material: Tin plated copper
Thickness: 0.26 inches
Accessories: No
Battery usage: No
Product dimensions (Length x Width) x height): 20 x 9 x 8 cm
