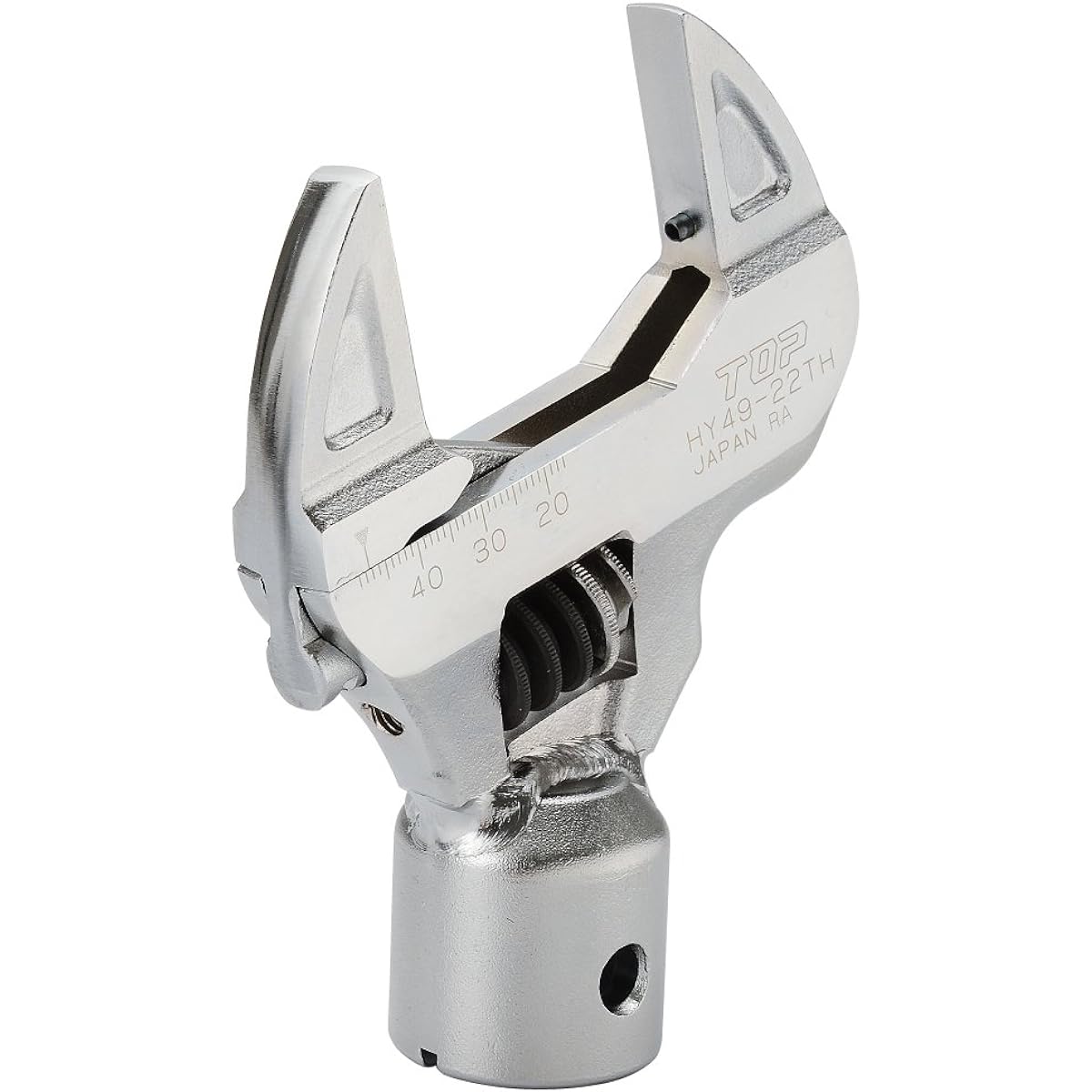

Top (TOP) Torque head Monkey type Opening 17~49mm Equipped with a playless worm HY49-22TH Tsubame Sanjo Made in Japan
Top (TOP) Torque head Monkey type Opening 17~49mm Equipped with a playless worm HY49-22TH Tsubame Sanjo Made in Japan
Regular price
$102.00 USD
Regular price
Sale price
$102.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

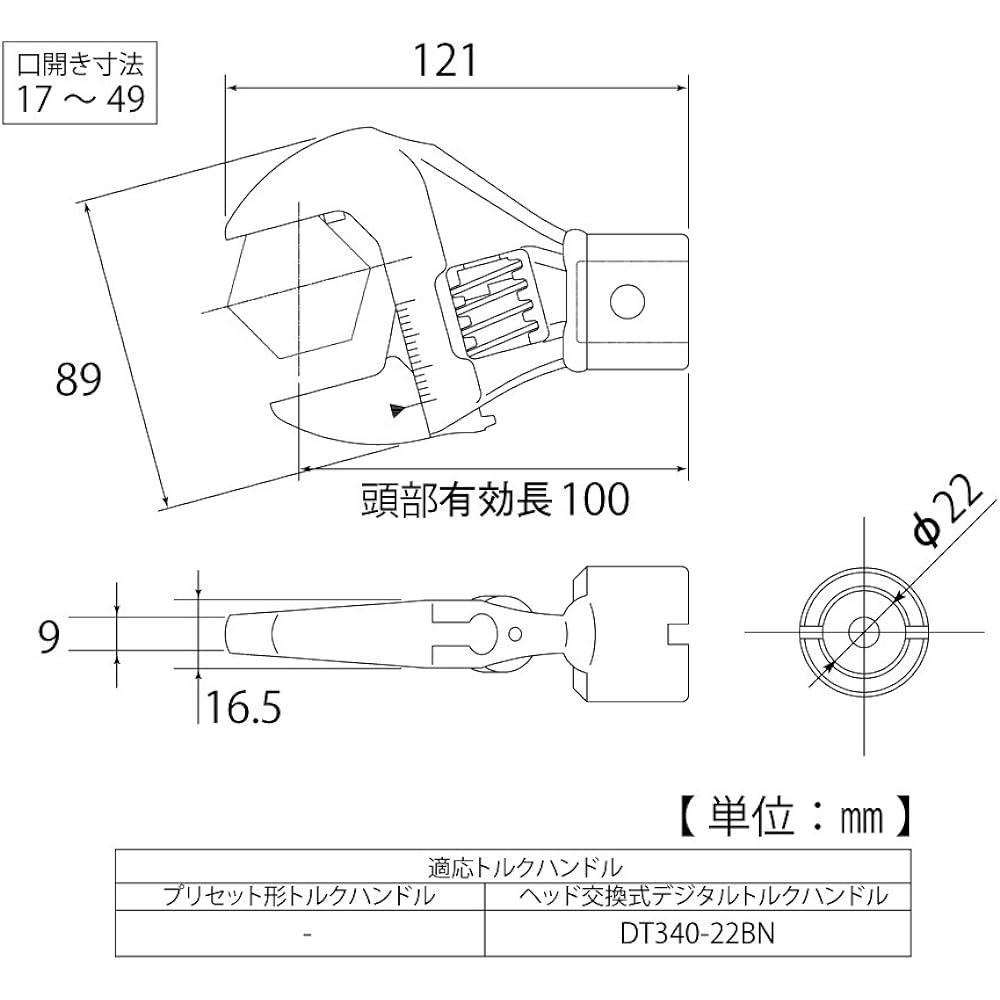

Total length (mm): 121 Applicable torque handle preset type: - Applicable torque handle digital type: DT340-22BN Mouth width (mm) minimum: 17 Mouth width (mm) maximum: 49 Mouth opening dimension (mm): 17~ 49 Connector inner diameter (mm): φ22
Head external width (mm): 89 Thickness T1 (mm): 16.5 Display more items
●Since the direction of insertion into the torque handle can be changed, torque tightening work can be performed with a swing width of 30°. A typical monkey-type torque wrench requires a swing width space of 60°. ● Equipped with a backlashless worm (PAT.) that sandwiches the rack part of the lower jaw between two worms, eliminating looseness and reducing the gap between the bolt/nut and the gripping surface, preventing damage to corners. ●Comes with a scale.
Brand: TOP
Product model number: HY4922TH
Package size: 13.6 x 9.6 x 4 cm; 435 g
Color: 01:Monkey shape
Name on nameplate: For DT340-22BN Product weight: 435 g
●Since the direction of insertion into the torque handle can be changed, torque tightening work can be performed with a swing width of 30°. A typical monkey-type torque wrench requires a swing width space of 60°. ● Equipped with a backlashless worm (PAT.) that sandwiches the rack part of the lower jaw between two worms, eliminating looseness and reducing the gap between the bolt/nut and the gripping surface, preventing damage to corners. ●Comes with a scale.
Brand: TOP
Product model number: HY4922TH
Package size: 13.6 x 9.6 x 4 cm; 435 g
Color: 01:Monkey shape
Name on nameplate: For DT340-22BN Product weight: 435 g
