ELECOM LAN Cable CAT7 10m Unbreakable Nail Break Prevention Connector Cat7 Compliant Standard Blue Metallic LD-TWST/BM100

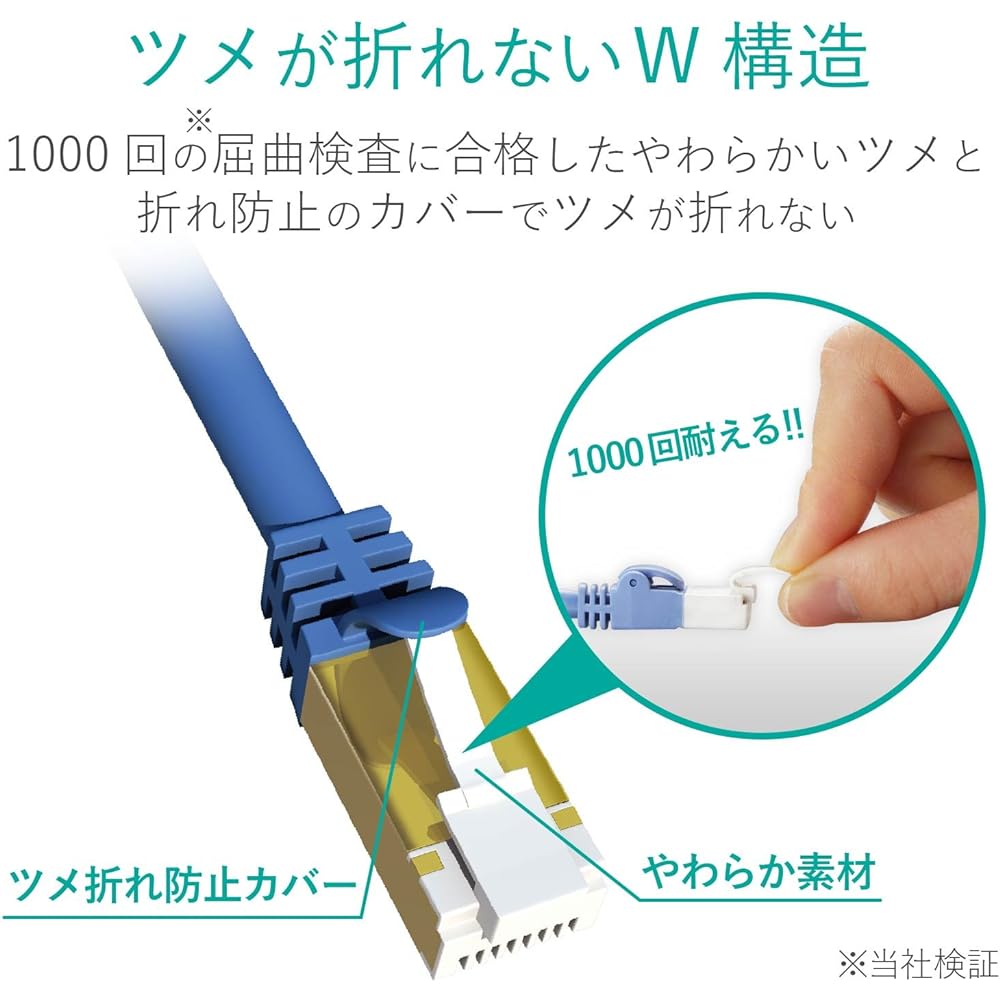

This is a Cat7 compatible LAN cable that supports 10GBASE-T and provides a high-speed and stable network environment. This LAN cable has a double structure that uses a protector to prevent tabs from breaking and a connector made of a material that is highly durable against bending, making the tabs less likely to break. *Passed 1000 bending tests (verified by our company) Prevents the cable from falling off due to bent tabs, allowing it to be securely fixed to the LAN port for a long period of time. Adopts a double shield structure to prevent errors (alien crosstalk). It has excellent shielding effects and is suitable for installation in medical facilities, machine rooms, and AO rooms where EMI (electromagnetic interference) countermeasures are required. Adopts a gold-plated shield plug that is resistant to rust and suppresses signal deterioration. The outer sheath of the cable is made of a flame-retardant material that complies with JIS C 3005 and is less likely to cause the spread of fire. Compliant with ISO/IEC 11801 ClassF. *Class F (Cat7) compliant only for the cable part. The plug of this product uses RJ-45. This is an environmentally friendly product that complies with the EU's RoHS Directive (Restriction on the Use of Certain Hazardous Substances in Electrical and Electronic Equipment) (10 substances). Increase number of displayed items

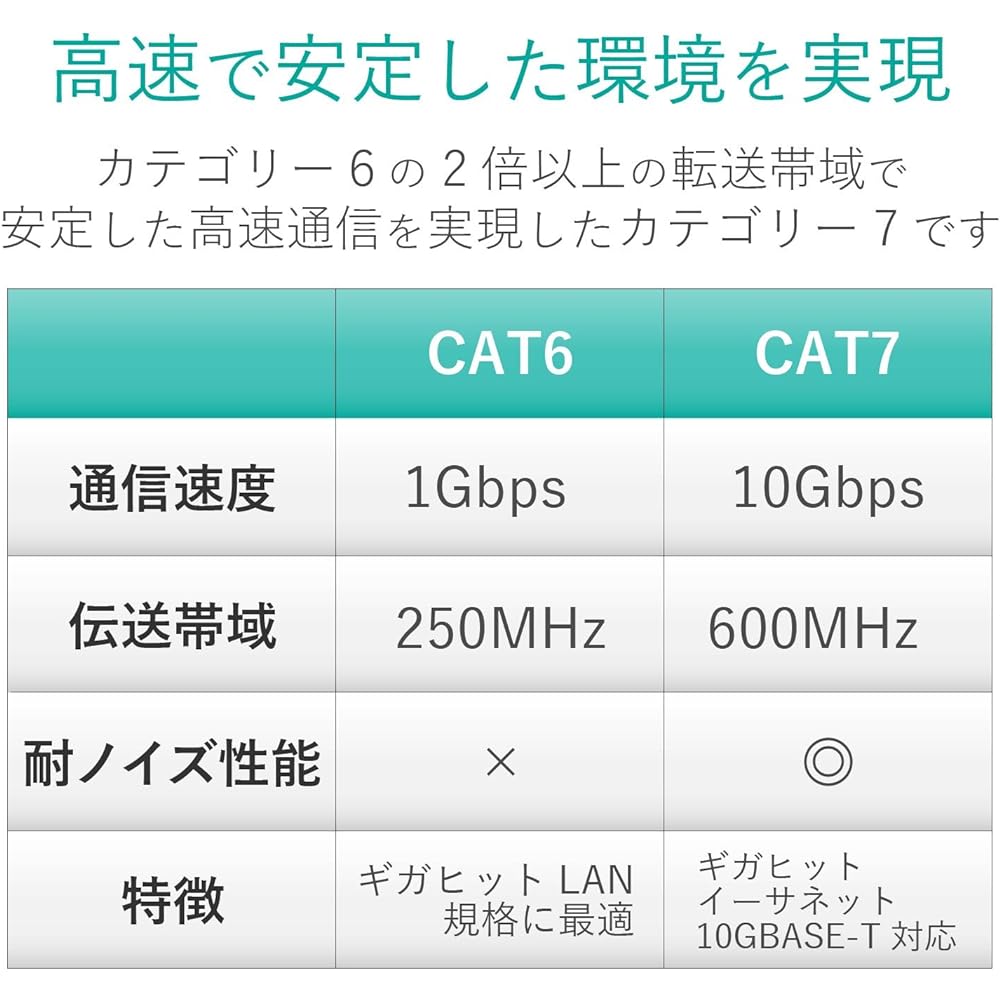

[Specifications] ■Color: Blue metallic ■Interface: RJ-45 connector ■Environmental considerations: Compliant with EU RoHS directive (10 substances) ■Standard: Cat7 compatible (10BASE-T/100BASE-TX/1000BASE-T/1000BASE- TX/10GBASE-T) *Cat7 compatible only for the cable part. The connector is RJ-45 specification. ■Transmission speed: 10Gbps ■Transmission band: 600MHz ■Cable length: Approx. 10m *Not including connector ■Cable thickness: Approx. 5.7mm ■Number of cores: 8 cores ■Connection method: Straight connection ■Twisted pair cable: ○ ■Shield: Yes (ScTP/double foil tape shield specification) ■Cross material: × ■External sheath (coating) material: PVC ■With length mark: × ■Conductor configuration: Twisted wire (27AWG) ■With or without connectors: Connectors on both ends ■Molded connector:○■Slim connector:○■Connector with cover to prevent nail breakage:○■Cable winding function: ×■Package form: box + inner tray ■Connector with no breakage of nail:○■PoE:○ [Description ]■This is a Cat7 compatible LAN cable that supports 10GBASE-T and provides a high-speed and stable network environment. ■This LAN cable has a double structure that uses a protector to prevent tabs from breaking and a connector made of a material that is highly durable against bending, making the tabs difficult to break. *Passed 1000 bending tests (verified by our company) ■Prevents the cable from falling off due to bent tabs, allowing it to be securely fixed to the LAN port for a long period of time. ■Uses a double shield structure to prevent errors (alien crosstalk). ■It has excellent shielding effects and is suitable for installation in medical facilities, machine rooms, and AO rooms where EMI (electromagnetic interference) countermeasures are required. ■Uses a gold-plated shield plug that is resistant to rust and suppresses signal deterioration. ■For the outer sheath of the cable, we use a flame-retardant material that is compliant with JIS C 3005 and is less likely to cause the spread of fire. ■Compliant with ISO/IEC 11801 ClassF. *Class F (Cat7) compliant only for the cable part. The plug of this product uses RJ-45. ■This is an environmentally friendly product that complies with the EU's RoHS Directive (Restriction on the Use of Certain Hazardous Substances in Electrical and Electronic Equipment) (10 substances). [Inquiries regarding the product] ELECOM General Information Center TEL. 0570-084-465FAX. 0570-050-012 Reception hours / 10:00~19:00 Open all year round ●Protector to prevent nail breakage and durability against bending Double structure with connectors made from new high-quality materials This LAN cable has a double structure that uses a protector to prevent tabs from breaking and connectors made from new materials that are highly durable against bending, so the tabs will never break under normal usage conditions. *Passed 1000 bending tests (verified by our company) ●Completely supports 10G BASE-T, providing a high-speed and stable network environment. Fully compatible with 10G BASE-T, providing a high-speed and stable network environment. Compliant with ISO/IEC 11801 Class F. ●It has a better shielding effect than conventional cables and is ideal for EMI (electromagnetic interference) countermeasures. It has a better shielding effect than conventional cables and requires EMI (electromagnetic interference) countermeasures such as medical facilities, machine rooms, and AO rooms. It is also ideal for laying in. ●Double shield structure to prevent errors (alien crosstalk) A double shield structure is used to prevent errors (alien crosstalk) caused by noise interference between adjacent cables. ●Uses a gold-plated shield plug Uses a gold-plated shield plug that is resistant to rust and prevents signal deterioration. This prevents the cable from falling off due to bent tabs, allowing it to be securely fixed to the LAN port for a long period of time. The outer sheath of the cable is made of a flame-retardant material that complies with JIS C 3005 and is less likely to cause the spread of fire. ●Eco-friendly products that comply with the EU RoHS Directive The EU RoHS Directive is a directive set by the European Union (EU) regarding the restriction of the use of specific hazardous substances in electrical and electronic equipment. Lead (Pb), mercury (Hg), cadmium (Cd), hexavalent chloride


Brand: ELECOM
Manufacturer: ELECOM
Product size: 22.4 x 15.3 x 2 cm; 500 g
Product model number: LD-TWST/BM100
br>Discontinued by the manufacturer: ‎No
Color: ‎Claws will not break
Product dimensions Width x Height: 22.4 x 15.3 x 2 cm
Battery included: ‎No
Product weight: ‎500 g
