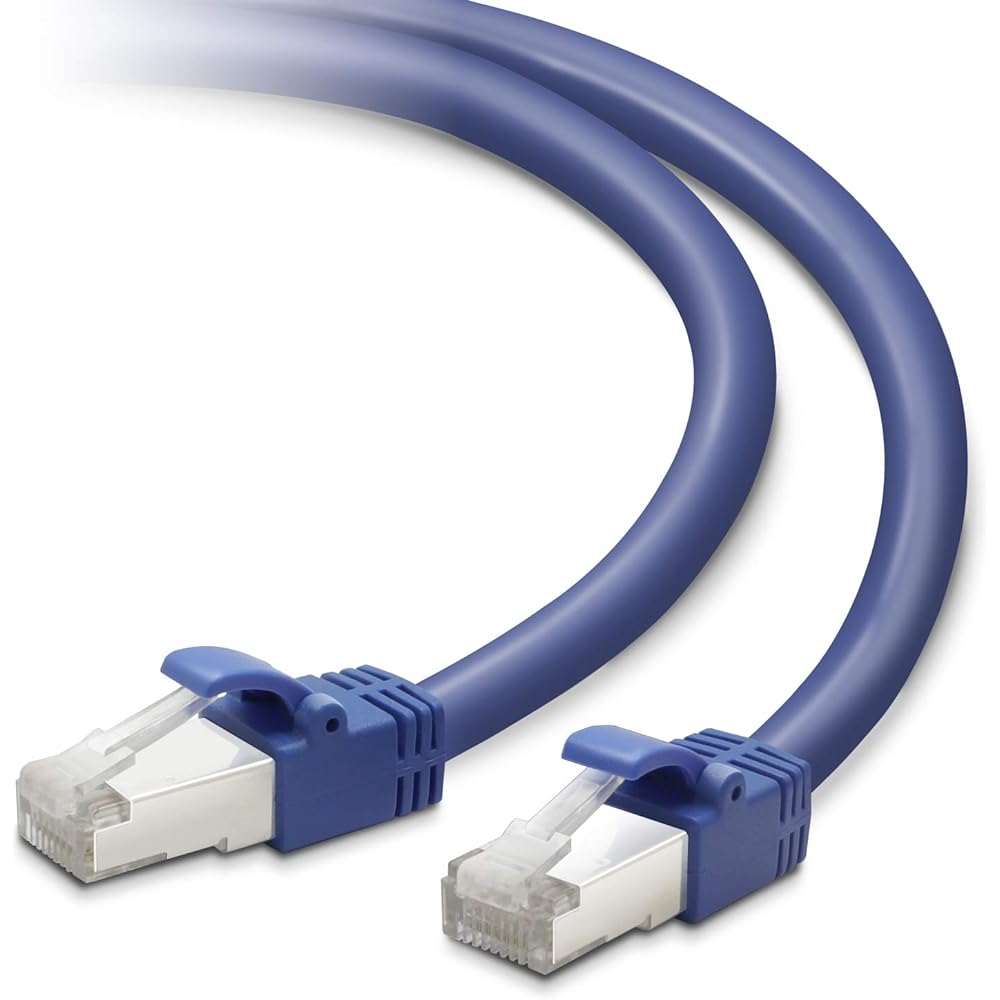

ELECOM LAN Cable CAT7 10m Break Prevention Connector Cat7 Compliant Standard Blue LD-TWS/BU10

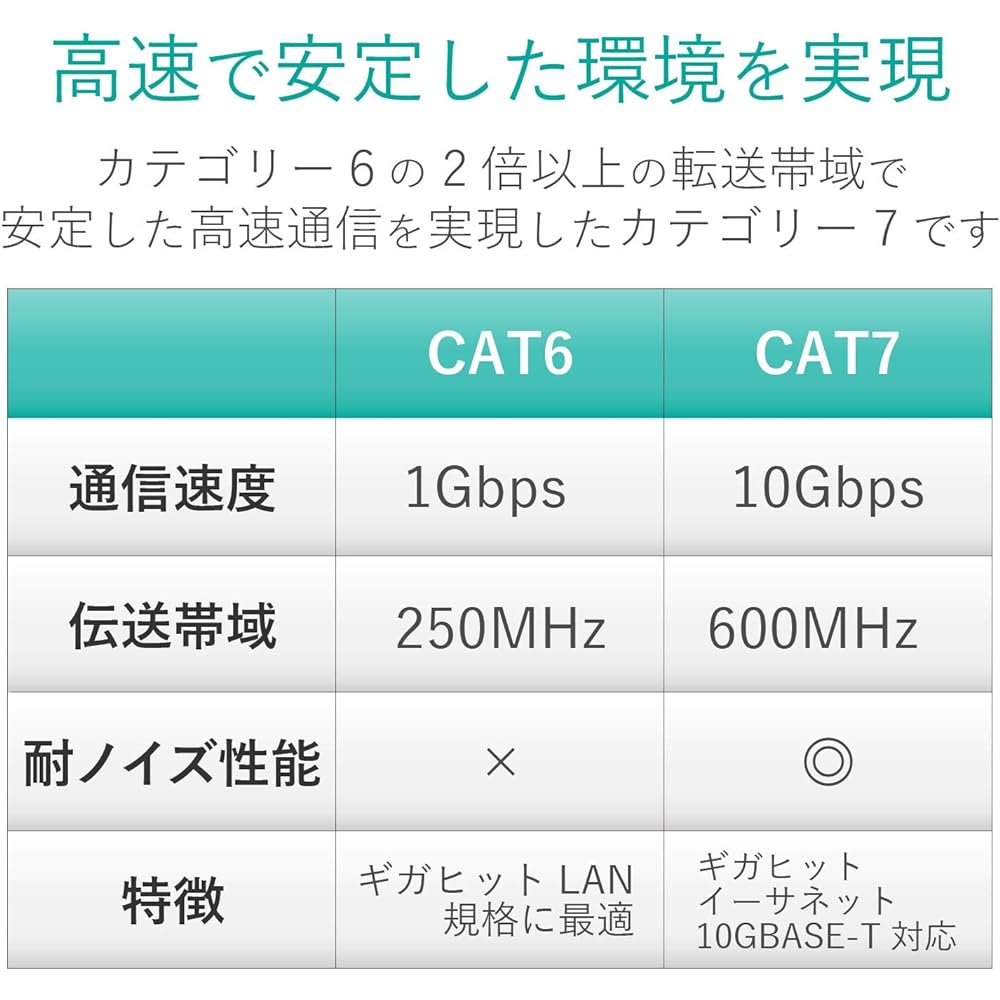

This is a Cat7 compliant LAN cable that supports 10GBASE-T, a 10 Gigabit Ethernet suitable for high-speed optical communications. It supports high frequency bands up to 600MHz, which is more than twice that of Cat6, is resistant to noise interference, and provides a high-speed and stable network environment. Ensures stable data transfer speed in 1000BASE-TX/1000BASE-T/100BASE-T environments. Adopts a double shield structure to prevent communication errors (alien crosstalk) due to noise interference between adjacent cables, which tends to occur with high-speed communication of gigabit or higher. It has excellent shielding effects and is suitable for installation in medical facilities, machine rooms, and OA rooms where EMI (electromagnetic interference) countermeasures are required. The outer sheath of the cable is made of a flame-retardant material that complies with JIS C 3005 and is less likely to cause the spread of fire. Compliant with ISO/IEC 11801 ClassF. *Class F (Cat7) compliant only for the cable part. The plug of this product uses RJ-45. This is an environmentally friendly product that complies with the EU's RoHS Directive (Restriction on the Use of Certain Hazardous Substances in Electrical and Electronic Equipment) (10 substances).

[Specifications] ■Color: Blue ■Interface: RJ-45 connector ■Environmental considerations: EU RoHS directive compliant (10 substances) ■Standard: Cat7 compliant (10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE -T) *Cat7 compliant only for cable part. The connector is RJ-45 specification. ■Transmission speed: 10Gbps ■Transmission band: 600MHz ■Cable length: Approx. 10m *Not including connector ■Cable thickness: Approx. 8.2mm ■Number of cores: 8 cores ■Connection method: Straight connection ■Twisted pair cable: ○ ■Shield: Yes (ScTP/double foil tape shield specification) ■Cross material: × ■External sheath (coating) material: PVC ■With length mark: × ■Conductor configuration: Twisted wire (24AWG) ■With or without connectors: Connectors on both ends ■Molded connector:○■Slim connector:○■Connector with cover to prevent nail breakage:○■Cable winding function:×■Package form: Aluminum foil bag + sticker■Connector with no breakage of nail:×■PoE:×【 Description] ■This is a Cat7 compliant LAN cable that supports 10GBASE-T, a 10 Gigabit Ethernet suitable for high-speed optical communication. ■It supports high frequency bands up to 600MHz, which is more than twice that of Cat6, is resistant to noise interference, and provides a high-speed and stable network environment. ■Ensures stable data transfer speed in 1000BASE-TX/1000BASE-T/100BASE-T environments. ■Uses a double shield structure to prevent communication errors (alien crosstalk) due to noise interference between adjacent cables, which tends to occur with high-speed communications of gigabit or higher. ■It has excellent shielding effects and is suitable for installation in medical facilities, machine rooms, and OA rooms where EMI (electromagnetic interference) countermeasures are required. ■For the outer sheath of the cable, we use a flame-retardant material that is compliant with JIS C 3005 and is less likely to cause the spread of fire. ■Compliant with ISO/IEC 11801 ClassF. *Class F (Cat7) compliant only for the cable part. The plug of this product uses RJ-45. ■This is an environmentally friendly product that complies with the EU's RoHS Directive (Restriction on the Use of Certain Hazardous Substances in Electrical and Electronic Equipment) (10 substances). ■Products that meet one or more of our company's environmental certification standards and display the "THINK ECOLOGY" mark. ■In an effort to protect the environment, this product is packaged only in paper, cardboard, and plastic bags. [Inquiries regarding products] ELECOM General Information Center TEL. 0570-084-465FAX. 0570-050-012 Reception hours / 10:00~19:00 Open all year round


Male/female connector: ‎Male-Male
Color: ‎With connector to prevent nail breakage
Shape: ‎Round
Battery included: ‎No
Battery usage: ‎No
Brand name: ELECOM
Manufacturer: ELECOM
Product model number: LD-TWS/BU10
Release year: 2018
Accessories: Main unit only
Compatible OS: ‎not_machine_specific
Other Features: ‎Fully compliant with next-generation 10 Gigabit Ethernet "10GBASE-T". A Category 7 compliant LAN cable that provides a high-speed and stable network environment.
Size: ‎10m
Cable shape: ‎Ethernet
Product size: ‎22.2 x 21 x 4.8 cm; 780 g
