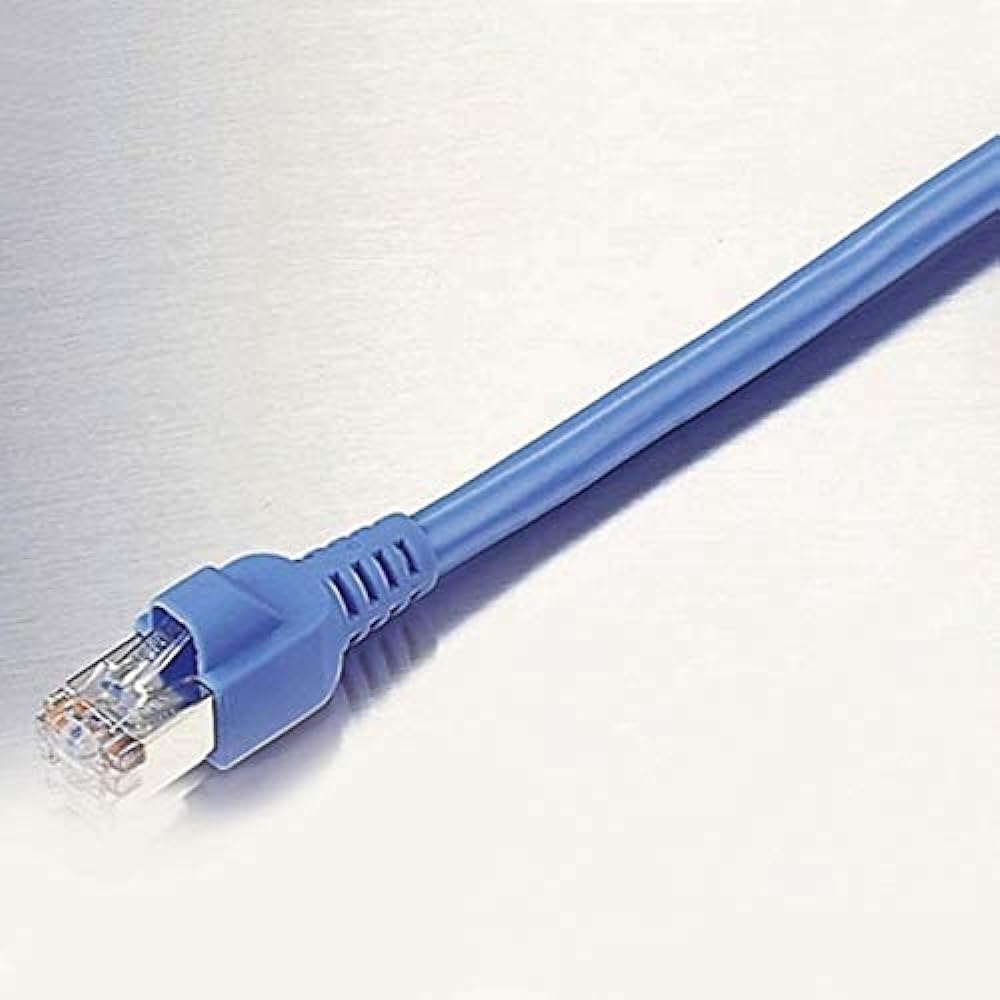

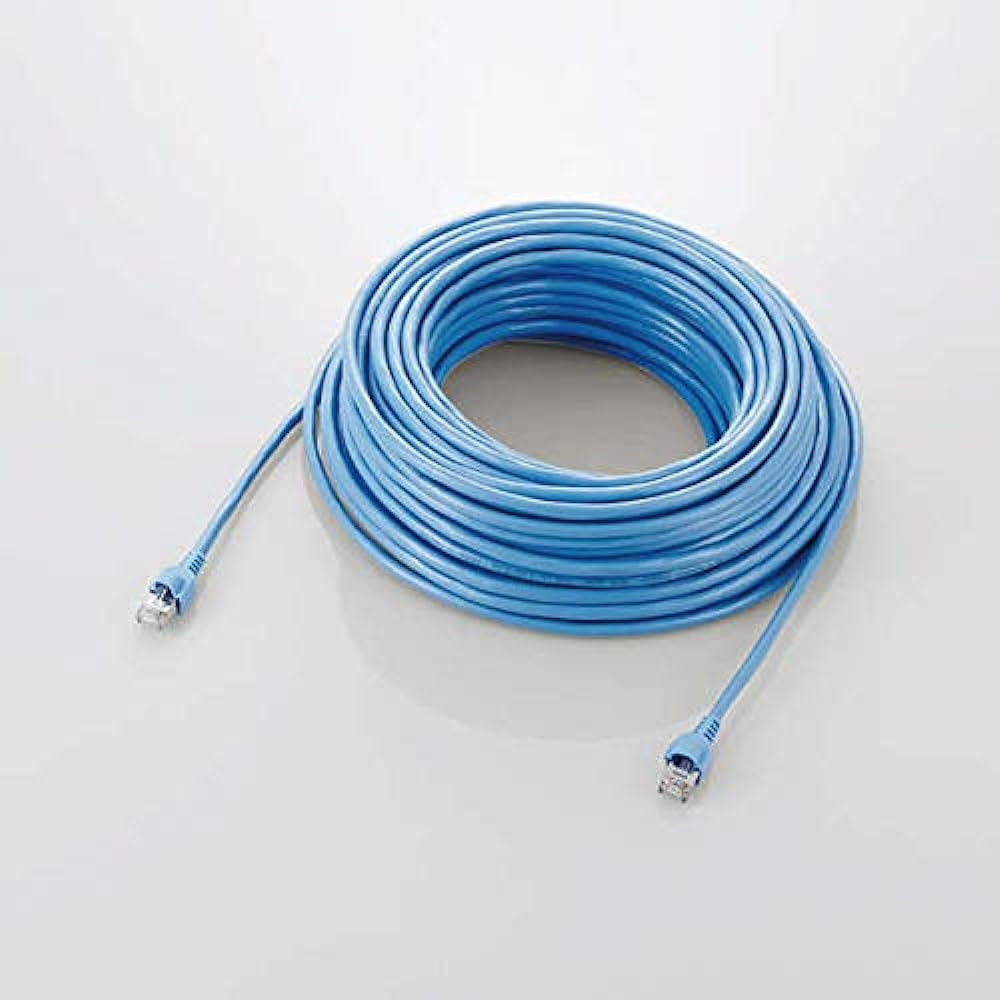

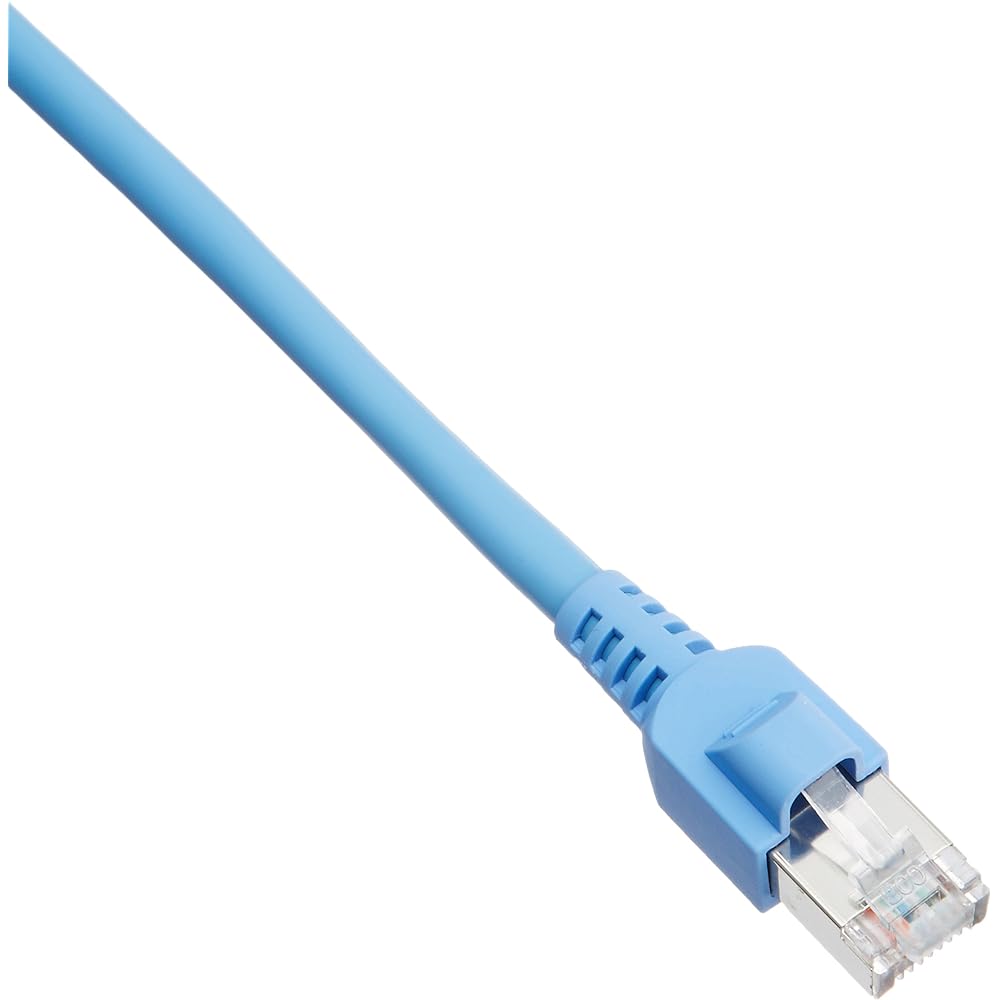

ELECOM LAN Cable 30m STP (Noise Resistant Shielding) RoHS Directive Compliant CAT5e Blue LD-CTS30/RS

This is an STP cable with a twisted pair cable covered with a shield, and is a LAN cable compatible with Cat5e. It is resistant to ambient noise, so it is suitable for use in places susceptible to noise such as offices, factories, and urban areas, and as a noise countermeasure between modems, routers, and computers in ADSL environments. This is an environmentally friendly product that complies with the EU's RoHS Directive (Restriction on the Use of Certain Hazardous Substances in Electrical and Electronic Equipment) (10 substances). A simple packaging type that is environmentally friendly, reduces waste, and makes unpacking smooth. Compatible with PLC, ADSL lines, CATV lines, optical communication lines, and ISDN lines.

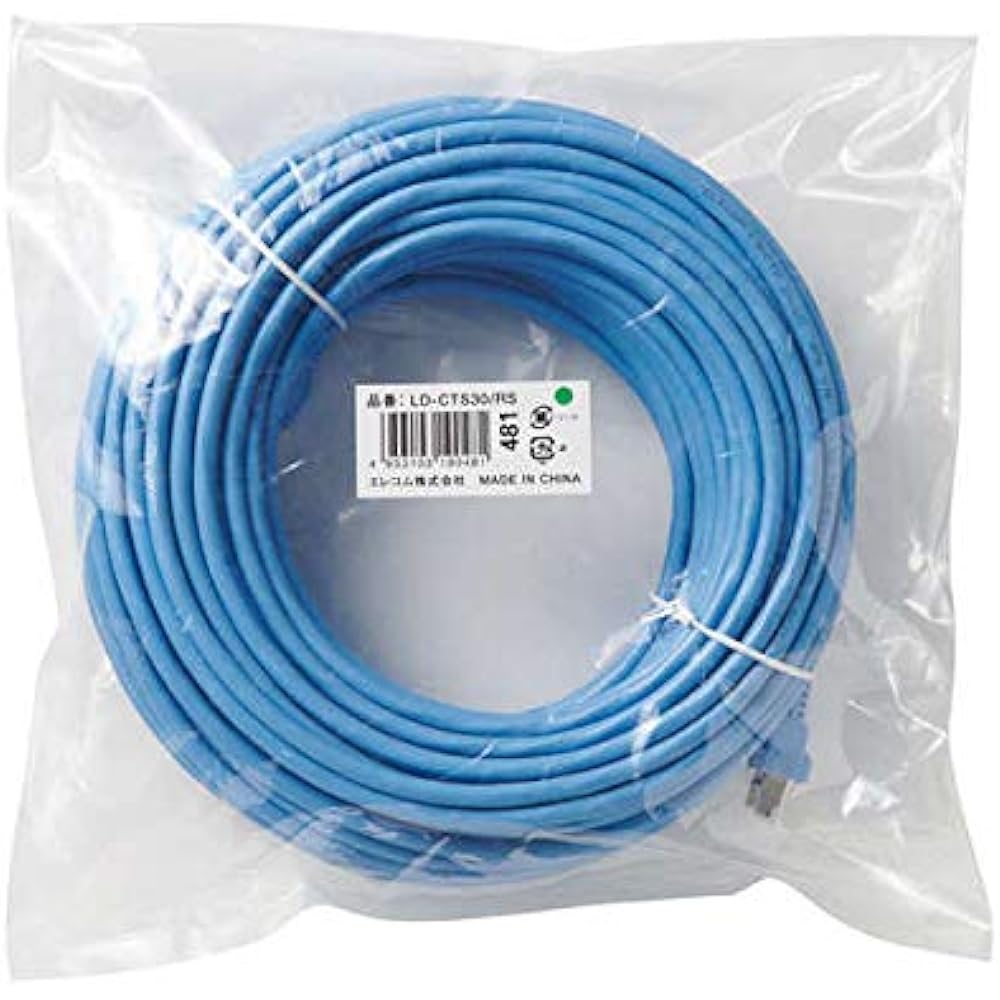

[Specifications] ■Standard: Cat5e compatible (compatible with 10BASE-T, 100BASE-TX, 1000BASE-T) ■Transmission speed: 1Gbps ■Transmission band: up to 100MHz ■Cable length: Approx. 30m *Not including connector ■Cable thickness: Approx. 6mm ■ Number of cores: 8 cores ■ Connection method: Straight connection ■ Twisted pair core wire (twisted pair cable): ○ ■ Shield: Yes (ScTP/foil tape shield specification) ■ Cross insert: × ■ External sheath (coating) material: PVC ■With length mark: × ■Color: Blue ■Conductor composition: Single wire ■Conductor thickness: Approx. 0.52 mm (AWG24) ■With or without connector: With connectors on both ends ■Molded connector: × ■Slim connector: × ■With cover to prevent nail breakage Connector: ○ ■ Cable winding function: × ■ Package form: Poly bag (environmentally friendly type) ■ Environmental considerations: Compliant with EU RoHS directive (10 substances), environmentally friendly package [Description] ■ STP with twisted pair cable covered with a shield This is a LAN cable that supports Cat5e. ■It is resistant to noise from the surroundings, so it is suitable for use in places susceptible to noise such as offices, factories, and urban areas, and as a noise countermeasure between modems, routers, and computers in ADSL environments. ■This is an environmentally friendly product that complies with the EU's RoHS Directive (Restriction on the Use of Certain Hazardous Substances in Electrical and Electronic Equipment) (10 substances). ■A simple package type that is environmentally friendly, reduces waste, and makes unpacking smooth. ■Compatible with PLC, ADSL lines, CATV lines, optical communication lines, and ISDN lines. ■Products that meet one or more of our company's environmental certification standards and display the "THINK ECOLOGY" mark. ■In an effort to protect the environment, this product is packaged only in paper, cardboard, and plastic bags. [Inquiries regarding products] ELECOM General Information Center TEL. 0570-084-465FAX. 0570-050-012 Reception hours / 10:00~19:00 Open all year round


Male/Female connector : ‎Male-male
Compatible models: ‎Router, modem
Color: ‎Blue
Shape: ‎Round
Battery included: ‎No
Battery usage: ‎No
Brand name : ELECOM
Manufacturer: ELECOM
Product model number: LD-CTS30/RS
Release year: 2018
Accessories: Main body only
Other features : ‎STP cable compliant with EU RoHS Directive (10 substances) and compatible with "Enhanced Category 5". It is resistant to ambient noise, making it ideal for use in offices, factories, urban areas, and other locations susceptible to noise, and as a countermeasure against noise between modems, routers, and computers in ADSL environments.
Size: ‎30m
Cable shape: ‎Ethernet
Product size: ‎19.99 x 18.01 x 5.99 cm; 1.18 kg
