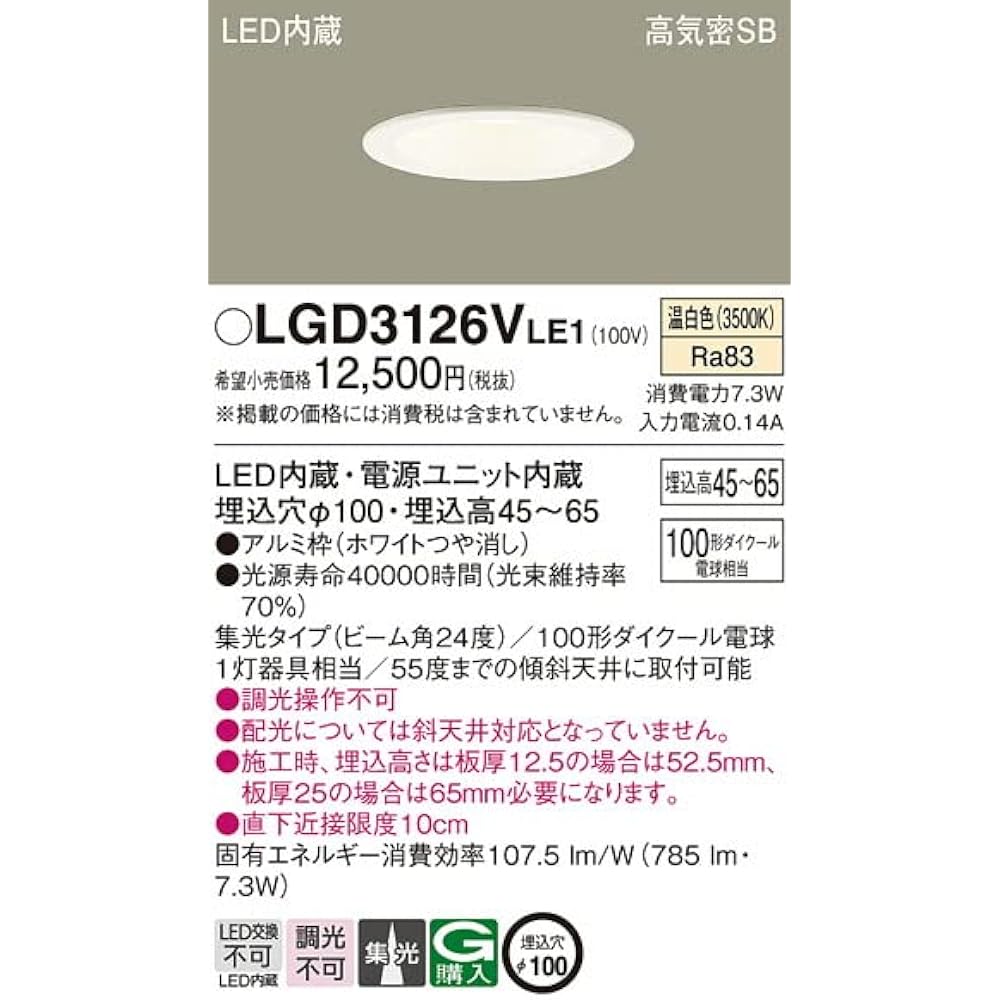

Panasonic Shallow Downlight Warm White/Condensing/Dimmer/φ100 100 Shape White LGD3126VLB1

Light source: LED (warm white type), color temperature: 3500K, light source life 40,000 hours (luminous flux maintenance rate 70%) Dimensions: Mounting hole diameter: φ100mm, mounting height: 45~65mm

●LED (warm white type) ●Color temperature: 3500 K ●Light source life 40000 hours (luminous flux maintenance rate 70%) ●Fixture luminous flux: 785 lm ●Voltage: 100 V ●Power consumption: 8.3 W ●Consumption efficiency: 94.5 lm/W ●[Aluminum frame] White matte ●Ceiling-embedded type ●Ra83●Concentrating type (beam angle 24 degrees)●Equivalent to one 100-type Daicool light bulb ●Can be installed on sloped ceilings up to 55 degrees●Phase control type (2 wires) (Formula) ●Input current (at 100V): 0.09 A ●100% to 1% dimming possible when combined with a compatible light controller (sold separately) ●Light distribution is not compatible with slanted ceilings. ●During construction, the embedding height will be 52.5 mm for a board thickness of 12.5 and 65 mm for a board thickness of 25. ●Direct proximity limit 10cm ●Embedded hole diameter: φ100 mm ●Embedded height: 45 to 65 mm ●Highly airtight SB ●Thin design that allows beams and piping to be dodged ●Can be installed if the pocket is 40 mm or more ●Separate power supply Can be installed in a small ceiling space ●Appearance is same as general type


Manufacturer: ‎Panasonic
Model number: ‎LGD3126VLB1
Package size: ‎15.6 x 11.7 x 9.2 cm
Material: Aluminum
Color: Equivalent to condensing type 100
Size: Warm white 3500K/Ra83Others Functions: Dimmable
Power source: Power cord type
>Voltage (V): 100 Volts
Bulb Type: LED
Packaging Weight: 0.49 kg
Battery Use: No
Manufacturer Warranty: 1 Year Manufacturer Warranty
Brand Name: ‎Panasonic
