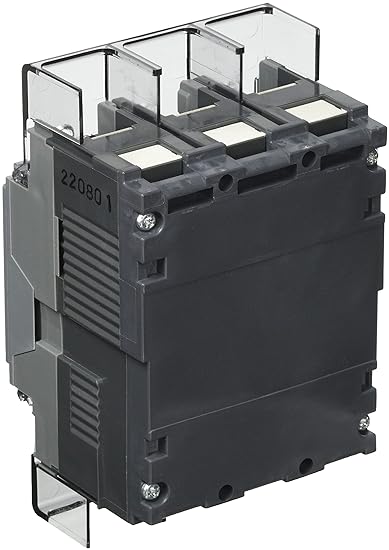

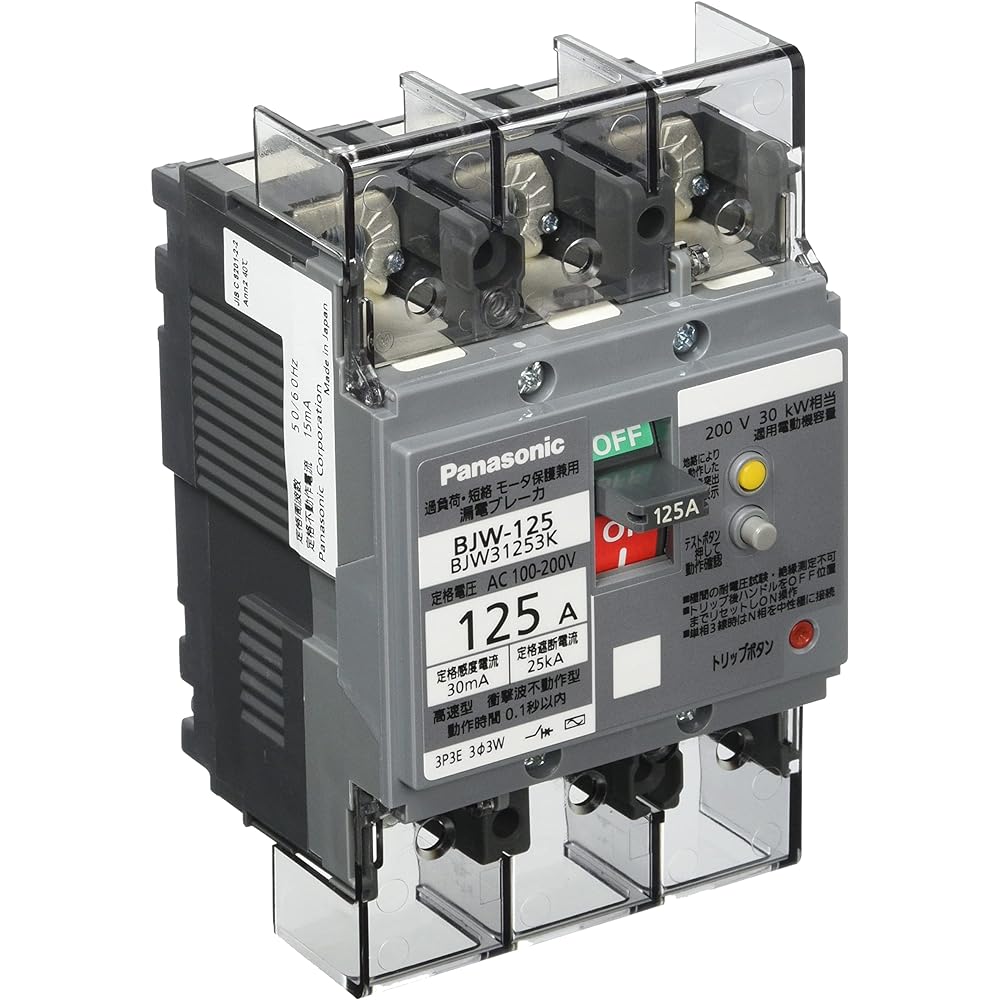

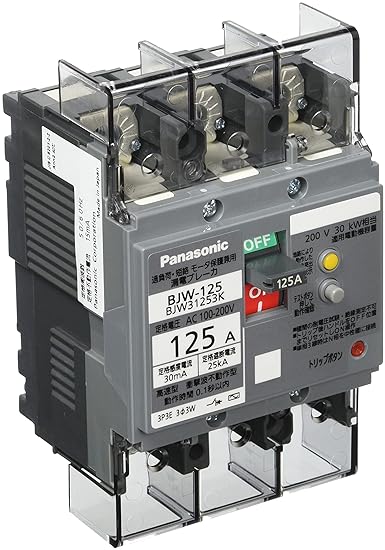

Panasonic Earth Leakage Breaker BJW-125 Type 3P3E with OC 125A 30mA Motor Protection BJW31253K

Release date: July 1, 2008 Model name: BJW-125 Rated current: 125A Rated voltage/breaking capacity: For both AC100-200V 25kA Number of poles and elements: 3P3E

Type: Earth leakage breaker (also used for motor protection) Model name: BJW-125 Frame: 125AF Number of poles: 3P3E Rated current: 125A Motor capacity: AC200V 30kW Earth leakage sensitivity current: 30mA Rated voltage/breaking capacity: For both AC100-200V 25kA pull Removal method: Electromagnetic External dimensions (mm): H96 (126 including terminal cover) x W75 x D60 (75.6 including handle) Mass: 0.6 kg Specifications: With terminal cover, compatible with lightning surges and harmonics (inverters, etc.)


Manufacturer: ‎Panasonic
Part number: ‎BJW31253K
Item weight: ‎600 g
Product size: ‎6 x 7.5 x 9.6 cm; 600 g
>Discontinued by Manufacturer: ‎No
Style: ‎125A 30mA
Voltage: ‎200 Volts
Accessories: ‎None
Batteries Included: ‎No
Uses Batteries: ‎No
Product dimensions (Length x Width x Height): ‎6 x 7.5 x 9.6 cm
