Auto Parts Tokyo

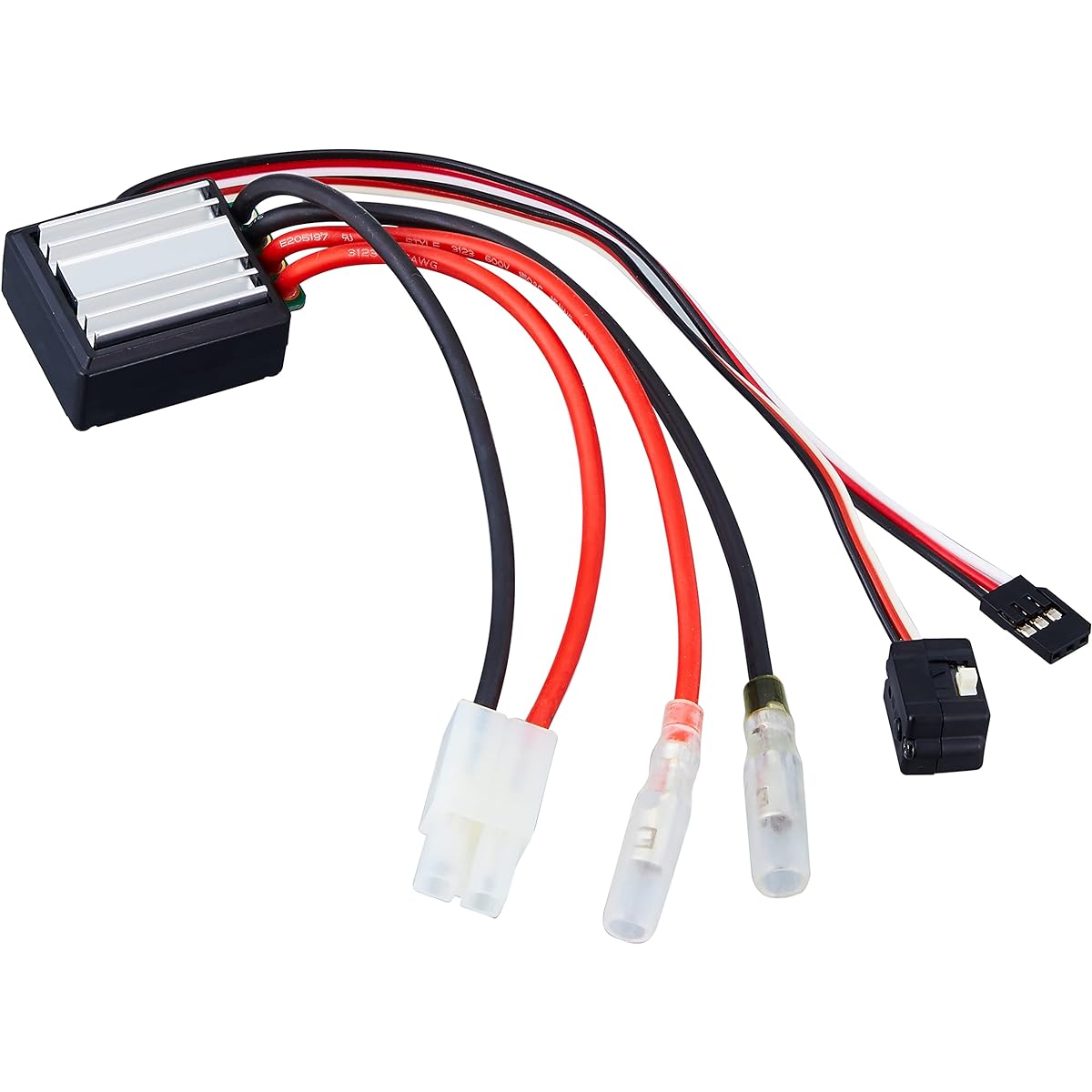

Kondo Scientific VFS-FR2 40448
Kondo Scientific VFS-FR2 40448
Regular price
$90.00 USD
Regular price
Sale price
$90.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Body size:Size: 32.6 x 29.0 x 19.4mm, Weight: 25.3g (Body only)
Number of supported motor turns/unlimited. Maximum instantaneous current/1200A (FET spec). Continuous maximum current/300A (FET spec). Rated current/120A (FET spec). Drive frequency/approximately 2.0KHz (at time of shipment). Input voltage/6.6 -8.4V (BEC output/6.0V). VFS-FR's ESC with normal evolution back has been well received for its ease of use. Equipped with forward, brake, and reverse functions. The forward side is divided into 32 sections, and each position is equipped with a VFS function that can be set at 64 levels of frequency from 500Hz to 5.3kHz, allowing you to change the throttle feel to your preference. Recommended settings compatible with any car are already installed at the time of shipment.
Number of supported motor turns/unlimited. Maximum instantaneous current/1200A (FET spec). Continuous maximum current/300A (FET spec). Rated current/120A (FET spec). Drive frequency/approximately 2.0KHz (at time of shipment). Input voltage/6.6 -8.4V (BEC output/6.0V). VFS-FR's ESC with normal evolution back has been well received for its ease of use. Equipped with forward, brake, and reverse functions. The forward side is divided into 32 sections, and each position is equipped with a VFS function that can be set at 64 levels of frequency from 500Hz to 5.3kHz, allowing you to change the throttle feel to your preference. Recommended settings compatible with any car are already installed at the time of shipment.
