Auto Parts Tokyo
Sanwa Electric Meter SANWA Solar Charging Pocket Digital Multimeter PS8A
Sanwa Electric Meter SANWA Solar Charging Pocket Digital Multimeter PS8A
Regular price
$70.00 USD
Regular price
Sale price
$70.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

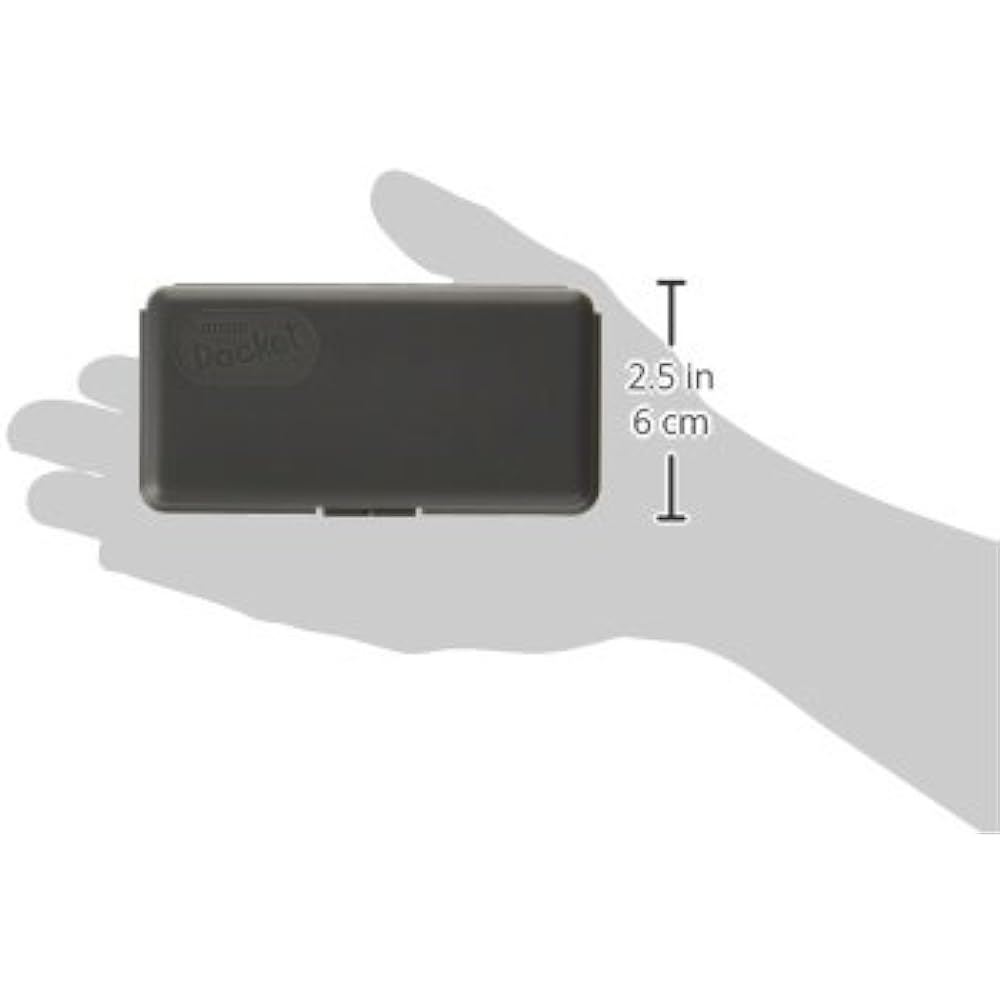

Size/Weight: Height 115 x Width 57 x Depth 18mm, approx. 85g Frequency characteristics: 40-400Hz Built-in battery: Amorphous solar cell + manganese dioxide lithium secondary battery Accessories: Instruction manual DC voltage: Measuring range 400m/4/40/400/500V, maximum accuracy ±(0.7%+3), resolution 0.1mV AC voltage: Measurement range 4/40/400/500V, maximum accuracy ±(2.3%+5), resolution 0.001V Resistance :Measurement range 400/4k/40k/400k/4M/40mΩ, maximum accuracy ±(2.0%+5), resolution 0.1Ω
Continuity: Buzzer sounds when 10 to 120Ω or less Open voltage: Approx. 0.4V Diode test: Open circuit voltage Approx. 1.5V Increase the number of items displayed

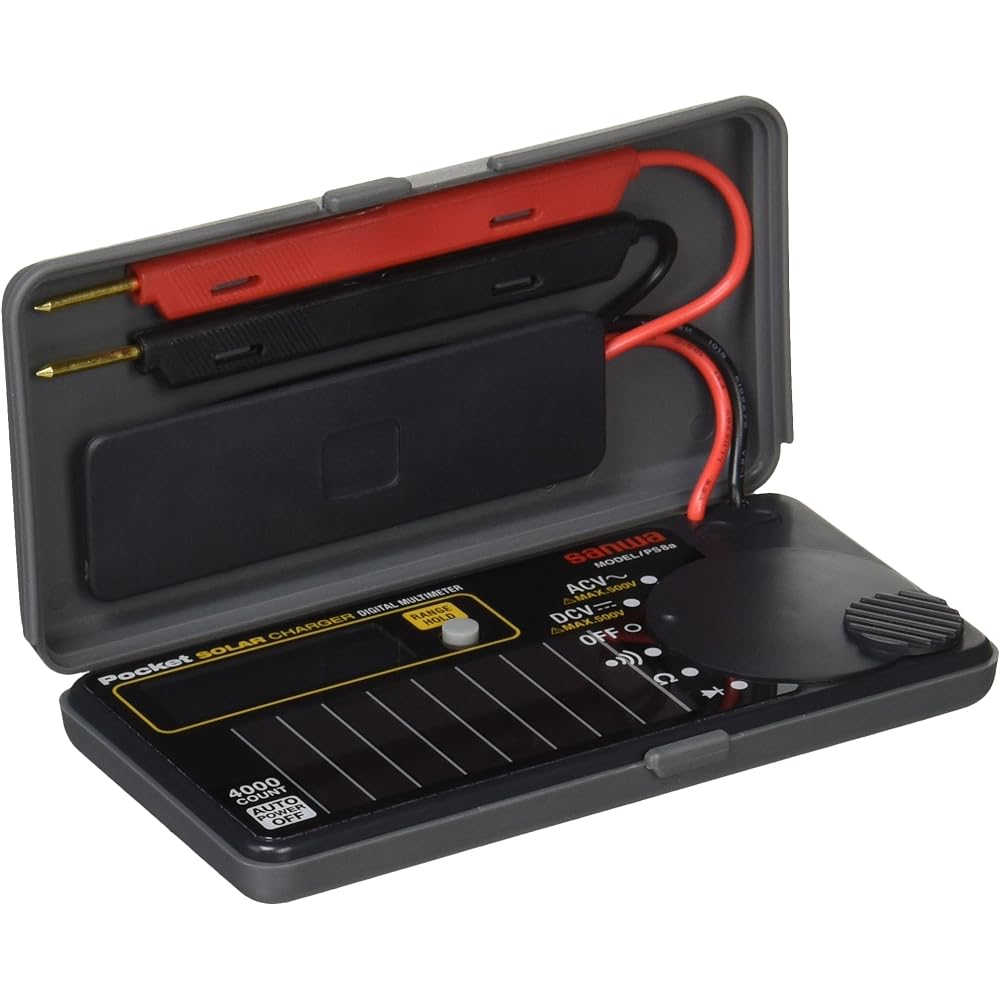

[Features] - Can be charged by solar power - Measures voltage and resistance values of electric circuits using test leads [Specifications] - DCV: 400m/4/40/400/500V - ACV: 4/ 40/400/500V・Resistance: 400/4K/40k/400k/4M/40MΩ・Continuity: Buzzer sound when below 10~120Ω Open circuit voltage approximately 0.4V・Diode test: Open circuit voltage approximately 1.5V・Power source: Amorphous solar cell + Manganese dioxide lithium secondary battery/Test lead: Directly connected to main unit/Size: 115X57X18mm/Weight: Approx. 85g ●4000 counts ●0.7% maximum accuracy ●Range hold ●Auto power off (approximately 15 minutes) cannot be canceled ●Continuity range is Applied voltage approx. 0.4V low power ohm ●Mechanical design that prevents the lid from closing when the power is on ●Sample rate 3 times/second in the numerical section Note
Brand: Sanwa Electric Meter
Product model number: PS-8A
Product size: 1.8 x 5.7 x 11.5 cm; 80 g
>Color: Black
Nameplate Name: Compact
Material: Polypropylene
Power Supply: Battery Operated
Accessories: None
Battery Included: Yes
Battery Type : Alkali
Product weight: 80 g
[Features] - Can be charged by solar power - Measures voltage and resistance values of electric circuits using test leads [Specifications] - DCV: 400m/4/40/400/500V - ACV: 4/ 40/400/500V・Resistance: 400/4K/40k/400k/4M/40MΩ・Continuity: Buzzer sound when below 10~120Ω Open circuit voltage approximately 0.4V・Diode test: Open circuit voltage approximately 1.5V・Power source: Amorphous solar cell + Manganese dioxide lithium secondary battery/Test lead: Directly connected to main unit/Size: 115X57X18mm/Weight: Approx. 85g ●4000 counts ●0.7% maximum accuracy ●Range hold ●Auto power off (approximately 15 minutes) cannot be canceled ●Continuity range is Applied voltage approx. 0.4V low power ohm ●Mechanical design that prevents the lid from closing when the power is on ●Sample rate 3 times/second in the numerical section Note
Brand: Sanwa Electric Meter
Product model number: PS-8A
Product size: 1.8 x 5.7 x 11.5 cm; 80 g
>Color: Black
Nameplate Name: Compact
Material: Polypropylene
Power Supply: Battery Operated
Accessories: None
Battery Included: Yes
Battery Type : Alkali
Product weight: 80 g
