Auto Parts Tokyo

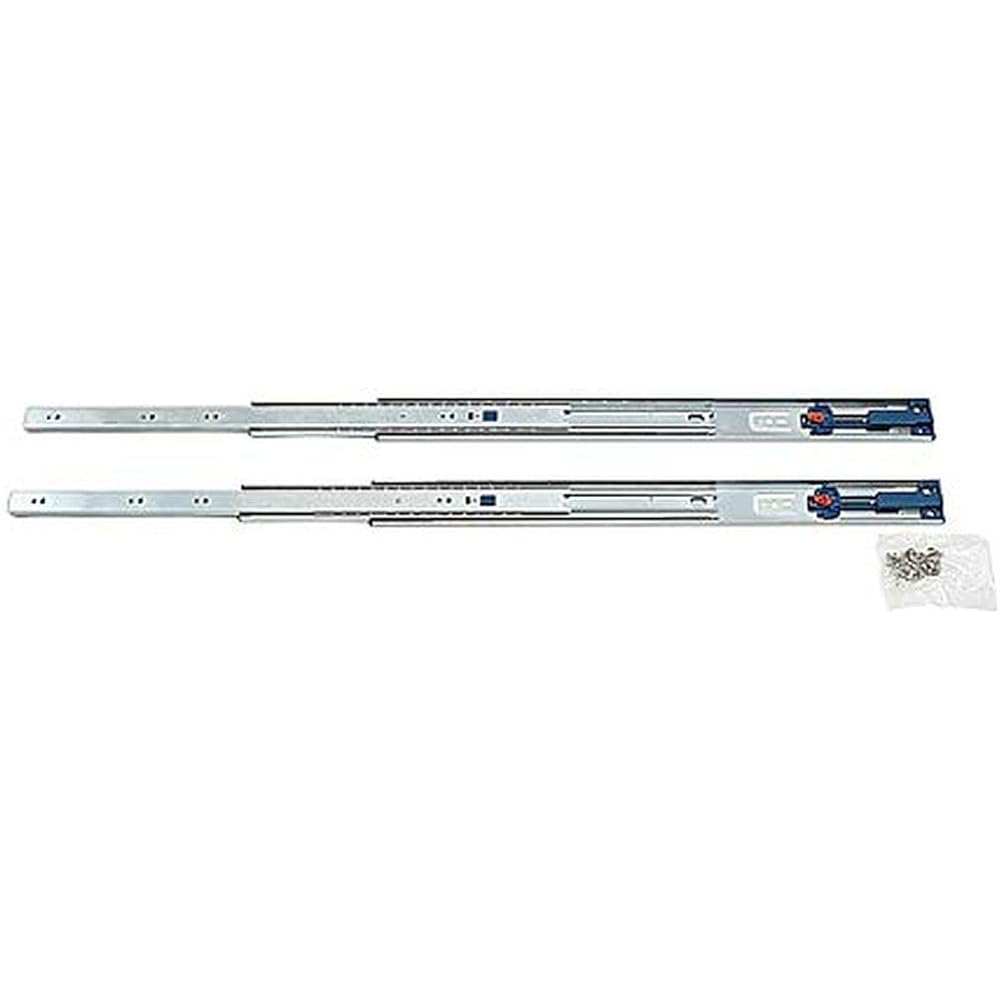

Sugatsune Industries Lamp Mark Slide Rail 4670 with Self & Soft Closing Mechanism 4670-550
Sugatsune Industries Lamp Mark Slide Rail 4670 with Self & Soft Closing Mechanism 4670-550
Regular price
$49.00 USD
Regular price
Sale price
$49.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

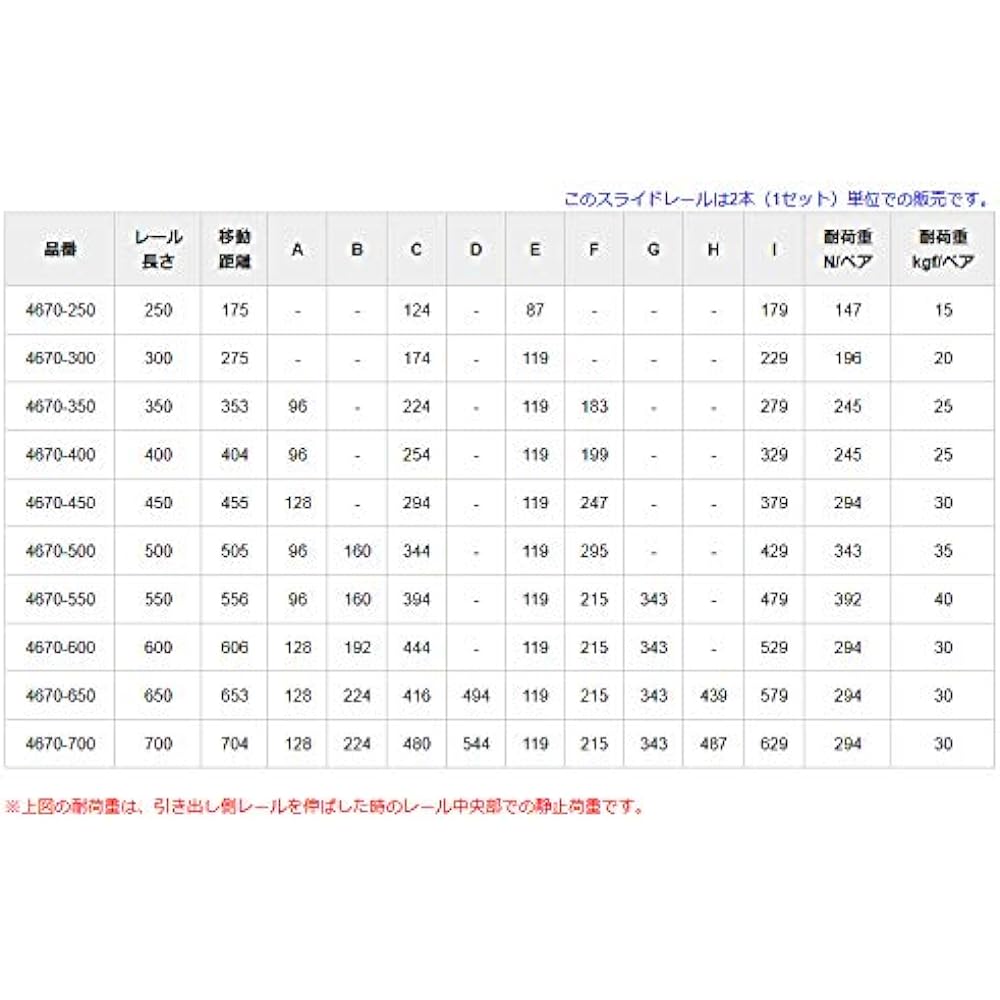

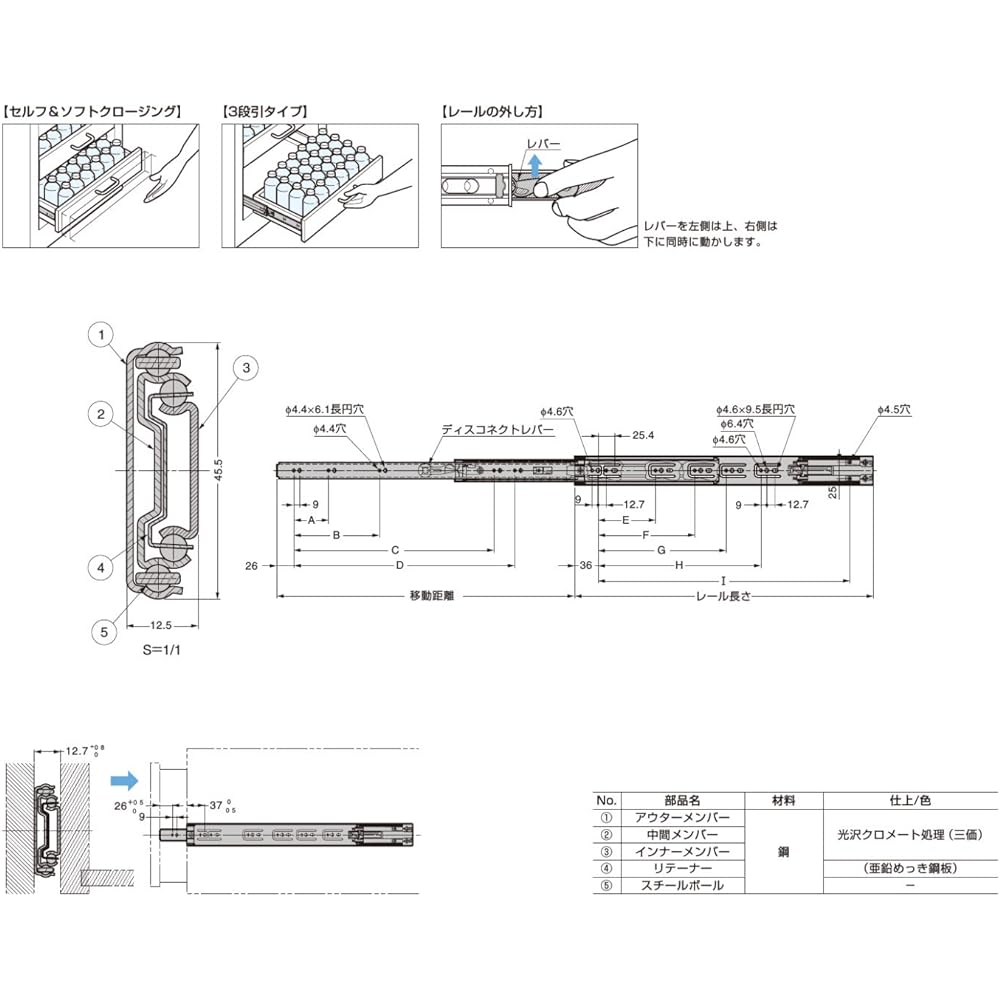

Rail length: 550 Travel distance: 556 Size A/B: 96/160 Size C: 394 Size E/F: 119/215
[Features] The slide rail drawer with self and soft-closing mechanism has a 3-stage drawer that slides widely, making effective use of the inside of the drawer.The maximum width of the overtravel drawer is that the rail length is 350 mm or more and can be pulled out beyond the rail length. , rail length + 200mm Since the self-closing mechanism is built into the rail, installation is as easy as with conventional rails.The shock-absorbing effect of the outer rail mounting area allows for smooth sliding even if the cabinet is slightly deformed. Equipped with a resin spring that absorbs noise and shock. The inner rail can be removed by operating the lever. *The load capacity is the static load at the center of the rail when the drawer side rail is extended. [Accessories] 4 cross-recessed truss tapping screws ×12
Brand: Sugatsune
Product model number: 21271
Product size: 1.25 x 55 x 4.55 cm; 1.61 kg
Material: Metal
Battery Included: No
Product weight: 1.61 Kilograms
[Features] The slide rail drawer with self and soft-closing mechanism has a 3-stage drawer that slides widely, making effective use of the inside of the drawer.The maximum width of the overtravel drawer is that the rail length is 350 mm or more and can be pulled out beyond the rail length. , rail length + 200mm Since the self-closing mechanism is built into the rail, installation is as easy as with conventional rails.The shock-absorbing effect of the outer rail mounting area allows for smooth sliding even if the cabinet is slightly deformed. Equipped with a resin spring that absorbs noise and shock. The inner rail can be removed by operating the lever. *The load capacity is the static load at the center of the rail when the drawer side rail is extended. [Accessories] 4 cross-recessed truss tapping screws ×12
Brand: Sugatsune
Product model number: 21271
Product size: 1.25 x 55 x 4.55 cm; 1.61 kg
Material: Metal
Battery Included: No
Product weight: 1.61 Kilograms
