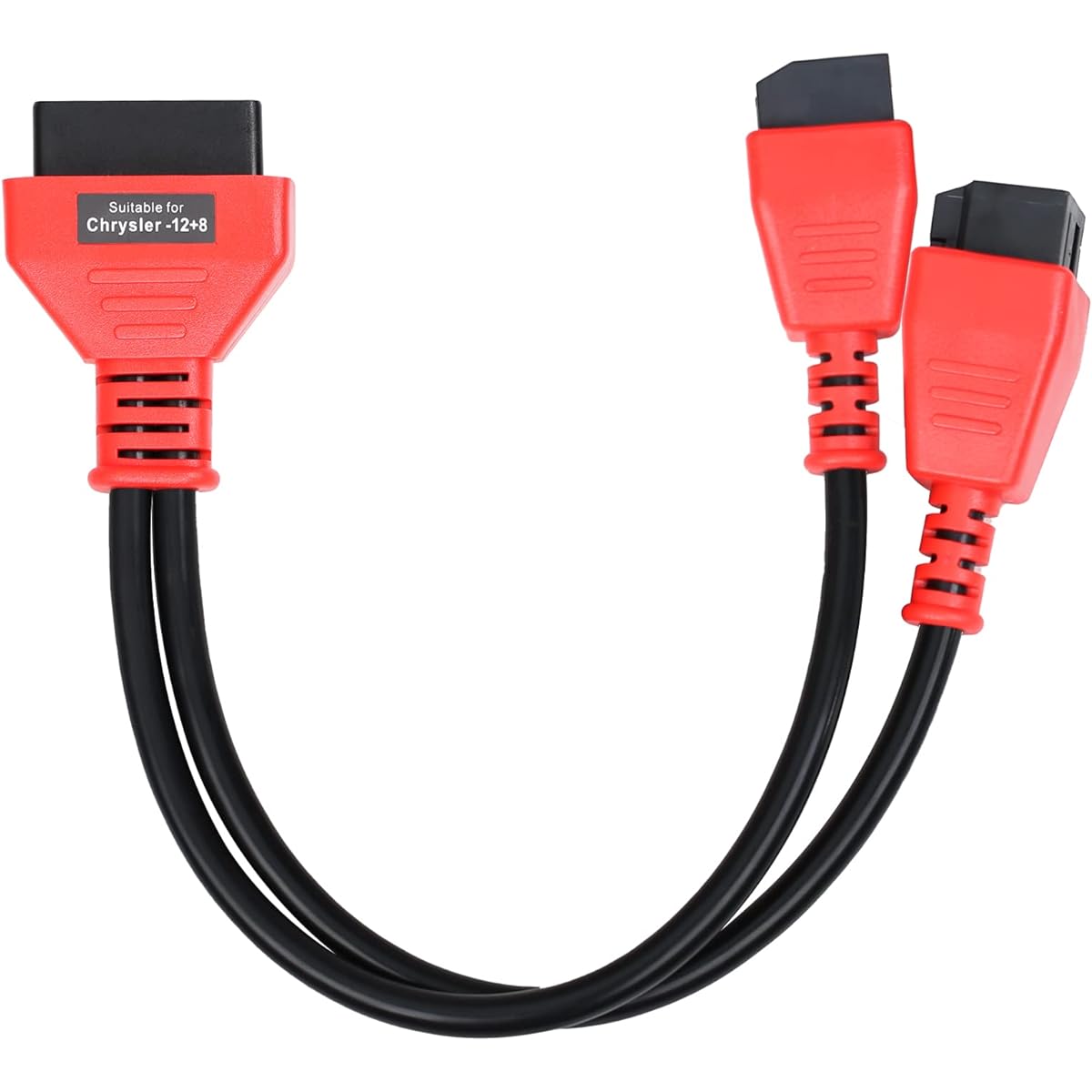

VXSCAN FCA 12+8 cable adapter CHRYSLER 12+8 Programming cable connector Autel OBD2 Adapter Security bypass cable Autel Maxisys MS905 MS906 MS906BT MS906S MS908S for PRO PRO PRO

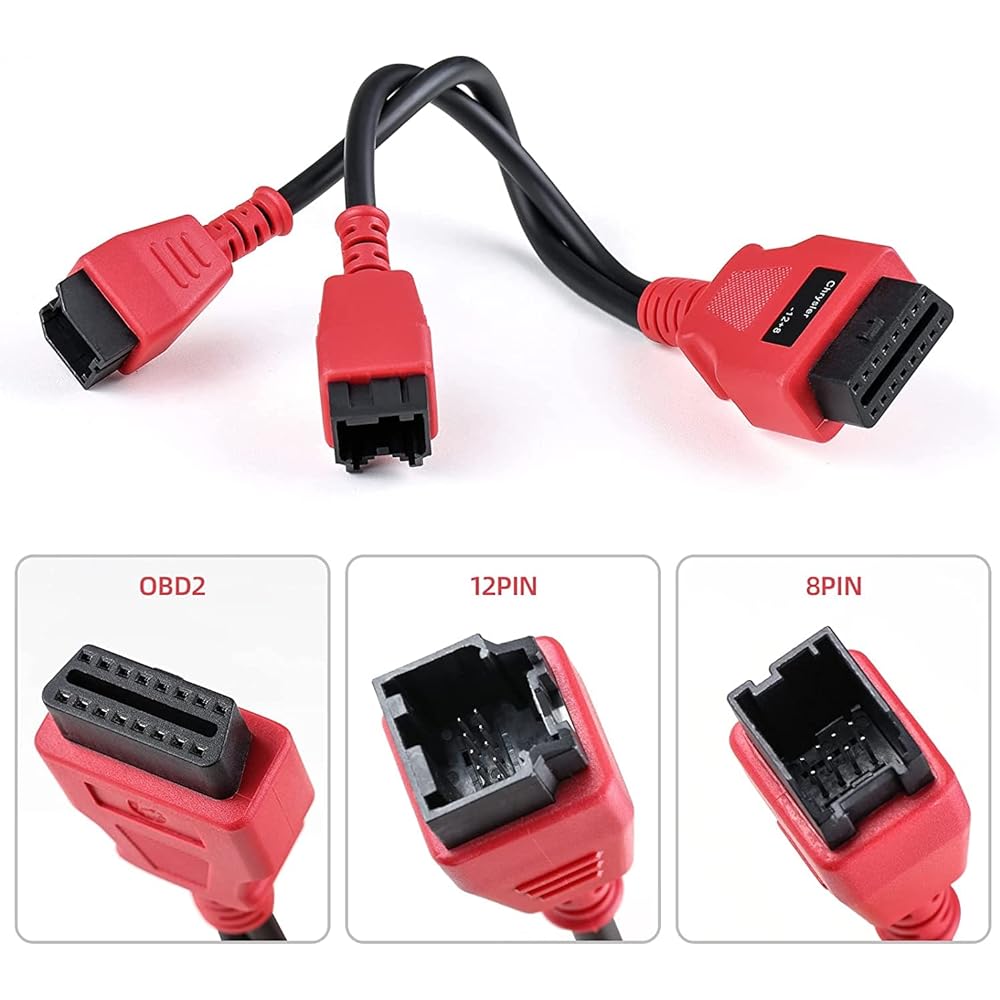

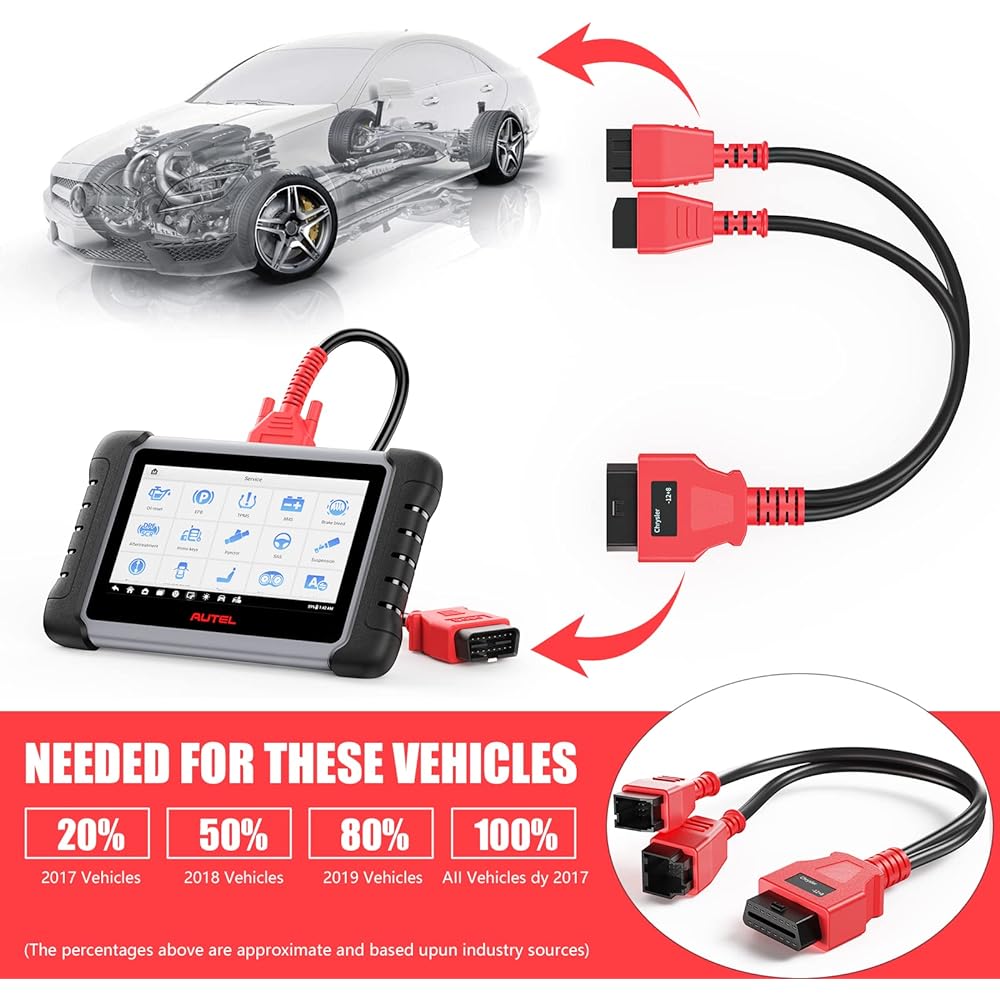

SGM/SGW isolation can now be bypassed with a dedicated conversion diagnostic connector for FCA 12+8. Clear fault codes, motion tests, ECU programming, etc. Suitable for modern FCA vehicles equipped with a Security Gateway Module (SGW) (installed from around 2018 onwards). The FCA 12+8 universal adapter cable also supports use with other diagnostic devices to read and clear fault codes. Compatible with aftermarket professional OBD II diagnostic tools such as Autel Maxisys series and Launch X431. There are only 3 steps to use the 12+8 cable connector. 1) Locate and unplug the 12-pin and 8-pin connectors on the SGW module. 2) Then connect the FCA 12+8 directly to the car's 12-pin and 8-pin (the two connectors connected to the SGW). 3) At this point, normal communication with the car is possible. Made of high quality 24AWG automotive grade material, it has great stability and durability. Plug and play, stable transmission, anti-jamming. 12+8 Autel cable has a shelf life of 12 months. If you have any questions regarding operation or use, please feel free to contact us. We will reply and resolve your issue within 24 hours.

12+8 Universal Adapter Description: Post-2018 Group (FCA) related models are equipped with a security gateway module (SGM/SGW) that uses strong encryption algorithms to protect Isolate most diagnostic requests to all diagnostic devices. Clearing fault codes, motion testing, ECU programming, etc. On 2018 and newer FCA models, non-original equipment can only be used to view fault codes, vehicle VIN identification, and data streams through the OBD diagnostic station. In response to this issue, SGM/SGW separation can now be bypassed with an FCA 12+8 dedicated conversion diagnostic connector. How to connect the 12+8 cable adapter: 1. Locate and disconnect the 12-pin and 8-pin connectors on the SGW module. 2. Directly connect the FCA 12+8 to the car's 12-pin and 8-pin (two connectors connected to SGW) connectors. 3. At this point, normal communication with the car is possible. 12+8 adapter required for vehicles with secure gateway module: 2018+ Renegade. 2018+ Compass 2018+ Cherokee 2018+ Wrangler 2018+ Grand Cherokee 2018+ Dodge Ram 2018+ Dodge Durango 2018+ Dodge Journey 2018 + Dodge Charger 2018+ Dodge Challenger 2018+ Pacifica Package Contents: FCA 12+8 Universal Adapter 1 Individual.


Manufacturer: ‎VXSCAN
Brand: ‎VXSCAN
Model name: ‎FCA 12+8 Universal Adapter
Packing size: ‎23.09 x 8.41 x 3 cm; 141 g< br>Product Model Number: ‎FCA 12+8 Universal Adapter
Special Notes: ‎This cable adapter can be used for Autel Maxisys series scanners such as MS906, MS906BT, MS906TS, MS908, MS908S, MS908S PRO, Maxisys Elite . , Can be used in conjunction with other diagnostic devices to read and clear fault codes.
Product weight: ‎141 g
