Spoon rizikara sanba- For Front
Spoon rizikara sanba- For Front
Regular price
$153.00 USD
Regular price
Sale price
$153.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Sambar / Sambar Dias TV1 TV2 TT1 TT2 TW1 TW2 2WD/4WD

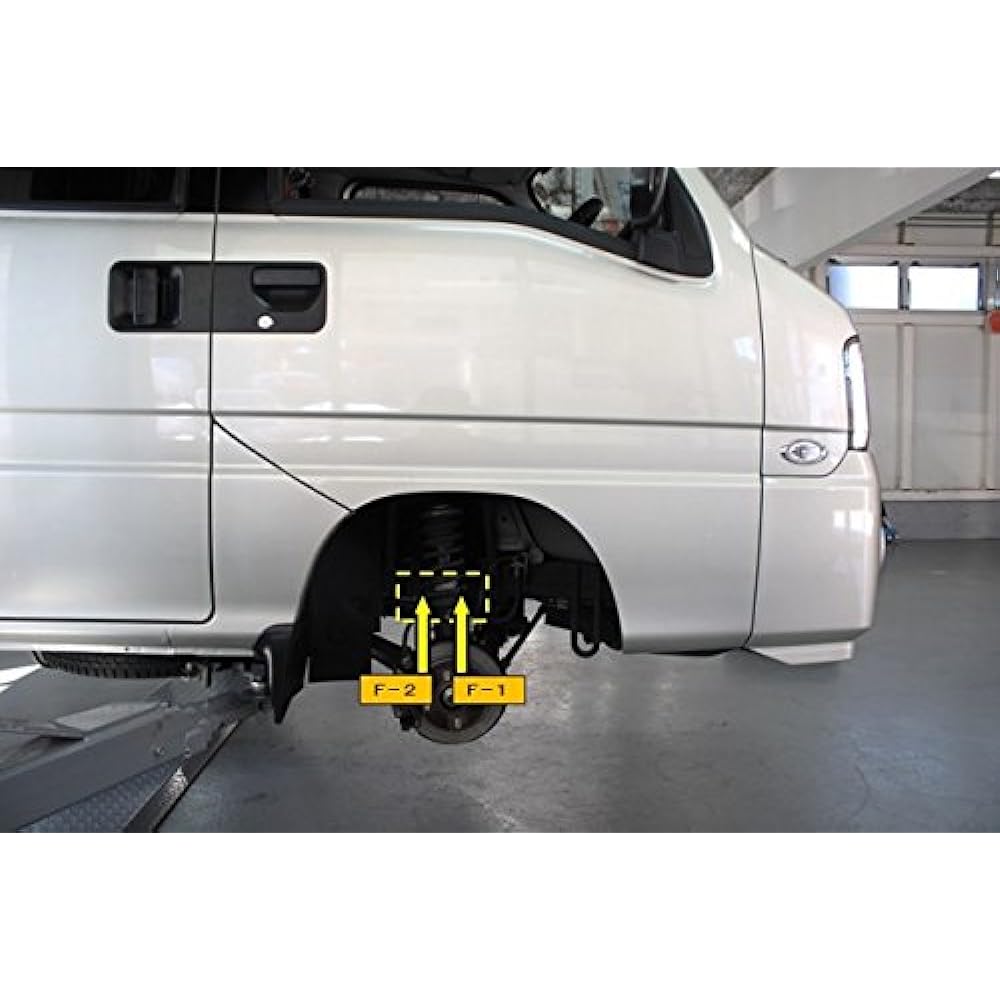

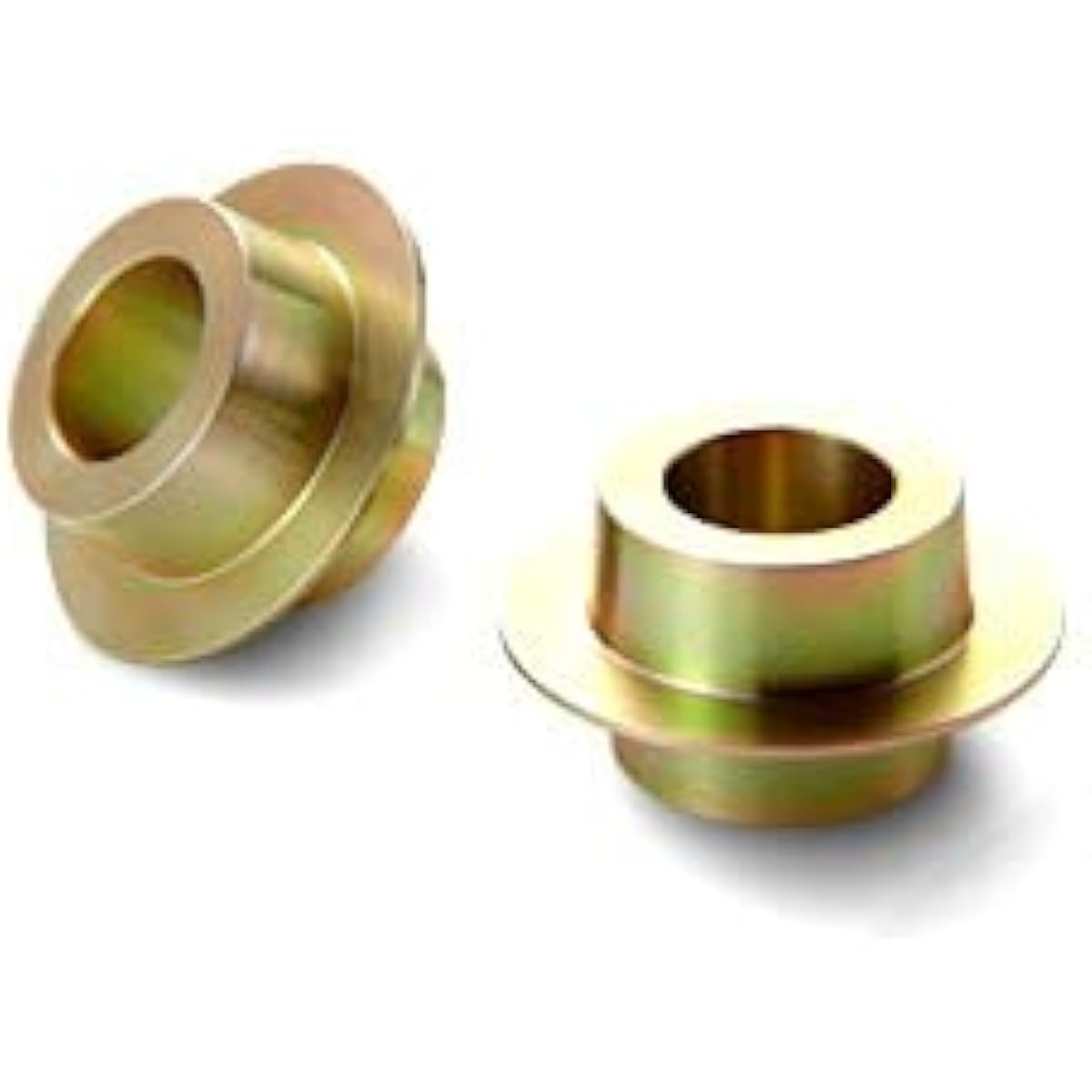

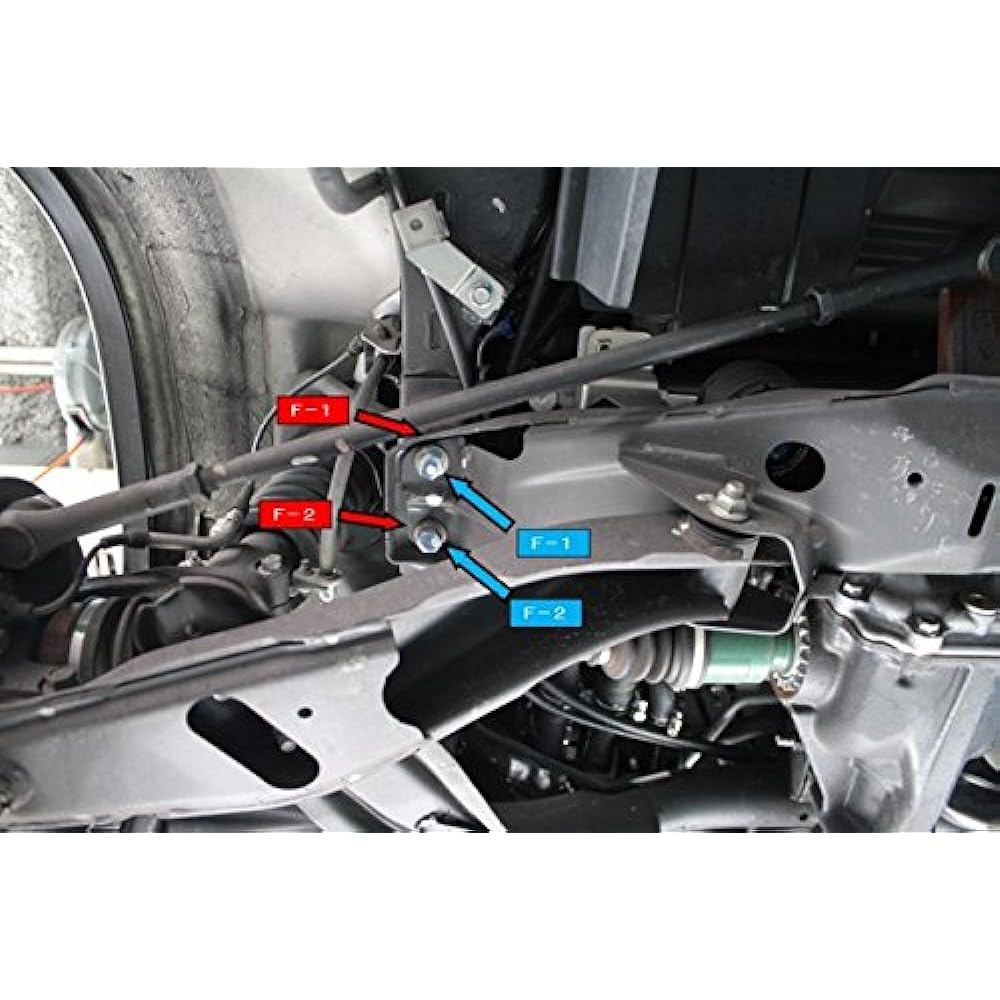

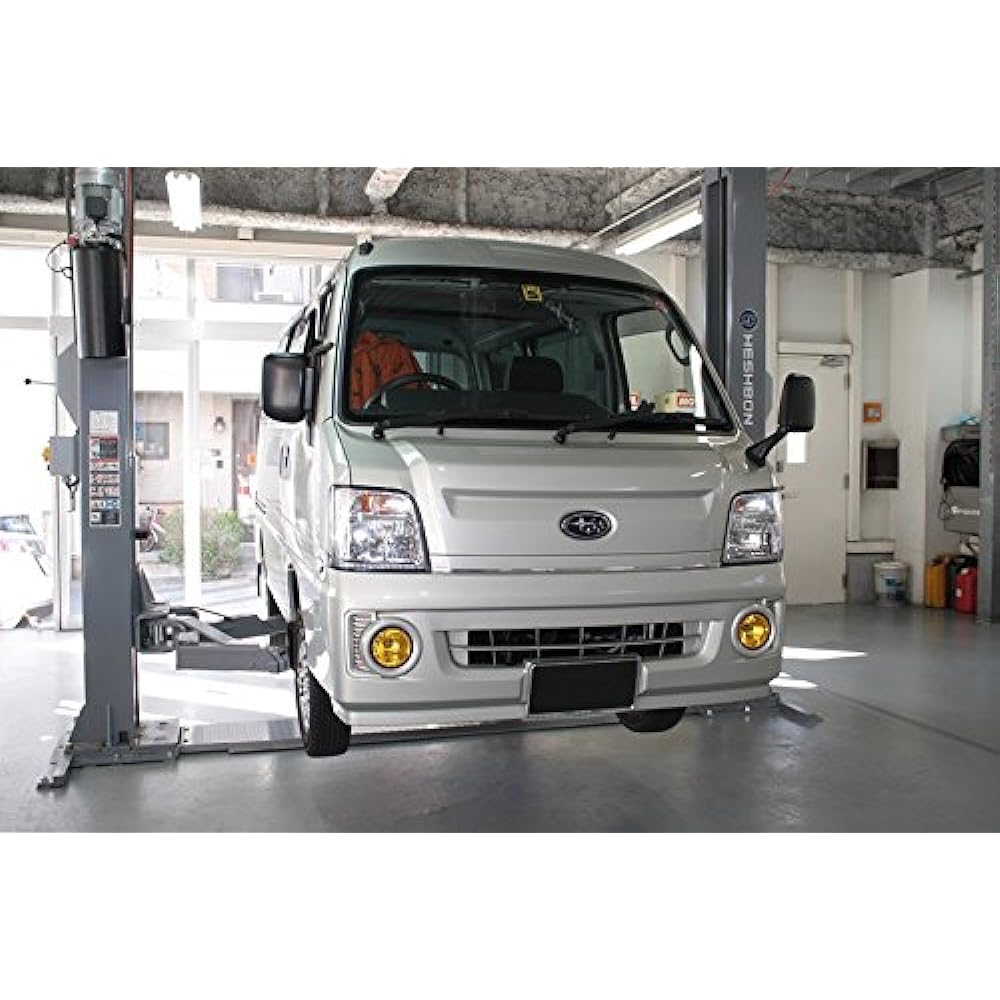

Compatibility information Car manufacturer SUBARU Car name Sambar / Sambar Dias Model TV1 TV2 TT1 TT2 TW1 TW2 Drive system 2WD/4WD Product details Manufacturer Spoon (Regicolor) Product number 50261-TV1-000 Installation position For front Number of pieces Color 8 pieces Installation reference time ~ 1h Installation reference procedure *See image The front installation location is the area surrounded by dotted lines (F-1, F-2). The fastening points are the four yellow arrows. The red arrow is a type of rigid collar that is inserted between the body and subframe. The blue arrow indicates the type that is installed from the bottom of the subframe. Use 4 pieces between F-1 and F-2, between the body and the subframe (shown in red), and use 4 pieces from the bottom of the subframe (shown in blue). Product Notes For installation work, we recommend a work environment with a mission jack to raise and lower the subframe horizontally and a two-post lift. Appropriate technology is required for safe work and effectiveness. Surface treatment is applied to prevent friction on the parts body and potential corrosion on the metal surface, and a special copper grease is also included to provide galling and rust prevention effects. Retightening after installation is basically not necessary except for confirmation checks. In the case of a car that has been manufactured for 20 years and has driven 300,000 km and has no history of bolts being removed or removed, it is likely that new bolts will be required. Additionally, bolts may be corroded in salt-damaged areas. *For installation, use Autobacs, Tuning nationwide.
Manufacturer: Spoon (SPOON)
Brand: Spoon
Manufacturer reference: 50261-TV1-000
Compatibility information Car manufacturer SUBARU Car name Sambar / Sambar Dias Model TV1 TV2 TT1 TT2 TW1 TW2 Drive system 2WD/4WD Product details Manufacturer Spoon (Regicolor) Product number 50261-TV1-000 Installation position For front Number of pieces Color 8 pieces Installation reference time ~ 1h Installation reference procedure *See image The front installation location is the area surrounded by dotted lines (F-1, F-2). The fastening points are the four yellow arrows. The red arrow is a type of rigid collar that is inserted between the body and subframe. The blue arrow indicates the type that is installed from the bottom of the subframe. Use 4 pieces between F-1 and F-2, between the body and the subframe (shown in red), and use 4 pieces from the bottom of the subframe (shown in blue). Product Notes For installation work, we recommend a work environment with a mission jack to raise and lower the subframe horizontally and a two-post lift. Appropriate technology is required for safe work and effectiveness. Surface treatment is applied to prevent friction on the parts body and potential corrosion on the metal surface, and a special copper grease is also included to provide galling and rust prevention effects. Retightening after installation is basically not necessary except for confirmation checks. In the case of a car that has been manufactured for 20 years and has driven 300,000 km and has no history of bolts being removed or removed, it is likely that new bolts will be required. Additionally, bolts may be corroded in salt-damaged areas. *For installation, use Autobacs, Tuning nationwide.
Manufacturer: Spoon (SPOON)
Brand: Spoon
Manufacturer reference: 50261-TV1-000
