ICT Billet LS Engine Wap M12 1.5 Adapter -3/8 NPT Expansion Length Coolant temperature Sensor Adapter Water LS Engine Evo LS3 LS2 LQ4 LS6 L99 L99 L33 L33 LR4 551179L

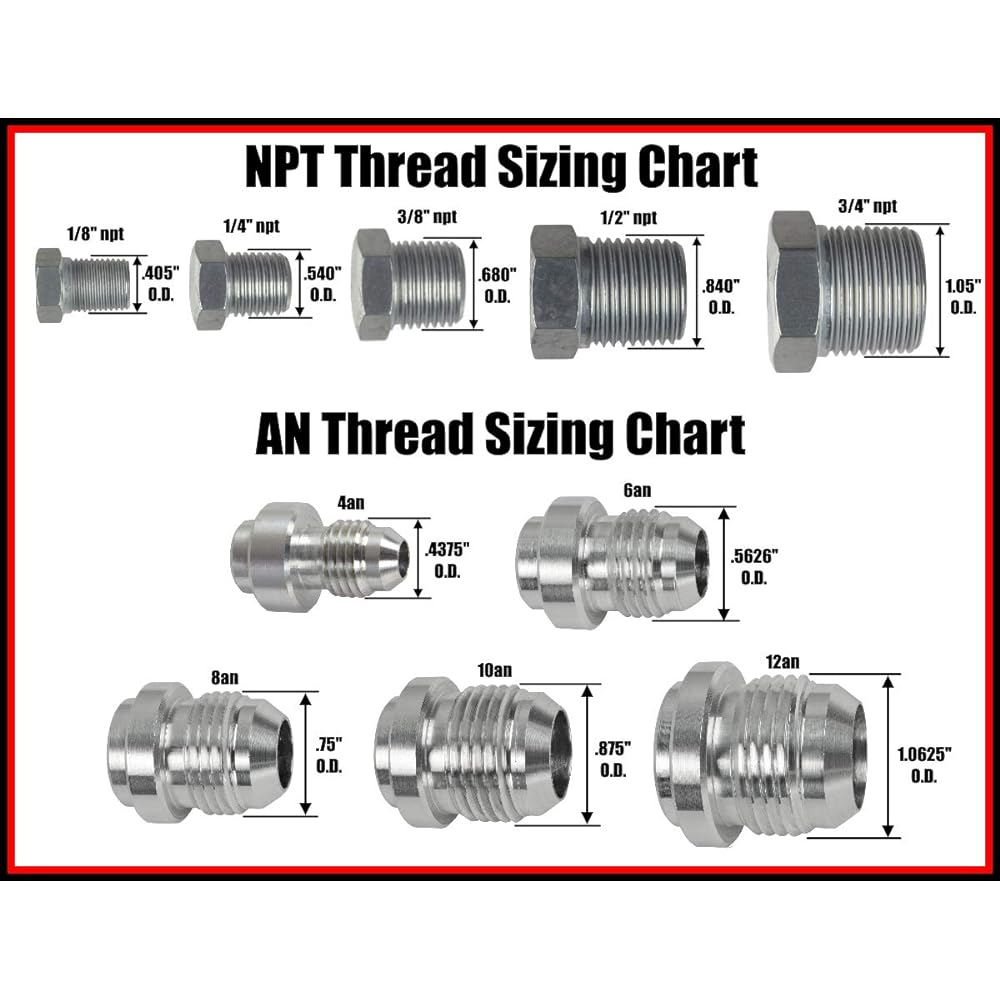

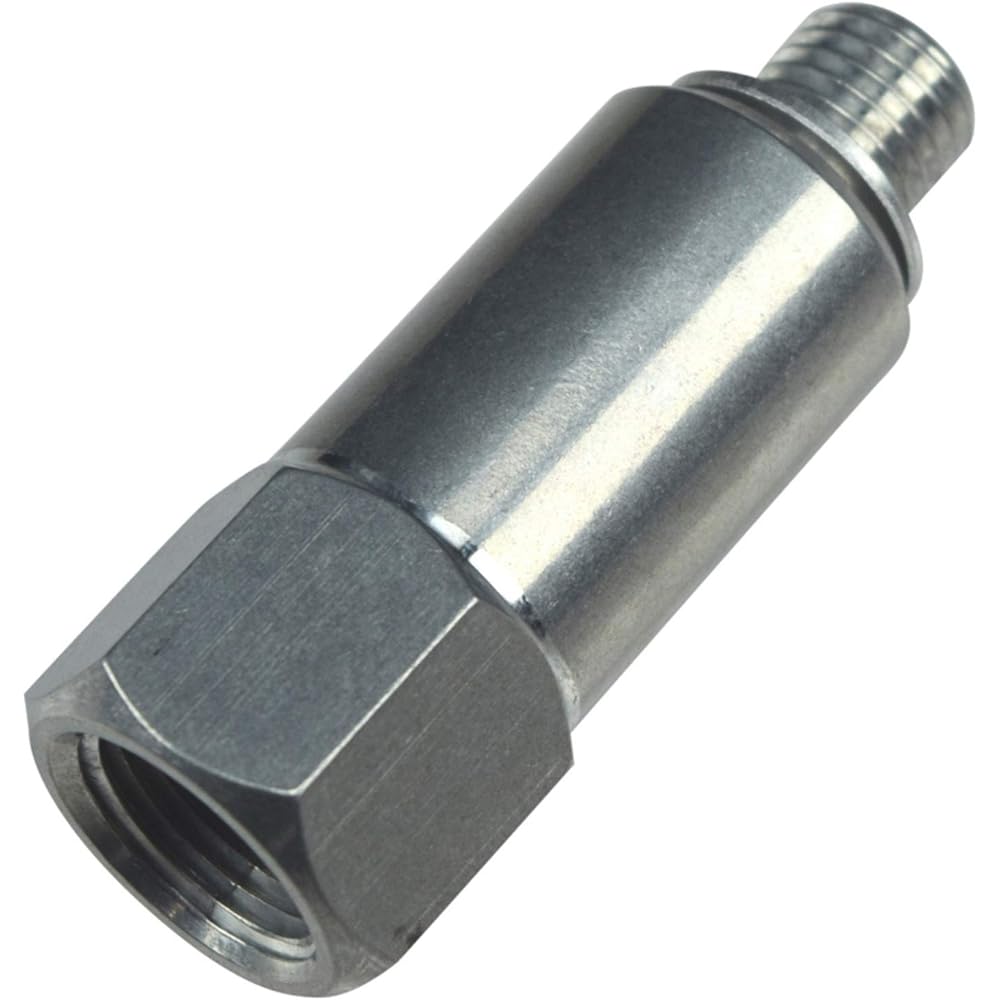

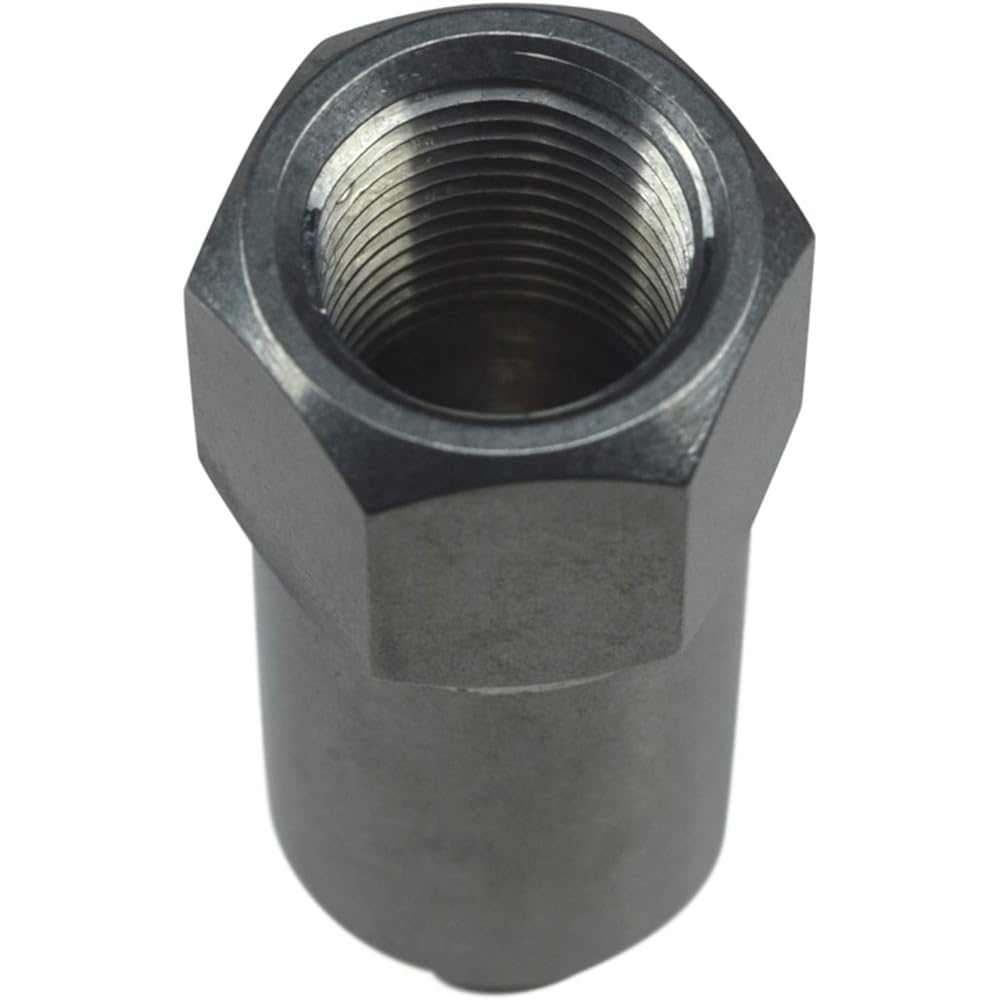

The factory LS cylinder head is machined with a metric M12-1.5 coolant sensor port so the factory small block Chevy sensor will not thread through. This adapter allows you to keep your original sensor and integrate it into your replaced LS engine. Adapter has a female 3/8" NPT port, 1.7" deep. Please refer to thread chart to ensure correct size. (Use PN# 551179 for 0.85" deep adapter for shorter sensors) Aerospace grade American billet aluminum, manufactured by KS Wichita. This adapter fits all LS series engines. The adapter is sold separately and includes one sealing washer.

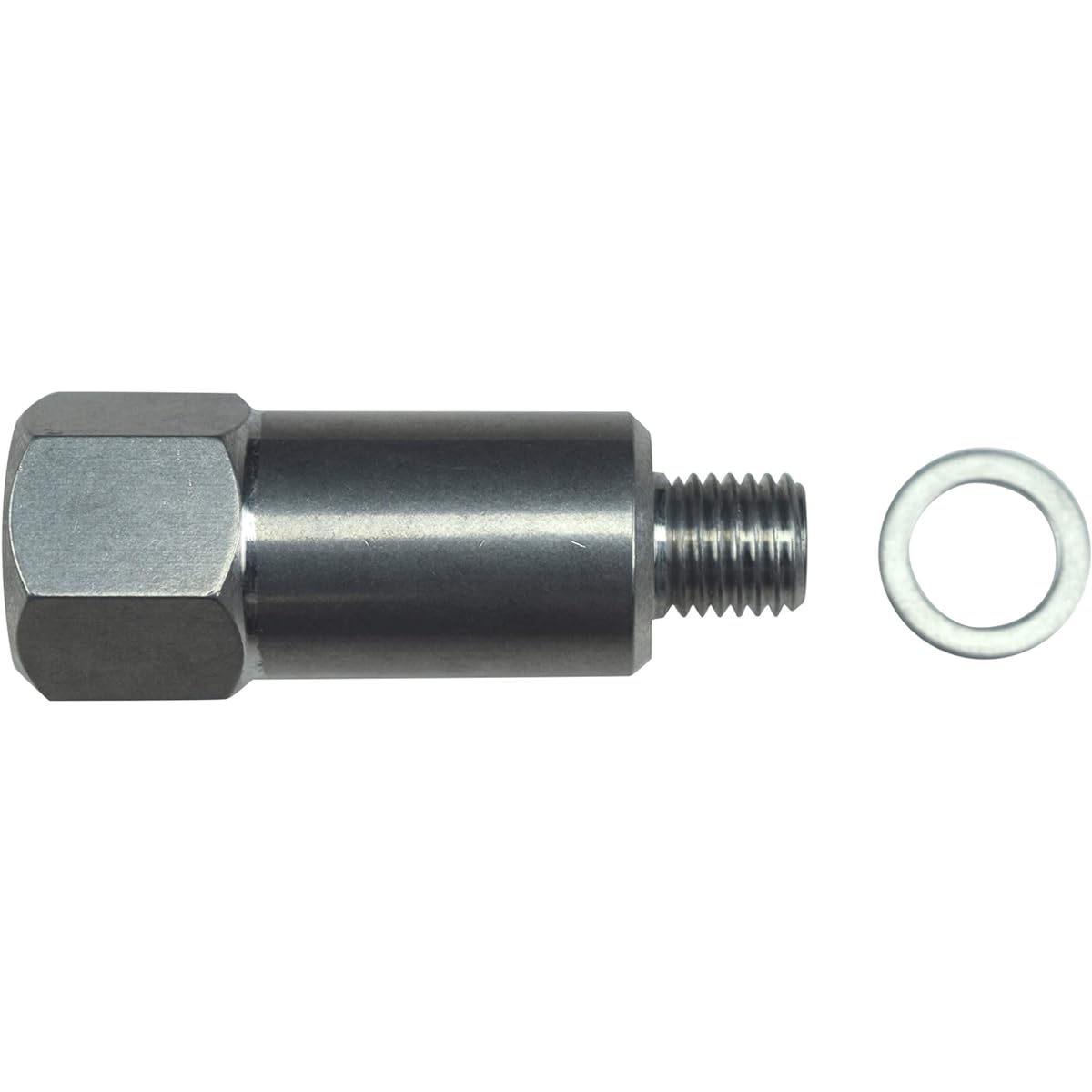

Extension Adapter - Male M12-1.5 to Female 3/8"-18NPT Adapter. Fits SBC/BBC (3/8" NPT) coolant temperature sensor to LS series cylinder head. Compatibility: All GM series engines. Made in Wichita, Kansas from USA Aerospace Grade. Made of billet aluminum. Contents: 1 x aluminum adapter, 1 x sealing washer. Fits 1.7 inch long sensor. Measure from the tip of the probe to the outer edge of the adapter. Most aftermarket gauges use a 3/8" NPT thread adapter (usually included with the gauge).


Manufacturer: ‎ICT Billet
Brand: ‎ICT Billet
Product size: ‎13.21 x 7.37 x 2.54 cm; 23 g
Manufacturer reference: ‎551179L
Manufacturer Discontinued due to: ‎No
Original part number: ‎551179L
Product dimensions: Depth x Width x Height: ‎13.2 x 7.4 x 2.5 cm
Color: ‎Natural
Product Weight: ‎23 g
