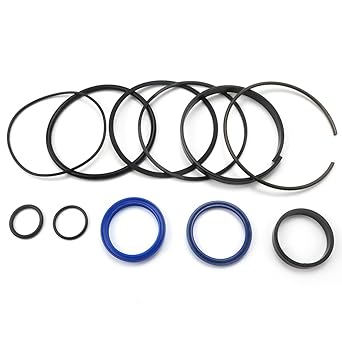

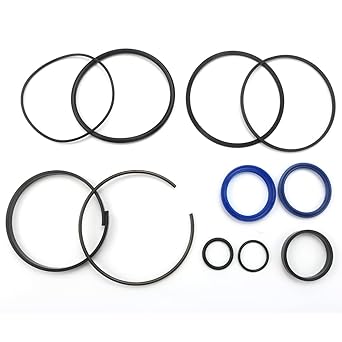

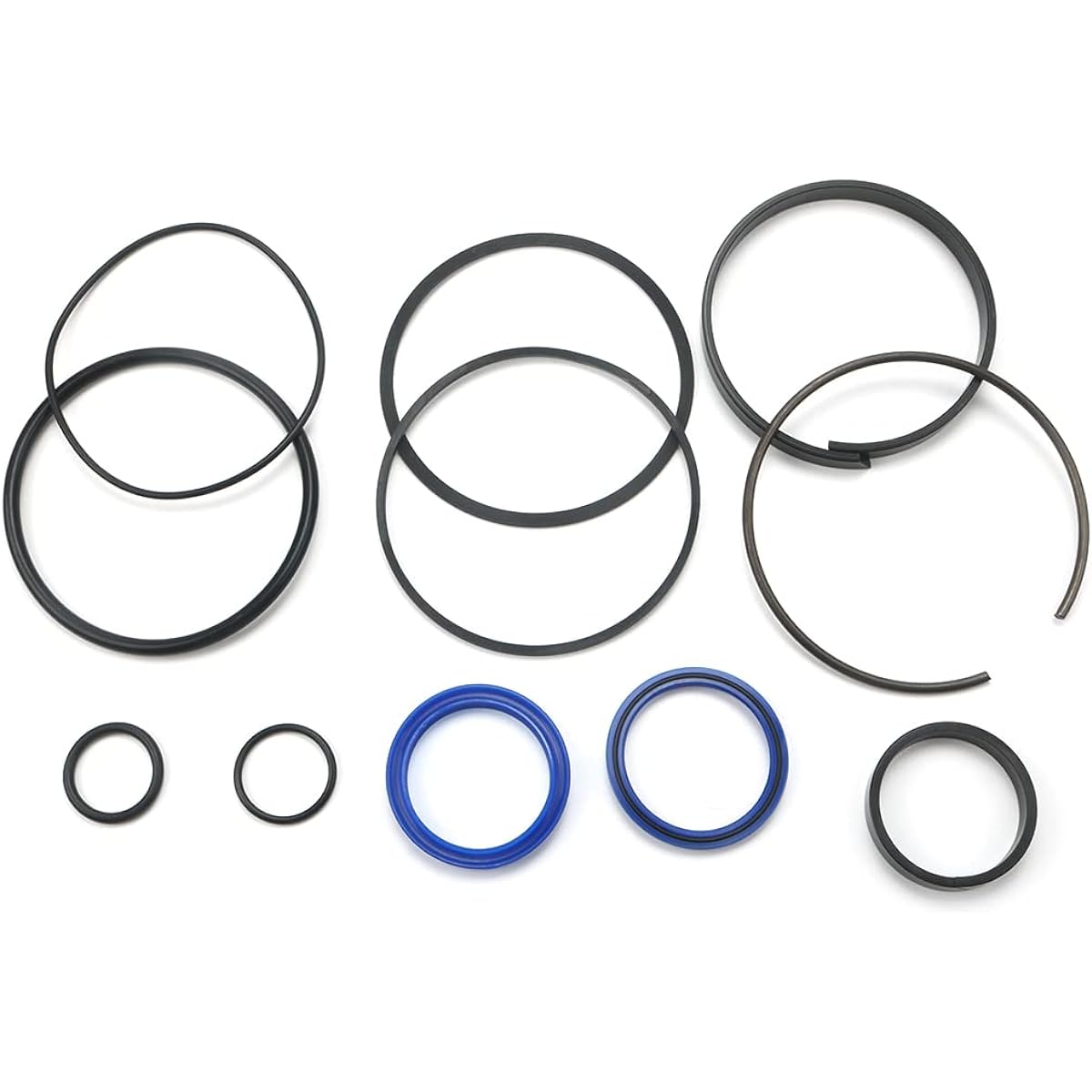

Hydraulic log splitter Cylinder trivided seal kit 4.0 inch bore x 1.75 inch rod cylinder
Hydraulic log splitter Cylinder trivided seal kit 4.0 inch bore x 1.75 inch rod cylinder
Regular price
$96.00 USD
Regular price
Sale price
$96.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Seal Size: 4.0" Bore x 1.75" Brand: Aftermarket. Part Type: Cylinder Rebuild Seal Kit nan Material: Rubber Plastic.

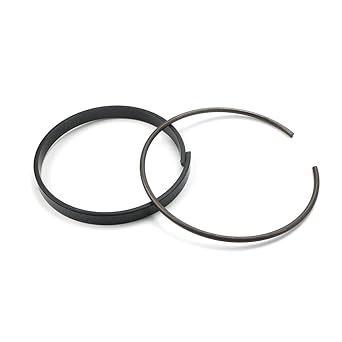

Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0" Bore x 1.75" Rod Cylinder To know if it will fit your cylinder, we recommend disassembling and measuring the cylinder to compare to each item's specifications. Please double check that each seal groove is suitable for sitting on our parts. 1. Cylinder tube bore (I.D.) 4" x rod (outer diameter) 1.75" Please note that some cylinder rod head OD sizes are not rod sizes. 2. Wear ring. Piston wear ring: 101.6mm (4" OD) x 95.25mm (3.75" ID) x 9.53mm (0.4" width), Nylon rod wear ring: 44.5mm (1.77" ID) x 50.8mm (2" OD) x9.53mm (0.4 inch width), nylon. 3. Piston seals one square ring and one O-ring. Piston squaring: D101.6 mm x 91.6 mm x 3.28 mm. O-ring (installed under square ring): 91.0 mm x 2.65 mm. CPU + NBR 4. Rod O-ring (Item 13): 44.5mm x 54mm x 5mm, CPU. There is an O-ring inside. 5. Rod Dust Ring (Item 12): 44.5mm x 54mm 5.5mm / 7.3mm, TPU. Below is a 4.0" bore x 1.75" rod cylinder. Specifications OEM manufactured with this seal kit: Retractable (center to center between rod mountain hole and clevis hole: 32.5 inches. Extended (center to center): 56.5 inches. Stroke: 24 ± 0.5 inches. Clevis Dimensions from center of hole to back of cylinder: 2.95". Center of rod end hole to front of rod: 1.05". Center of rod end hole to front of cylinder: 1.2". Port: 1/2". NPT Port to Port Dimension: 25.4". Rod: 1.75" Rod. Rod End Mountain Hole: 0.55". Clevis Mountain Hole: 1.15". Mountain Clevis to Clevis Dimension: 0.86". Thickness of each mountain clevis : 0.4". Length of each mounting clevis: 4.13".
Manufacturer: Jetuplusllc
Part Number: 4.0"Bore x 1.75"
Item Weight: 68 g
Package size: 11.4 x 10.69 x 2.39 cm; 68 g
Accessories: Rubber
Battery included: No
Uses batteries: No
Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0" Bore x 1.75" Rod Cylinder To know if it will fit your cylinder, we recommend disassembling and measuring the cylinder to compare to each item's specifications. Please double check that each seal groove is suitable for sitting on our parts. 1. Cylinder tube bore (I.D.) 4" x rod (outer diameter) 1.75" Please note that some cylinder rod head OD sizes are not rod sizes. 2. Wear ring. Piston wear ring: 101.6mm (4" OD) x 95.25mm (3.75" ID) x 9.53mm (0.4" width), Nylon rod wear ring: 44.5mm (1.77" ID) x 50.8mm (2" OD) x9.53mm (0.4 inch width), nylon. 3. Piston seals one square ring and one O-ring. Piston squaring: D101.6 mm x 91.6 mm x 3.28 mm. O-ring (installed under square ring): 91.0 mm x 2.65 mm. CPU + NBR 4. Rod O-ring (Item 13): 44.5mm x 54mm x 5mm, CPU. There is an O-ring inside. 5. Rod Dust Ring (Item 12): 44.5mm x 54mm 5.5mm / 7.3mm, TPU. Below is a 4.0" bore x 1.75" rod cylinder. Specifications OEM manufactured with this seal kit: Retractable (center to center between rod mountain hole and clevis hole: 32.5 inches. Extended (center to center): 56.5 inches. Stroke: 24 ± 0.5 inches. Clevis Dimensions from center of hole to back of cylinder: 2.95". Center of rod end hole to front of rod: 1.05". Center of rod end hole to front of cylinder: 1.2". Port: 1/2". NPT Port to Port Dimension: 25.4". Rod: 1.75" Rod. Rod End Mountain Hole: 0.55". Clevis Mountain Hole: 1.15". Mountain Clevis to Clevis Dimension: 0.86". Thickness of each mountain clevis : 0.4". Length of each mounting clevis: 4.13".
Manufacturer: Jetuplusllc
Part Number: 4.0"Bore x 1.75"
Item Weight: 68 g
Package size: 11.4 x 10.69 x 2.39 cm; 68 g
Accessories: Rubber
Battery included: No
Uses batteries: No
