SF-20 / SF-30 233101 Subburn RV furnace motor replacement

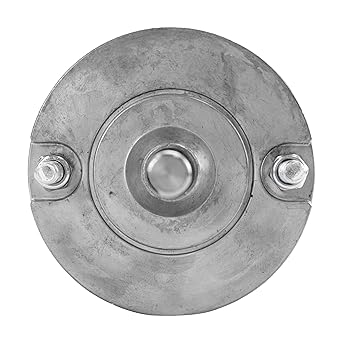

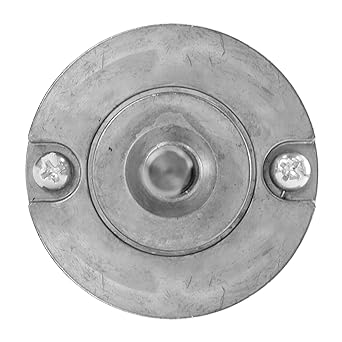

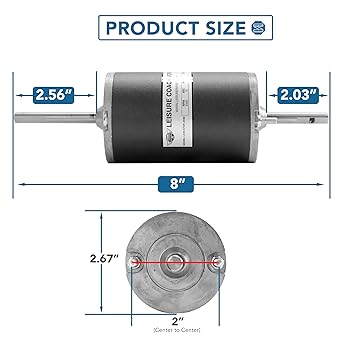

About this item Motor diameter is 2-1/2 inches. Shaft diameter 5/16" x 2-7/16" (front) x 1-11/16" (rear). 2 lead wires with insulated female terminals. The two mounting studs are 2 inches apart on the short shaft side center to center. Short side shafts from base of motor to end of shaft - 2 1/32" (short side) & 2 9/16" (long side). Replaces 233101, 231706, PE26251QZ. 1 year warranty

Voltage: 12 Volt RPM: 2500RPM. AMPS:5.8. Dimensions: 8(L) x 2.6"(W) x 2.7"(H).


Manufacturer: ‎Leisure Coachworks
Part number: ‎LCW-X7SF-2030
Item weight: ‎1.43 Kilograms
Product size: ‎20.32 x 6.78 x 6.78 cm; 1.43 kg
Voltage: ‎12 Volts (DC)
Accessories: ‎RV Furnace Motor
Batteries Used: ‎No
Product Dimensions (Length x Width x Height): ‎20.3 x 6.8 x 6.8cm
