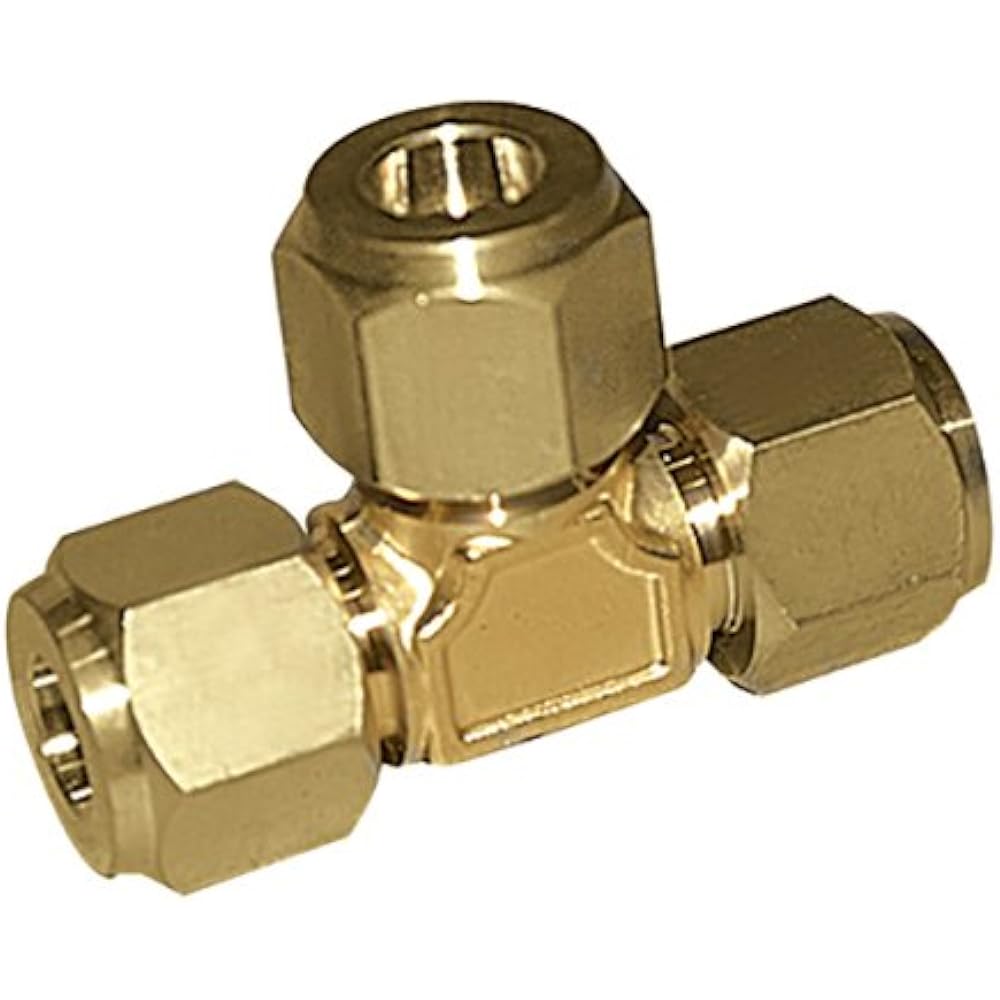

Floval Refrigerant Flare Joint with Cheese N T-6 with N 3/4
Floval Refrigerant Flare Joint with Cheese N T-6 with N 3/4
Regular price
$31.00 USD
Regular price
Sale price
$31.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Flare joint for refrigerant
Flare joint for refrigerant. Features:● Consists of main body and flare nut, the copper pipe is pushed wide (45 degrees) with a flaring tool and connected to the main body surface. (Used for highly airtight applications such as refrigerant piping) Specifications:●Maximum working pressure: 7.0MPa●Normal working pressure: 4.3MPa●Operating temperature range: -20℃~150℃※No freezing Remarks:●[Target refrigerant Example (when used on the high pressure side) Type 1】●Maximum working pressure: 3.45MPa●Applicable refrigerant: R22, R134a, R404A, R407C, R507A●[Example of applicable refrigerant (when used on the high pressure side) Type 2 ]●Maximum working pressure: 4.30MPa●Target refrigerant: R410A Size (FL): 3/4 flare screw standard: UNS1＂1/16-14 thread Caution
Brand: Flobal
Product model number: T-6 with N
Package size: 20 x 14 x 8 cm; 99.79 g
Quantity: 1
Product weight: 99.8 g
Flare joint for refrigerant. Features:● Consists of main body and flare nut, the copper pipe is pushed wide (45 degrees) with a flaring tool and connected to the main body surface. (Used for highly airtight applications such as refrigerant piping) Specifications:●Maximum working pressure: 7.0MPa●Normal working pressure: 4.3MPa●Operating temperature range: -20℃~150℃※No freezing Remarks:●[Target refrigerant Example (when used on the high pressure side) Type 1】●Maximum working pressure: 3.45MPa●Applicable refrigerant: R22, R134a, R404A, R407C, R507A●[Example of applicable refrigerant (when used on the high pressure side) Type 2 ]●Maximum working pressure: 4.30MPa●Target refrigerant: R410A Size (FL): 3/4 flare screw standard: UNS1＂1/16-14 thread Caution
Brand: Flobal
Product model number: T-6 with N
Package size: 20 x 14 x 8 cm; 99.79 g
Quantity: 1
Product weight: 99.8 g
