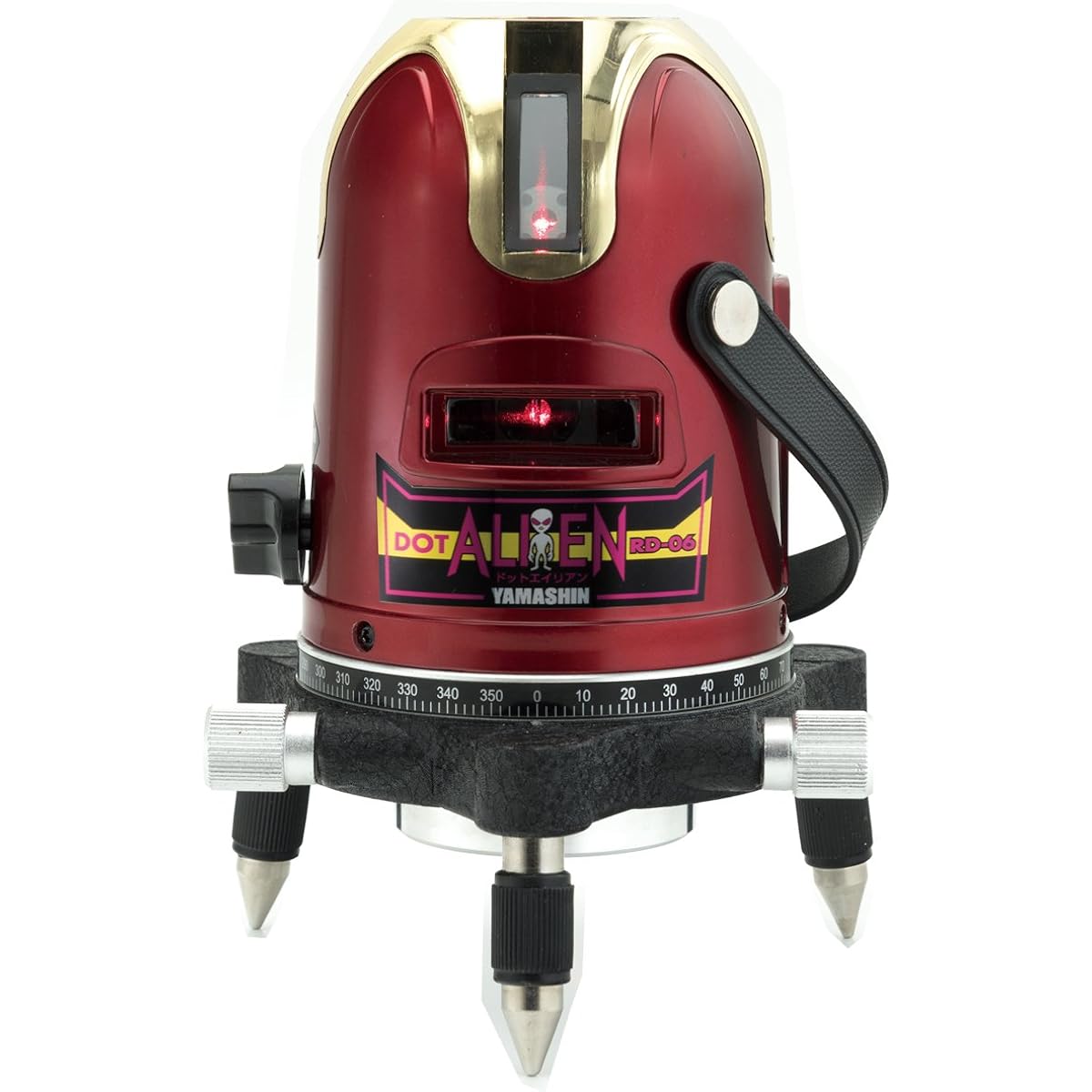

YAMASHIN Dot Alien Laser Marker RD-06 (4-way large rectangle, 4 vertical, 1 horizontal line irradiation type) Red

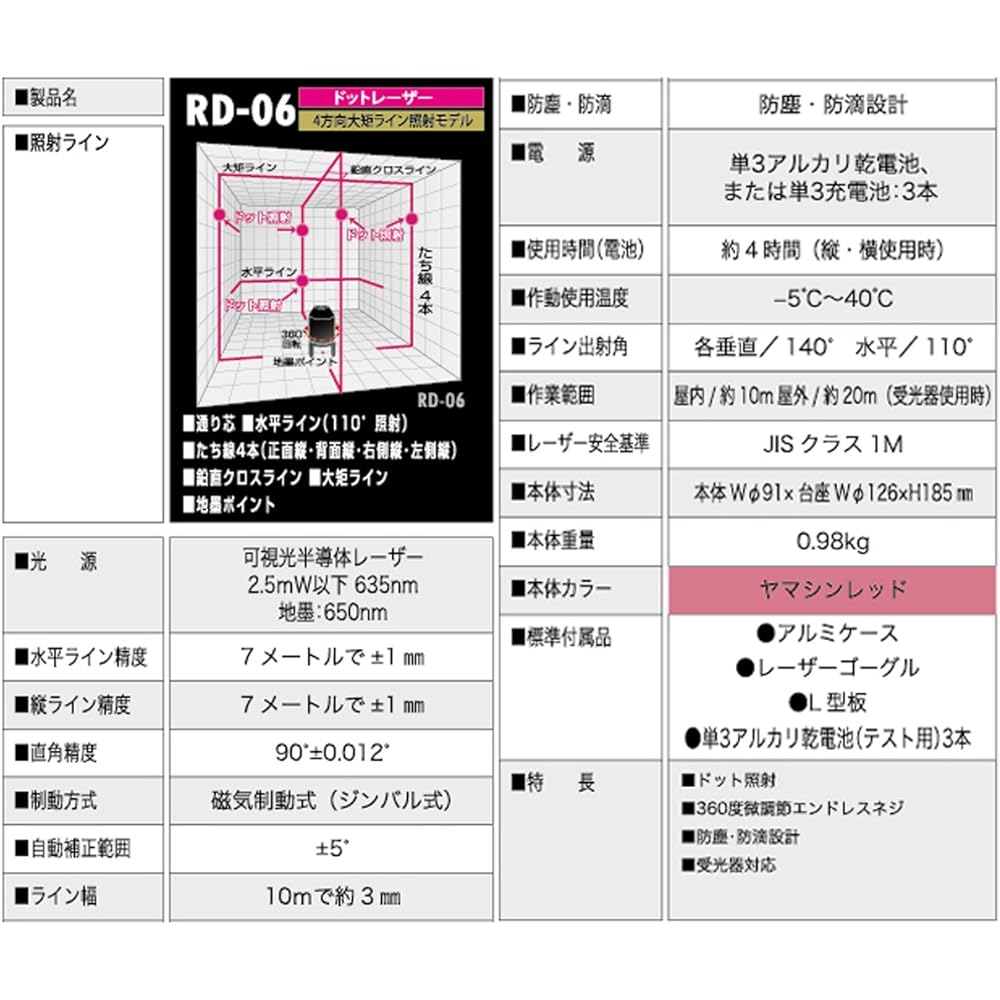

Irradiation lines; 4 vertical lines (front vertical, back vertical, right vertical, left vertical), center line, horizontal line (110° irradiation), vertical cross line, large rectangular line, background ink point, magnetic braking type ( gimbal type)・Outdoor, light receiver compatible model!! Adopts 360 degree fine adjustment endless screw!! Equipped with OUT DOOR mode for light receiver!! Comes with an LED lamp that allows you to see ON/OFF even in the dark!! ・Light source; Visible semiconductor laser 2.5mW or less 635nm background/650nm ・Laser safety standard; JIS class 1M ・Horizontal line accuracy: ±1mm at 7 meters ・Vertical line accuracy: ±1mm at 7 meters ・Straight angle accuracy: 90° ± 0.012° ・Automatic Correction range: ±5° ・Line width: approx. 3mm at 10m ・Dust-proof and drip-proof design ・Power supply: AA alkaline batteries or 3 AA rechargeable batteries ・Usage time (when using batteries): Approximately 4 hours (when used vertically or horizontally) ・Operating operating temperature: -5℃~40℃ ・Line output angle ; Each vertical/140° Horizontal/110° ・Working range: Indoors/approx. 10m Outdoors/approx. 20m (when using receiver) Standard accessories: Aluminum case, laser goggles, L-shaped plate, AA alkaline batteries (for testing) /3 items Increase number of items displayed

Laser light (outdoor mode) switching compatible with receiver "OUTDOOR" mode included (receiver sold separately) [Body specifications] ■Light source: visible light semiconductor laser 2.5 mW or less 635 nm (red) background 650 nm (red) ■Laser safety standard: JIS class 1M ■Body dimensions: Main body WΦ91 x pedestal WΦ126 x H185mm ■Usage time: Approximately 7 hours (all line irradiation) ■Braking method: Magnetic braking type (gimbal type) ■Working range: Indoor/approx. 10m Outdoors/approximately 25m (when using receiver)■Body weight: 0.98kg■Line illumination angle: Vertical/140° horizontal/110°■Line accuracy: ±1mm at 7m■Line width: Approximately 3mm at 10m■Working temperature :-5℃~40℃


Brand: Yamashin Seikyo
Product model number: RD-06
Package size: 27.4 x 25.7 x 19.5 cm ; 980 g
Color: ‎Red
Name on nameplate: ‎4 vertical lines (dot irradiation)
Material: ‎Aluminum
Wallpaper pattern: ‎Geo (15 year warranty)
br>Power supply: ‎Battery
Quantity: ‎1
Accessories: ‎Instruction manual, warranty card/customer registration form, special aluminum case, AA alkaline batteries for testing, laser goggles
Battery included: ‎Yes
Battery type: ‎Alkaline
About the warranty: ‎1 year from the date of purchase *Based on the terms of the warranty
Product weight: 980 g
