Auto Parts Tokyo

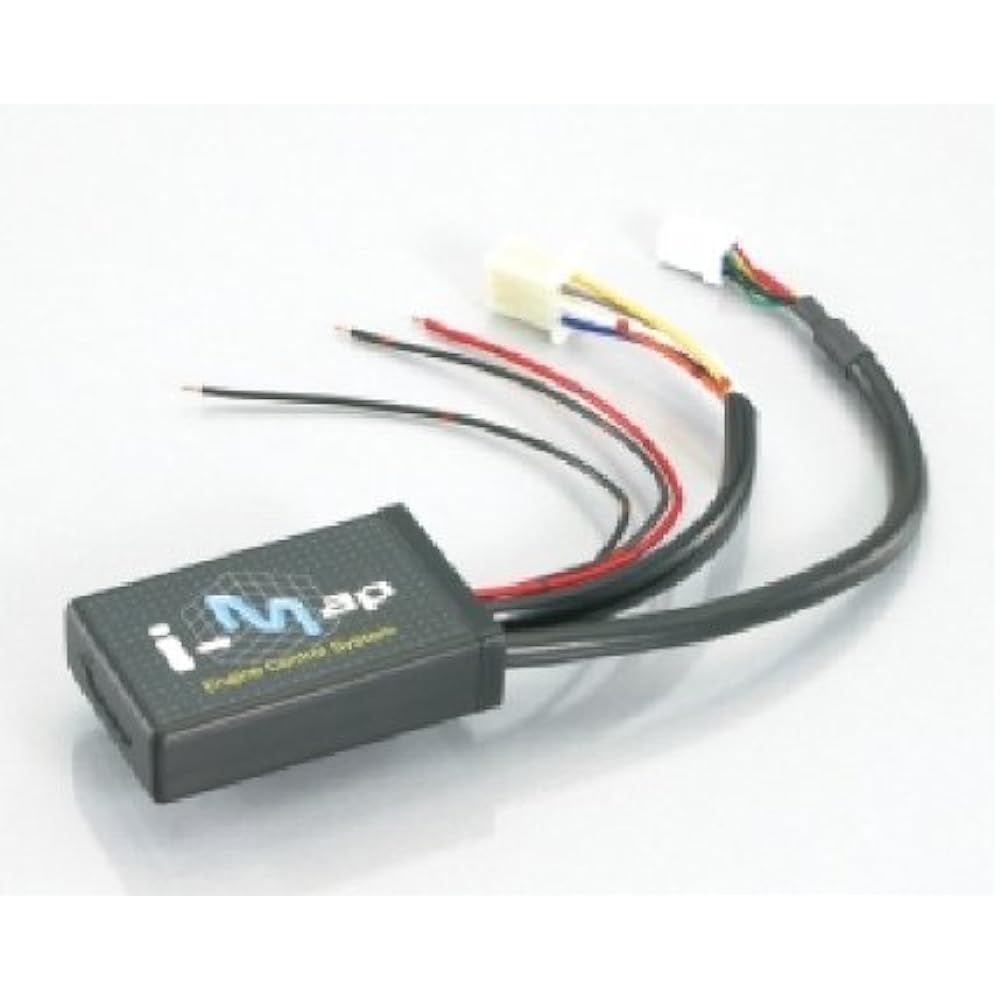

KITACO I-MAP (injection controller) Dio 110 (all JF31 models) 763-1427010
KITACO I-MAP (injection controller) Dio 110 (all JF31 models) 763-1427010
Regular price
$142.00 USD
Regular price
Sale price
$142.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Compatible models Dio 110: All JF31 models Wiring processing is required for installation 3 original pre-installed maps Valve surging may occur above 9800 rpm. Do not drive while valve surging is occurring.The electrical system operates normally under normal conditions, and operation cannot be guaranteed for vehicles equipped with other special parts.
Correction control of injection. This is an FI controller that corrects the fuel injection amount. Multiple optimal maps that correspond to combinations of Kitaco parts have been installed, and after installing I-MAP, the user selects the map in the switch settings. (The number of maps varies depending on the car model.) In addition, it is also possible to create user-original maps to accommodate parts not made by KITACO or to accommodate user preferences. To create an original map, a separate PC interface cable (763-0500900) and a computer with Windows are required.・FI (fuel injection) can be adjusted. - Pre-installed several types of maps optimized for combination with Kitaco tuning parts. - It is possible to create maps that can be set as desired. (MAP-4) *2 Equipped with a function to cancel the limiter due to fuel injection cut. [Zoomer 3 Rev limit 11,500 rpm *1: Compatible with vehicles equipped with 126cc LIGHT bore up KIT + Kitaco GPR stainless steel down muffler MAP-4 User setting map *1, 2 *1, Depending on the rev limit setting, valve surging may occur above 9,700 rpm. Do not drive while valve surging is occurring. *2. To create an original map, a separate PC interface cable *1 (763-0500900) and a computer with Windows are required. (*1, USB3.0 cannot be used) *Wiring processing is required for installation. *We do not guarantee that the rotation speed will rise to the indicated value.
Manufacturer: KITACO
Brand: KITACO
Model name: 763-1427010
Package size: 17 x 9.4 x 4.6 cm; 179.99 g
Product model number: 763-1427010
Product weight: 180 g
Correction control of injection. This is an FI controller that corrects the fuel injection amount. Multiple optimal maps that correspond to combinations of Kitaco parts have been installed, and after installing I-MAP, the user selects the map in the switch settings. (The number of maps varies depending on the car model.) In addition, it is also possible to create user-original maps to accommodate parts not made by KITACO or to accommodate user preferences. To create an original map, a separate PC interface cable (763-0500900) and a computer with Windows are required.・FI (fuel injection) can be adjusted. - Pre-installed several types of maps optimized for combination with Kitaco tuning parts. - It is possible to create maps that can be set as desired. (MAP-4) *2 Equipped with a function to cancel the limiter due to fuel injection cut. [Zoomer 3 Rev limit 11,500 rpm *1: Compatible with vehicles equipped with 126cc LIGHT bore up KIT + Kitaco GPR stainless steel down muffler MAP-4 User setting map *1, 2 *1, Depending on the rev limit setting, valve surging may occur above 9,700 rpm. Do not drive while valve surging is occurring. *2. To create an original map, a separate PC interface cable *1 (763-0500900) and a computer with Windows are required. (*1, USB3.0 cannot be used) *Wiring processing is required for installation. *We do not guarantee that the rotation speed will rise to the indicated value.
Manufacturer: KITACO
Brand: KITACO
Model name: 763-1427010
Package size: 17 x 9.4 x 4.6 cm; 179.99 g
Product model number: 763-1427010
Product weight: 180 g
