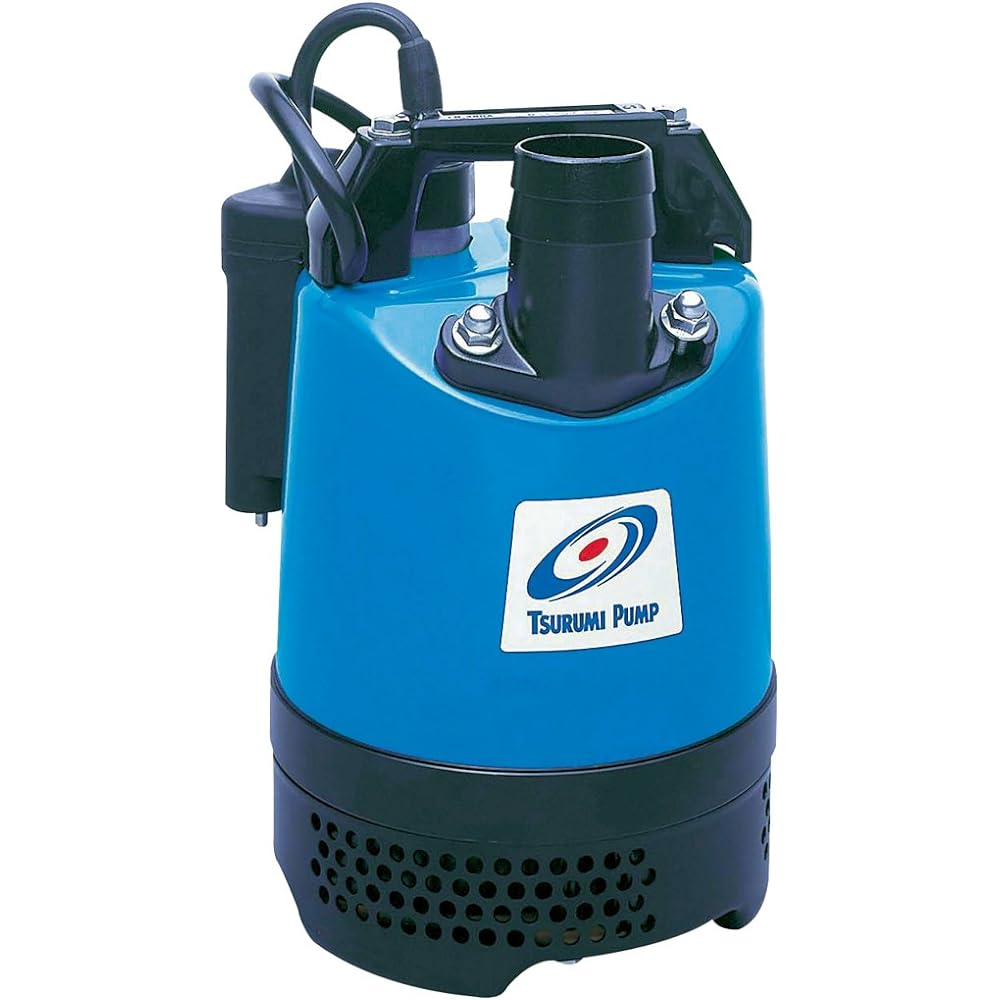

Tsurumi submersible pump LB-250A-52
Tsurumi submersible pump LB-250A-52
Regular price
$369.00 USD
Regular price
Sale price
$369.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Output (kw): 0.48 Phase/Voltage (V): Single 100 Bore diameter (mm): 40 Handling liquid quality: Rainwater, spring water, earth and sand water, construction wastewater Handling liquid temperature (℃): 0~40 Pump Structure (impeller/shaft seal/bearing): High spin/double mechanical seal/sealed ball bearing Motor type/number of poles: Dry submersible induction motor/2 poles
Motor insulation: E class Connection: Hose coupling Increase the number of items displayed
Based on the proven and reliable LB type, we adopted a high-spin type impeller with a high-gap structure, making it even more resistant to wear, and the impeller has characteristics that reduce performance degradation even when worn. Designed to minimize locking caused by sand, etc. The discharge direction can be changed to "top" or "sideways", which prevents the hose from bending when pulling horizontally. Can be removed by simply loosening the cap nut. By using carefully selected abrasion-resistant composite materials, we have achieved a weight reduction of 9.5 kg and a compact size that is almost equivalent to A4 size paper. The pump part can be disassembled with a single box wrench, making maintenance easier. Electrode automatic type. The frequency is 50Hz. *The images used are for illustrative purposes only and may differ in color and specifications from the actual product.
Brand: Tsurumi Seisakusho
Product model number: LB-250A-52
Package size: 34.2 x 24.4 x 22.2 cm; 11 kg
Last name on nameplate: Submersible pump
Materials: Pump impeller urethane rubber, pump casing synthetic rubber, pump cushion cover SPC+urethane rubber, pump shaft seal SiC, motor frame ADC12, motor main shaft SUS403, motor cable VCT
Product weight: 11 kilograms
Based on the proven and reliable LB type, we adopted a high-spin type impeller with a high-gap structure, making it even more resistant to wear, and the impeller has characteristics that reduce performance degradation even when worn. Designed to minimize locking caused by sand, etc. The discharge direction can be changed to "top" or "sideways", which prevents the hose from bending when pulling horizontally. Can be removed by simply loosening the cap nut. By using carefully selected abrasion-resistant composite materials, we have achieved a weight reduction of 9.5 kg and a compact size that is almost equivalent to A4 size paper. The pump part can be disassembled with a single box wrench, making maintenance easier. Electrode automatic type. The frequency is 50Hz. *The images used are for illustrative purposes only and may differ in color and specifications from the actual product.
Brand: Tsurumi Seisakusho
Product model number: LB-250A-52
Package size: 34.2 x 24.4 x 22.2 cm; 11 kg
Last name on nameplate: Submersible pump
Materials: Pump impeller urethane rubber, pump casing synthetic rubber, pump cushion cover SPC+urethane rubber, pump shaft seal SiC, motor frame ADC12, motor main shaft SUS403, motor cable VCT
Product weight: 11 kilograms
