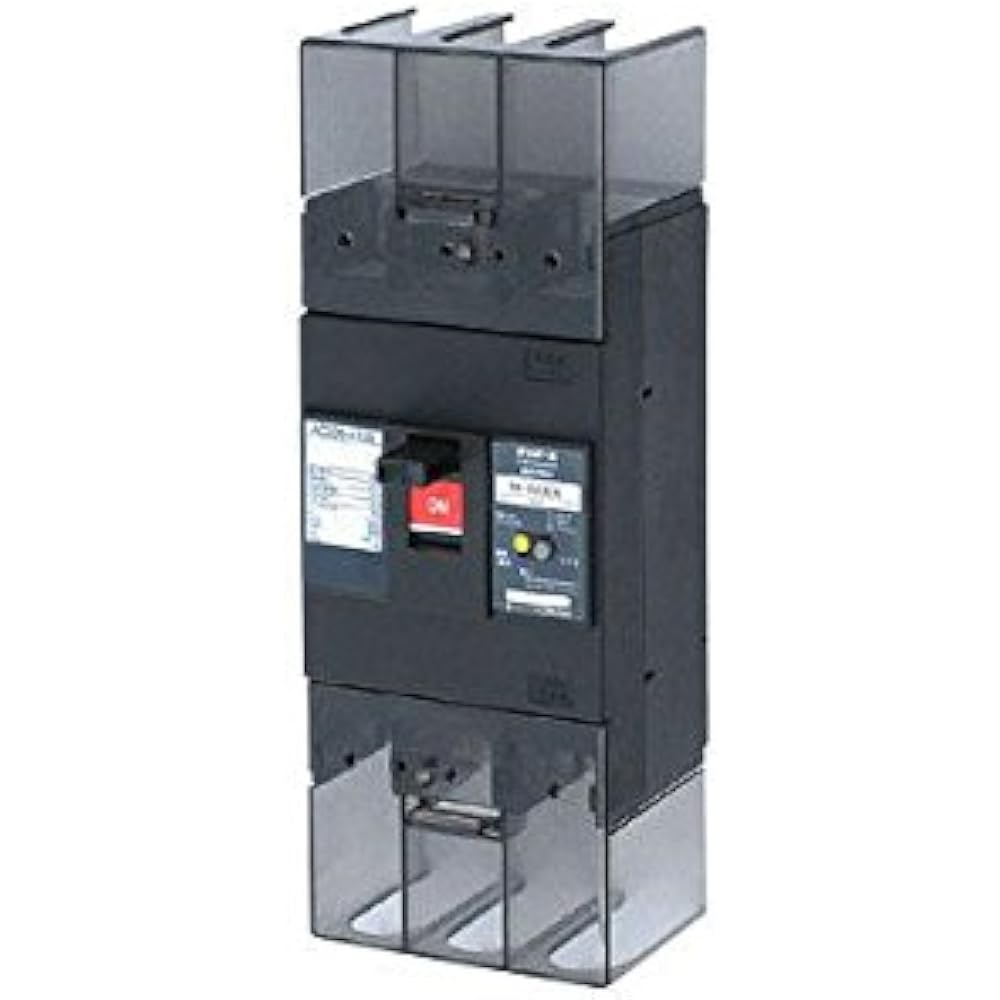

Tempal Industrial Economic Type Earth Leakage Breaker with OC 3P3E 225AF 200A 223EA20W2

●Rated working voltage: 200-415V
●Rated current: 200A
●Rated impulse withstand voltage Uimp: 6kV
●Number of poles: 3P
●Number of elements: 3E
● Frame: 225AF
●Rated sensitivity current: 100/200/500mA
●Maximum operating time: 0.1 seconds
●Surface type terminal specifications: Crimp terminal method (crimp terminal included)
●Maximum connectable Electric wire (㎟): 150

●Rated working voltage: 200-415V●Rated current: 200A●Rated impulse withstand voltage Uimp: 6kV●Number of poles: 3P●Number of elements: 3E●Frame: 225AF●Rated sensitivity current: 100/200/500mA●Maximum operating time: 0.1 seconds●Surface type terminal specifications: Crimp terminal method (crimped terminal included)●Maximum connectable wire (㎟): 150●Reverse connection not possible●Compliant JIS standard: JIS C 8201-2-2 Ann2●Overcurrent trip method: Thermal electromagnetic ●With OC


Manufacturer: ‎Tempearl
Part number: ‎223EA20W2
Product weight: ‎1.6 Kilograms
Product size: ‎16.5 x 10.5 x 8.2 cm; 1.6 kg
Discontinued by the manufacturer: ‎No
Voltage: ‎415 volts
Product dimensions (L x W x H): ‎16.5 x 10.5 x 8.2 cm
