Sanwa Supply USB Extender Up to 40m Extension USB-RP40
Sanwa Supply USB Extender Up to 40m Extension USB-RP40
Regular price
$97.00 USD
Regular price
Sale price
$97.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

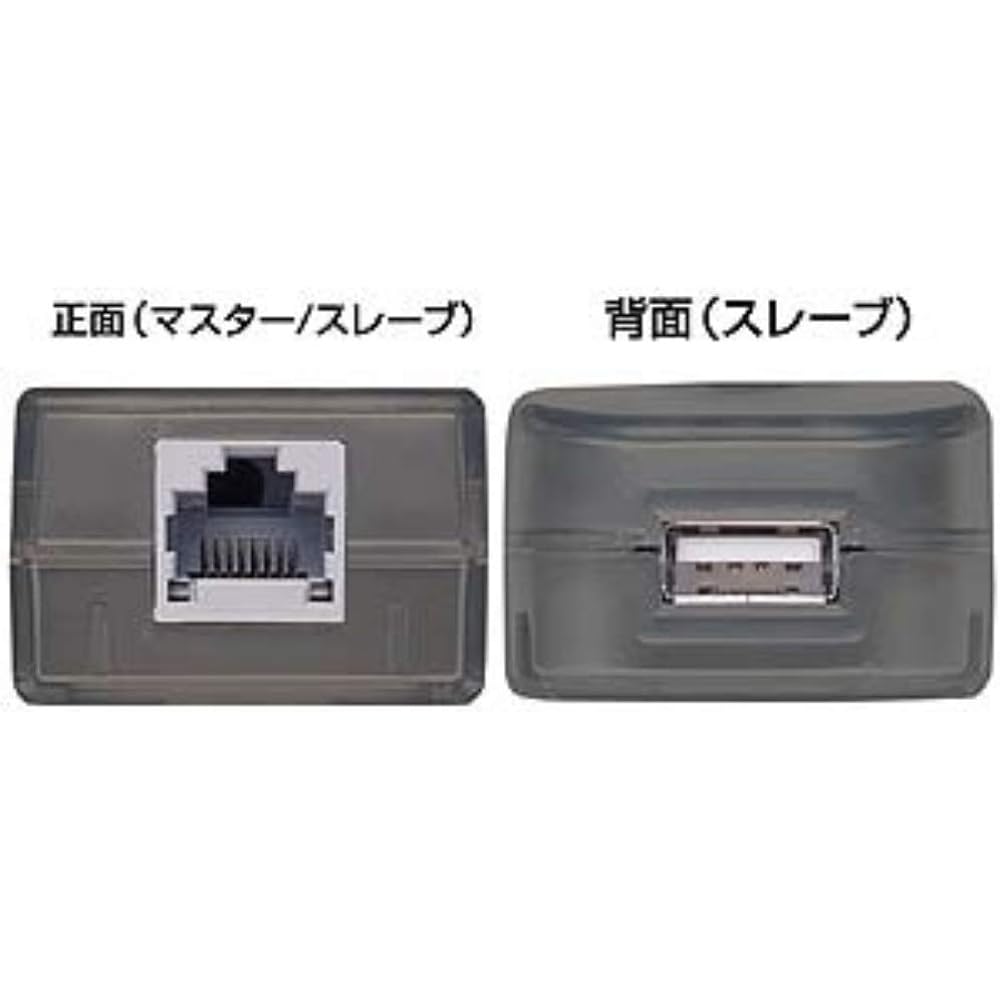

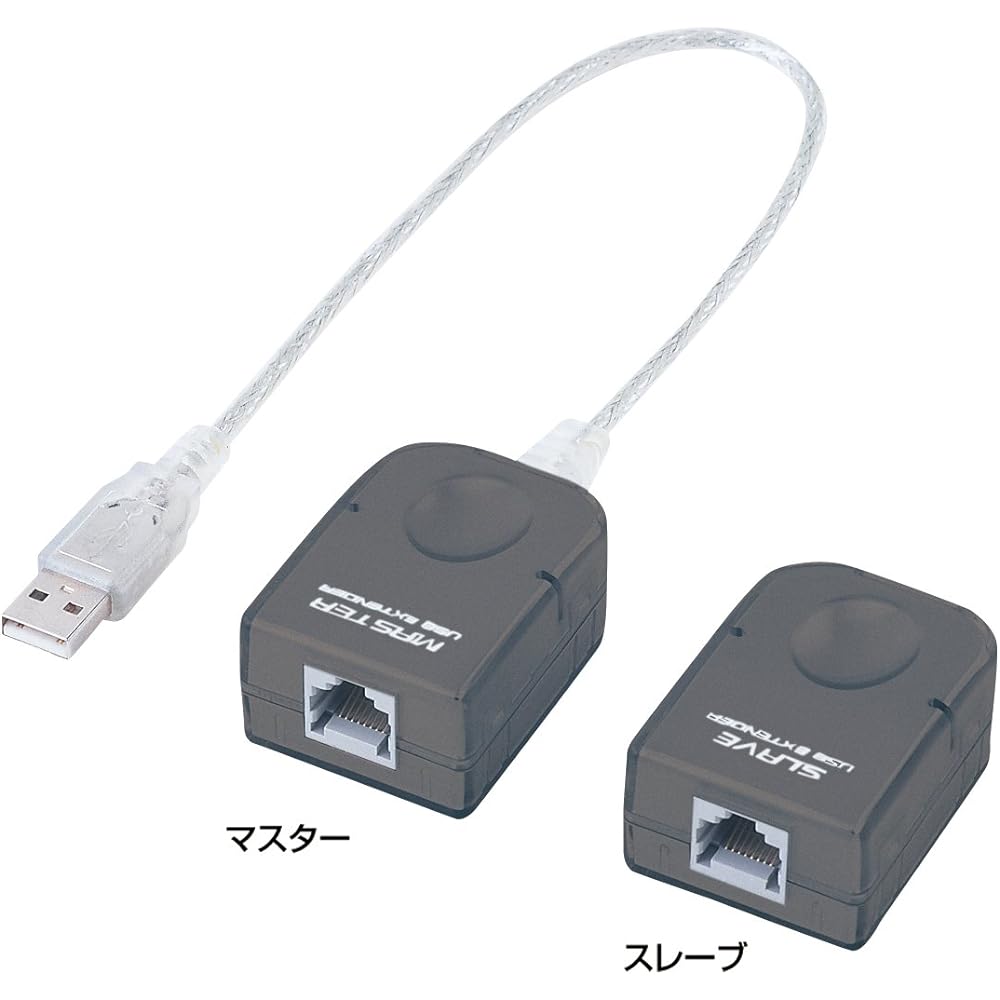

This is an extender set that allows you to extend USB1.1 devices up to 40m using a LAN cable (Category 5). *LAN cable (Category 5) and USB cable are not included, so please purchase the required length cable separately. Easy to use without installing driver software. Interface standard: USB specification Ver. 1.1 compliant Communication speed: 12Mbps/1.5Mbps (theoretical value) Power supply: Bus power (maximum 100mA) Connector: Master (PC side)/USB A connector male x 1 (directly attached cable 30cm), RJ45 Female slave (equipment side)/RJ45 female/USB A connector female x 1 Size: Master/approx. W39 x D54 x H25mm (excluding protrusions) Slave/approx. W39 x D54 x H25mm (excluding protrusions) Weight: Master/ Approx. 48g Slave/Approx. 30g

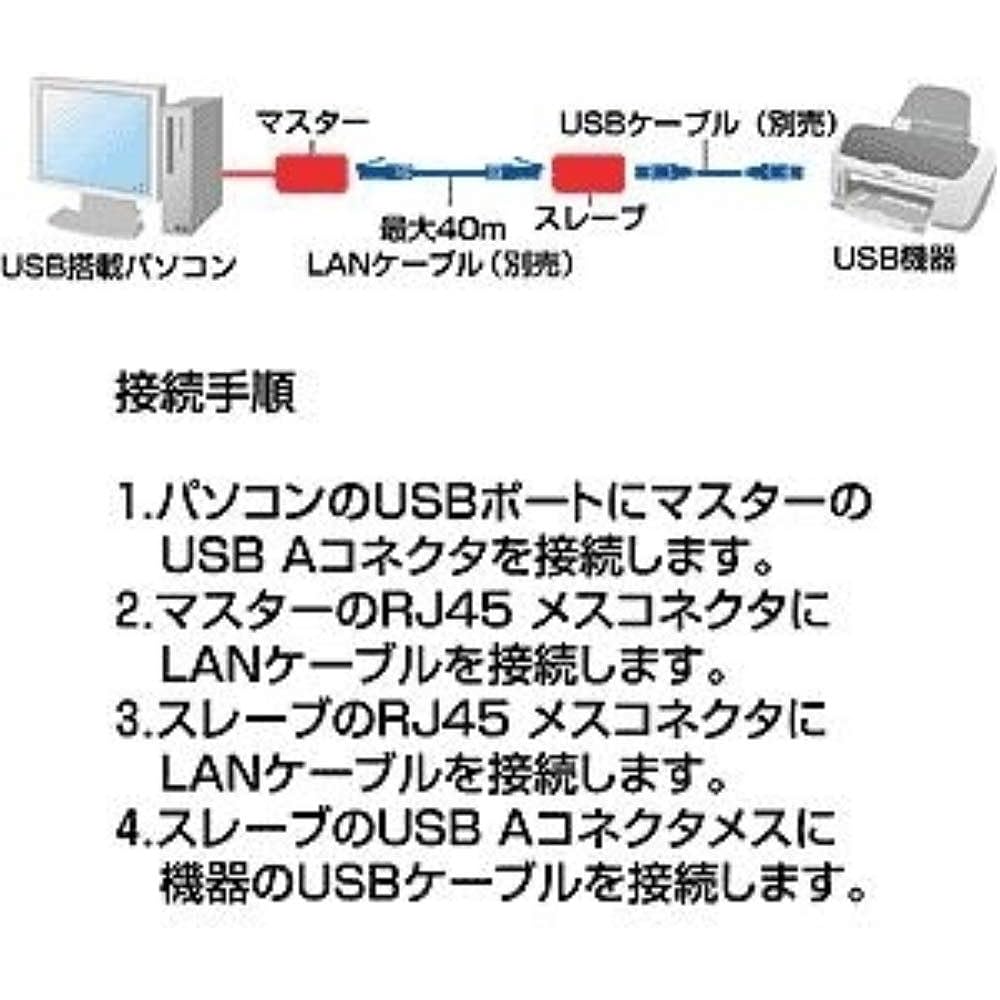

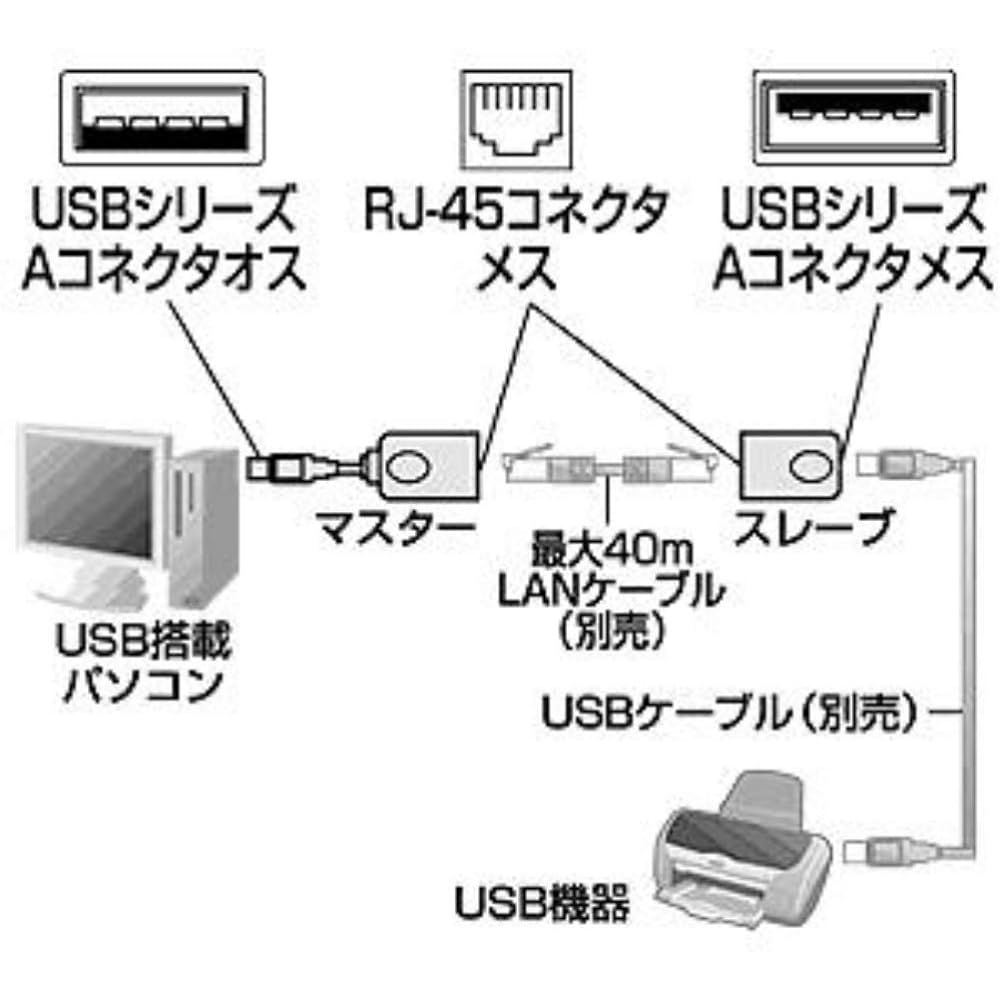

[Features] ●This is an extender set that can extend USB1.1 devices up to 40m using a LAN cable (Category 5). *LAN cable (Category 5) and USB cable are not included, so please purchase the required length cable separately. ●Easy to use without installing driver software. ●Connection procedure 1. Connect the master's USB A connector to the computer's USB port. 2. Connect the LAN cable to the RJ45 female connector on the master. 3. Connect the LAN cable to the slave's RJ45 female connector. 4. Connect the device's USB cable to the slave's USB A connector female. [Specifications] ■Interface standard: USB specification Ver.1.1 compliant ■Communication speed: 12Mbps/1.5Mbps (theoretical value) ■Power supply: Bus power (max. 100mA) ■Connector: Master (PC side)/USB A connector male x 1 ( Directly attached cable 30cm) / RJ45 female slave (equipment side) / RJ45 female / USB A connector female x 1 ■Size: Master / approx. W39 x D54 x H25mm (excluding protrusions) Slave / approx. W39 x D54 x H25mm (protrusions) ■Weight: Master/Approx. 48g Slave/Approx. 30g
Brand: Sanwa Supply
Manufacturer: Sanwa Supply
Package size: 22.6 x 19.6 x 5.6 cm; 172.37 g
Product model number: USB-RP40
Discontinued by manufacturer: No
Battery included: No
Product weight: 172g
[Features] ●This is an extender set that can extend USB1.1 devices up to 40m using a LAN cable (Category 5). *LAN cable (Category 5) and USB cable are not included, so please purchase the required length cable separately. ●Easy to use without installing driver software. ●Connection procedure 1. Connect the master's USB A connector to the computer's USB port. 2. Connect the LAN cable to the RJ45 female connector on the master. 3. Connect the LAN cable to the slave's RJ45 female connector. 4. Connect the device's USB cable to the slave's USB A connector female. [Specifications] ■Interface standard: USB specification Ver.1.1 compliant ■Communication speed: 12Mbps/1.5Mbps (theoretical value) ■Power supply: Bus power (max. 100mA) ■Connector: Master (PC side)/USB A connector male x 1 ( Directly attached cable 30cm) / RJ45 female slave (equipment side) / RJ45 female / USB A connector female x 1 ■Size: Master / approx. W39 x D54 x H25mm (excluding protrusions) Slave / approx. W39 x D54 x H25mm (protrusions) ■Weight: Master/Approx. 48g Slave/Approx. 30g
Brand: Sanwa Supply
Manufacturer: Sanwa Supply
Package size: 22.6 x 19.6 x 5.6 cm; 172.37 g
Product model number: USB-RP40
Discontinued by manufacturer: No
Battery included: No
Product weight: 172g
