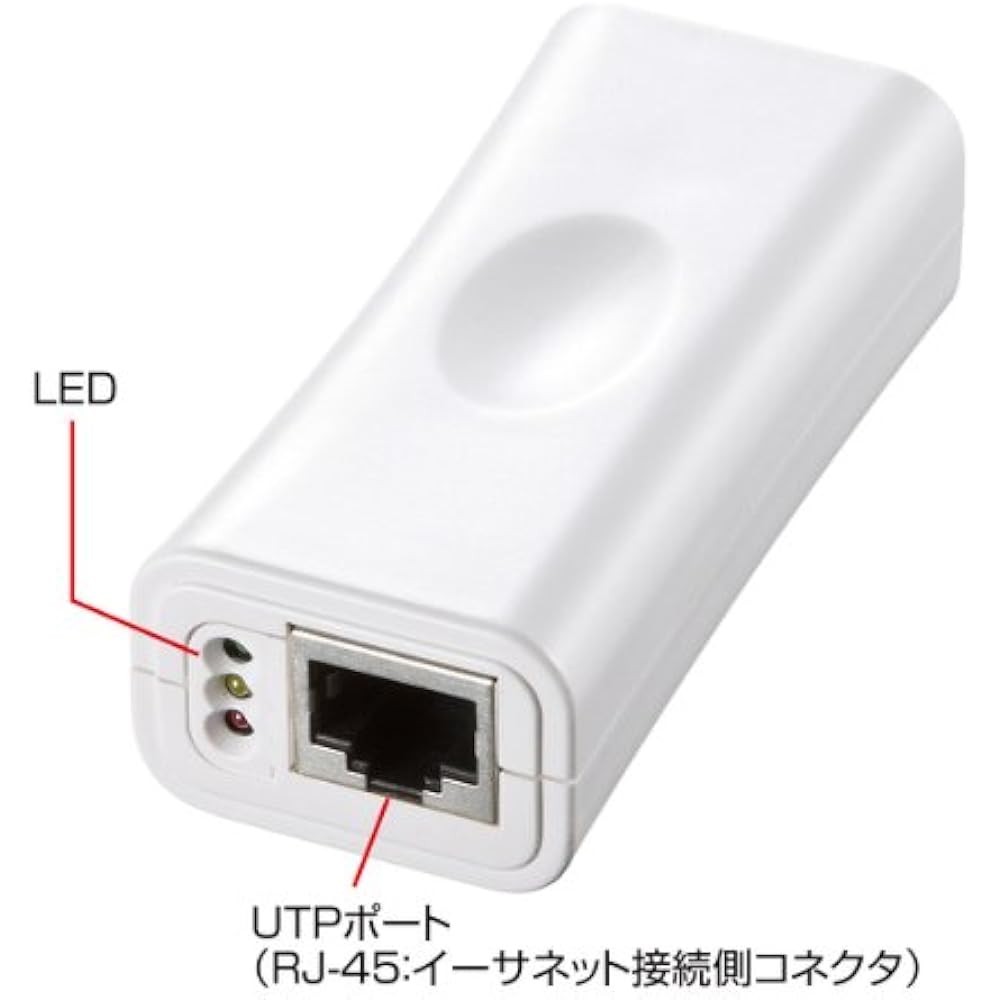

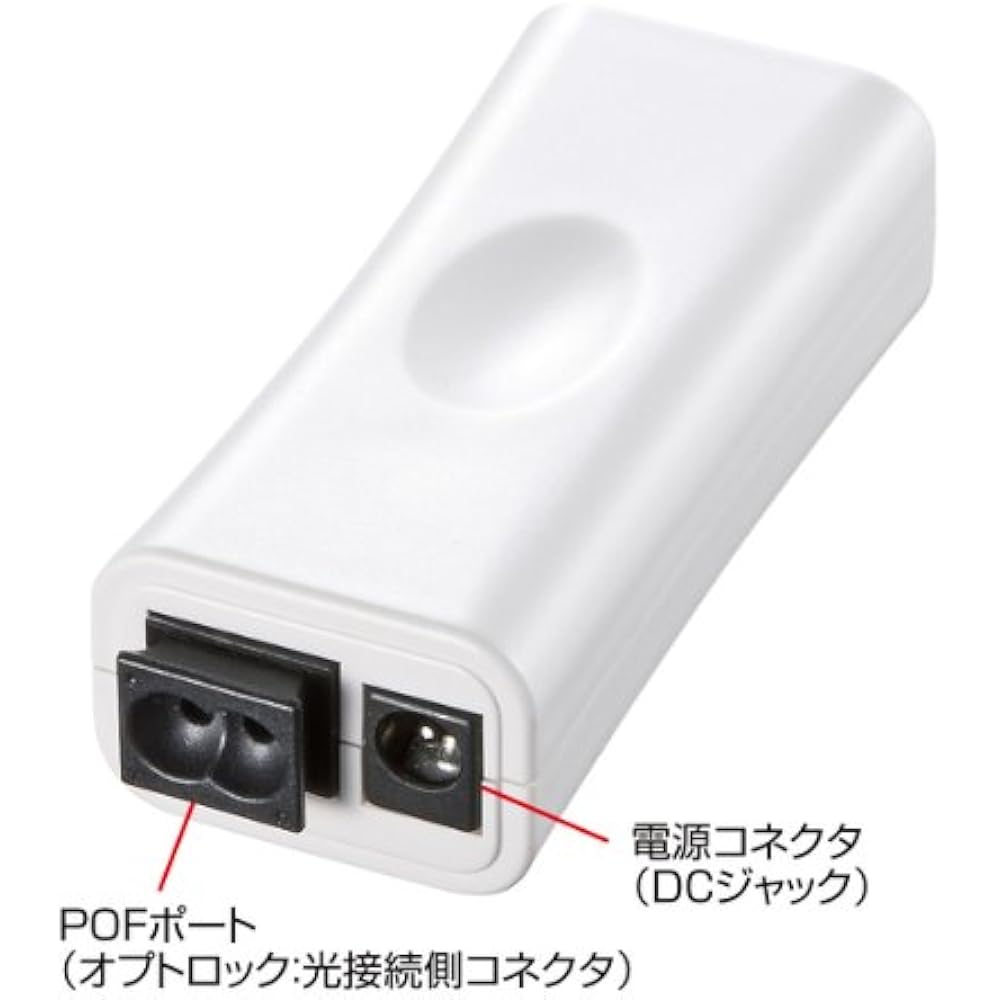

Sanwa Supply POF Media Converter DIY Kit LAN-POF200
Sanwa Supply POF Media Converter DIY Kit LAN-POF200
Regular price
$129.00 USD
Regular price
Sale price
$129.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

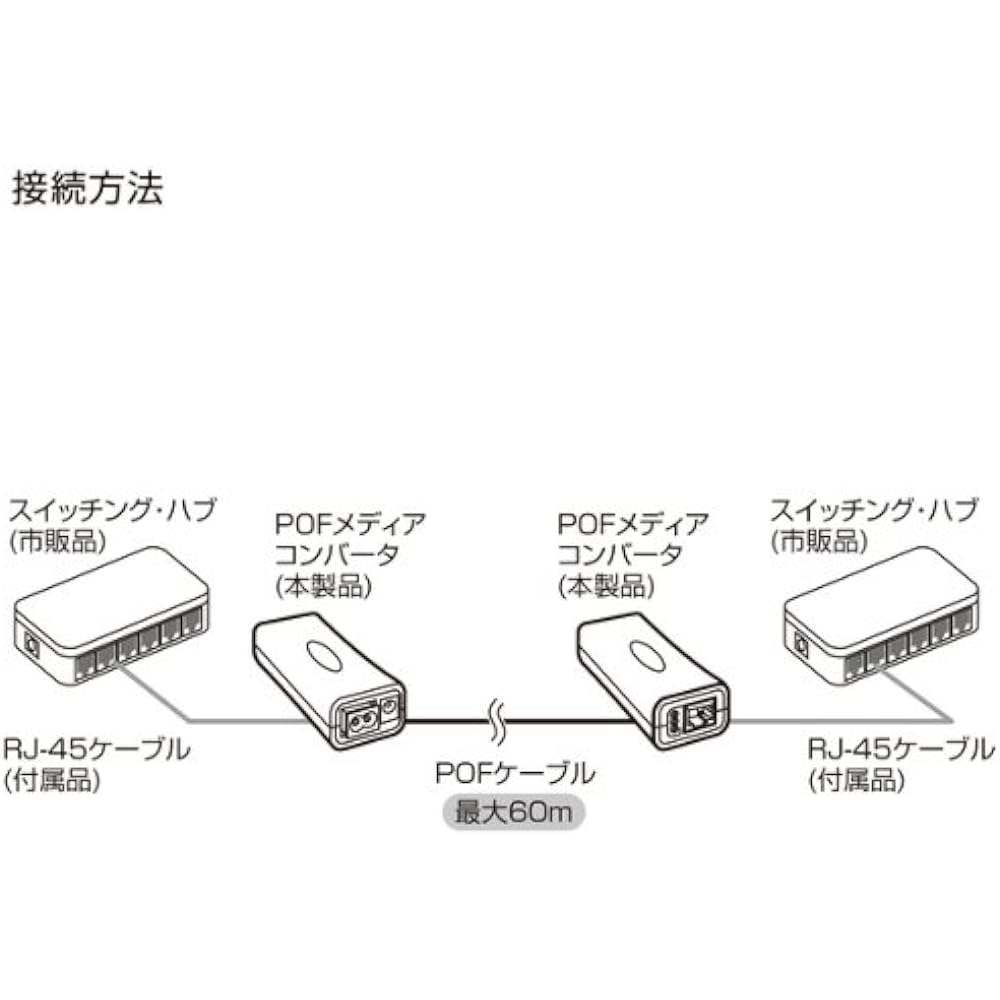

It is completely unaffected by external noise and enables high-speed optical communication of 200Mbps. This is an optical media converter for Ethernet equipped with opt-lock (plugless optical module). No connector is required to connect the optical fiber cable (cut the cable with a cutter and connect the converters directly), making wiring and connection easy. By using a large diameter POF optical cable and a red LED (visible light module), anyone can safely and easily wire and connect. This DIY kit includes two units, a 30m POF fiber cable, and a POF cutter, allowing you to easily construct an optical fiber LAN in your home or office environment. A POF optical cable with a thickness of 2mm that is soft and easy to handle. Since it is not affected by noise, it can run alongside power lines.
Standard: POF side/IEEE802.3u 200BASE-FX (200Mbps, 100BASE-FX compatible) UTP side/IEEE802.3ab 1000BASE-T (1000/100/10Mbps) Interface: POF side/OptoLock POF transceiver x 1 UTP side/RJ- 45 connector x 1 Optical specifications: Optical wavelength/650nm Transmission distance/Maximum 60m (70m@N.A.=0.3 POF)POF specifications Increase the number of items displayed
[Features] ●It is completely unaffected by external noise and enables high-speed optical communication of 200Mbps. ●An optical media converter for Ethernet equipped with opt-lock (plugless optical module). ●No connector is required to connect the optical fiber cable (cut the cable with a cutter and connect the converters directly), making wiring and connection easy. ●By using a large-diameter POF optical cable and red LED (visible light module), anyone can safely and easily wire and connect. ●This DIY kit includes two units, a 30m POF fiber cable, and a POF cutter, allowing you to easily construct an optical fiber LAN in your home or office environment. ●A POF optical cable with a thickness of 2mm that is soft and easy to handle. ●Since it is not affected by noise, it can run alongside power lines. [Specifications] ■Standards: POF side/IEEE802.3u 200BASE-FX (200Mbps, 100BASE-FX compatible) UTP side/IEEE802.3ab 1000BASE-T (1000/100/10Mbps) ■Interface: POF side/OptoLock POF transceiver x 1 UTP side/RJ-45 connector x 1 ■Optical specifications: Optical wavelength/650nm Transmission distance/Maximum 60m (70m@N.A.=0.3 POF) POF specifications ■POF specifications: OLPC-S51D2B (Step Index, N.A.=0.5.core/1.0 mm, OD/2.2mm, Duplex) or equivalent ■Display specifications: Power LED (green), FX Link/act LED (red), TX Link/act LED (yellow) ■Environmental conditions: Operating temperature/0~50 ℃ Storage temperature/-40~70℃ Humidity/10%~90% (no condensation) ■Power supply: DC5V 1A (Max) ■Power consumption: 5W (Max) ■Size: W35 x D84 x H24mm (body) ■ Weight: approx. 40g (main unit) ■Set contents: Media converter body x 2 AC adapter x 2 POF cutter x 1 RJ-45 cable (1.5m) x 2 POF cable (30m) x 1 Double-sided tape x 4 pcs Instruction manual (with warranty) x 1 copy
Connector male/female: Male-Male
Shape: Round
Battery usage: No
Brand name : Sanwa Supply
Manufacturer: Sanwa Supply
Product model number: LAN-POF200
Cable shape: Ethernet
Product size: 8.4 x 3.5 x 2.4 cm ; 100 g
Product weight: 0.1 kg
[Features] ●It is completely unaffected by external noise and enables high-speed optical communication of 200Mbps. ●An optical media converter for Ethernet equipped with opt-lock (plugless optical module). ●No connector is required to connect the optical fiber cable (cut the cable with a cutter and connect the converters directly), making wiring and connection easy. ●By using a large-diameter POF optical cable and red LED (visible light module), anyone can safely and easily wire and connect. ●This DIY kit includes two units, a 30m POF fiber cable, and a POF cutter, allowing you to easily construct an optical fiber LAN in your home or office environment. ●A POF optical cable with a thickness of 2mm that is soft and easy to handle. ●Since it is not affected by noise, it can run alongside power lines. [Specifications] ■Standards: POF side/IEEE802.3u 200BASE-FX (200Mbps, 100BASE-FX compatible) UTP side/IEEE802.3ab 1000BASE-T (1000/100/10Mbps) ■Interface: POF side/OptoLock POF transceiver x 1 UTP side/RJ-45 connector x 1 ■Optical specifications: Optical wavelength/650nm Transmission distance/Maximum 60m (70m@N.A.=0.3 POF) POF specifications ■POF specifications: OLPC-S51D2B (Step Index, N.A.=0.5.core/1.0 mm, OD/2.2mm, Duplex) or equivalent ■Display specifications: Power LED (green), FX Link/act LED (red), TX Link/act LED (yellow) ■Environmental conditions: Operating temperature/0~50 ℃ Storage temperature/-40~70℃ Humidity/10%~90% (no condensation) ■Power supply: DC5V 1A (Max) ■Power consumption: 5W (Max) ■Size: W35 x D84 x H24mm (body) ■ Weight: approx. 40g (main unit) ■Set contents: Media converter body x 2 AC adapter x 2 POF cutter x 1 RJ-45 cable (1.5m) x 2 POF cable (30m) x 1 Double-sided tape x 4 pcs Instruction manual (with warranty) x 1 copy
Connector male/female: Male-Male
Shape: Round
Battery usage: No
Brand name : Sanwa Supply
Manufacturer: Sanwa Supply
Product model number: LAN-POF200
Cable shape: Ethernet
Product size: 8.4 x 3.5 x 2.4 cm ; 100 g
Product weight: 0.1 kg
