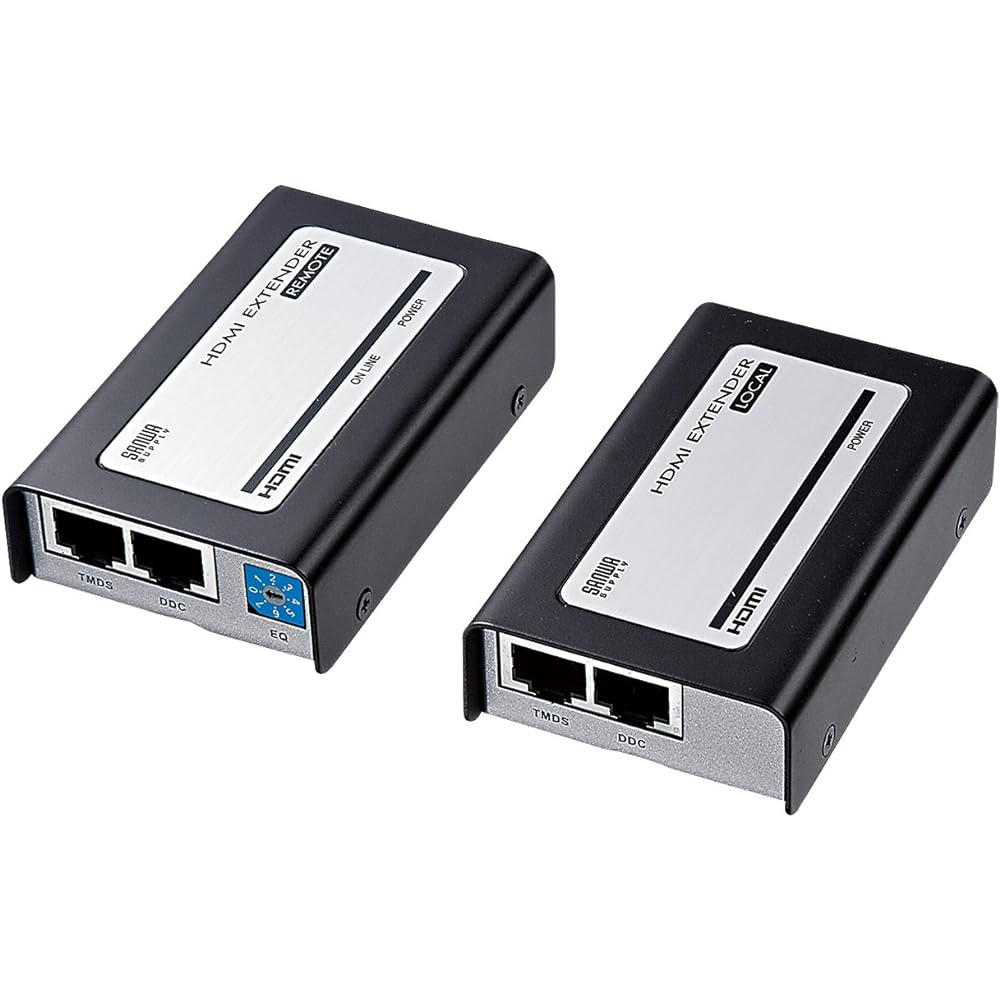

Sanwa Supply HDMI Extender Full HD/HDCP Compatible 1080p Up to 40m VGA-EXHD

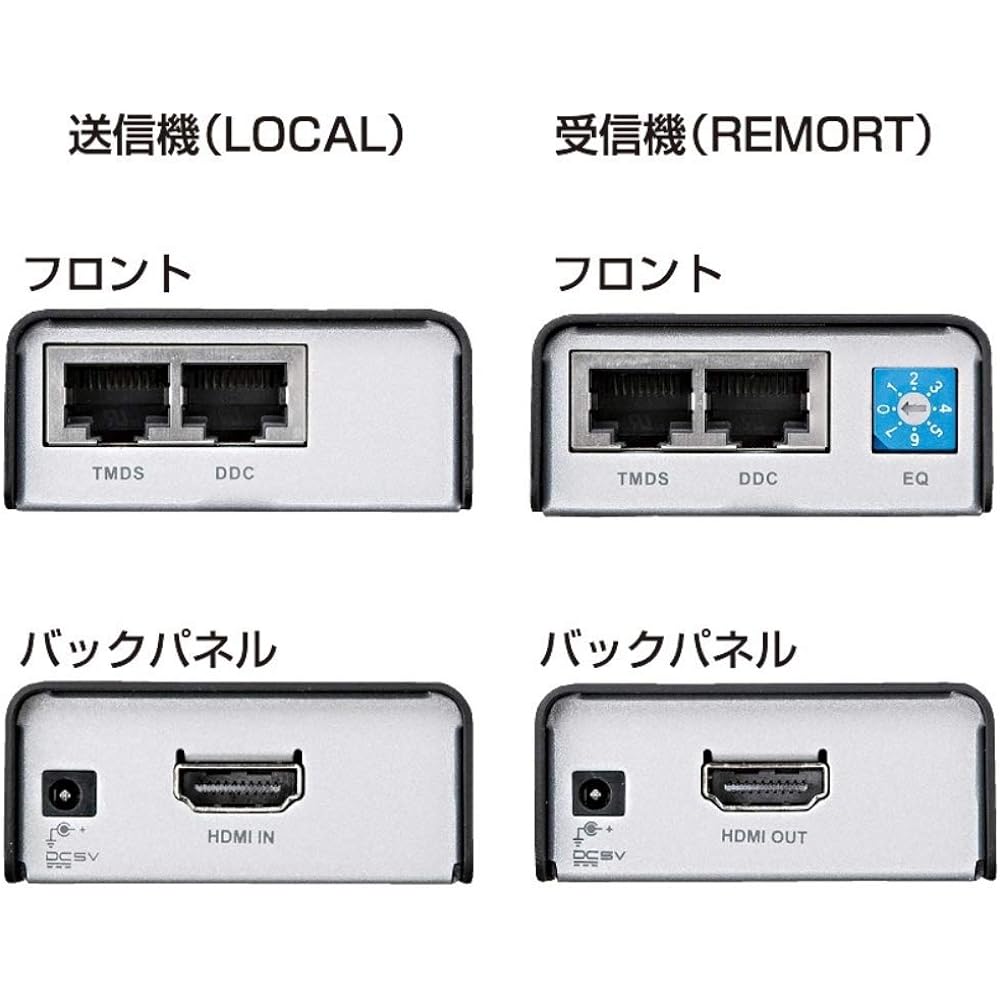

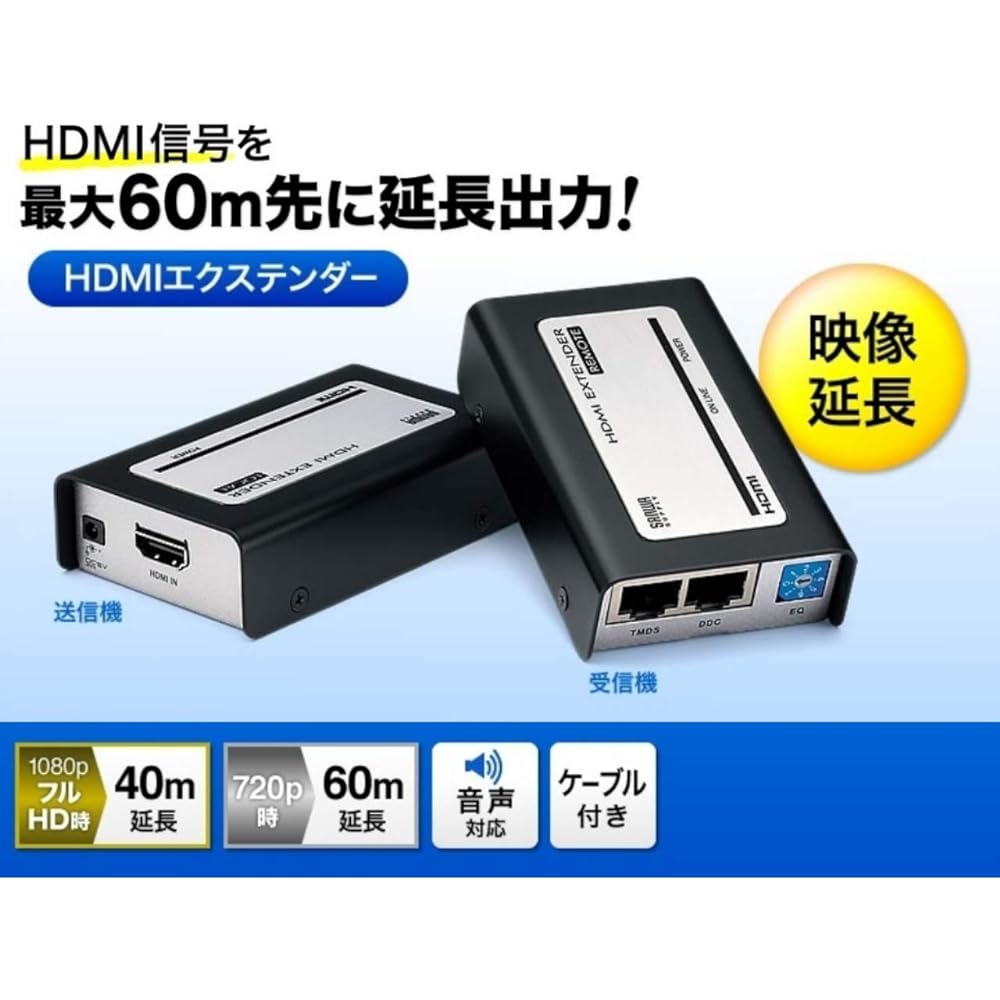

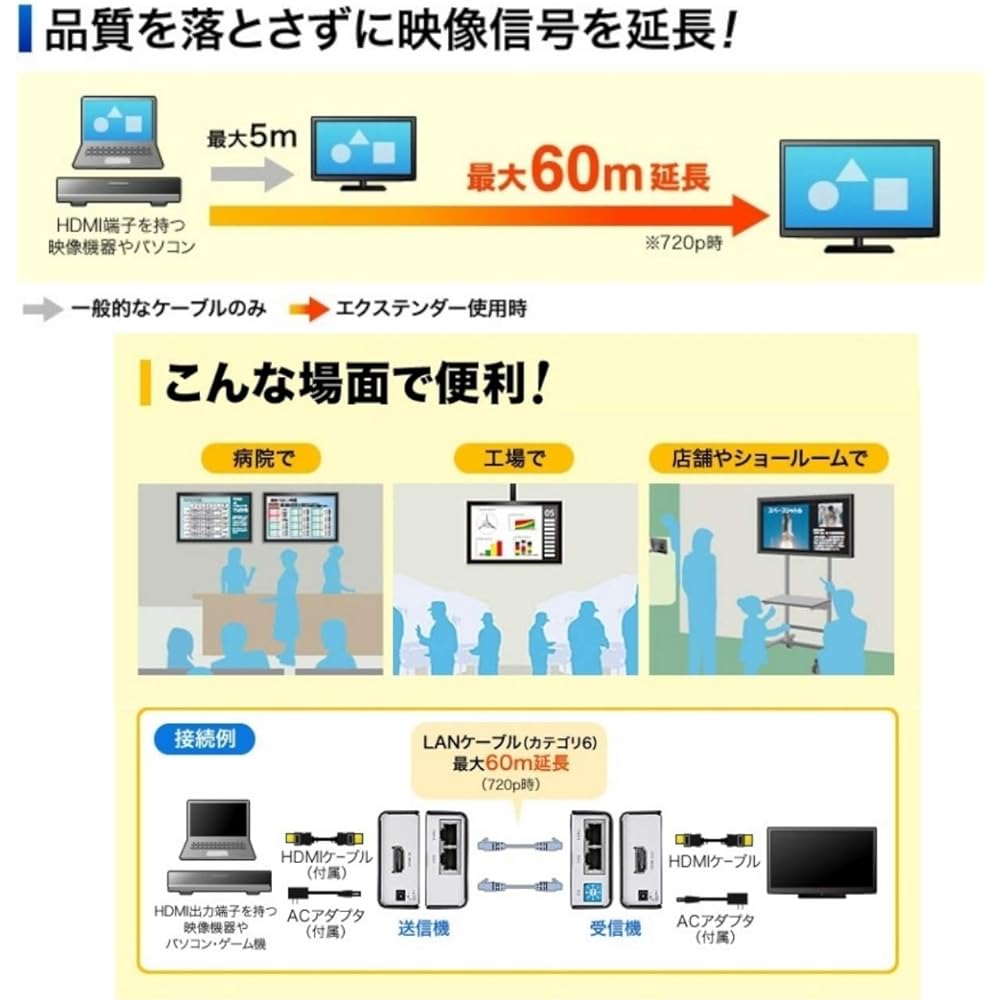

This is an HDMI extender that can extend HDMI signals up to 40 m at WUXGA (1920 x 1200 dots)/Full High Definition (1920 x 1080 dots) resolution, and up to 60 m at 720p (1280 x 720 dots) resolution. High-quality audio signals can be extended at the same time as high-quality HDMI image signals. This product supports HDCP (High-bandwidth Digital Content Protection). *The display must also support HDCP. It consists of a transmitter and receiver set, and can be extended using two LAN cables between the units. By using a LAN cable (Category 6) with a transmission frequency bandwidth of 250MHz, high-quality HDMI signals can be transmitted over long distances with minimal signal loss. Since it uses a LAN cable (Category 6), it is easy to handle and has excellent cost performance. *This product requires two LAN cables (Category 6). (Not included. Please purchase separately.) It supports HDMI Ver.1.3b and also supports Deep Color and DolbyTrueHD. It is ideal for environments where it is difficult to install HDMI devices, such as factories or construction sites, where only the extension display is installed and the HDMI output device is installed in a remote location with a good environment. A wall mount kit is included so it can be installed on a wall. Increase number of displayed items

[Features]●This is an HDMI extender that can extend the HDMI signal up to 40m at WUXGA (1920 x 1200 dots)/full high-definition (1920 x 1080 dots) resolution, and up to 60m at 720p (1280 x 720 dots) resolution. ●High-quality audio signals can be extended at the same time as high-quality HDMI image signals. ●This product supports HDCP (High-bandwidth Digital Content Protection). *The display must also support HDCP. ●It consists of a transmitter and receiver set, and can be extended using two LAN cables between the units. ●By using a LAN cable (Category 6) with a transmission frequency bandwidth of 250MHz, high-quality HDMI signals can be transmitted over long distances with minimal signal loss. ●Since it uses a LAN cable (Category 6), it is easy to handle and has excellent cost performance. *This product requires two LAN cables (Category 6). (Not included. Please purchase separately.) ●Compatible with HDMI Ver.1.3b and also compatible with Deep Color and DolbyTrueHD. ●Ideal for environments where it is difficult to install HDMI devices, such as factories or construction sites, where only the extension display is installed and the HDMI output device is installed in a remote location with a good environment. ●A wall mount kit is included, so it can be installed on a wall. ●This is a RoHS Directive compliant product. [Specifications] ■Maximum display resolution: 1920 x 1200 dots (WUXGA) *Up to 40 m extension possible 1920 x 1080 dots (Full HD/1080p) *Up to 40 m extension possible 1280 x 720 dots (720p) *Up to 60 m extension possible ■Extension cable Length: 60m (maximum) *The cable extension distance varies depending on the resolution. ■HDCP: Compatible *The display must also support HDCP. ■Bandwidth: Maximum 2.25Gbps ■Interface: Input / HDMI type A (19pin) female x 1 Output / RJ-45 female x 2 Input / RJ-45 female x 2 Output / HDMI type A (19pin) female x 1 ■Standards :HDMI Ver.1.3b/DVI Ver.1.0 ■Current consumption: Transmitter/1.22W (maximum) Receiver/0.95W (maximum) ■Environmental conditions: Operating temperature/humidity/0~50℃/80% or less ( (No condensation) Storage temperature/humidity/-20~60℃・85% or less (No condensation) ■Material: Steel (case) ■Size: Transmitter/W90 x D55 x H24mm (body size) Receiver/W90 ×D55×H24mm (body size) ■Weight: Transmitter/160g Receiver/160g ■Accessories: AC adapter (DC5V 2.6A) x 2, HDMI cable (1.8m) x 1, wall mount kit x 4, instruction manual ■HDMI specifications: HDMI Ver.1.3b ■PCM: 8ch (7.1ch) ■Dolby Digital/DTS: Compatible ■DVD Audio: Compatible ■SACD: Compatible ■Other specifications: *Dolby Digital Plus, Dolby True HD compatible * Compatible with DTS-HD High Resolution Audio, DTS-HD Master Audio ■Resolution: 1080p (1920 x 1020), WUXGA (1920 x 1200) ■Color depth: 12bit/RGB36bit, Deep color *The connected HDMI input/output device is in deep color Only if supported. ■Color gamut standard: xvYCC compatible ■Inter-device control: Not supported. ■Lip sync: Not supported. *The HDMI input/output device to be connected must support deep color.


Brand: Sanwa Supply
Manufacturer: Sanwa Supply
Package size: 24 x 16.4 x 5.2 cm; 798.32 g
Product model number: VGA-EXHD
br>Discontinued by the manufacturer: ‎No
Battery included: ‎No
Product weight: ‎798 g
