Sanwa Supply Display Extender (Set Model) VGA-EXSET1N

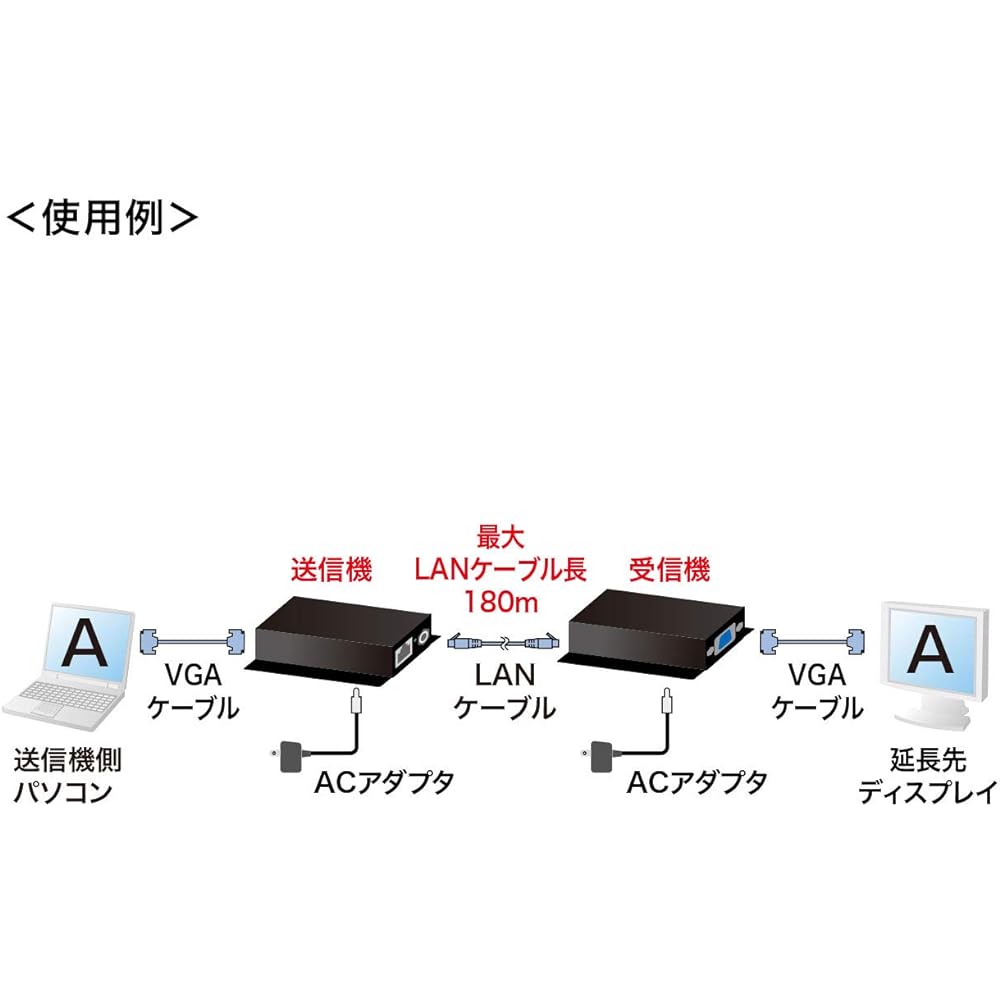

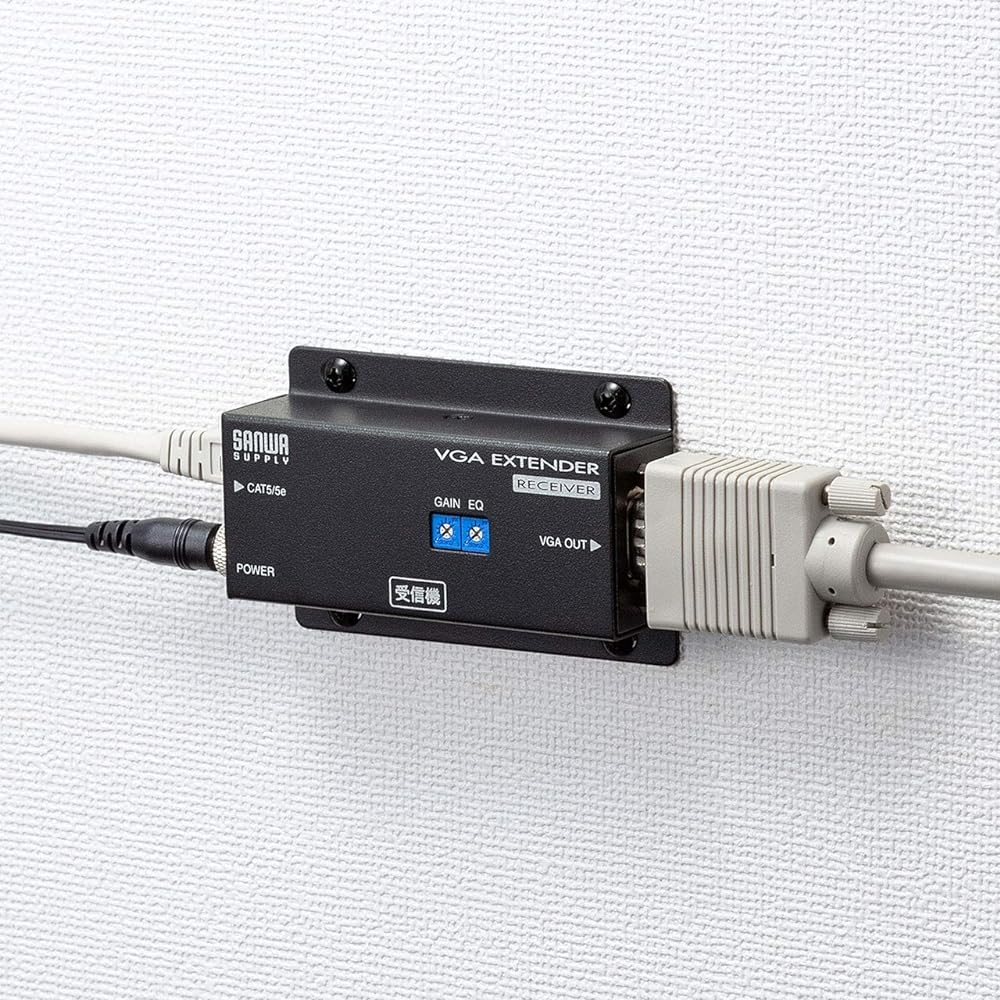

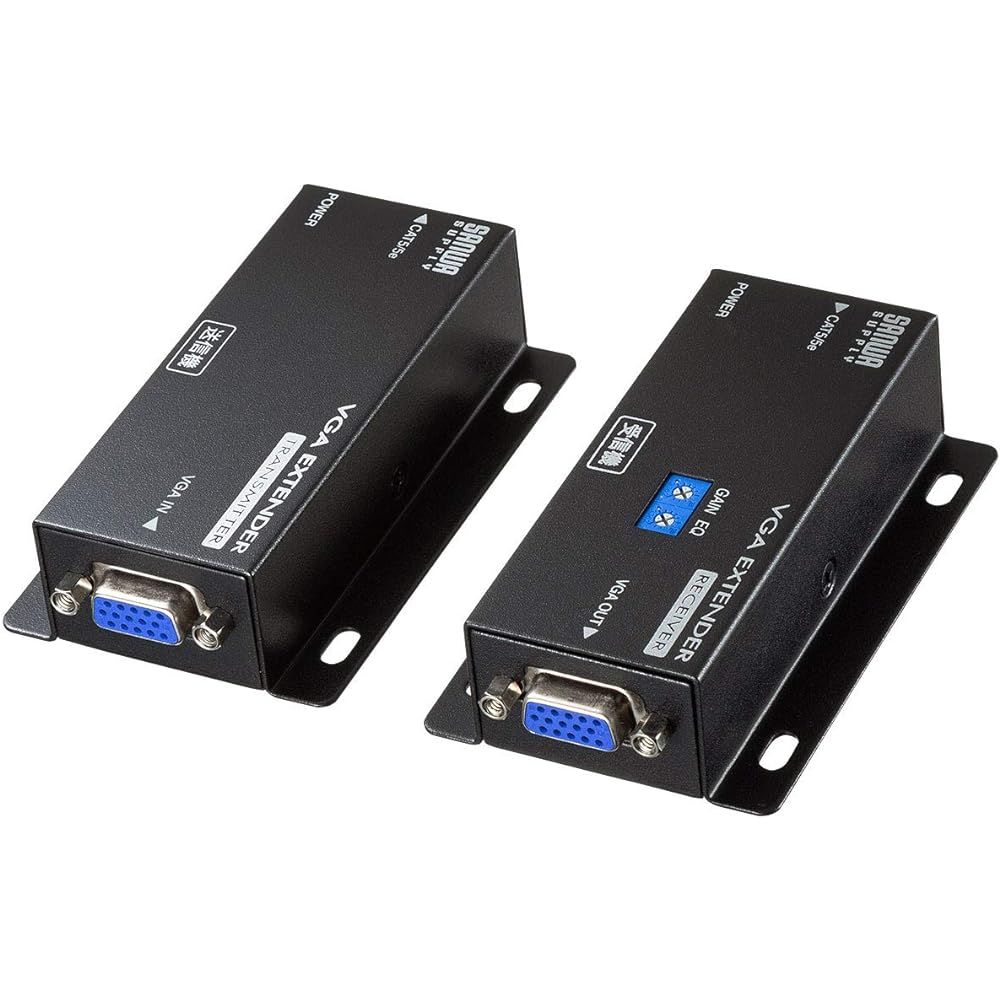

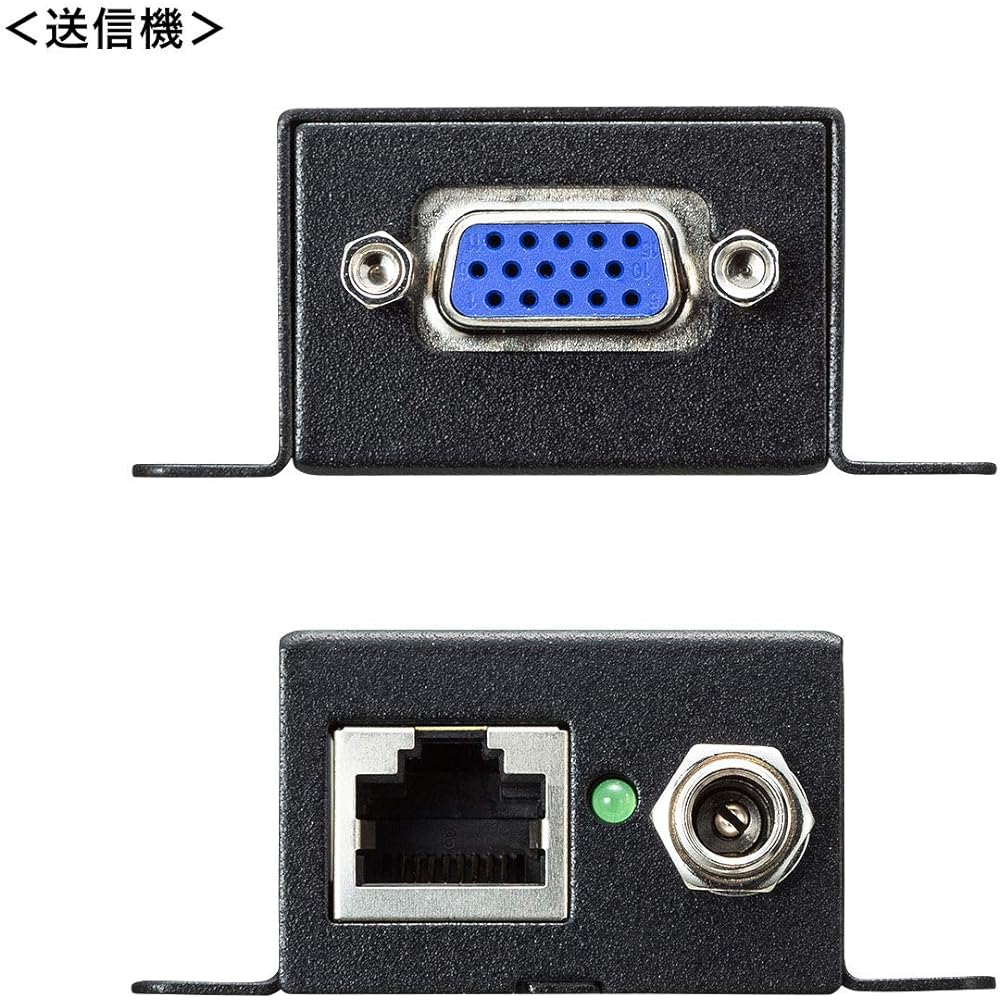

A display extender set model that can extend analog VGA images up to 180 m at 720p resolution and up to 60 m at 1080p resolution with a single LAN cable. Analog VGA images from your computer can be extended up to 180 m away, and up to 60 m away at full HD (1080p). It can be extended and output to the display. It consists of a transmitter and receiver set, and can be extended between the units using a UTP/STP category 5/5e straight cable. Since it uses a Category 5/5e cable, it is easier to handle and has better cost performance than regular display cables. The receiver section is equipped with an image quality adjustment function, allowing you to adjust the image signal with simple operations. The external structure is designed with wall mount functionality (wall mounting) in mind. It is ideal for installing only the display in an environment where it is difficult to install a computer, such as a factory or construction site, and installing the computer equipment in a remote location with a good environment. [Interface]: Transmitter: Input: Mini D-sub (HD) 15pin female x 1, Output: RJ-45 female x 1, Receiver: Input: RJ-45 female x 1, Output: Mini D-sub (HD) )15pin female x 1 [Maximum display resolution]: 1920 x 1080 (1080p, 60Hz).up to 60m, 1280 x 1024 (60Hz).up to 180m, 1280 x 720 (720p, 60Hz).up to 180m *Cable standards and extendable distances vary depending on the resolution. [Compatible LAN cable]: UTP/STP category 5/5e straight cable [Extension cable length]: 180m (maximum) *Cable standards and extendable distance vary depending on resolution. Increase number of displayed items

- Analog VGA images from your computer can be extended and output to a display up to 180m away, and Full HD (1080p) up to 60m away. - Consists of a transmitter and receiver set, and can be extended using a UTP/STP category 5/5e straight cable between the units. -Uses a Category 5/5e cable, making it easier to handle and more cost-effective than regular display cables. -Equipped with an image quality adjustment function in the receiver section, allowing you to adjust the image signal with simple operations. -The external structure is designed with wall mount functionality (wall mounting) in mind. - Ideal for installing only the display in environments where it is difficult to install a computer, such as a factory or construction site, and installing the computer equipment in a remote location with a good environment.・Maximum display resolution: 1920 x 1080 (1080p, 60Hz) *Can be extended up to 60m. 1280×1024 (60Hz) *Can be extended up to 180m. 1280×720 (720p, 60Hz) *Can be extended up to 180m.・Extension cable length: 180m (maximum) *Extendable distance varies depending on resolution.・VGA Bandwidth: 250MHz ・Interface: Transmitter/Input Mini D-sub (HD) 15pin female x 1, Output/RJ-45 female x 1 Receiver/Input RJ-45 female x 1, Output/Mini D-sub (HD) 15pin female x 1・Power consumption: Transmitter/1.1W (max.) Receiver/3W (max.)・Case material: Steel・Environmental conditions: Operating/0~50℃ Humidity 80% or less (no condensation) ) Storage/-20~70℃ Humidity 95% or less (no condensation)・Size: Transmitter/W104×D59×H25mm (body size) Receiver/W104×D59×H25mm (body size)・Weight: Transmitter /153g receiver/155g・Accessories: Display cable mini D-sub (HD) 15pin male/male 1.2m x 1, AC adapter (DC12V 1.25A) x 2, rubber feet x 8, wall mounting screws x 8, handling Instructions (with warranty)


Male/female connector: ‎Male-Female
Compatible models: ‎PC
Battery usage: ‎No
Brand name: ‎Sanwa Supply
Manufacturer: ‎Sanwa Supply Supply)
Product model number: ‎VGA-EXSET1N
Material: ‎Case material: Steel
Assembly method: ‎Wall mounting
Cable shape: ‎VGA
Product size: ‎5.9 x 10.4 x 2.5 cm; 200 g
Product weight: ‎0.2 kg
