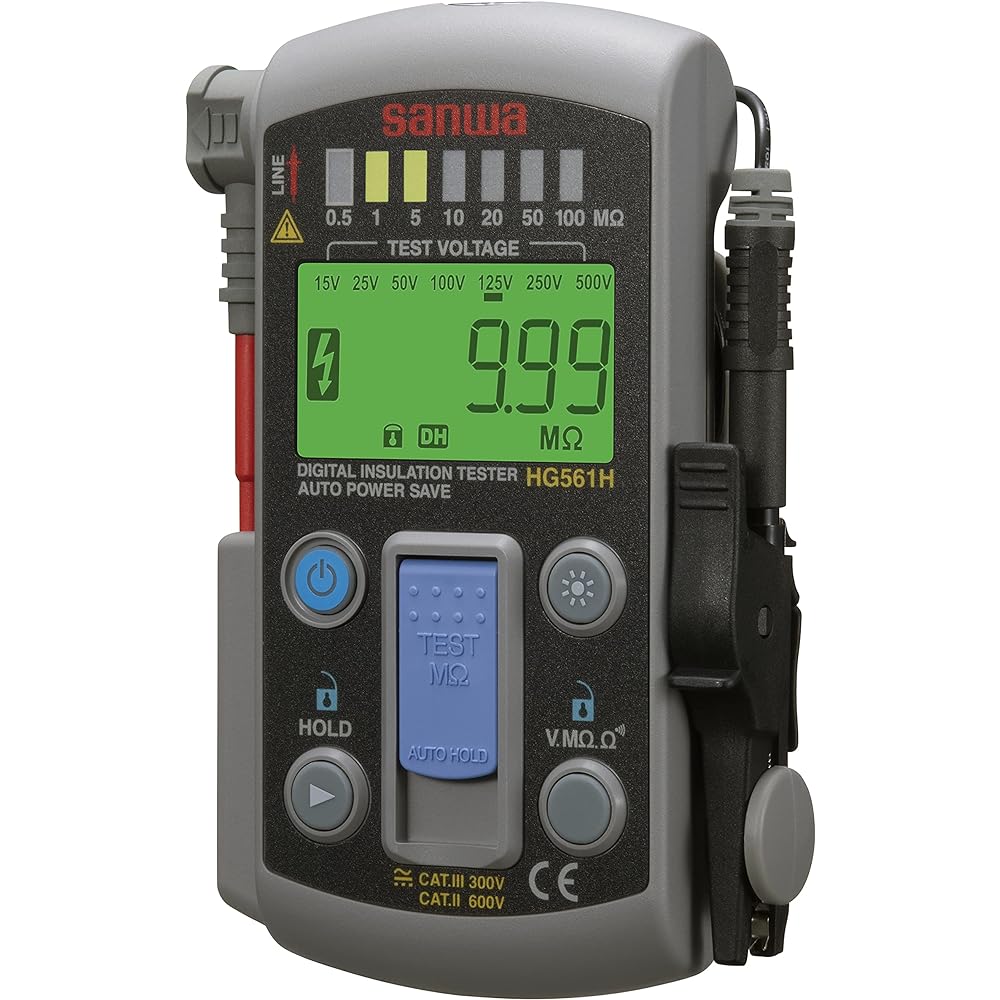

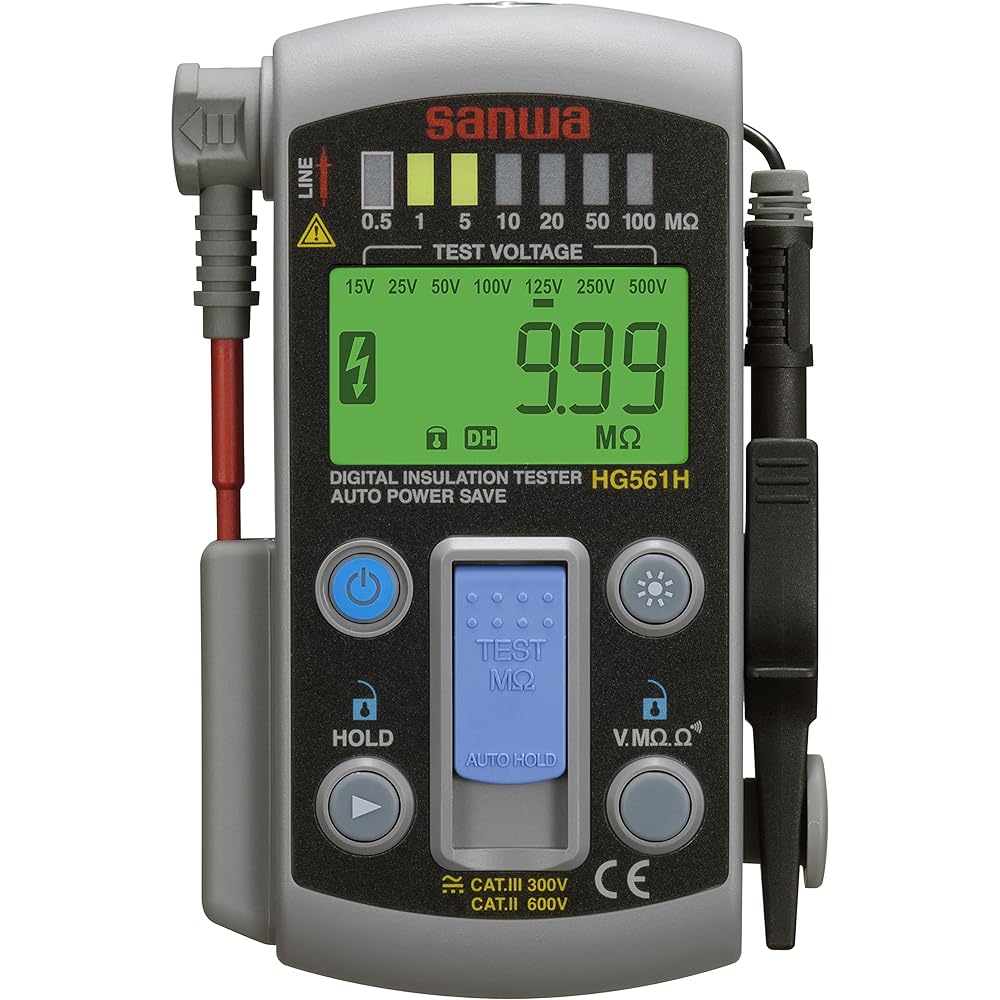

Sanwa Electric Meter SANWA Smart Style 7 Range Digital Insulation Resistance Meter HG561H

Country of origin: Taiwan ●Equipped with 7 insulation resistance ranges, allowing you to set only the applied voltage to be used. ●Equipped with automatic discrimination function for DC voltage and AC voltage. ●MΩ is displayed both numerically and with an LED level meter. ●The decimal point position is fixed to prevent misreading. ●Equipped with a probe that can directly measure through the hole in the breaker cover. ●Equipped with an LCD backlight and an LED light to illuminate the measurement site. ●Equipment maintenance. ●Measurement of current from distribution boards, etc. ●AC voltage (V): 600●Rated measurement voltage (V/MΩ): 15/21, 25/21, 50/21, 100/110, 125/110, 250/110, 500/110●Minimum display (MΩ) ): 0.1 ● Resistance (Ω): 999.9k ● Mass (g): 230 ● Width x Depth x Height: 91 x 29 x 139 mm ● Power source: 4 AAA alkaline batteries (LR03) (included) ● Maximum display :3999 counts ●DC/AC voltage (V): 600 (automatic discrimination) ●Continuity check: Buzzer sound when 30Ω or less ●JIS C1302 compliant CE standard ●Measuring probe red X1, alligator clip black X1, carrying case, manual

7-range compact design


Brand: ‎Sanwa Electric Meter
Product model number: HG561H
Product size: 2.9 x 9.1 x 13.9 cm; 230 g
Color: ‎Red
Name on nameplate: ‎Small
Power supply: ‎Electrical

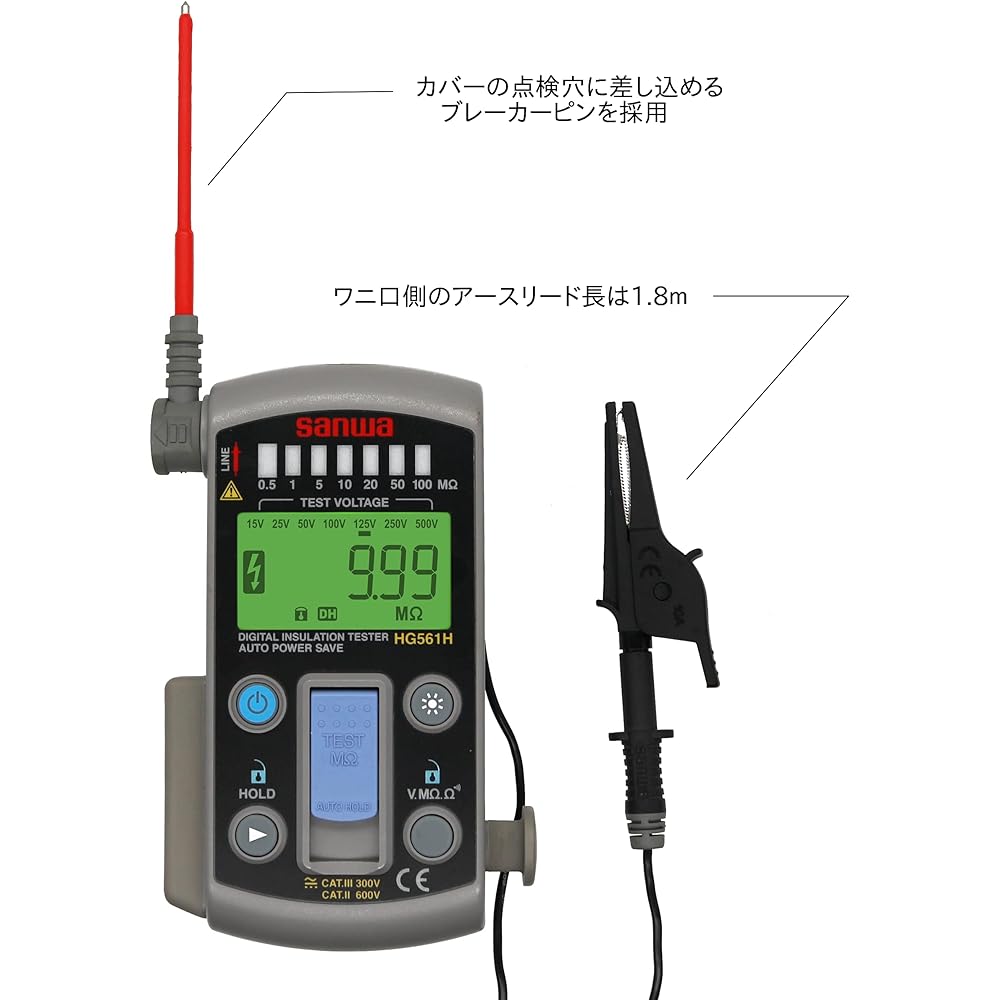

Accessories: ‎Probe (red), clip lead (black 1.8m), mobile case
Batteries included: ‎Yes
>Battery type: ‎Alkaline
Product weight: ‎230 g
