Panasonic Cosmo Series Wide 21 Totara Remote Control 2-Wire White WTC56712W

●White color
●2-wire type

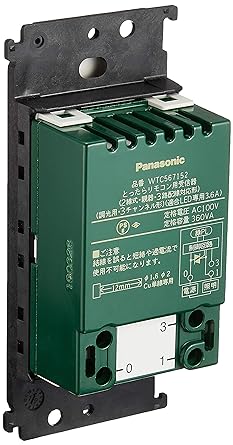

●Main device
●3-way wiring compatible type
●For dimming
●3-channel type

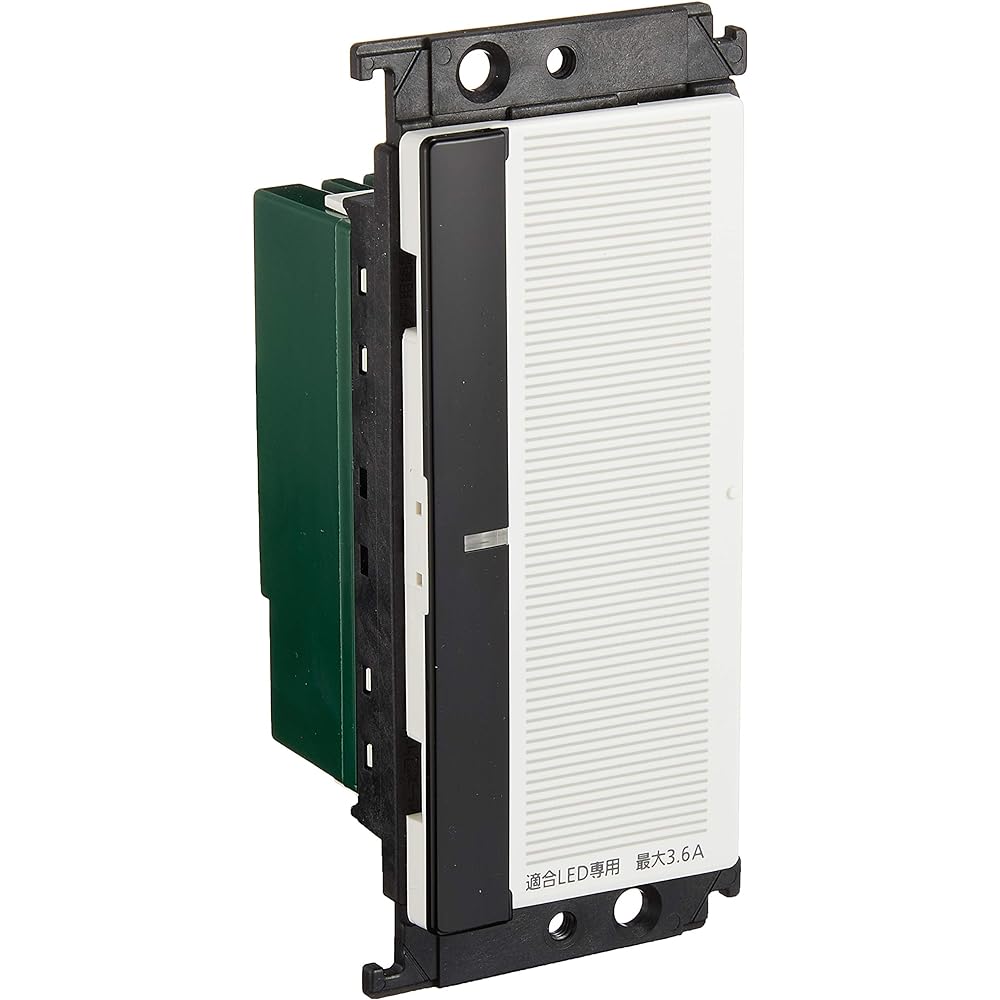

●3.6A for compatible LEDs
>●Compatible plates: Round (WTC7101W)/Square (WT8101W) *Metal plates cannot be used when using a metal box. It may cause malfunction.
●Receiver rated current/voltage: 360VA 100V AC
●Rated frequency: 50/60Hz

●White color ●2-wire type ●Main device ●3-way wiring compatible type ●For dimming ●3 channel type ●3.6A for compatible LEDs ●Compatible plate: Round (WTC7101W)/Square (WT8101W) *When using metal box, metal plate cannot be used. It may cause malfunction. ●Receiver rated current/voltage: 360VA 100V AC ●Rated frequency: 50/60Hz ●Power consumption: 0.4W ●Ambient illuminance: 5000 lx or less (The transmitter may not be able to turn on/off if exposed to direct sunlight or strong light. )●Ambient operating temperature: 0~35℃●Number of channels: 3 channels (A, B, C)●Dimming range: approx. 0~100%●Battery applicable to transmitter: Lithium battery (CR2025) commercially available●Battery life: Approximately 2 years (2 operations/day) ● Number of channels: 3 channels (A, B, C) ● Standard reach (with transmitter removed): Approximately 10 m in a clear space without obstacles


Manufacturer: ‎Panasonic
Part number: ‎WTC56712W
Product weight: ‎180 g
Product size: ‎5.01 x 4.01 x 11 cm; 180 g
Batteries: ‎1 Lithium-ion battery
Discontinued by manufacturer: ‎No
Color: ‎White
Accessories: ‎None
Battery included: ‎No
Batteries used: ‎No
Battery type: ‎Lithium

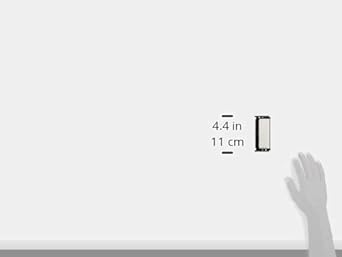

Product dimensions (Length x Width x Height): ‎5 x 4 x 11 cm
