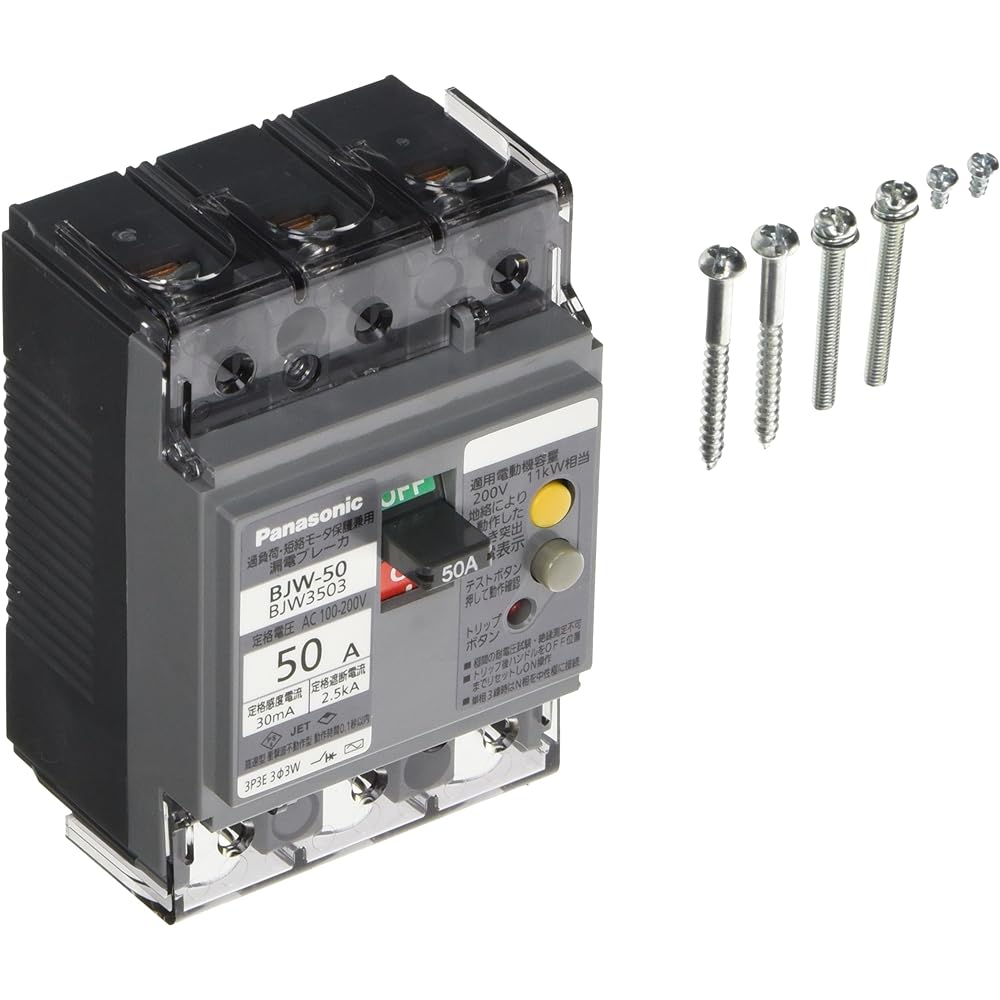

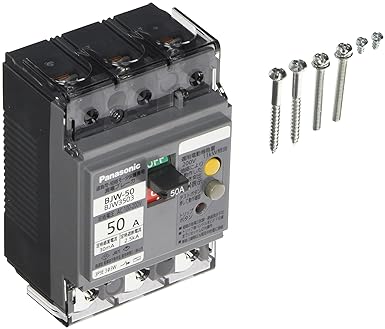

Panasonic Earth Leakage Breaker BJW-50 Type 3P3E with OC 50A 30mA BJW3503

Release date: June 22, 2004 Model name: BJW-50 Rated current: 50A Rated voltage/breaking capacity: For both AC100-200V 2.5kA Number of poles and elements: 3P3E

Type: Earth leakage breaker (also used for motor protection) Model name: BJW-50 Frame: 50AF Number of poles: 3P3E Rated current: 50A Motor capacity: AC200V 11kW Earth leakage sensitivity current: 30mA Rated voltage/breaking capacity: For both AC100-200V 2.5kA Tripping method: Electromagnetic External dimensions (mm): H96 (106 including terminal cover) x W70 x D52 (67.6 including handle) Mass: 0.5 kg Specifications: With terminal cover, compatible with lightning surges and harmonics (inverters, etc.) < br>

Manufacturer: ‎Panasonic
Part number: ‎BJW3503
Product weight: ‎458 g
Product size: ‎5.2 x 7 x 9.6 cm; 458 g
br>Discontinued by manufacturer: ‎No
Color: ‎Gray
Pattern: ‎Single item
Voltage: ‎200 Volts
Accessories: ‎None
Battery included: ‎ No
Batteries used: ‎No

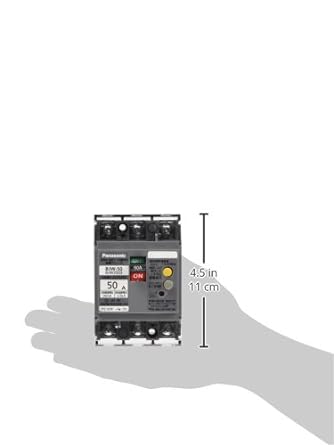

Product dimensions (Length x Width x Height): ‎5.2 x 7 x 9.6 cm
