Panasonic Earth Leakage Breaker BJW-30 Type 3P3E with OC 15A 30mA Motor Protection BJW3153

Release date: June 22, 2004 Model name: BJW-30 Rated current: 15A Rated voltage/breaking capacity: For both AC100-200V 2.5kA Number of poles and elements: 3P3E

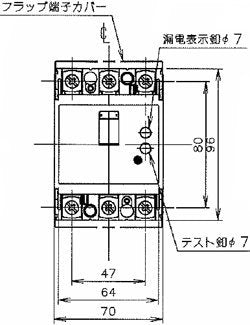

Type: Earth leakage breaker (also used for motor protection) Model name: BJW-30 Frame: 30AF Number of poles: 3P3E Rated current: 15A Motor capacity: AC200V 3.7kW Earth leakage sensitivity current: 30mA Rated voltage/breaking capacity: For both AC100-200V 2.5 kA Tripping method: Electromagnetic External dimensions (mm): H96 (106 including terminal cover) x W70 x D52 (67.6 including handle) Mass: 0.5 kg Specifications: With terminal cover, compatible with lightning surges and harmonics (inverters, etc.)


Manufacturer: Panasonic
Part number: BJW3153
Product weight: 440 g
Product size: 5.2 x 7 x 9.6 cm; 439.99 g
Discontinued by Manufacturer: ‎No
Color: ‎Gray
Style: ‎30 Type 3P3E 15A 30mA
Voltage: ‎200 Volts
Wattage: ‎3.7 KW
br>Accessories: None
Batteries included: No
Batteries used: No
Product dimensions (Length x Width x Height): 5.2 x 7 x 9.6 cm
