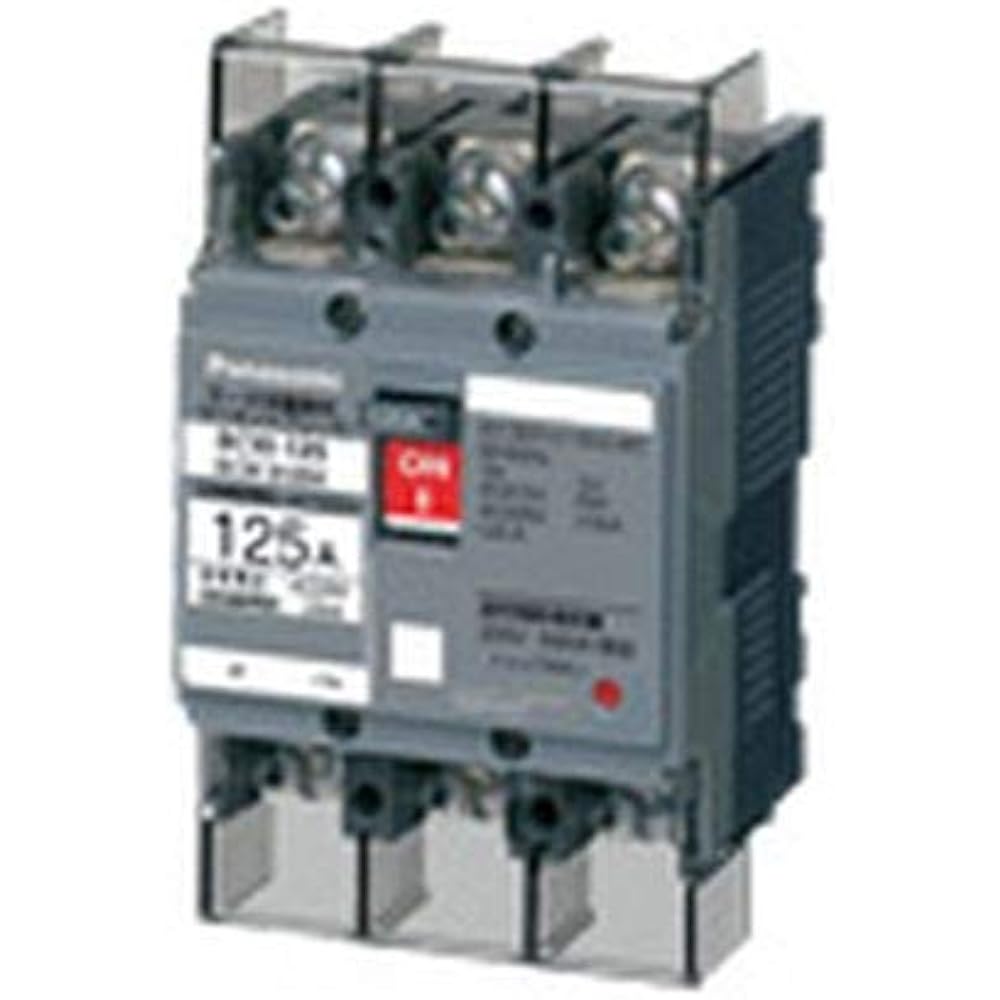

Panasonic Circuit Breaker Motor Protection BCW-125 3P 125A BCW3125K

Release date: July 1, 2008 Model name: BCW-125 Rated current: 125A Rated voltage/breaking capacity: AC100V 25kA, AC200V 25kA, AC415V 5kA Number of poles: 3P3E

Product explanation Type: Circuit breaker (also used for motor protection) Model name: BCW-125 Frame: 125AF Number of poles: 3P3E Rated current: 125A Motor capacity: AC200V 30kW Rated voltage/breaking capacity: AC100V 25kA, AC200V 25kA, AC415V 5kA Tripping method :Electromagnetic type External dimensions (mm): H96 (126 including terminal cover) x W75 x D60 (75.6 including handle) Mass: 0.5kg Specifications: With terminal cover


Manufacturer: Panasonic
Part number: ‎BCW3125K
Product weight: ‎500 g
Product size: ‎6 x 7.5 x 9.6 cm; 500 g
Style: ‎Rated current: 125A
Pattern: ‎ Single item
Voltage: 200 volts
Accessories: None
Battery usage: No
Product dimensions (Length x Width x Height): 6 x 7.5 x 9.6 cm
