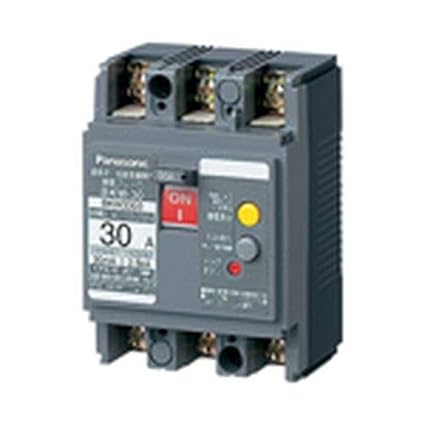

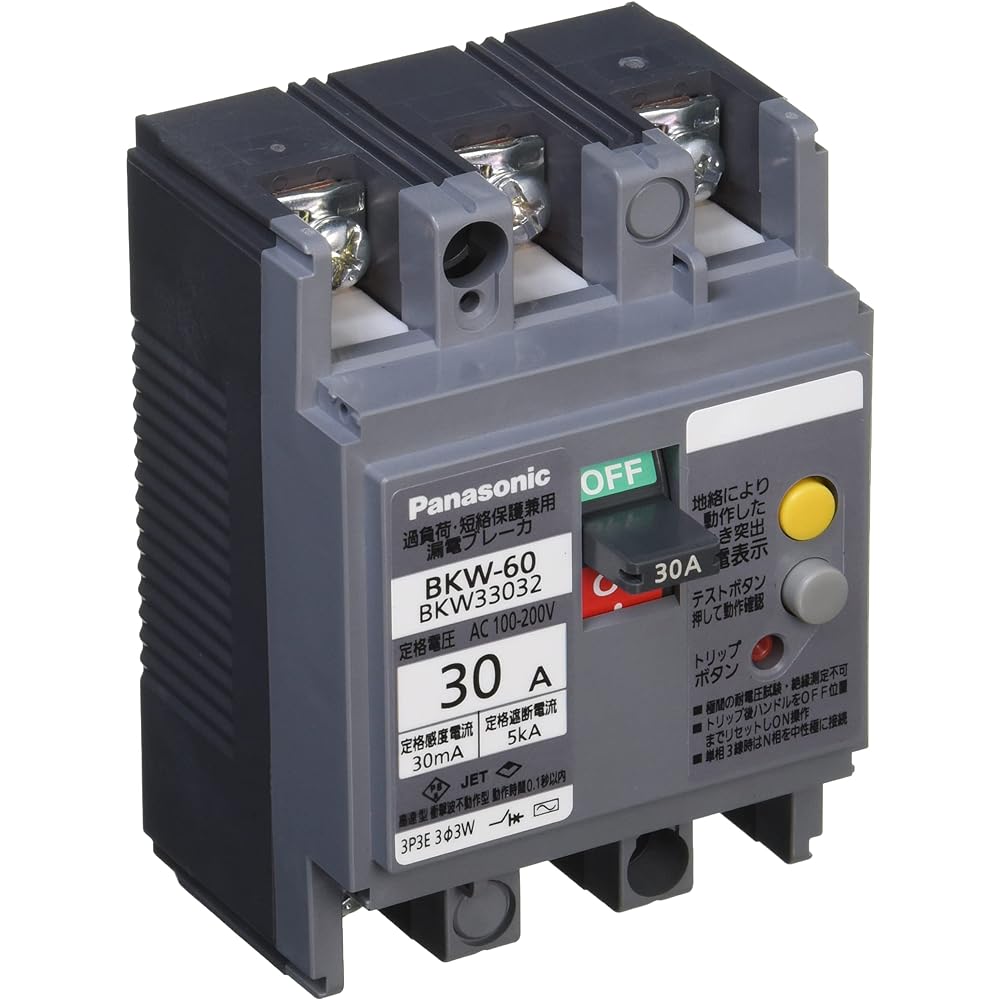

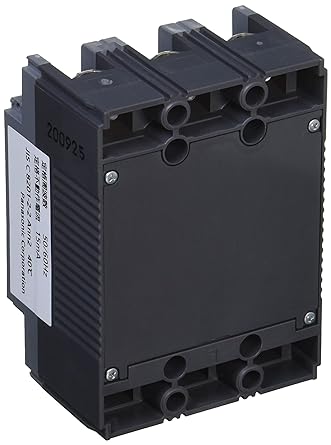

Panasonic Earth Leakage Breaker BKW-60 Type 3P3E with OC 30A 30mA (combined with overcurrent protection) BKW33032
Panasonic Earth Leakage Breaker BKW-60 Type 3P3E with OC 30A 30mA (combined with overcurrent protection) BKW33032
Regular price
$130.00 USD
Regular price
Sale price
$130.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Release date: September 21, 2004 Model name: BKW-60 Rated current: 30A Rated voltage/breaking capacity: For both AC100-200V 5kA Number of poles and elements: 3P3E
Type: Earth leakage breaker Model name: BKW-60 Frame: 60AF Number of poles: 3P3E Rated current: 30A Earth leakage sensitivity current: 30mA Rated voltage/breaking capacity: 5kA for both AC100-200V Tripping method: Electromagnetic External dimensions (mm) :H96×W70×D52 (67.6 including handle) Mass: 0.5kg Specifications: Compatible with lightning surges and harmonics (inverters, etc.)
Manufacturer: Panasonic
Part number: BKW33032
Item weight: 500 g
Product size: 5.2 x 7 x 9.6 cm; 500 g
Style: 60 type 3P3E 30A 30mA
Voltage: 200 volts
Accessories: None
Batteries used: No
Product dimensions (Length x Width x Height): 5.2 x 7 x 9.6 cm
Type: Earth leakage breaker Model name: BKW-60 Frame: 60AF Number of poles: 3P3E Rated current: 30A Earth leakage sensitivity current: 30mA Rated voltage/breaking capacity: 5kA for both AC100-200V Tripping method: Electromagnetic External dimensions (mm) :H96×W70×D52 (67.6 including handle) Mass: 0.5kg Specifications: Compatible with lightning surges and harmonics (inverters, etc.)
Manufacturer: Panasonic
Part number: BKW33032
Item weight: 500 g
Product size: 5.2 x 7 x 9.6 cm; 500 g
Style: 60 type 3P3E 30A 30mA
Voltage: 200 volts
Accessories: None
Batteries used: No
Product dimensions (Length x Width x Height): 5.2 x 7 x 9.6 cm
