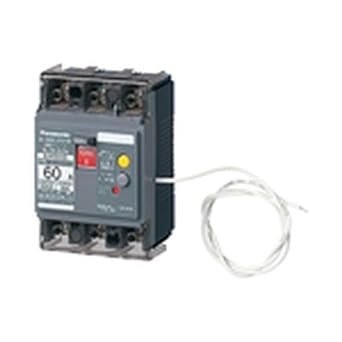

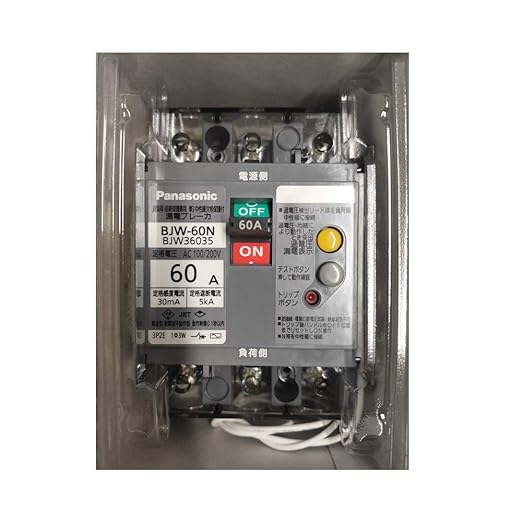

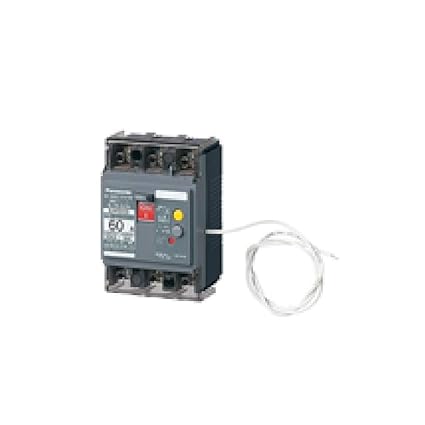

Panasonic Earth Leakage Breaker BJW-N Type with O.C 50AF 3P2E 30A Sensitivity 30mA BJW35035

●*Reverse connection is not possible.
●*Please select the wire size that matches the rated current value.
●*Please remove the wires when measuring the insulation resistance between the lines.
●* Compatible with lightning surges and harmonics (inverters, etc.). For frequency control circuits such as inverters, be sure to install it on the primary side of the inverter.

●Quantity (units): 1●Frame/model name: 50AF (BJW-50N)●Number of poles: 3P2E●Sensitivity current: 30mA●Rated current: 30A●Phase wire system: 1φ3W●Rated voltage/breaking capacity: AC100/200V (AA)/2.5kA●Operating time (at the time of electric leakage): within 0.1 seconds●Operating time (at the time of overvoltage): within 0.5 seconds●Overvoltage operating voltage: 130±5V●Earth leakage display method: Mechanical button● Tripping method: Electromagnetic type ● BJW-N type ● AA neutral wire with open-phase protection ● O.C included ● Single-phase 3-wire only ● Open/close flap with small terminal cover (BCW30308125) ● For both direct connection to power supply and crimp terminal ● Overvoltage detection lead wire length (mm): 0.5mm2×L500


Manufacturer: ‎Panasonic
Part number: ‎BJW35035
Product weight: ‎440 g
>Product size: ‎10.6 x 6.8 x 7 cm; 440 g
Discontinued by manufacturer: ‎No
Style: ‎50N type 50A 30mA
Voltage: ‎200 volts
Included Product: ‎Instruction manual
Batteries included: ‎No
Batteries used: ‎No
Product dimensions (Length x Width x Height): ‎10.6 x 6.8 x 7 cm
