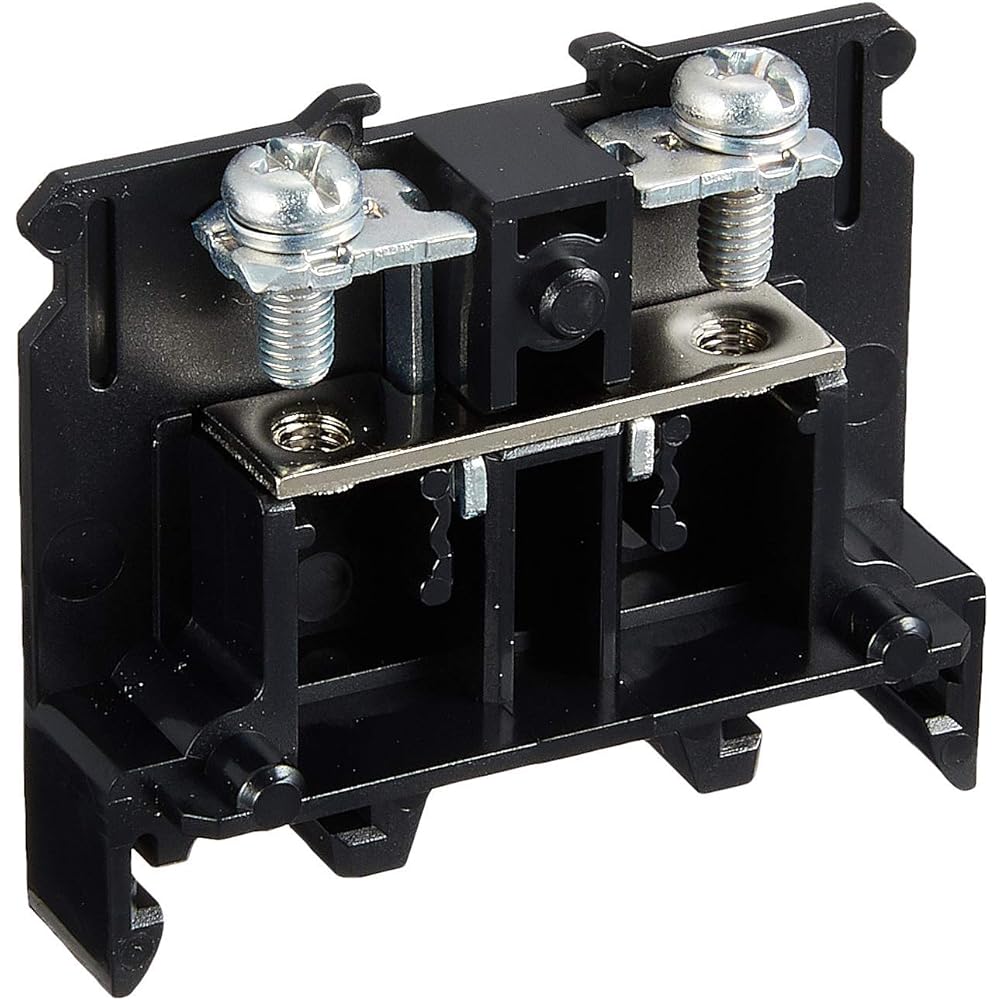

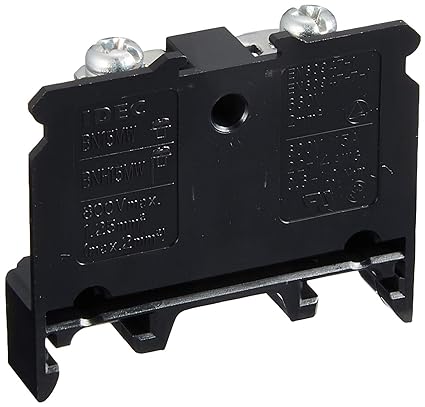

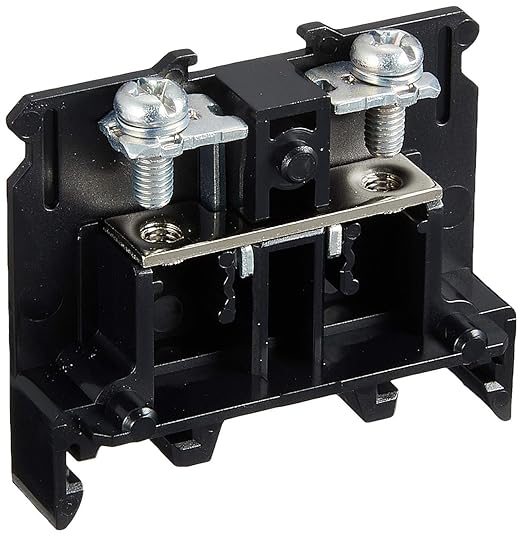

IDEC BNW/BNHW series terminal block general type touchdown structure type 40A BNH30WPN50
IDEC BNW/BNHW series terminal block general type touchdown structure type 40A BNH30WPN50
Regular price
$62.00 USD
Regular price
Sale price
$62.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
RoHS compliance status: Contains no
The main body and end plate are highly flame retardant (UL94V-0) due to the use of UL certified resin. In addition to 35mm wide DIN rails, it can also be installed on 30mm wide C-shaped rails. 9.5mm wide mark sheet can be used for all models. There is also a sliding mark sheet that uses a 17mm wide mark sheet. (For BN10W to BN30W) When adjacent terminal blocks with different current capacities and terminal screws are installed, they can be assembled without end plates. The large capacity series (from BN□10W to BN□150W) is available in screw type and stud type. We also have types that can be mounted directly to panels. It is easy to add and remove terminals in units of one pole. (From BN/BNH10W to BN/BNH30W) Compliant with JIS C 8201-7-1. UL/CSA certified products and EN standard compliant products (TUV certification) are standard. Comes with UL, CSA, and TUV marks. (All models except those with fuse and common terminal) UL standard field wiring (FW2) certified models are available. Select by type Terminal block Classification Rail type terminal block Classification Rail type terminal block Terminal shape Touchdown structure type (1 stage type) Rated insulation voltage (JIS rating) 630V Rated carrying current (JIS rating) 40A Terminal screw M4 Applicable wire (JIS) 5.5m㎡ Applicable wire (AWG) 18-10 Pitch between terminals 12mm
Manufacturer: IDEC
Part number: BNH30WPN50
Product weight: 780 g
br>Package size: 30.8 x 7.8 x 4 cm; 780 g
Pattern: BNH30WPN50
Battery usage: No
The main body and end plate are highly flame retardant (UL94V-0) due to the use of UL certified resin. In addition to 35mm wide DIN rails, it can also be installed on 30mm wide C-shaped rails. 9.5mm wide mark sheet can be used for all models. There is also a sliding mark sheet that uses a 17mm wide mark sheet. (For BN10W to BN30W) When adjacent terminal blocks with different current capacities and terminal screws are installed, they can be assembled without end plates. The large capacity series (from BN□10W to BN□150W) is available in screw type and stud type. We also have types that can be mounted directly to panels. It is easy to add and remove terminals in units of one pole. (From BN/BNH10W to BN/BNH30W) Compliant with JIS C 8201-7-1. UL/CSA certified products and EN standard compliant products (TUV certification) are standard. Comes with UL, CSA, and TUV marks. (All models except those with fuse and common terminal) UL standard field wiring (FW2) certified models are available. Select by type Terminal block Classification Rail type terminal block Classification Rail type terminal block Terminal shape Touchdown structure type (1 stage type) Rated insulation voltage (JIS rating) 630V Rated carrying current (JIS rating) 40A Terminal screw M4 Applicable wire (JIS) 5.5m㎡ Applicable wire (AWG) 18-10 Pitch between terminals 12mm
Manufacturer: IDEC
Part number: BNH30WPN50
Product weight: 780 g
br>Package size: 30.8 x 7.8 x 4 cm; 780 g
Pattern: BNH30WPN50
Battery usage: No
