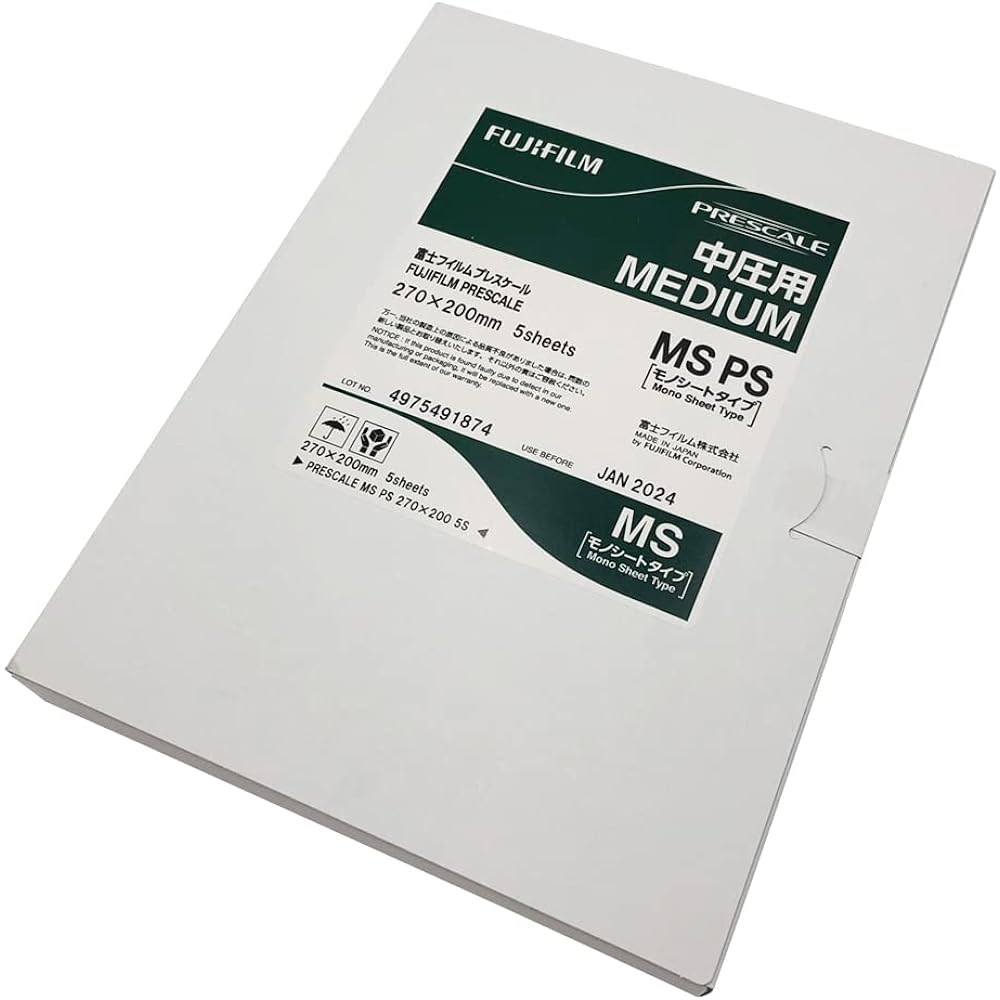

Fujifilm Presheet for medium pressure MS-PS

For medium pressure Measurable pressure range [MPa] (1MPa≒10.2kgf/cm2): 10-50 Product size Width (mm) x Length (mm): 270*200 (5 sheets) Classification: Mono sheet type Pressure measurement film Prescale sheet type The entire film becomes a sensor that detects force, allowing the balance, distribution, and magnitude of pressure across a plane to be accurately measured. The film turns red when pressure is applied, and its density changes depending on the amount of pressure (density: 0.1 to 1.4). How to use: Just cut the prescale and insert. The microcapsules and developer in the coloring agent layer turn the area under pressure red. "Easy to use sheet-cut type pressure measurement sheet" You can easily check invisible pressure and pressure distribution. Increase the number of displayed items

Measurable pressure range for medium pressure [MPa] (1MPa≒10.2kgf/cm2): 10-50 Product size Width (mm) x Length (mm): 270*200 (5 sheets) Classification: Mono sheet type pressure measurement film The entire "Prescale" sheet type film becomes a sensor that detects force, allowing the balance, distribution, and magnitude of pressure across a plane to be accurately measured. The film turns red when pressure is applied, and its density changes depending on the amount of pressure (density: 0.1 to 1.4). How to use: Just cut the prescale and insert. The microcapsules and developer in the coloring agent layer turn the area under pressure red. "Easy to use sheet-cut type pressure measurement sheet" You can easily check invisible pressure and pressure distribution.


Manufacturer: ‎Fujifilm
Part number: ‎MS-PS
Item weight: ‎426 g
Packing size: ‎29.2 x 21.8 x 3.1 cm; 425.99 g
Discontinued by manufacturer: ‎No
Features: ‎Portable
Battery included: ‎No
Uses batteries: ‎No
