Asada LD316 Leak Detector LD316

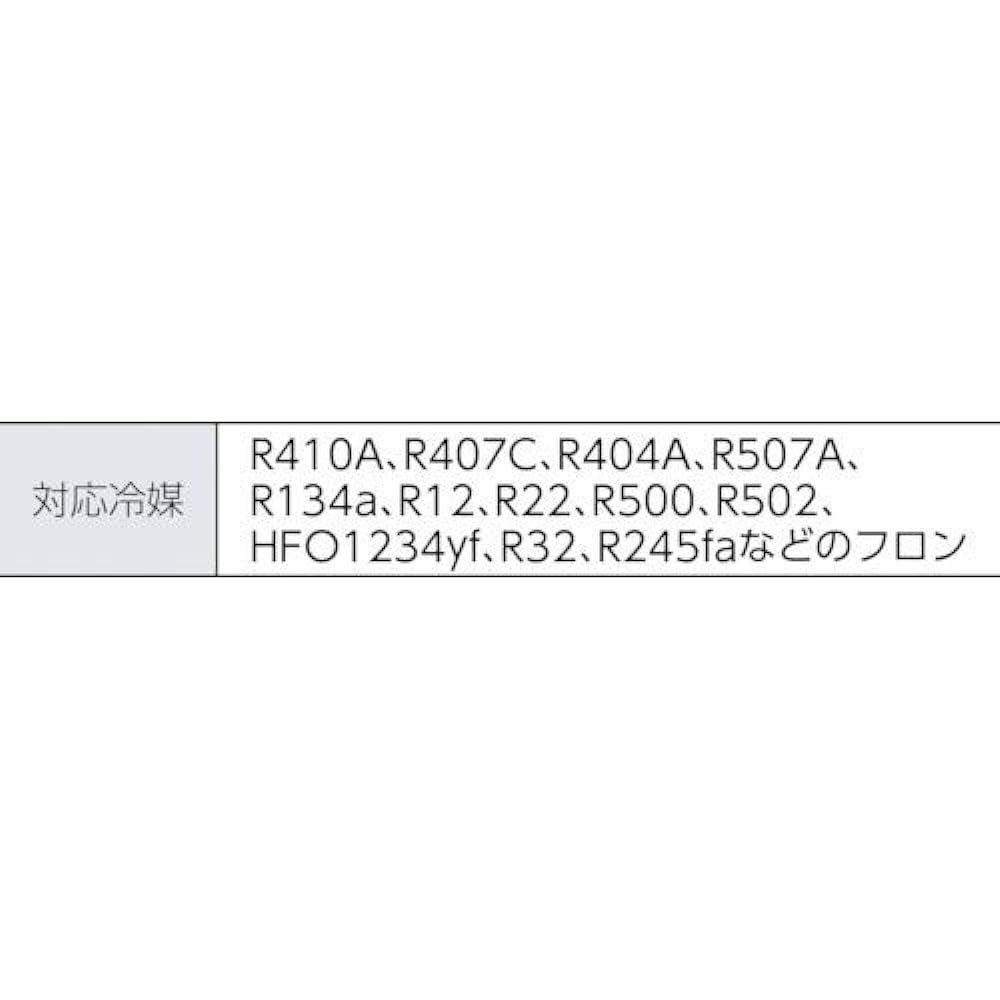

Compatible refrigerants (R410A, R407C, R404A, R507A, R134A, R12, R22, R500, R502, HFO1234yf, R32, R254fa, etc.) Detection method: Infrared sensor method Gas introduction method: Gas suction method Sensitivity: High 4g/year, Medium 7g/year, Low 14g/year, CM mode 3g/year Power source: Rechargeable lithium battery Time: Reaction time: 1 second or less / Warm-up time: Approx. 30 seconds Detection method: Buzzer sound and 9-step LED display Mass: 495g Temperature range: Operating temperature: 0~50℃/Storage temperature: -10~60℃ Increase the number of items displayed

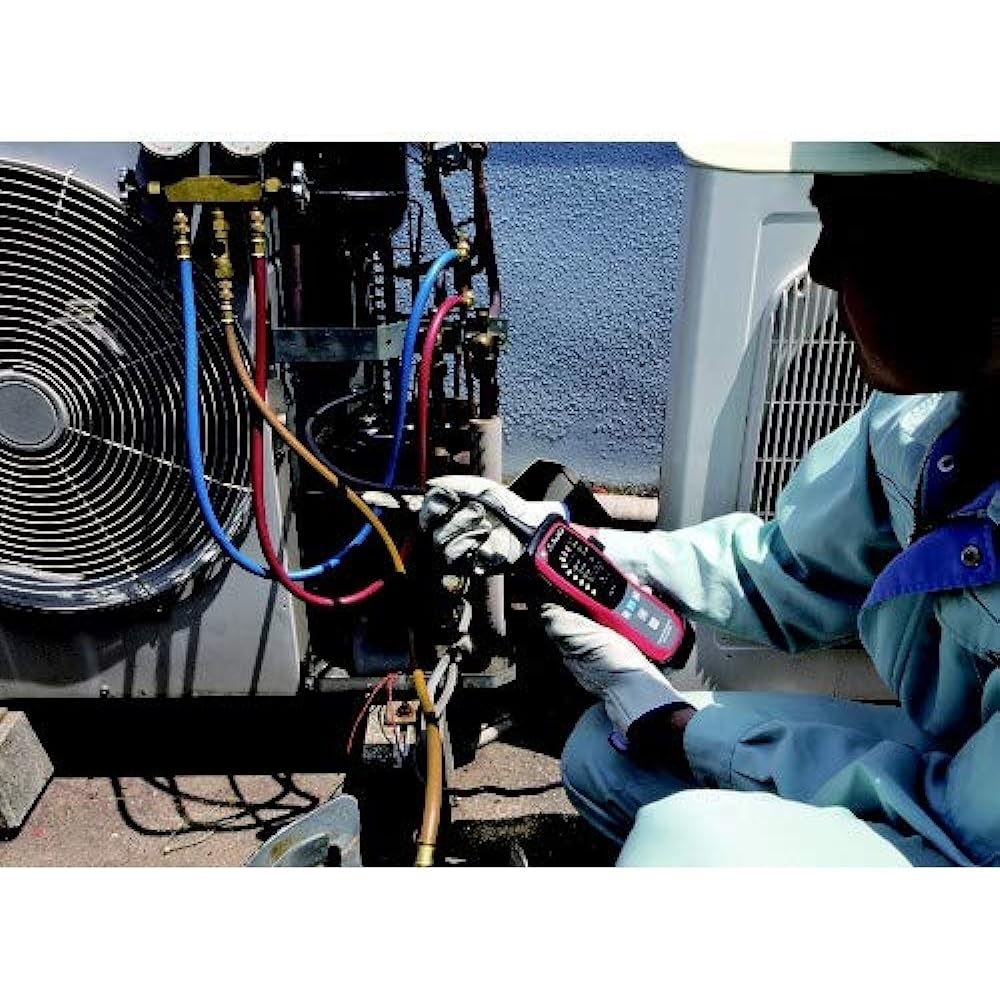

Equipped with a high performance and highly sensitive infrared leak sensor. Long life with few false positives. High-performance, high-sensitivity infrared sensor and easy-to-see 9-level color indicator ensure accurate leak detection with fewer false positives Automatically changes sensitivity to 3 levels depending on the amount of leakage. By lighting up the LED light at the tip of the probe, it is also effective in searching for refrigerant leaks in dark areas such as inside the system, behind the ceiling, inside walls, and in basements. Alarm can be switched on/off. Rechargeable lithium battery gas suction type probe equipped with LED light at the tip]


Brand: Asada
Product model number: LD316
Package size: 34.7 x 26.6 x 10 cm; 495 g
Power supply: ‎Battery operated
Voltage: ‎24 volts
Accessories: ‎None
Product weight: ‎495 g
