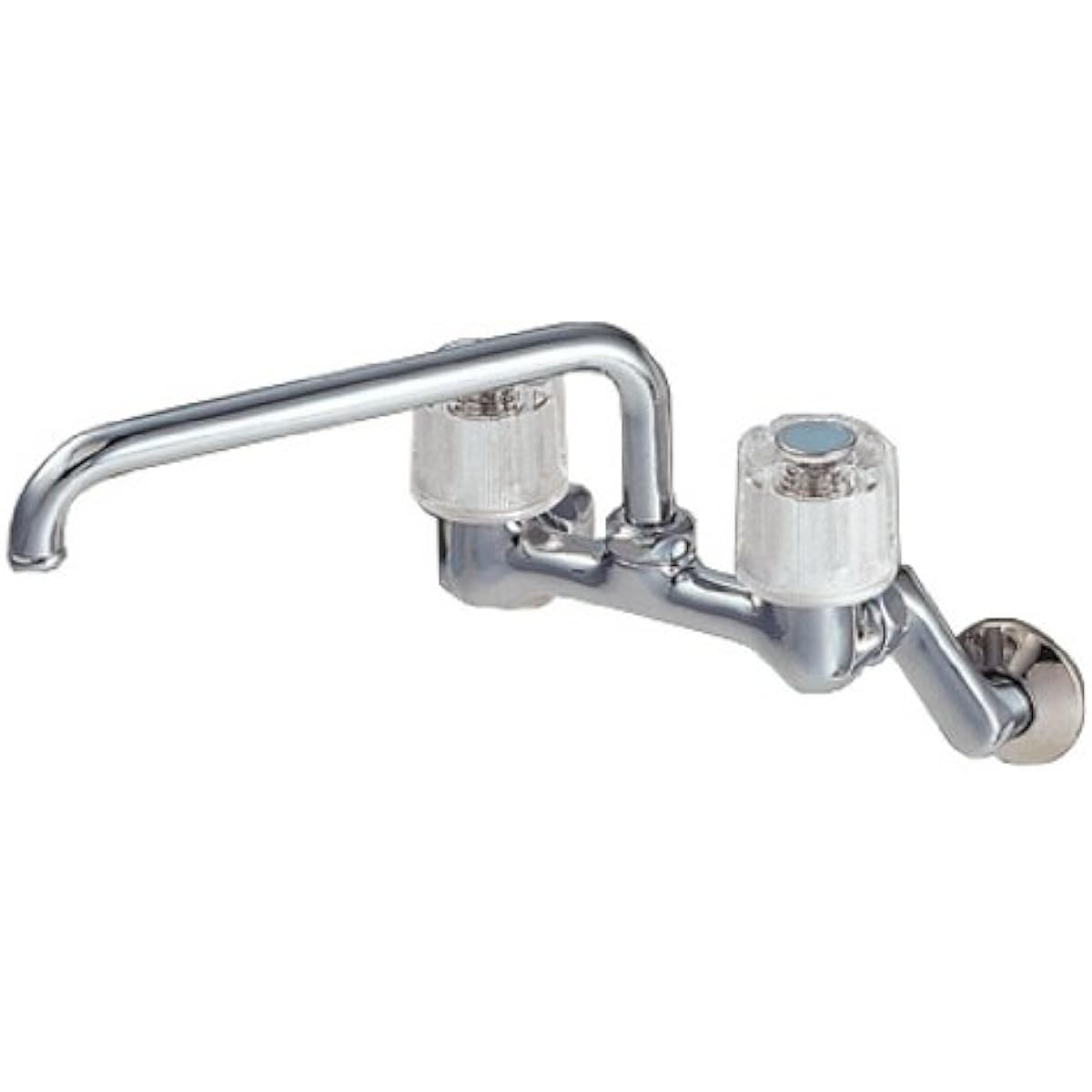

SANEI [Kitchen mixer faucet (cold region specifications)] Two-valve mixer faucet (cold region specifications) CK211K

Country of origin: Japan

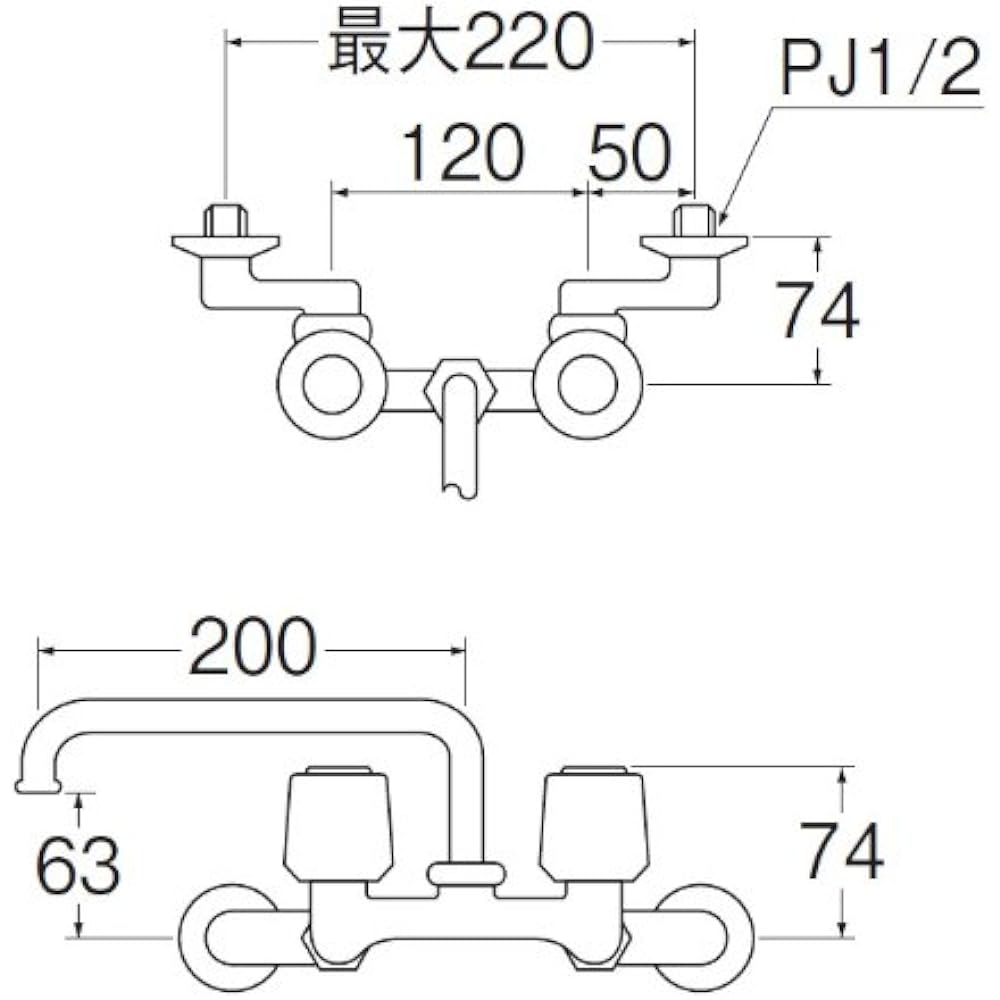

Enlarged display of the upward-facing pipe Enlarged display of the mechanism of a two-valve mixing faucet Enlarged display of the internal structure The upward-facing pipe allows for a spacious sink, making it convenient for installing a water purifier. Approximately 30mm taller than a normal upward pipe. The length of the pipe is 200mm. Improved usability in a variety of situations For example, when refilling a kettle or water bottle, or pouring water into a large pot, if the sink is too close, it may hit the pipe, making it inconvenient. Such inconvenience will also be resolved. How a two-valve mixing faucet works A hot and cold water mixing faucet that adjusts the temperature and flow rate with two handles, one for hot water and the other for water. A mechanism that adjusts the amount of water by itself and provides the appropriate temperature. The mechanism is the same even if the direction of the pipe is different. Internal structure of a two-valve mixer faucet When the handle is closed, the spindle presses against the top and stops water flowing. When you open the handle, the spindle rises, and the water pressure lifts the top and sprays water. The inside of the handle and pipe parts can be disassembled. Features: The internal structure is simpler than a single lever or thermostat, making it easy to repair when water leaks. In addition, replacement parts are often compatible regardless of manufacturer, making them suitable for repairs. Main water leakage points and repair supplies: 1. Water leakage from the tip of the pipe ⇒ Faucet Kelep, Escoma, etc. 2. Water leakage from the bottom of the handle ⇒ Faucet upper gasket 3. Water leakage from the base of the pipe ⇒ Pipe Packing set 4. Water leakage between faucet and wall ⇒ Seal tape 5. Water leakage between eccentric pipe and main unit ⇒ Eccentric pipe packing Note


Brand: ‎SANEI (former company name: Sanei Faucet Manufacturing)
Product model number: CK211K
Product size: ‎63 x 22 x 22 cm; 1.25 kg
Nameplate Name: ‎For general use
Material: ‎Bronze
Laser class: ‎Wall-mounted, 2 handles, 2 holes, suitable for cold regions
Accessories: ‎None
Product weight: ‎1.25 Kilograms
