SANEI Single Mixer Faucet for Cold Regions, Kitchen, Wall Mounted, Insulated Pipe, Flow Adjustment, Rectifying Water Discharge CK1700DK-13

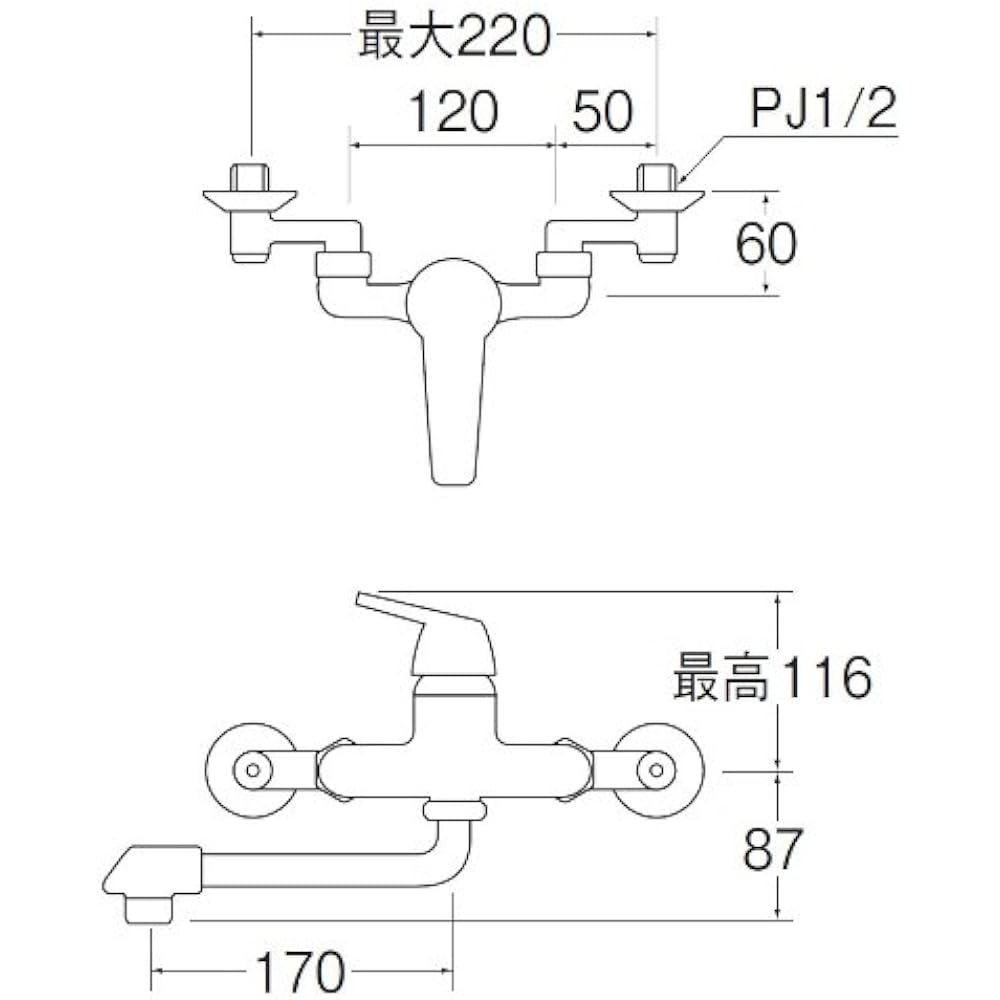

[Wall-mounted single-lever mixer faucet] Easy-to-operate mixer faucet that allows you to turn off, stop, and adjust the temperature with the lever, helping to save water. [Installation dimensions] Hot water piping pitch: 120~220mm, mounting screw size: PJ1/2 [Size] Pipe length 170mm [Country of origin] Japan JIS standard product with 2-year manufacturer's warranty

One-touch lever operation Enlarged display How a single mixing faucet works Enlarged display About the flow rate adjustment faucet Enlarged display One-touch lever operation One-touch operation from turning off the water to adjusting the temperature of hot water and water is possible. Ideal for frequently used kitchens. The most basic type. Replacing a two-valve mixer faucet will improve usability and water savings. How a single mixing faucet works: A cartridge linked to a lever handle controls the opening and closing of the hot water channel to adjust the amount of water spouted and the temperature of the hot water. Regarding built-in cartridges, the cartridges used in single-lever mixing faucets are genuine parts that differ from manufacturer to manufacturer, so when replacing the cartridge, it is necessary to confirm the manufacturer's name and the product number of the mixing faucet. About the flow rate adjustment valve The flow rate adjustment valve at the bottom of the eccentric pipe can be opened and closed with a flathead screwdriver, making it easy to fine-tune the amount of hot water and water. During maintenance and inspections such as cartridge replacement, the water can be shut off at this point, making it convenient as there is no need to close the water stop valves throughout the house. About the replacement method The basic replacement method for wall-mounted types is the same for two-valve mixer faucets, single-lever mixer faucets, and thermo shower mixer faucets. The replacement method is as follows. [Removal] 1. Close the water stop valve. 2. Loosen the nut on the old mixing faucet. 3. Remove the old main unit. 4. Remove the old eccentric pipes (2 pieces) by turning them counterclockwise and clean the piping. [Installation] 1. Wrap sealing tape around the new eccentric pipes (2 pieces). Gently pull and wrap clockwise around the screw 6 to 7 times. 2. Screw the new eccentric pipes (2 pieces) into the piping. 3. Attach the main body to the eccentric tube and 4. Tighten the nut to complete. 5. After installation, open the water stop valve and if there is no water leakage, the process is complete. Attention


Brand: ‎SANEI (former company name: Sanei Faucet Manufacturing)
Product model number: CK1700DK
Product size: ‎26 x 19 x 16 cm; 1.7 kg
Material : ‎Bronze
Laser class: ‎Wall-mounted single lever 2 holes suitable for cold regions
Accessories: ‎None
Product weight: ‎1.7 Kilograms
