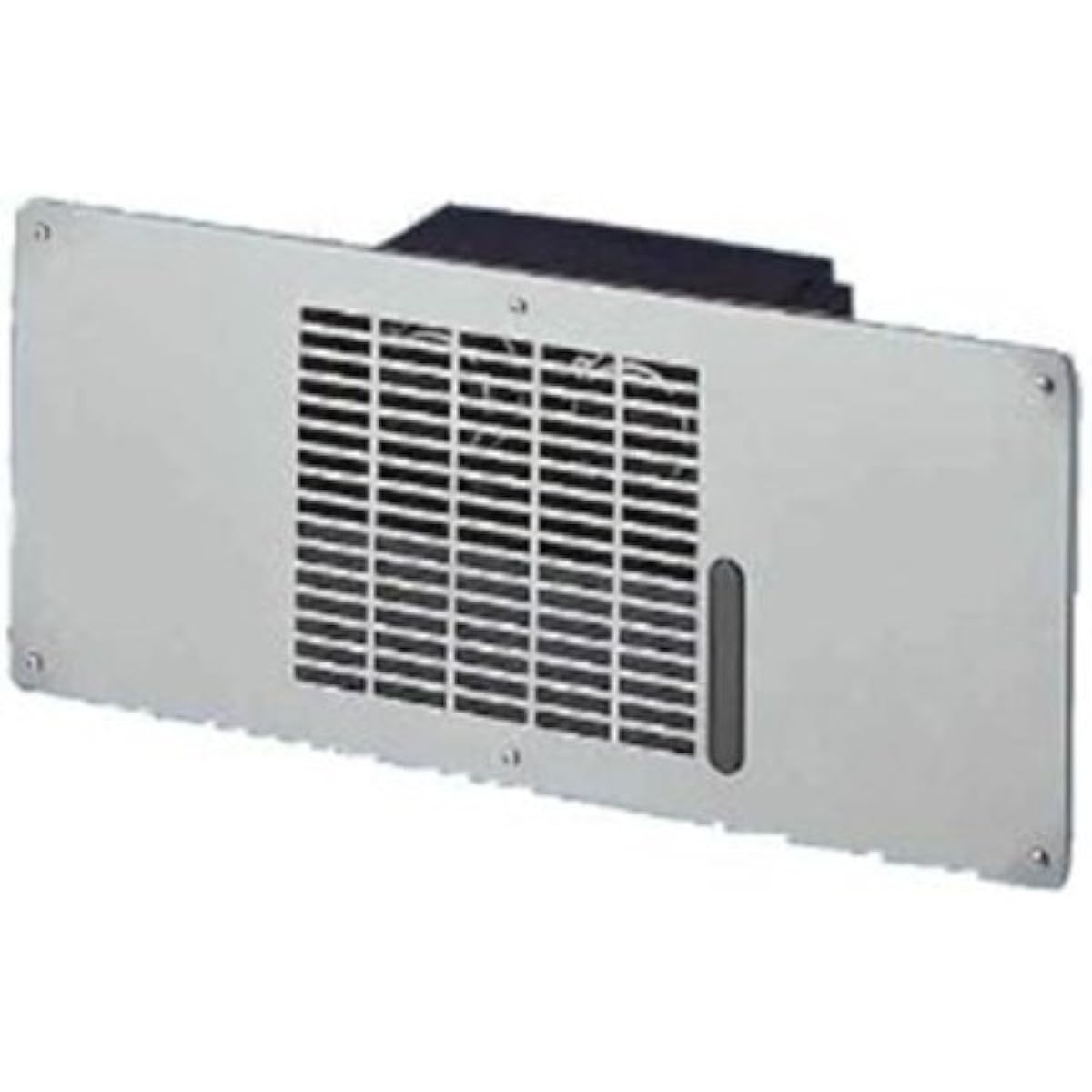

Panasonic (Panasonic) Underfloor ventilation fan FY-08FFA1

For the dimensions of the mounting holes on the main body, please refer to the embedding dimensions in the characteristics table. If the item is large, use wood to match the product, and if it is small, remove the concrete. *Please be sure to install the time switch indoors.

●Please install ventilation fans mainly around water areas such as baths, toilets, and kitchens. *If there is a constant water leak, be sure to repair it. ●Please install so that the air under the floor flows from the southeast to the northwest of the building. (This is to allow dry air from the south side to flow under the floor.)●Ensure an opening area based on regulations. Ensure sufficient ventilation channels for more effective ventilation. ●Avoid installing underfloor ventilation fans in houses where the subfloor is constantly exposed to large amounts of moisture. Ventilation may not be effective.


Brand: ‎Panasonic
Product model number: ‎FY-08FFA1
Product size: ‎58.7 x 16.8 x 26.2 cm; 3.47 kg
Last name on nameplate: ‎ Industrial
Wallpaper pattern: Single item
Power supply: Power cord type
Voltage: 100 volts
Quantity: 1
Accessories: None
Batteries included : ‎No
Product weight: ‎3.47 Kilograms
