Auto Parts Tokyo

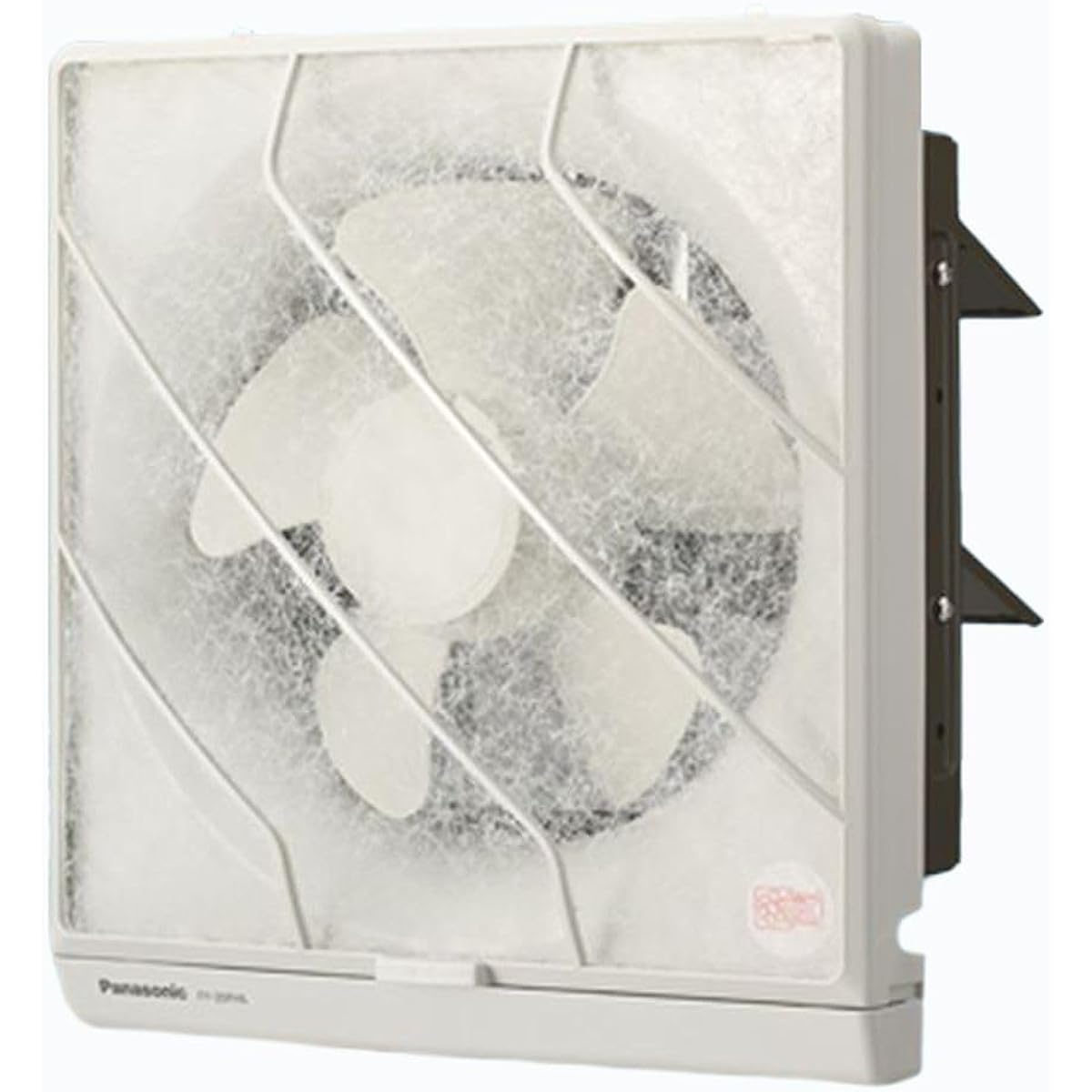

Panasonic FY-20EH6 Ventilation Fan with Filter Exhaust Remote Control Electric Shutter Width 306 x Depth 164 x Height 336 mm
Panasonic FY-20EH6 Ventilation Fan with Filter Exhaust Remote Control Electric Shutter Width 306 x Depth 164 x Height 336 mm
Regular price
$165.00 USD
Regular price
Sale price
$165.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Insulation class: E class, insulation resistance: 1M ohm or more (DC500V) Size: Width 306 x Depth 164 x Height 336 mm / Mass: 2.3 kg / Materials: Frame, shutter: Painted steel plate, blades, orifice, oil pan : P.P resin, Power cord: Vinyl, Filter: ABS, PET Function: Exhaust/Motor type: 4-pole capacitor induction motor/Time rating: Continuous Insulation class: E class, Insulation resistance: 1M ohm or more (DC500V) ・Shutter: 2 / Withstand voltage: AC1000V for 1 minute Rating: Single phase 100V 50/60 Hz, Power consumption: 13.5/16.5W, Current: 0.135/0.165A, Ventilation air volume: 450/500m3/h, Noise: 34.0/35.0dB
A ventilation fan with a filter. This product is subject to the long-term use product safety labeling system. Equipped with a half-pitch wire-wound condenser motor with a 73-diameter core system (4 poles, 8 divisions, 8 slots) to reduce power consumption. The filter, fan, and thin oil pan are easy to attach and detach. The replaceable one-touch filter tightly covers the main body, making it difficult to get dirty. The spinnerless one-touch detachable fan can be removed by simply pressing the center cap. To remove the oil pan, simply pull it toward you, making it easier to get your hands dirty. If you use a built-in outlet, the surrounding area will also be tidy. By installing commercially available recessed outlets and wiring directly, you can avoid exposing wall outlets, cords, and plugs. *For the embedded outlet, please purchase WN1001SW manufactured by Panasonic Corporation. *For construction using quick-connect terminals, please use a wooden frame or a non-combustible frame. Shutter flapping sound, closing sound By suppressing the unique clicking sound of the shutter, the flapping sound is reduced. The air foil tip reduces the vortices generated at the trailing edge of the fan, and also makes the bending rate of the leading edge of the fan more efficient against the inflow of air, reducing unpleasant buzzing and whistling noises. I am. The filter structure combines fine fibers to firmly catch oil. You can install an optional embedded outlet inside the ventilation fan and wire it directly.
Brand: Panasonic
Product model number: FY-20EH6
Package size: 38.1 x 37.9 x 20.6 cm; 2.3 kg
Power supply: Power cord Formula
Quantity: 1
Product weight: 2.3 Kilograms
A ventilation fan with a filter. This product is subject to the long-term use product safety labeling system. Equipped with a half-pitch wire-wound condenser motor with a 73-diameter core system (4 poles, 8 divisions, 8 slots) to reduce power consumption. The filter, fan, and thin oil pan are easy to attach and detach. The replaceable one-touch filter tightly covers the main body, making it difficult to get dirty. The spinnerless one-touch detachable fan can be removed by simply pressing the center cap. To remove the oil pan, simply pull it toward you, making it easier to get your hands dirty. If you use a built-in outlet, the surrounding area will also be tidy. By installing commercially available recessed outlets and wiring directly, you can avoid exposing wall outlets, cords, and plugs. *For the embedded outlet, please purchase WN1001SW manufactured by Panasonic Corporation. *For construction using quick-connect terminals, please use a wooden frame or a non-combustible frame. Shutter flapping sound, closing sound By suppressing the unique clicking sound of the shutter, the flapping sound is reduced. The air foil tip reduces the vortices generated at the trailing edge of the fan, and also makes the bending rate of the leading edge of the fan more efficient against the inflow of air, reducing unpleasant buzzing and whistling noises. I am. The filter structure combines fine fibers to firmly catch oil. You can install an optional embedded outlet inside the ventilation fan and wire it directly.
Brand: Panasonic
Product model number: FY-20EH6
Package size: 38.1 x 37.9 x 20.6 cm; 2.3 kg
Power supply: Power cord Formula
Quantity: 1
Product weight: 2.3 Kilograms
