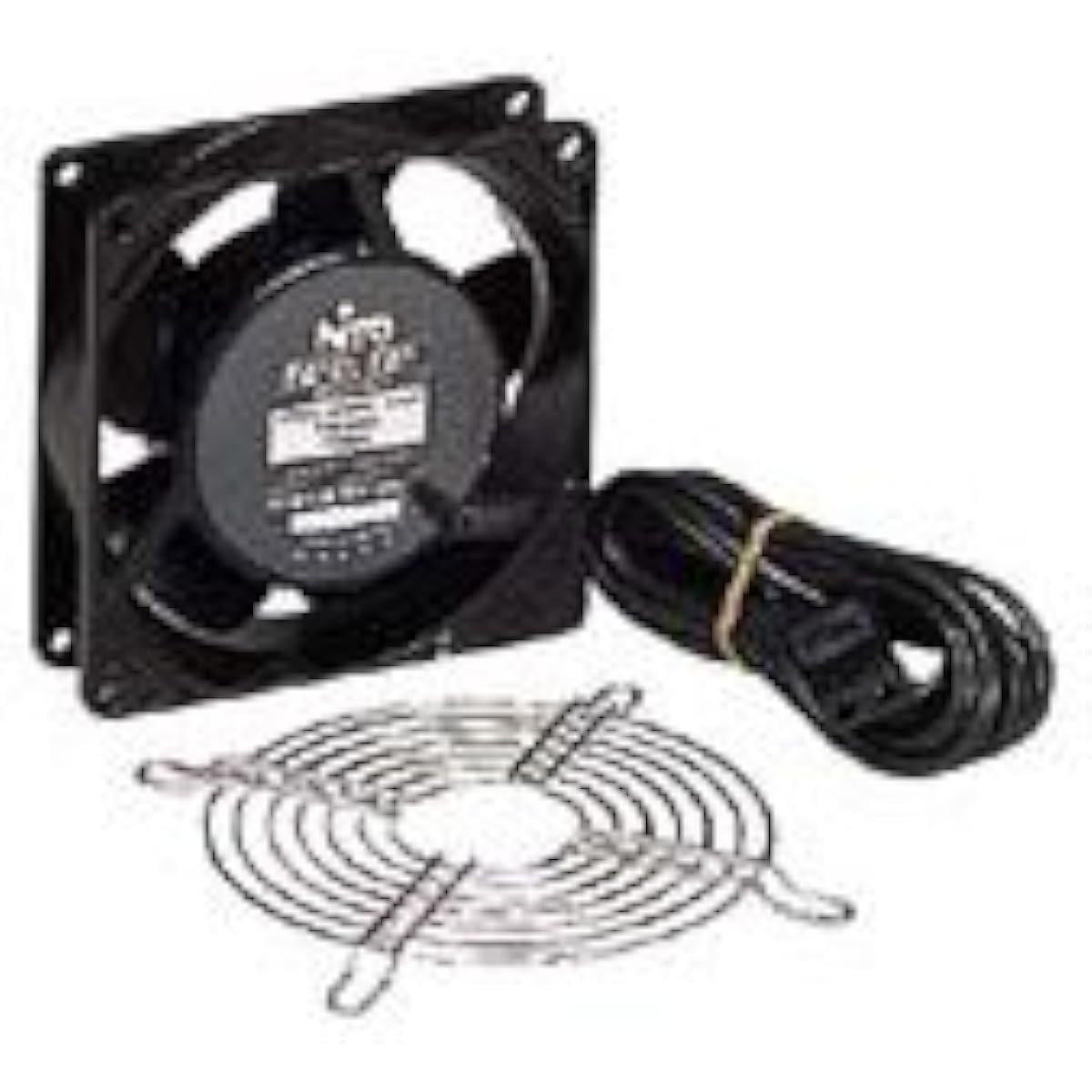

Nitto Kogyo Panel Ventilation Fan Metal Fan RD45-122

*The published image is a representative image of the product series. Different from the actual product. ●Quantity (pieces): 1
●Rated voltage V (single phase): AC200
●Maximum air flow m3/min: 2.3/ 2.6
●Maximum static pressure Pa: 64/ 62
● Rated current A:0.13/ 0.11
●Rated power consumption W:16/15
●Operating temperature ℃:-10~+60
●Noise dB(A): Approx. 40/44
●Input Terminal: 2 terminals


●Quantity (pieces): 1●Rated voltage V (single phase): AC200●Maximum air flow m3/min: 2.3/ 2.6●Maximum static pressure Pa: 64/ 62●Rated current A: 0.13/ 0.11●Rated power consumption W :16/15●Operating temperature ℃:-10~+60●Noise dB(A): Approx. 40/44●Input terminals: 2 terminals


Manufacturer: ‎Nitto Kogyo (NiTO)
Part number: RD45-122
Product weight: 600 g
Product size: 11.95 x 11.95 x 3.8 cm; 600 g
Material: Material: Frame: Aluminum alloy Blade: Resin PF- 085C(-2)A, PF-091C(-2) Steel plate RD45-091A/092A/121/122PF-150-(2)M
Accessories: Finger guard, plug cord (2m) *2 (lead (excluding wire type), mounting screws, instruction manual
Batteries used: No
Product dimensions (Length x Width x Height): 11.9 x 11.9 x 3.8 cm
