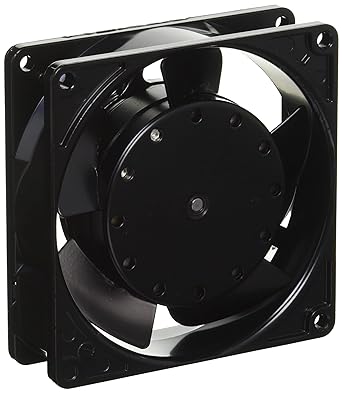

Nitto Kogyo Panel Ventilation Fan Metal Fan RD45-092A

*The published image is a representative image of the product series. Different from the actual product. ●Quantity (pieces): 1
●Rated voltage V (single phase): AC200
●Maximum air flow m3/min: 0.85/ 1.0
●Maximum static pressure Pa: 50/ 65
● Rated current A:0.07/ 0.06
●Rated power consumption W:11/9
●Operating temperature ℃:-10~+60
●Noise dB(A): Approx. 31/36
●Input Terminal: 2 terminals


●Quantity (pieces): 1●Rated voltage V (single phase): AC200●Maximum air flow m3/min:0.85/ 1.0●Maximum static pressure Pa:50/ 65●Rated current A:0.07/ 0.06●Rated power consumption W :11/9●Operating temperature ℃:-10~+60●Noise dB(A): Approx. 31/36●Input terminals: 2 terminals


Manufacturer: Nitto Kogyo (NiTO)
Part number: RD45-092A
Product weight: 400 g
Product size: 9.2 x 9.2 x 2.7 cm; 400 g
Material: Material: Frame: Aluminum alloy Blade: Resin PF- 085C(-2)A, PF-091C(-2) Steel plate RD45-091A/092A/121/122PF-150-(2)M
Power supply type: Power cord type

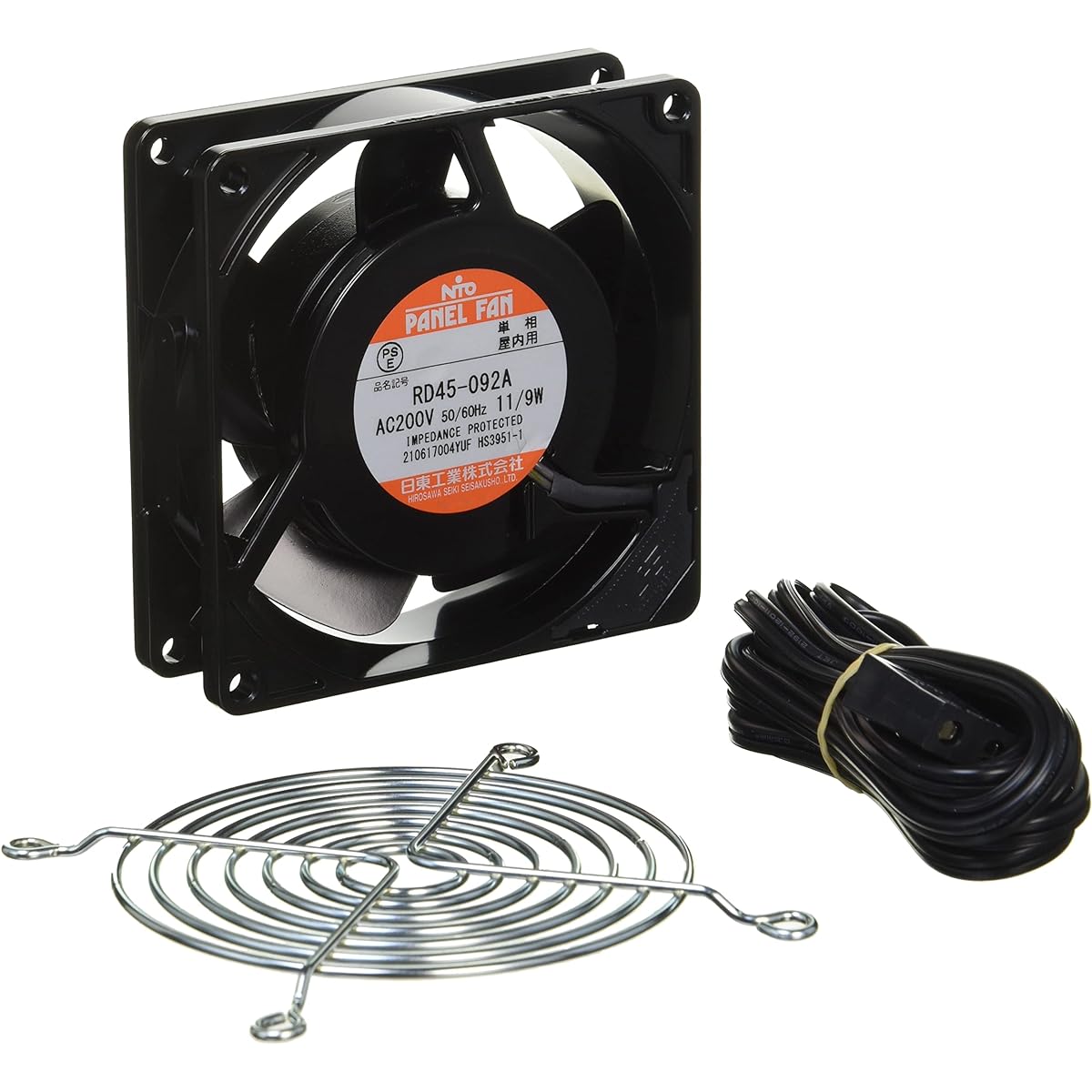

Accessories: Finger guard , plug cord (2m) *2 (excluding lead wire type), mounting screw, instruction manual Battery usage: No Product dimensions (length x width x height): 9.2 x 9.2 x 2.7cm
