Nitto Kogyo Panel Ventilation Fan Resin Fan Series Frame Aluminum Alloy, Blade Resin 1 Piece PF-085

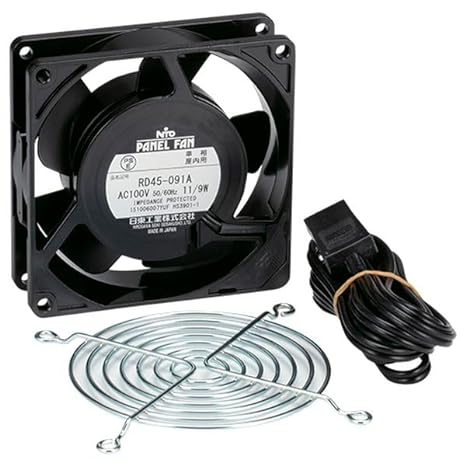

*The published image is a representative image of the product series. Different from the actual product. ●Quantity (pieces): 1
●Rated voltage V (single phase): AC100
●Maximum air flow m3/min: 0.80/ 0.95
●Maximum static pressure Pa: 41/ 59
● Rated current A:0.13/ 0.10
●Rated power consumption W:10/9
●Operating temperature ℃:-10~+70
●Noise dB(A): Approx. 32/36
●Input Terminal: Lead wire (0.3m)


●Quantity (pieces): 1●Rated voltage V (single phase): AC100●Maximum air flow m3/min: 0.80/ 0.95●Maximum static pressure Pa: 41/ 59●Rated current A: 0.13/ 0.10●Rated power consumption W :10/9●Operating temperature ℃:-10~+70●Noise dB(A): Approx. 32/36●Input terminal: Lead wire (0.3m)


Manufacturer: ‎Nitto Kogyo (NiTO) )
Part number: ‎PF-085
Item weight: ‎100 g

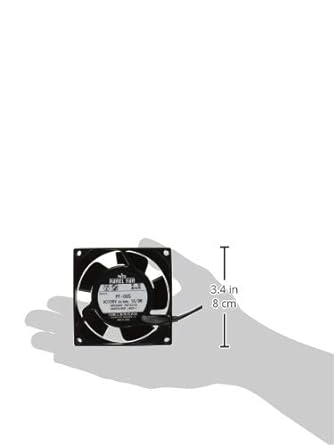

Product size: ‎8 x 8 x 3.8 cm; 100 g
Material: ‎Plastic
Pattern: ‎ PF-085

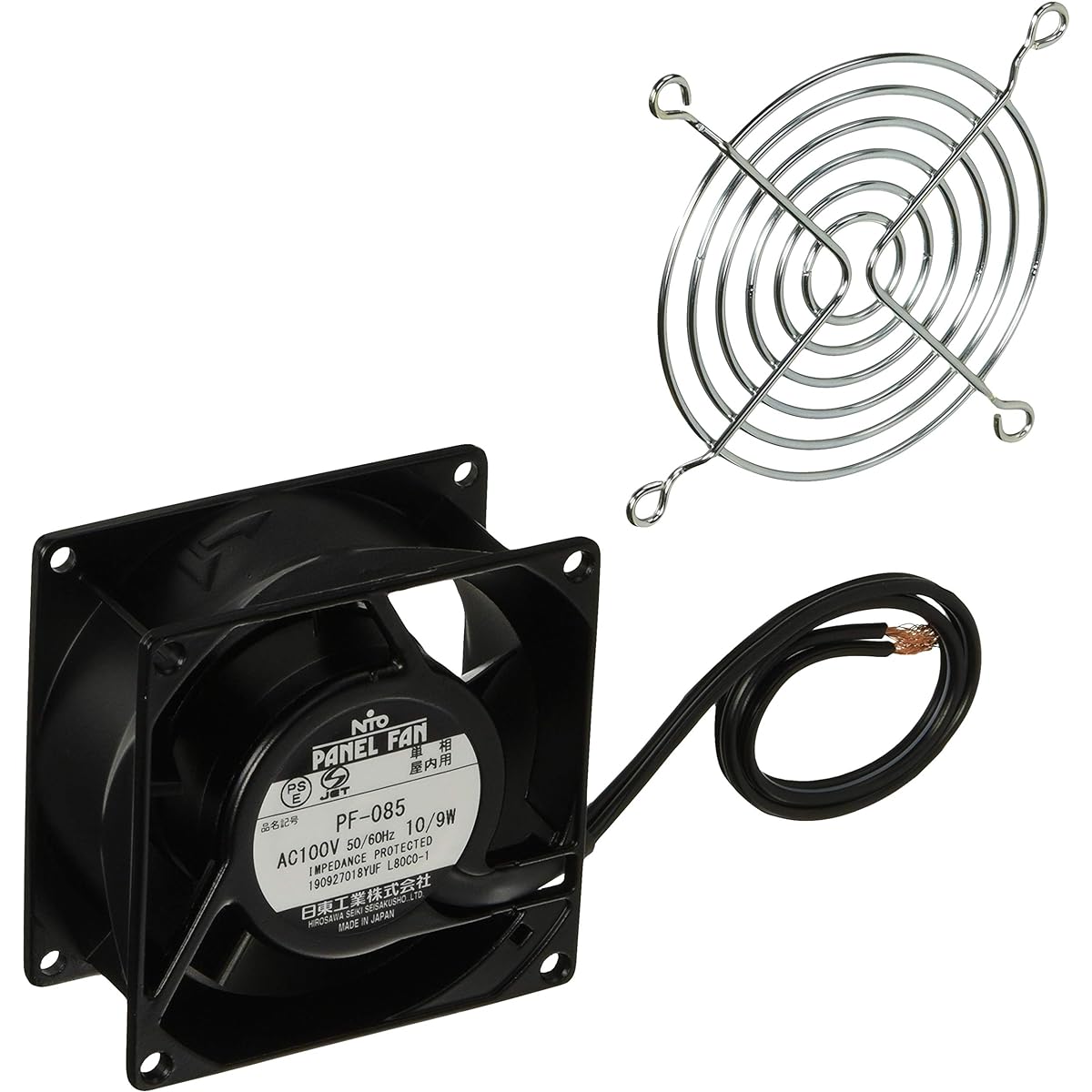

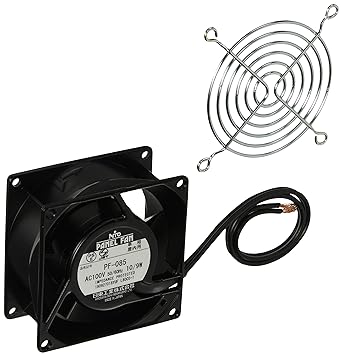

Accessories: ‎Finger guard, plug cord (2m) *2 (excluding lead wire type), mounting screw, instruction manual
Battery usage: ‎No
Product dimensions (length) x width x height): ‎8 x 8 x 3.8 cm
