TIPTOP Torque Wrench 210Nm TQ1-210
TIPTOP Torque Wrench 210Nm TQ1-210
Regular price
$59.00 USD
Regular price
Sale price
$59.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

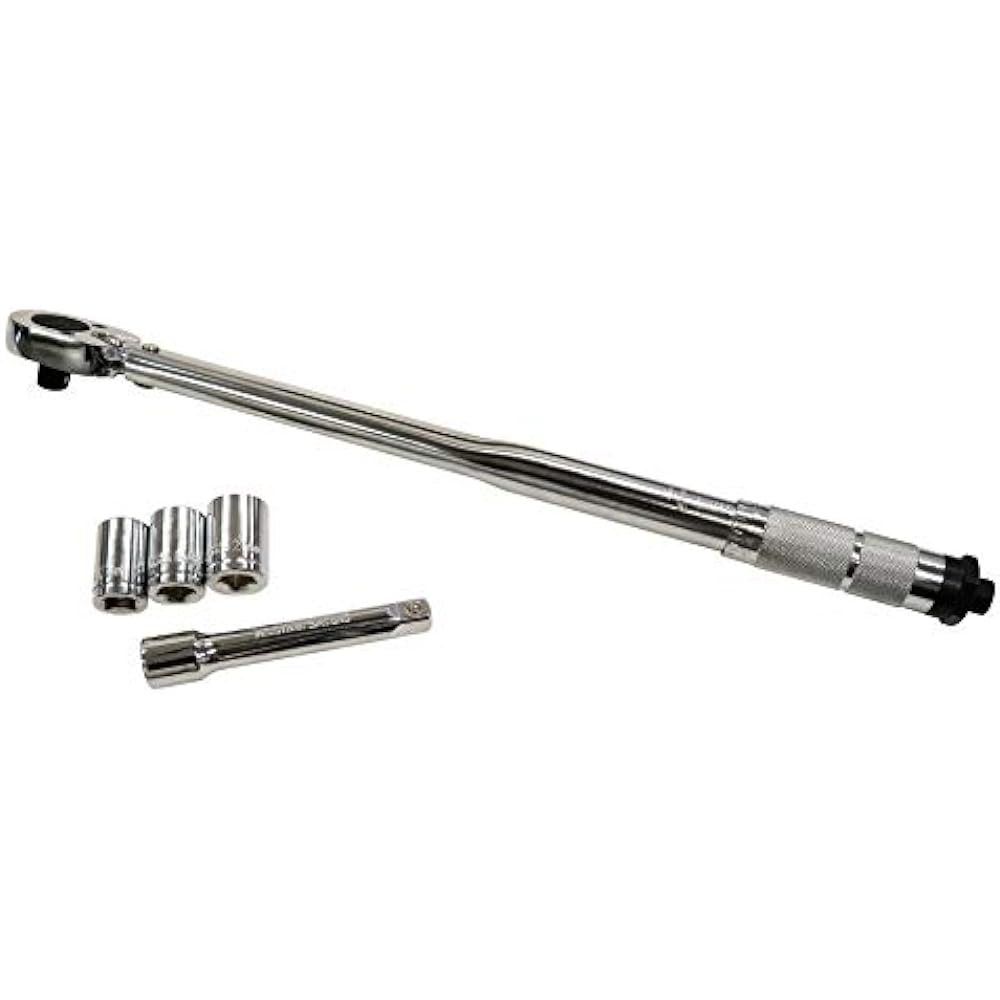

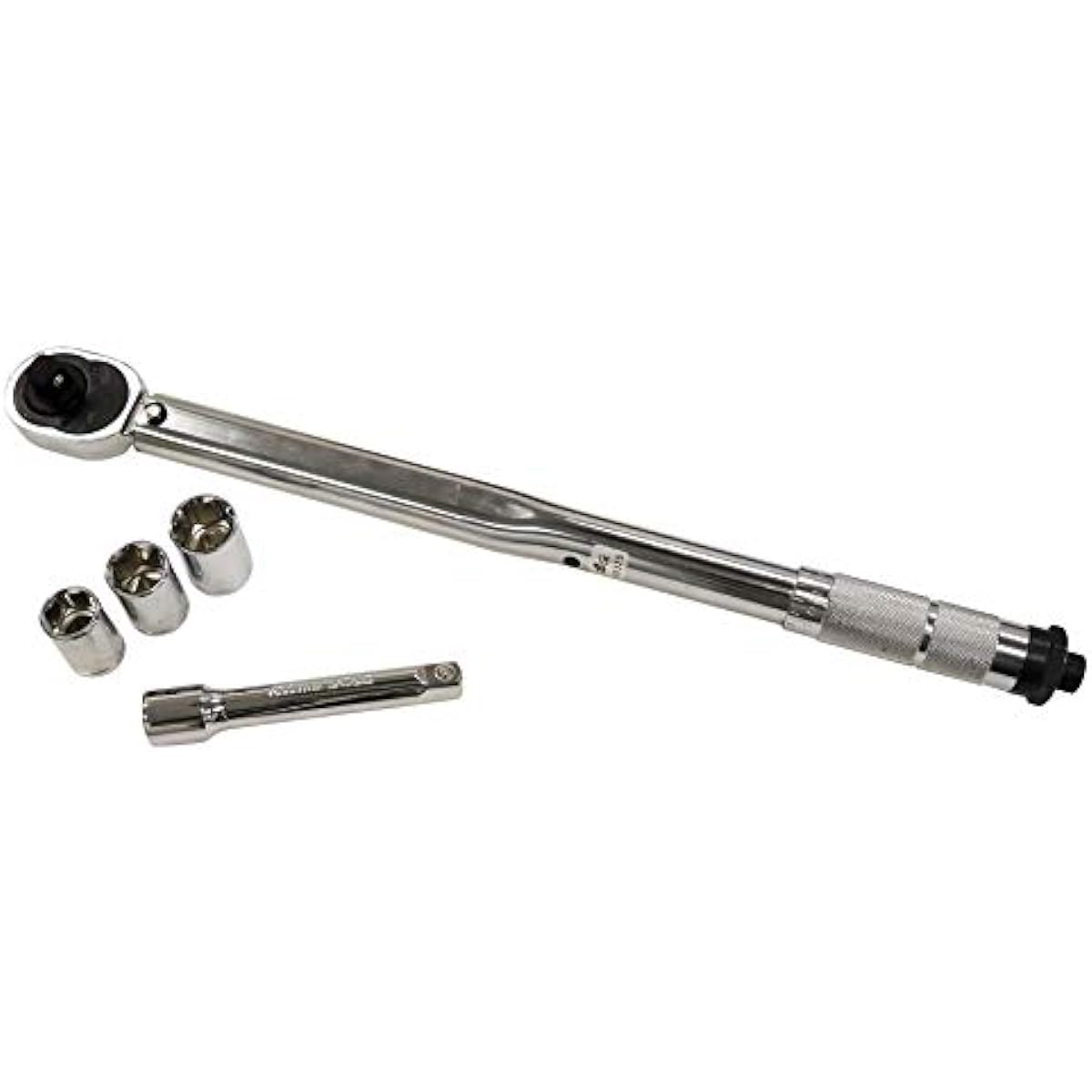

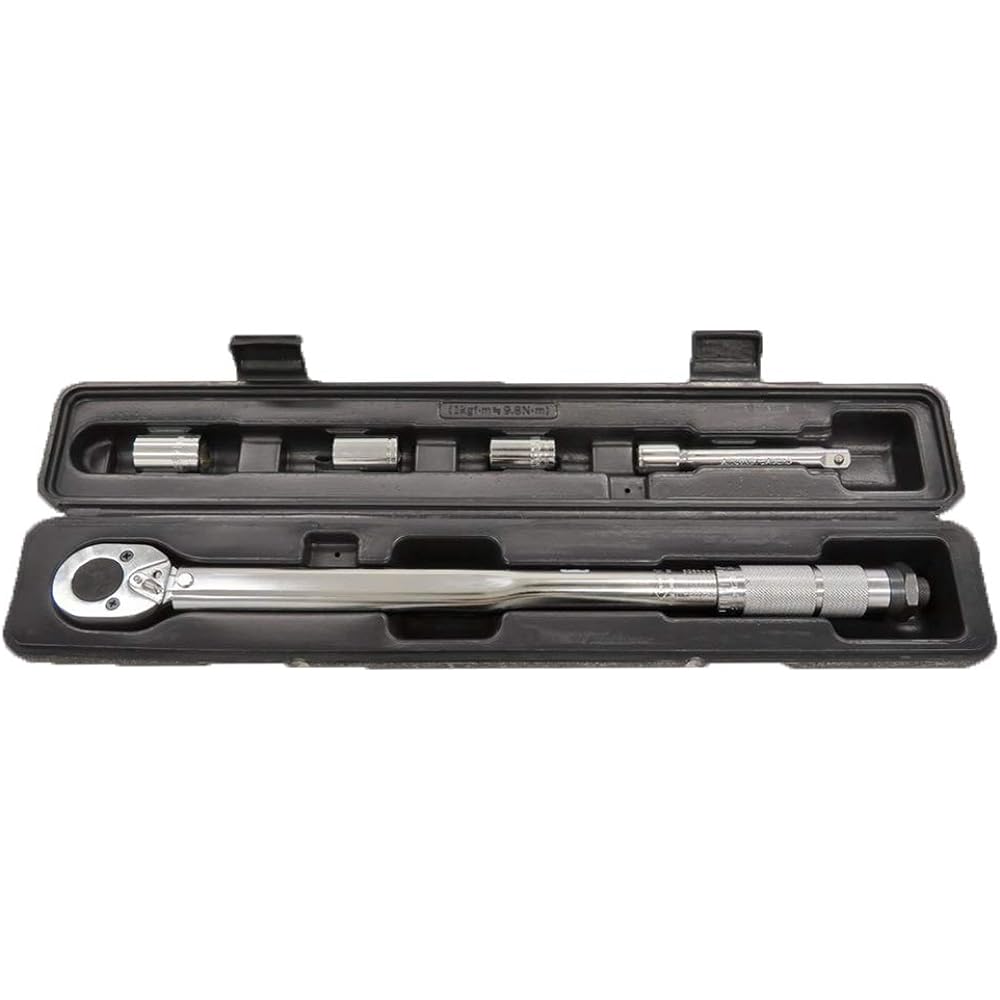

[Torque adjustment range] 28Nm-210Nm [Set contents] Torque wrench: 1 piece, extension bar (100mm): 1 piece, socket: 3 pieces (17/19/21mm) [Body size/weight] Approx. 407mm/ Approximately 1.4 kg [Material] Body: Carbon steel/steel, Socket extension bar: Chrome vanadium [Socket size] Total length: 38.2 mm, Width: 23.7 mm (17 mm socket), 25.7 mm (19 mm socket), 27.7 mm (21 mm socket) )
●A must-have item for tire replacement. ●You can tighten with the appropriate force just by matching the specified torque. ●The standard tightening torque for domestic cars and standard wheels is 100Nm-120Nm. [How to use] (1) Turn the "stopper" on the grip of the torque wrench to the left to release the lock. (2) After releasing the lock, adjust the tightening torque using the adjustment scale on the torque wrench body. (To adjust, turn the grip part of the torque wrench body to match the specified torque of the vehicle.) (3) Once the adjustment is complete, lock the "stopper" as in (1). (Turn to the right to lock) (4) Set the "rotation direction switching lever" at the base of the ratchet part to the tightening side, insert the socket that matches the nut size into the ratchet part, and begin tightening work. *Make sure that the hand turning the wrench is horizontal to the wrench in the vertical direction and at right angles in the horizontal direction. (5) When the target is tightened to the appropriate torque, a clicking sound will be heard. [Adjusting the tightening torque] The torque adjustment scale on the main body side is engraved every 14Nm. To set a fine tightening torque, use the scale on the grip side. The scale on the grip side is a half turn from 0 to 0, which is equivalent to one scale on the main body side. (Display on the grip side: 1 scale = 1Nm) [Caution] *Never use a torque wrench for removal work. *Please do not use it for any purpose other than its intended purpose. *Before using a torque wrench, be sure to temporarily tighten bolts and nuts with a wrench. *The tightening torque varies depending on the tightening location, so please check with the maintenance handbook, manufacturer or dealer, or the instruction manual of the parts to be installed. *When setting the torque, be sure to check the setting value of the tightening point and confirm the setting and release of the stopper. *Please be careful not to overtighten. *This product cannot be used to tighten spark plugs or oil drain plugs.
Manufacturer: TIPTOP
Brand: TIPTOP
Model name: TQ1-210
Packing size: 52.8 x 8.6 x 7.6 cm; 1.4 kg
Product model number: TQ1-210
Lift type: Manual
Certification: None
Product weight: 1.4 Kilograms
●A must-have item for tire replacement. ●You can tighten with the appropriate force just by matching the specified torque. ●The standard tightening torque for domestic cars and standard wheels is 100Nm-120Nm. [How to use] (1) Turn the "stopper" on the grip of the torque wrench to the left to release the lock. (2) After releasing the lock, adjust the tightening torque using the adjustment scale on the torque wrench body. (To adjust, turn the grip part of the torque wrench body to match the specified torque of the vehicle.) (3) Once the adjustment is complete, lock the "stopper" as in (1). (Turn to the right to lock) (4) Set the "rotation direction switching lever" at the base of the ratchet part to the tightening side, insert the socket that matches the nut size into the ratchet part, and begin tightening work. *Make sure that the hand turning the wrench is horizontal to the wrench in the vertical direction and at right angles in the horizontal direction. (5) When the target is tightened to the appropriate torque, a clicking sound will be heard. [Adjusting the tightening torque] The torque adjustment scale on the main body side is engraved every 14Nm. To set a fine tightening torque, use the scale on the grip side. The scale on the grip side is a half turn from 0 to 0, which is equivalent to one scale on the main body side. (Display on the grip side: 1 scale = 1Nm) [Caution] *Never use a torque wrench for removal work. *Please do not use it for any purpose other than its intended purpose. *Before using a torque wrench, be sure to temporarily tighten bolts and nuts with a wrench. *The tightening torque varies depending on the tightening location, so please check with the maintenance handbook, manufacturer or dealer, or the instruction manual of the parts to be installed. *When setting the torque, be sure to check the setting value of the tightening point and confirm the setting and release of the stopper. *Please be careful not to overtighten. *This product cannot be used to tighten spark plugs or oil drain plugs.
Manufacturer: TIPTOP
Brand: TIPTOP
Model name: TQ1-210
Packing size: 52.8 x 8.6 x 7.6 cm; 1.4 kg
Product model number: TQ1-210
Lift type: Manual
Certification: None
Product weight: 1.4 Kilograms
