Special parts TAKEGAWA Super Multi TFT Meter Ducks 125 (JB04) 05-05-0111
Special parts TAKEGAWA Super Multi TFT Meter Ducks 125 (JB04) 05-05-0111
Regular price
$495.00 USD
Regular price
Sale price
$495.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

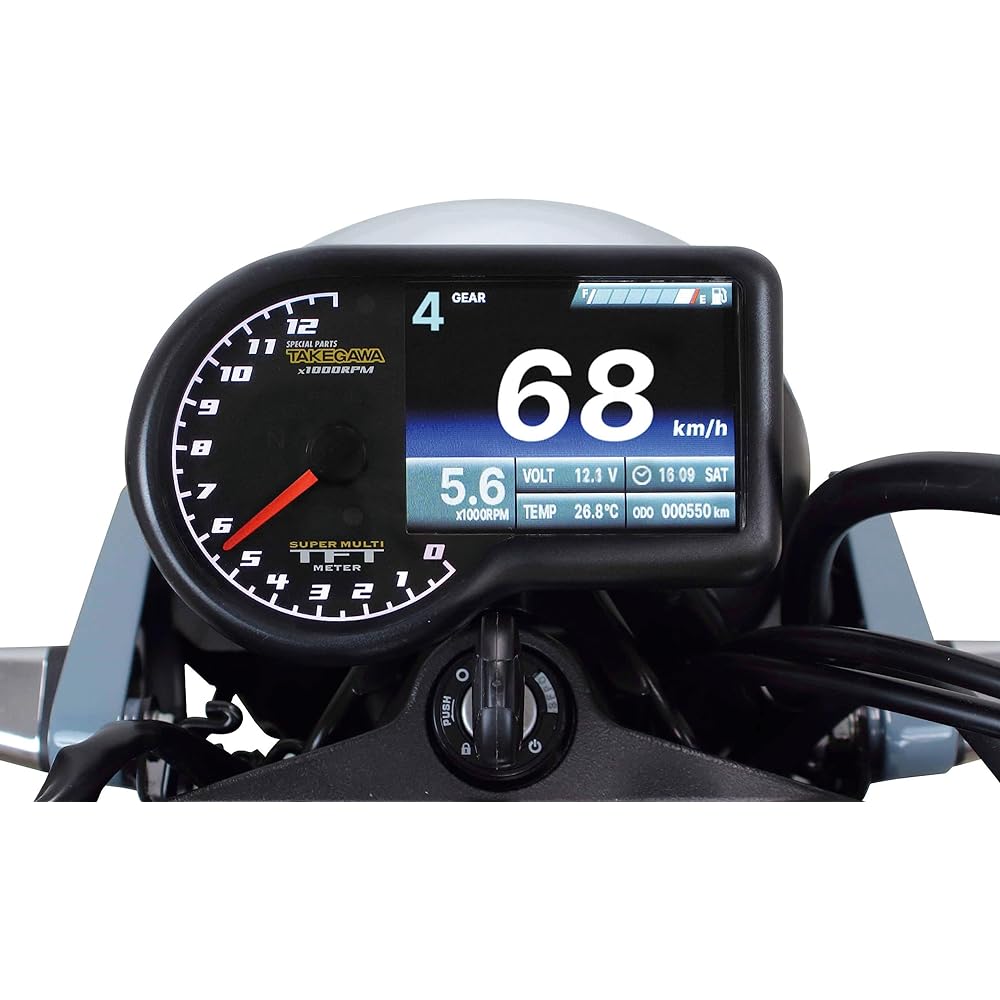

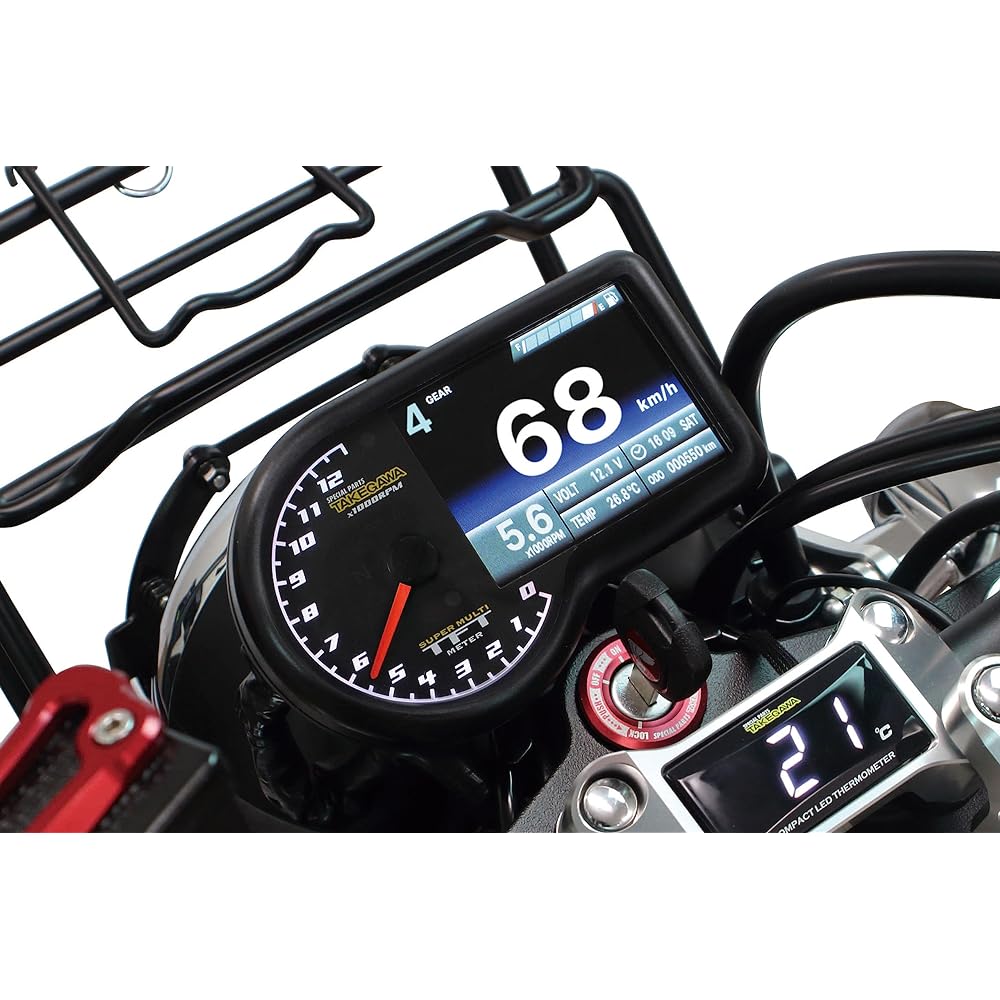

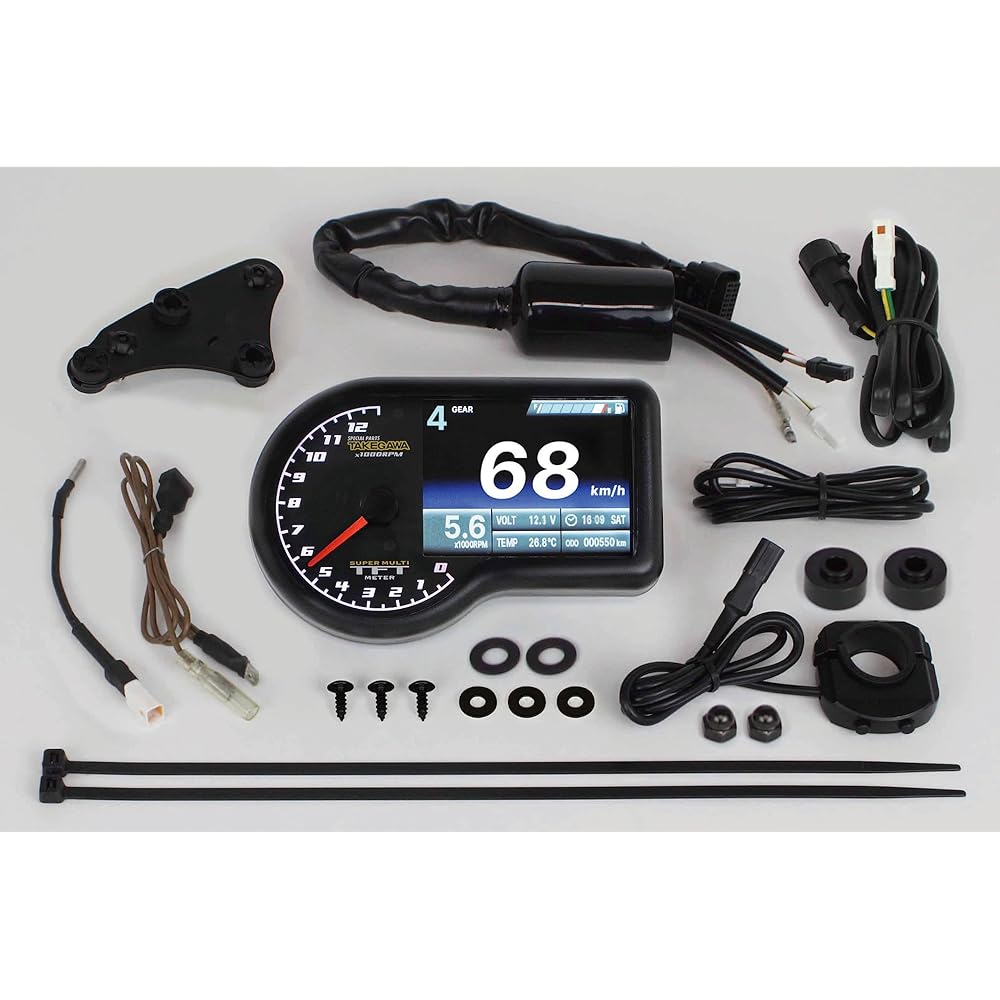

A super multi-TFT meter that combines multiple functions including a power test function Target vehicle: Dax 125 (JB04-1000001~) Comes with a dedicated sub-harness and a dedicated stay set
This multimeter is equipped with many functions such as speed, rotation speed, gear position, temperature gauge, fuel gauge, time, battery voltage display, tire outer diameter correction, power test function, etc. Adopts a highly visible pointer-type tachometer and digital display with TFT liquid crystal. List of functions Speedometer 0 to 360km/h Tire circumference setting (setting range 300 to 2500mm, setting unit 1mm) Speed warning light (setting range 30 to 360km/h, setting unit 1km/h) Maximum speed record (display range 0 to 360km/h) Setting unit 1km/h) Pointer type tachometer 0 to 13000rpm Rotation speed warning light (Setting range: 1000 to 13000rpm Setting unit: 100rpm) Digital tachometer 0 to 20000rpm Rotation speed warning light (Setting range: 1000 to 20000rpm Setting unit: 100rpm ) Ignition setting (Setting range 0.5・1 to 24 Setting range Hi Act・Lo Act) Odometer 0 to 999999km (Display unit: 1km Returns to 0 when the range is exceeded) Total mileage/User odometer setting (Starting point distance arbitrary input) Trip meter A, B 0 to 9999.9km (display unit: 0.1km, returns to 0 when the range is exceeded) By operating an external switch, the display changes to trip meter B.Oil change time warning The entered mileage is automatically changed as you drive. decreases in Maintenance distance (notification mode) (Setting range: 500 to 16000km Setting unit: 100km) Gear position (Display content: All gears (up to 9) displayed, all gears hidden) Gear number registration function with learning mode Fuel gauge (Display range: 6 steps) Fuel sensor resistance preset 100Ω 250Ω 270Ω 390Ω 510Ω 1200Ω User resistance setting Resistance range: 0 to 1500Ω Fuel warning light Backlight: Day/Night mode LCD screen AUTO switching function Brightness adjustment function Lighting color switching function Lighting color : White, red, orange, green, blue, yellow In Day mode, only the needle-type tachometer scale can be changed; in Night mode, the needle-type tachometer scale and the gradation part of the main LCD can be changed. Clock / Day of the week (setting range: 12 time or 24 hours) *The day of the week will be automatically entered when you set the Western calendar and month/day. By setting the year/month/day/day of the week, it will be displayed on the opening screen when the key is turned on. Voltmeter (Display range: 8 to 18V) Voltage warning light (Setting range: 8 to 18V Setting unit: 0.1V) Thermometer (Display range: 0 to 250℃) *By purchasing the SP Takekawa drain bolt separately, Temperature measurement at the drain bolt part is possible. Temperature warning light (setting range: 60 to 250℃) Maximum temperature record (setting range: 0 to 250℃) Air-fuel ratio meter (display range: 12.1 to 17.5) *Requires SP Takegawa O2 sensor and O2 sensor boss Masu. * How to install the O2 sensor boss: It is necessary to drill a hole in the exhaust pipe and fix the O2 sensor boss by welding. *The thermometer and air-fuel ratio meter cannot be displayed at the same time. Function display can be switched depending on the sensor installed. Power test function: Target speed record (Target Speed), target distance record (Target Distance), maximum speed record (Top Speed) Each record is displayed as a record. The highest record is displayed at the top, and No. 2 and below are displayed in the order of measurement. Records can be reset. For target speed/distance settings, set the specified values in the function settings. Indicator lamps: warning lamp, turn lamp, high beam lamp, neutral lamp, engine warning lamp, oil check run, ABS lamp External switch: All meter operations and function settings are performed using the external switch attached to the meter. *Cannot be installed at the same time as H.I.D. or other manufacturers' LED headlights or fog lights. Some ballasts/inverters (voltage converters) emit high voltage noise that has an adverse effect on digital circuits, causing product failure or malfunction. *Regarding gear position setting: To set the gear position, both the speed signal and engine rotation signal must be input to the Super Multi TFT meter. Therefore, it is necessary to perform automatic reading through “actual driving”. Do not set the gear position in urban areas, as there are many traffic lights and traffic, which can be dangerous. Good visibility when driving
Manufacturer: Special Parts Takegawa
Brand: Special Parts Takegawa
Packing size: 24.3 x 13.2 x 12.2 cm; 820 g
Manufacturer reference: 05-05-0111
Product Weight: 820 g
This multimeter is equipped with many functions such as speed, rotation speed, gear position, temperature gauge, fuel gauge, time, battery voltage display, tire outer diameter correction, power test function, etc. Adopts a highly visible pointer-type tachometer and digital display with TFT liquid crystal. List of functions Speedometer 0 to 360km/h Tire circumference setting (setting range 300 to 2500mm, setting unit 1mm) Speed warning light (setting range 30 to 360km/h, setting unit 1km/h) Maximum speed record (display range 0 to 360km/h) Setting unit 1km/h) Pointer type tachometer 0 to 13000rpm Rotation speed warning light (Setting range: 1000 to 13000rpm Setting unit: 100rpm) Digital tachometer 0 to 20000rpm Rotation speed warning light (Setting range: 1000 to 20000rpm Setting unit: 100rpm ) Ignition setting (Setting range 0.5・1 to 24 Setting range Hi Act・Lo Act) Odometer 0 to 999999km (Display unit: 1km Returns to 0 when the range is exceeded) Total mileage/User odometer setting (Starting point distance arbitrary input) Trip meter A, B 0 to 9999.9km (display unit: 0.1km, returns to 0 when the range is exceeded) By operating an external switch, the display changes to trip meter B.Oil change time warning The entered mileage is automatically changed as you drive. decreases in Maintenance distance (notification mode) (Setting range: 500 to 16000km Setting unit: 100km) Gear position (Display content: All gears (up to 9) displayed, all gears hidden) Gear number registration function with learning mode Fuel gauge (Display range: 6 steps) Fuel sensor resistance preset 100Ω 250Ω 270Ω 390Ω 510Ω 1200Ω User resistance setting Resistance range: 0 to 1500Ω Fuel warning light Backlight: Day/Night mode LCD screen AUTO switching function Brightness adjustment function Lighting color switching function Lighting color : White, red, orange, green, blue, yellow In Day mode, only the needle-type tachometer scale can be changed; in Night mode, the needle-type tachometer scale and the gradation part of the main LCD can be changed. Clock / Day of the week (setting range: 12 time or 24 hours) *The day of the week will be automatically entered when you set the Western calendar and month/day. By setting the year/month/day/day of the week, it will be displayed on the opening screen when the key is turned on. Voltmeter (Display range: 8 to 18V) Voltage warning light (Setting range: 8 to 18V Setting unit: 0.1V) Thermometer (Display range: 0 to 250℃) *By purchasing the SP Takekawa drain bolt separately, Temperature measurement at the drain bolt part is possible. Temperature warning light (setting range: 60 to 250℃) Maximum temperature record (setting range: 0 to 250℃) Air-fuel ratio meter (display range: 12.1 to 17.5) *Requires SP Takegawa O2 sensor and O2 sensor boss Masu. * How to install the O2 sensor boss: It is necessary to drill a hole in the exhaust pipe and fix the O2 sensor boss by welding. *The thermometer and air-fuel ratio meter cannot be displayed at the same time. Function display can be switched depending on the sensor installed. Power test function: Target speed record (Target Speed), target distance record (Target Distance), maximum speed record (Top Speed) Each record is displayed as a record. The highest record is displayed at the top, and No. 2 and below are displayed in the order of measurement. Records can be reset. For target speed/distance settings, set the specified values in the function settings. Indicator lamps: warning lamp, turn lamp, high beam lamp, neutral lamp, engine warning lamp, oil check run, ABS lamp External switch: All meter operations and function settings are performed using the external switch attached to the meter. *Cannot be installed at the same time as H.I.D. or other manufacturers' LED headlights or fog lights. Some ballasts/inverters (voltage converters) emit high voltage noise that has an adverse effect on digital circuits, causing product failure or malfunction. *Regarding gear position setting: To set the gear position, both the speed signal and engine rotation signal must be input to the Super Multi TFT meter. Therefore, it is necessary to perform automatic reading through “actual driving”. Do not set the gear position in urban areas, as there are many traffic lights and traffic, which can be dangerous. Good visibility when driving
Manufacturer: Special Parts Takegawa
Brand: Special Parts Takegawa
Packing size: 24.3 x 13.2 x 12.2 cm; 820 g
Manufacturer reference: 05-05-0111
Product Weight: 820 g
