Special parts TAKEGAWA Super Multi DN Meter Ducks 125 (JB04) 05-05-0110
Special parts TAKEGAWA Super Multi DN Meter Ducks 125 (JB04) 05-05-0110
Regular price
$391.00 USD
Regular price
Sale price
$391.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

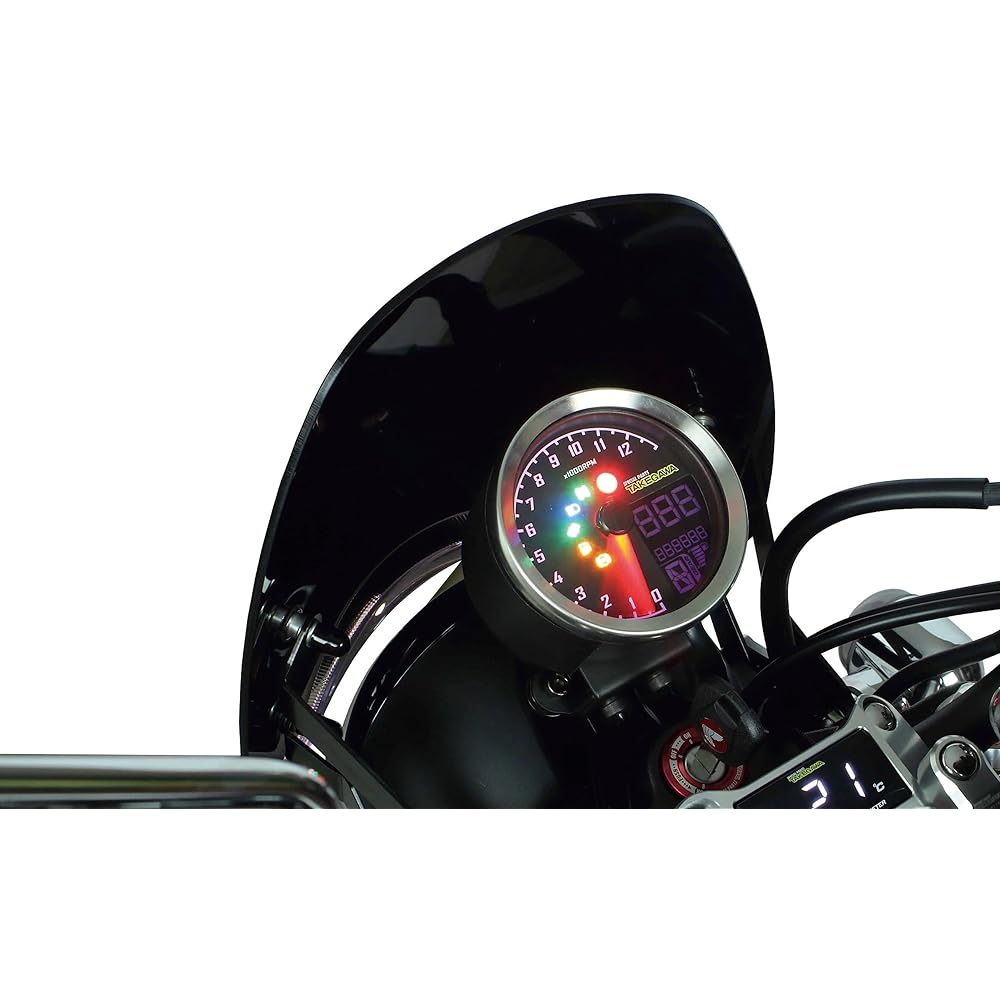

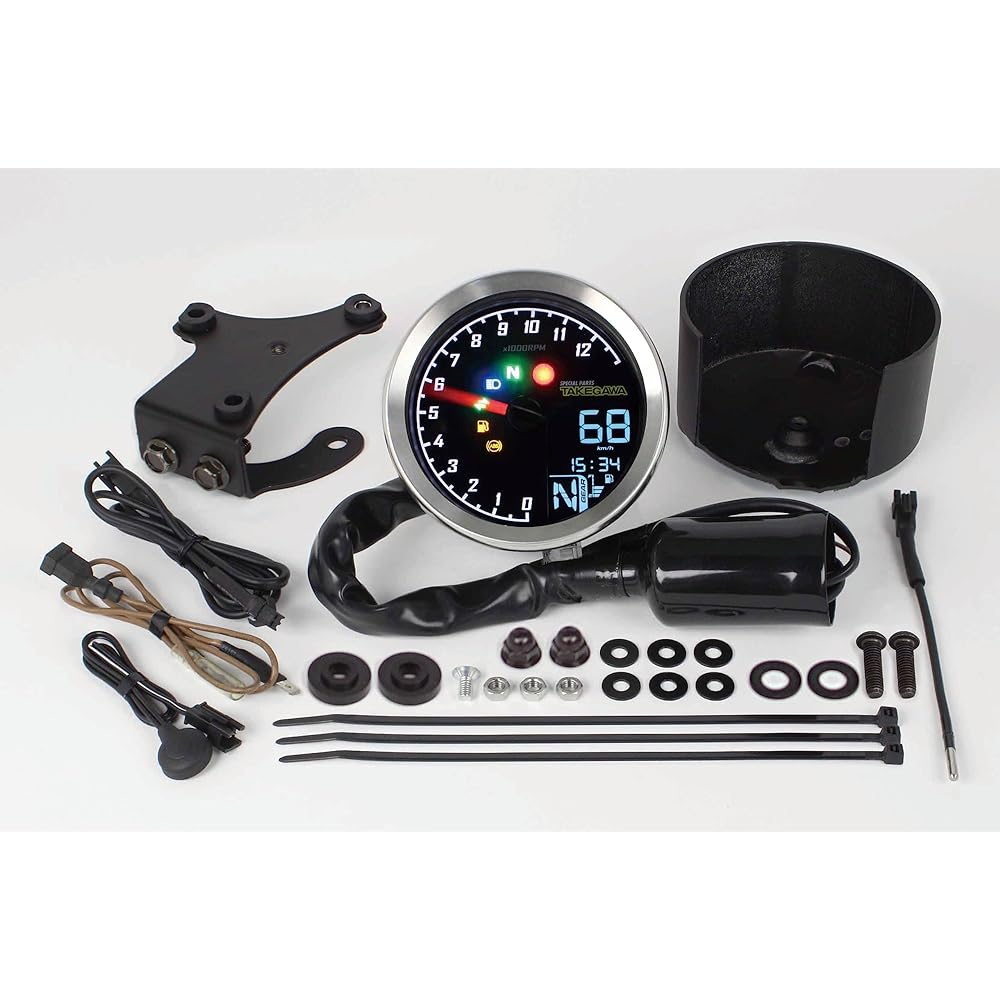

A multimeter that can be installed without the need for any wiring processing by simply replacing the genuine meter Target vehicle: Dax 125 (JB04-1000001~)

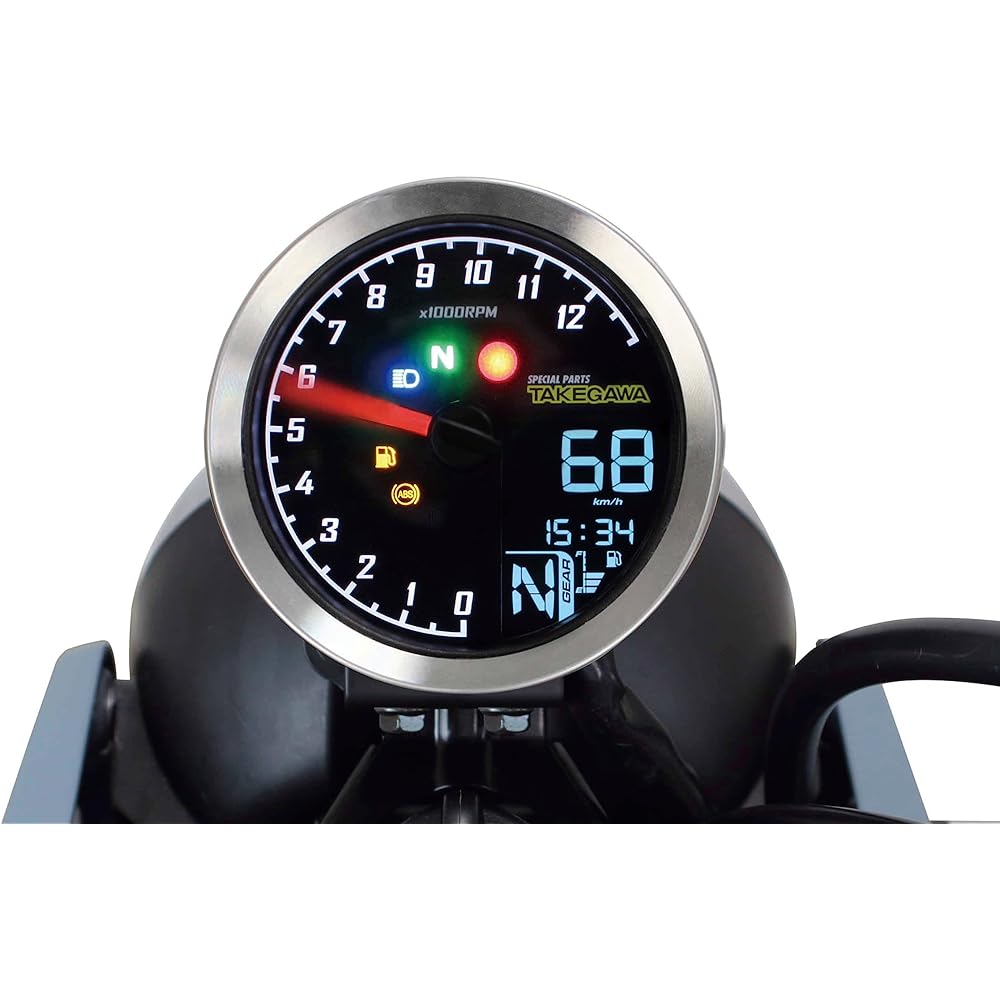

This is a multimeter that can be installed without any wiring work by simply replacing the genuine meter. Equipped with many functions such as speed, rotation speed, gear position, temperature gauge, fuel gauge, time, battery voltage display, tire outer diameter correction, backlight color change, etc. Also, it is almost the same shape and same as the genuine meter. It can be installed in any position. List of functions Speedometer 0 to 360 km/h Tire circumference setting (setting range 50 to 210%, setting increments of 1%) Speed warning light (setting range 30 to 360 km/h, setting increments of 1 km/h) Pointer-type tachometer 0 to 13000 rpm Rotation speed Warning light (Setting range: 1000 to 13000rpm Setting unit: 100rpm) Ignition setting (Setting range 0.5・1 to 24) Odometer 0 to 999999km (Display unit: 1km Returns to 0 when the range is exceeded) Total mileage/User odometer setting (Optional input of starting point distance) Trip meter A, B 0 to 9999.9km (Display unit: 0.1km. Returns to 0 when the range is exceeded) Trip meter B display/hide setting Maintenance Mileage The entered mileage is the distance traveled. It will automatically decrease. Maintenance distance (notification mode) (Setting range: OFF, 500 to 16000km Setting unit: 100km) *OFF is hidden. Gear position (display content: OFF, all gears (up to 9 displayed)) *OFF is hidden Gear number registration function using learning mode Fuel gauge (display range: 6 levels) Fuel sensor resistance value preset 100Ω 250Ω 270Ω 390Ω 510Ω 1200Ω User resistance Value setting resistance value range: 1 to 1500Ω Fuel warning light backlight: Brightness (setting range: 1/5 (dark) to 5/5 (bright) Lighting color: red, orange, yellow, green, blue, sky, purple, White clock (Setting range: 12 hours or 24 hours) Voltmeter (Display range: 8 to 18V) Voltage warning light (Setting range: 8 to 18V Setting unit: 0.1V) Thermometer (Display range: 0 to 150℃) * By purchasing SP Takekawa drain bolt separately, it is possible to measure the temperature at the drain bolt part.Temperature warning light (setting range: 60 to 150℃) Indicator lamp: Warning light (speed/mileage/fuel/battery) Low voltage/temperature/rotational speed *Lights up when setting the item) Neutral lamp, high beam lamp, turn lamp, fuel level warning lamp, ABS lamp, engine check lamp External switch: All meter operations and function settings are performed using the meter included with the meter. Uses an external switch. *Cannot be installed at the same time as H.I.D. or other manufacturers' LED headlights or fog lights. Some products emit high voltage noise from the ballast/inverter (voltage converter) that has a negative impact on digital circuits. This may cause product failure or malfunction. *Regarding gear position setting: To set the gear position, both the speed signal and engine rotation signal must be input to the Super Multi DN meter. ” will be required. Do not set the gear position in urban areas, as there are many traffic lights and traffic, which can be dangerous. When driving, choose a road with good visibility and be aware of the surrounding road conditions. Please check and proceed with caution.
Manufacturer: Special Parts Takegawa
Brand: Special Parts Takegawa
Package size: 15.4 x 13.6 x 13.2 cm; 700 g
Manufacturer reference: 05-05-0110
Product weight: 700 g
This is a multimeter that can be installed without any wiring work by simply replacing the genuine meter. Equipped with many functions such as speed, rotation speed, gear position, temperature gauge, fuel gauge, time, battery voltage display, tire outer diameter correction, backlight color change, etc. Also, it is almost the same shape and same as the genuine meter. It can be installed in any position. List of functions Speedometer 0 to 360 km/h Tire circumference setting (setting range 50 to 210%, setting increments of 1%) Speed warning light (setting range 30 to 360 km/h, setting increments of 1 km/h) Pointer-type tachometer 0 to 13000 rpm Rotation speed Warning light (Setting range: 1000 to 13000rpm Setting unit: 100rpm) Ignition setting (Setting range 0.5・1 to 24) Odometer 0 to 999999km (Display unit: 1km Returns to 0 when the range is exceeded) Total mileage/User odometer setting (Optional input of starting point distance) Trip meter A, B 0 to 9999.9km (Display unit: 0.1km. Returns to 0 when the range is exceeded) Trip meter B display/hide setting Maintenance Mileage The entered mileage is the distance traveled. It will automatically decrease. Maintenance distance (notification mode) (Setting range: OFF, 500 to 16000km Setting unit: 100km) *OFF is hidden. Gear position (display content: OFF, all gears (up to 9 displayed)) *OFF is hidden Gear number registration function using learning mode Fuel gauge (display range: 6 levels) Fuel sensor resistance value preset 100Ω 250Ω 270Ω 390Ω 510Ω 1200Ω User resistance Value setting resistance value range: 1 to 1500Ω Fuel warning light backlight: Brightness (setting range: 1/5 (dark) to 5/5 (bright) Lighting color: red, orange, yellow, green, blue, sky, purple, White clock (Setting range: 12 hours or 24 hours) Voltmeter (Display range: 8 to 18V) Voltage warning light (Setting range: 8 to 18V Setting unit: 0.1V) Thermometer (Display range: 0 to 150℃) * By purchasing SP Takekawa drain bolt separately, it is possible to measure the temperature at the drain bolt part.Temperature warning light (setting range: 60 to 150℃) Indicator lamp: Warning light (speed/mileage/fuel/battery) Low voltage/temperature/rotational speed *Lights up when setting the item) Neutral lamp, high beam lamp, turn lamp, fuel level warning lamp, ABS lamp, engine check lamp External switch: All meter operations and function settings are performed using the meter included with the meter. Uses an external switch. *Cannot be installed at the same time as H.I.D. or other manufacturers' LED headlights or fog lights. Some products emit high voltage noise from the ballast/inverter (voltage converter) that has a negative impact on digital circuits. This may cause product failure or malfunction. *Regarding gear position setting: To set the gear position, both the speed signal and engine rotation signal must be input to the Super Multi DN meter. ” will be required. Do not set the gear position in urban areas, as there are many traffic lights and traffic, which can be dangerous. When driving, choose a road with good visibility and be aware of the surrounding road conditions. Please check and proceed with caution.
Manufacturer: Special Parts Takegawa
Brand: Special Parts Takegawa
Package size: 15.4 x 13.6 x 13.2 cm; 700 g
Manufacturer reference: 05-05-0110
Product weight: 700 g
