SP Takegawa (TAKEGAWA) Super Multi DN Meter CT125 Hunter Cub (JA55/JA65) 05-05-0057

This is a multimeter that can be installed without any wiring modification by simply replacing the genuine meter. Equipped with a variety of functions such as speed, rotation speed, gear position, temperature gauge, fuel gauge, battery voltage display, tire outer diameter correction, backlight color change, etc. Genuine meter has almost the same shape and can be installed in the same position CT125 (JA55-1000001 ~/JA65-1000001~)

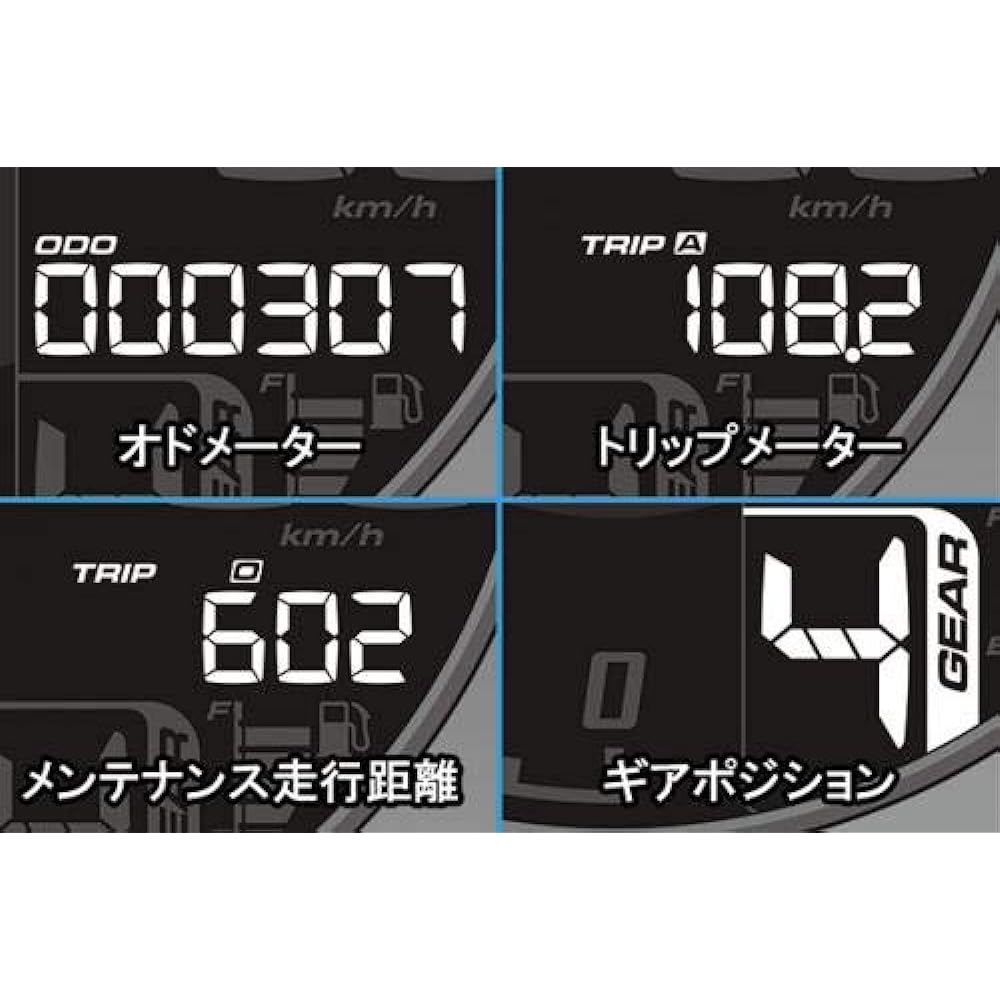

Introducing the genuine meter replacement type multi-function meter [Super Multi DN Meter] for CT125 (JA55). This is a multimeter that can be installed without any wiring work by simply replacing the genuine meter. Equipped with many functions such as speed, rotation speed, gear position, temperature gauge, fuel gauge, time, battery voltage display, tire outer diameter correction, backlight color change, etc. In addition, it has almost the same shape as the genuine meter and can be installed in the same position. [Product Features] ●Speedometer: 0-360km/h, tire circumference setting (setting range 50-210%, setting range 1%), speed warning light (setting range 30-360km/h, setting range 1km/h) ● Pointer type tachometer: 0-13000rpm, rotation speed warning light (setting range 1000-13000rpm, setting unit 100rpm), ignition range (setting range 0.5・1-24) Odometer: 0-999999km (display unit 1km If the range is exceeded (Returns to 0.), Total mileage/User odometer setting (Starting point distance arbitrary input) Trip meter A, B: 0-9999.9km (Display unit: 0.1km. Returns to 0 when the range is exceeded.), Trip meter B Display/hide settings ●Maintenance mileage: The entered mileage will automatically decrease as you drive. Maintenance distance (notification mode) setting range: OFF, 500-16000km Setting unit 100km *OFF is hidden. ●Gear position: Display contents (OFF, all gears) *OFF is hidden, gear number registration function in learning mode ●Fuel system: Display range 6 levels, fuel sensor resistance value preset: 100Ω, 250Ω, 270Ω, 390Ω, 510Ω, 1200Ω, user resistance value setting: resistance value range 1-1500Ω Fuel warning light ●Backlight: Brightness setting range 1/5 (dark) - 5/5 (bright), lighting type: red, orange, yellow, green, blue, Sky, purple, white ●Clock: Setting range 12 hours or 24 hours ●Voltage system: Display range 8-18V, voltage warning light Setting range 8-18V (setting unit 0.1V) ●Thermometer: Display range 0-150℃ * By purchasing the SP Takekawa drain bolt separately, it is possible to measure the temperature at the drain bolt part. Temperature warning light: Setting range 0-150℃ ●Indicator lamp: Warning light (speed/mileage/fuel/battery low voltage/temperature/rpm *lit when setting the item), neutral lamp, high beam lamp, turn lamp, remaining fuel Quantity warning lamp, ABS lamp, engine check lamp ●External switch: For all meter operations and function settings, use the external switch attached to the meter. [Notes] *Cannot be installed simultaneously with H.I.D, LED headlights, or fog lights made by other companies. Some ballasts/inverters (voltage converters) emit high voltage noise that adversely affects digital circuits, causing product failure or malfunction. * Regarding setting the gear position: To set the gear position, both the speed signal and engine rotation signal must be input to the Super Multi DN meter. Therefore, automatic reading work by "actual driving" is required. Do not set the gear position in urban areas, as there are many traffic lights and traffic, which can be dangerous. When driving, please choose a road with good visibility, check the surrounding road conditions, and proceed with caution. [Compatible models] CT125 (JA55-1000001~/JA65-1000001~)


Manufacturer: Special Parts TAKEGAWA Brand: Special Parts TAKEGAWA Model Name: ‎Super Multi DN Meter
Package size: ‎15.2 x 13.8 x 13.4 cm; 580 g
Manufacturer reference: ‎05-05-0057
Certification: ‎None in particular
Product weight: ‎ 580g
